Vertical Windlass Kit 900W with 125' Galvanized Chain - FO3287-4489-M125-KIT
Vertical Windlass Kit 900W with 125' Galvanized Chain - FO3287-4489-M125-KIT
Regular price
$1,699.00
Sale price
$1,699.00
Regular price

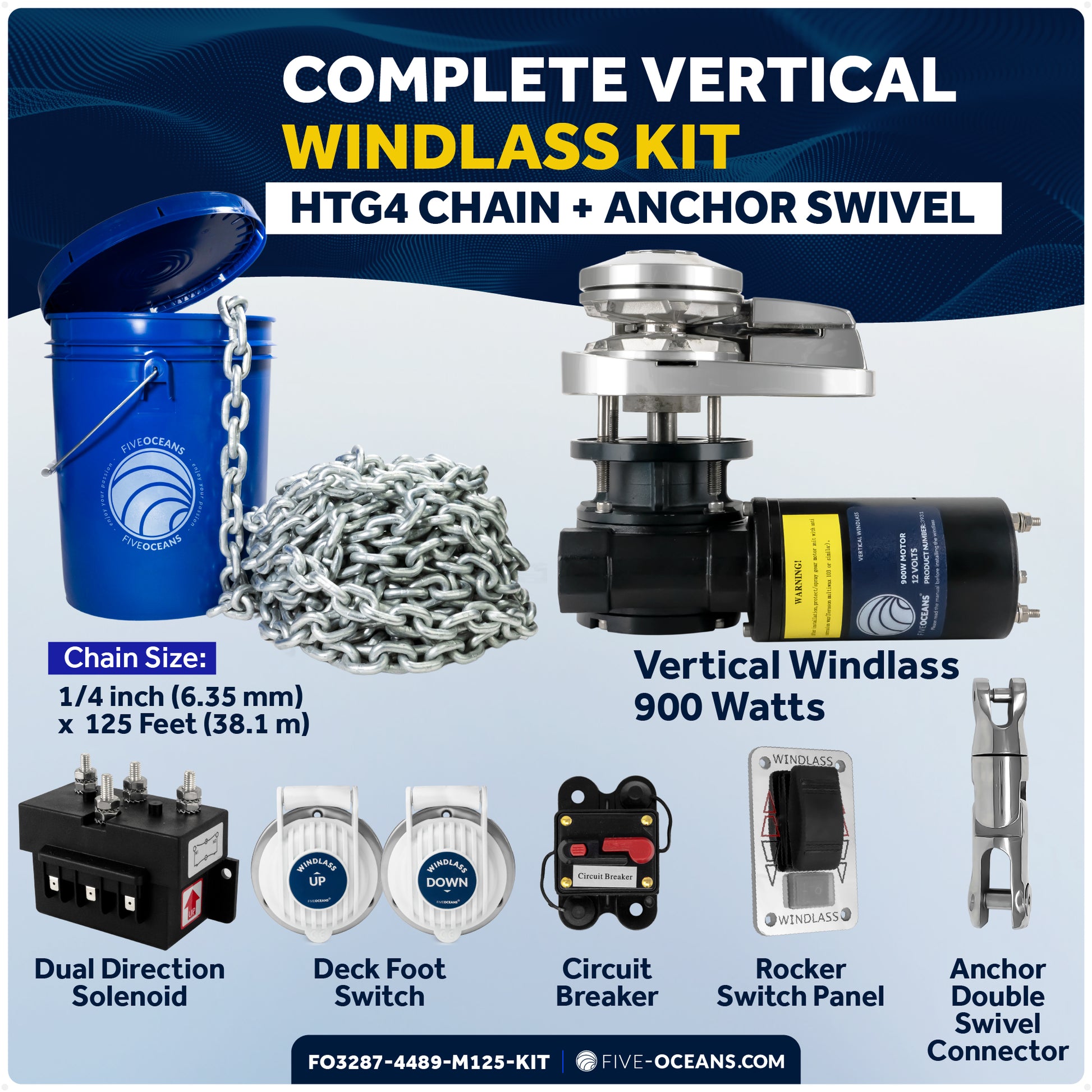

COMPLETE BOAT WINDLASS ANCHOR KIT - Includes a powerful 900W Vertical Windlass, 125 Ft of 1/4" HT G4 galvanizedl anchor chain, and a heavy-duty 316 stainless steel anchor swivel.

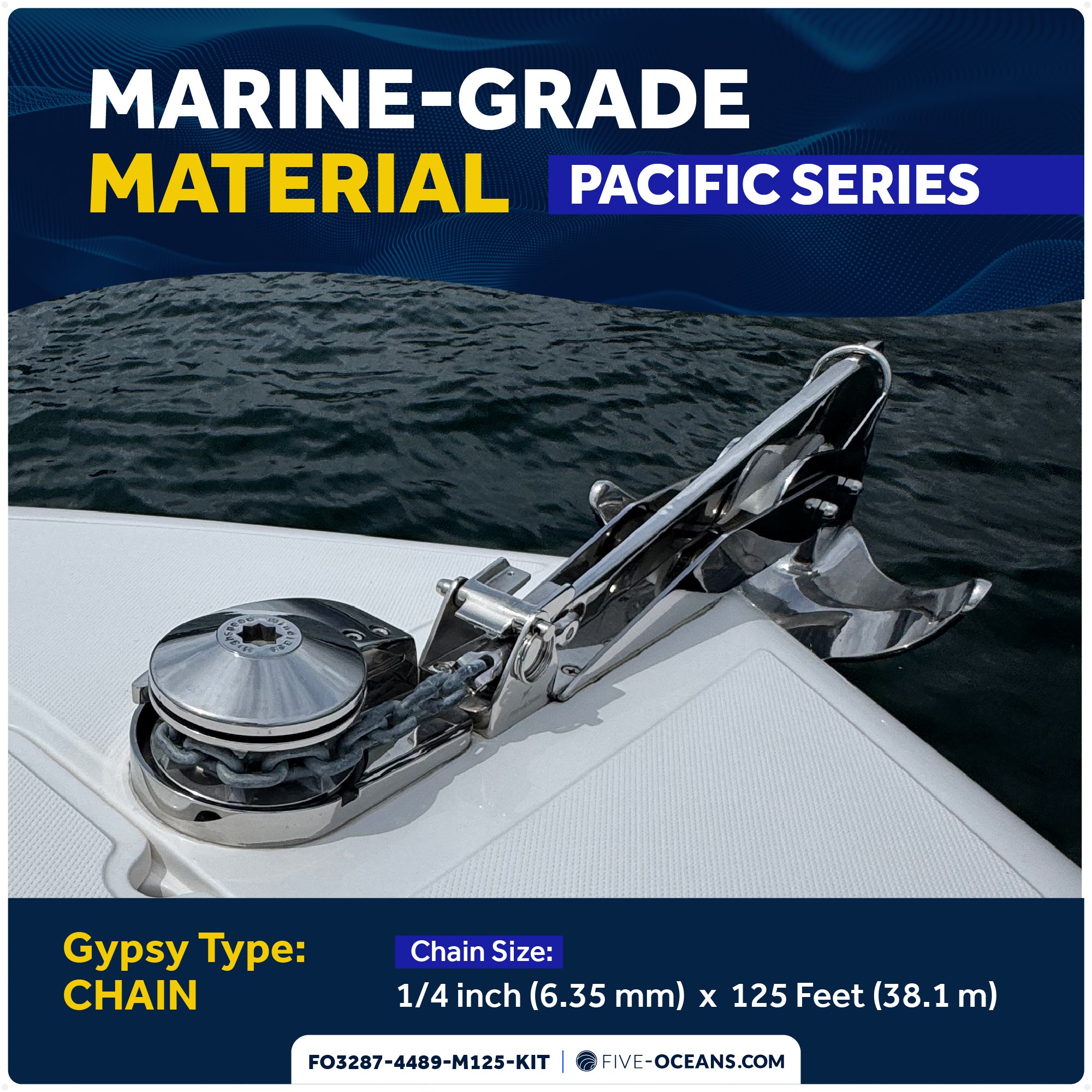

ALL-CHAIN CONFIGURATION FOR OPTIMAL WINDLASS PERFORMANCE - A full chain setup provides superior grip on the gypsy, minimizes rope slippage, and ensures smoother operation and maximum efficiency when deploying or retrieving your anchor.
MARINE-GRADE DURABILITY - Designed with anodized 316 stainless steel housing and hot-dipped galvanized steel chain, this kit ensures maximum corrosion resistance and reliable performance in saltwater conditions.

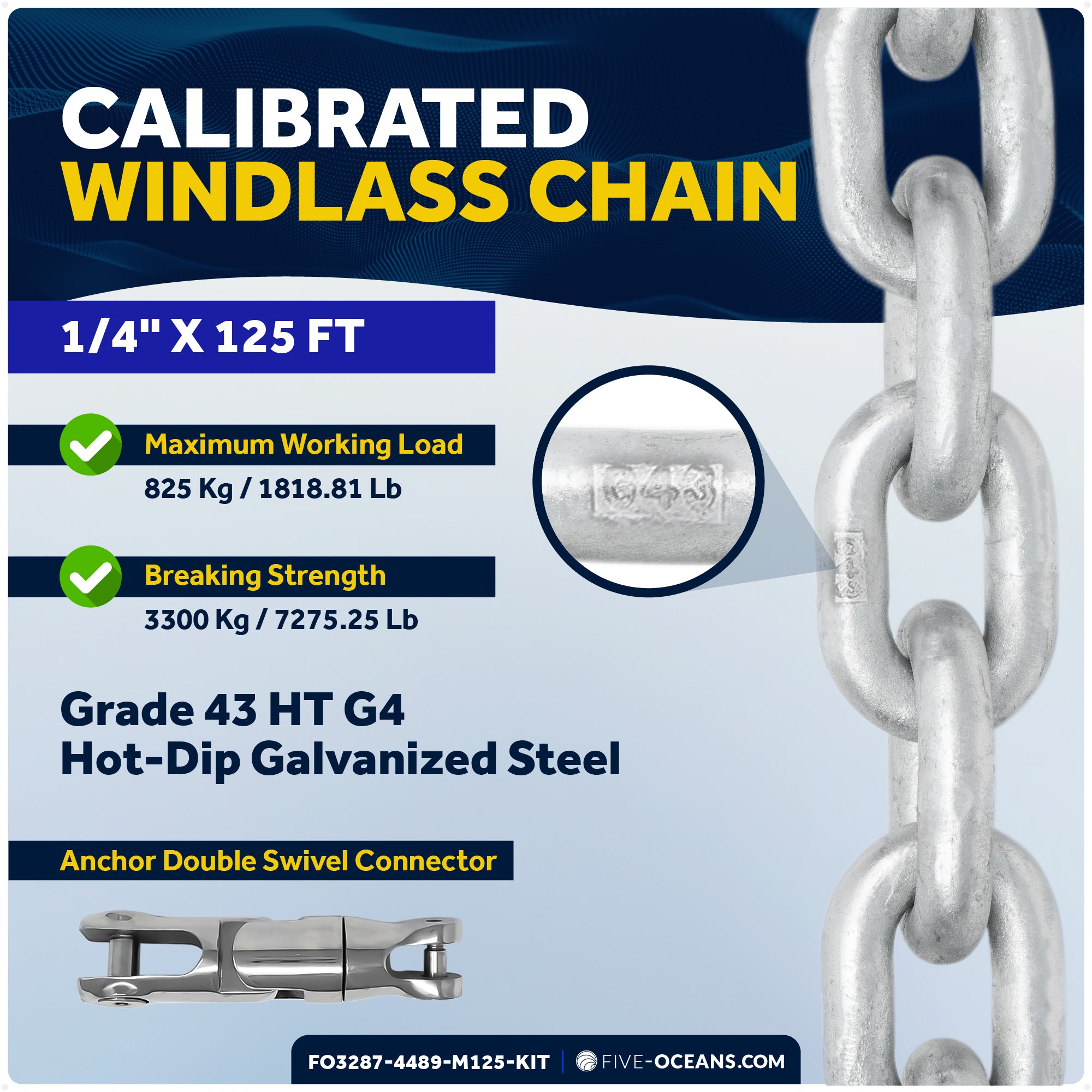

HIGH LOAD CAPACITY & PERFORMANCE - Windlass delivers 1455 Lb max pull, chain supports 1818.81 lb maximum working load, and swivel handles up to 2315 lb working load. Built for strength and safety.

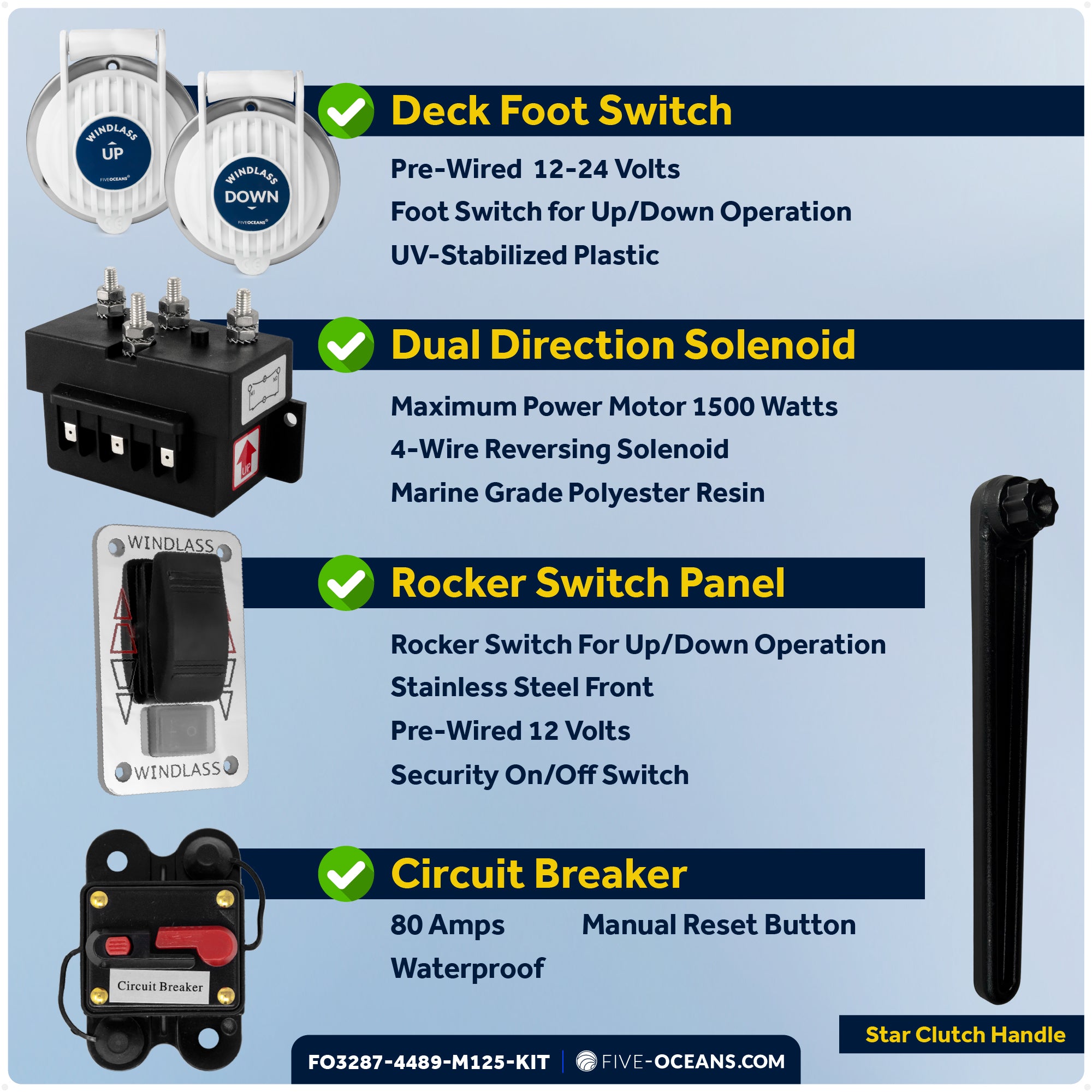

EASY INSTALLATION FOR BOATS 20 FT TO 45FT - Under-deck vertical windlass with complete mounting hardware and template. Perfect for sailboats, yachts, fishing boats, and recreational vessels.
SECURE & TANGLE-FREE ANCHORING - The swivel prevents twisting of the rope and chain while allowing 360 degree rotation, providing smooth anchor retrieval and safer docking experience.

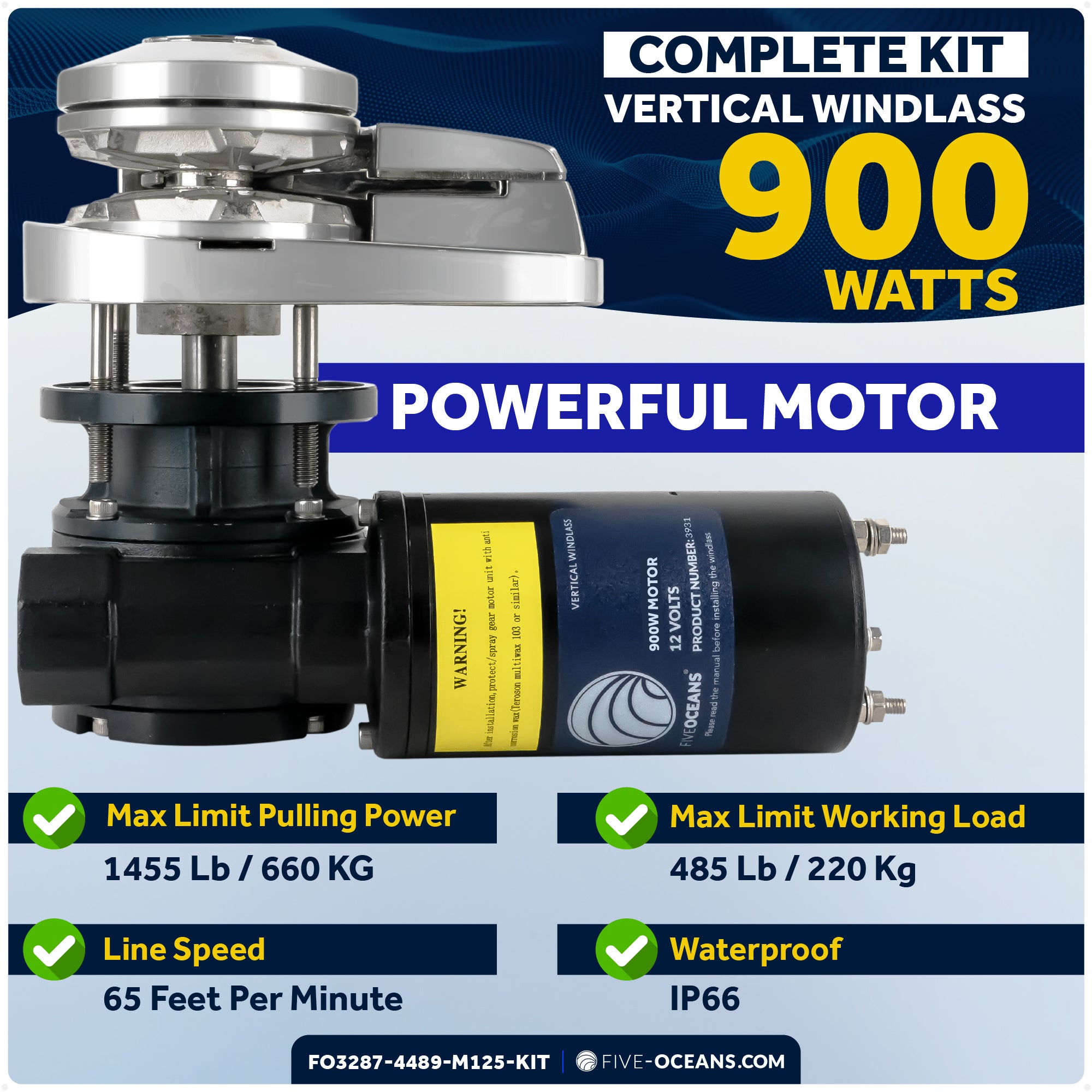

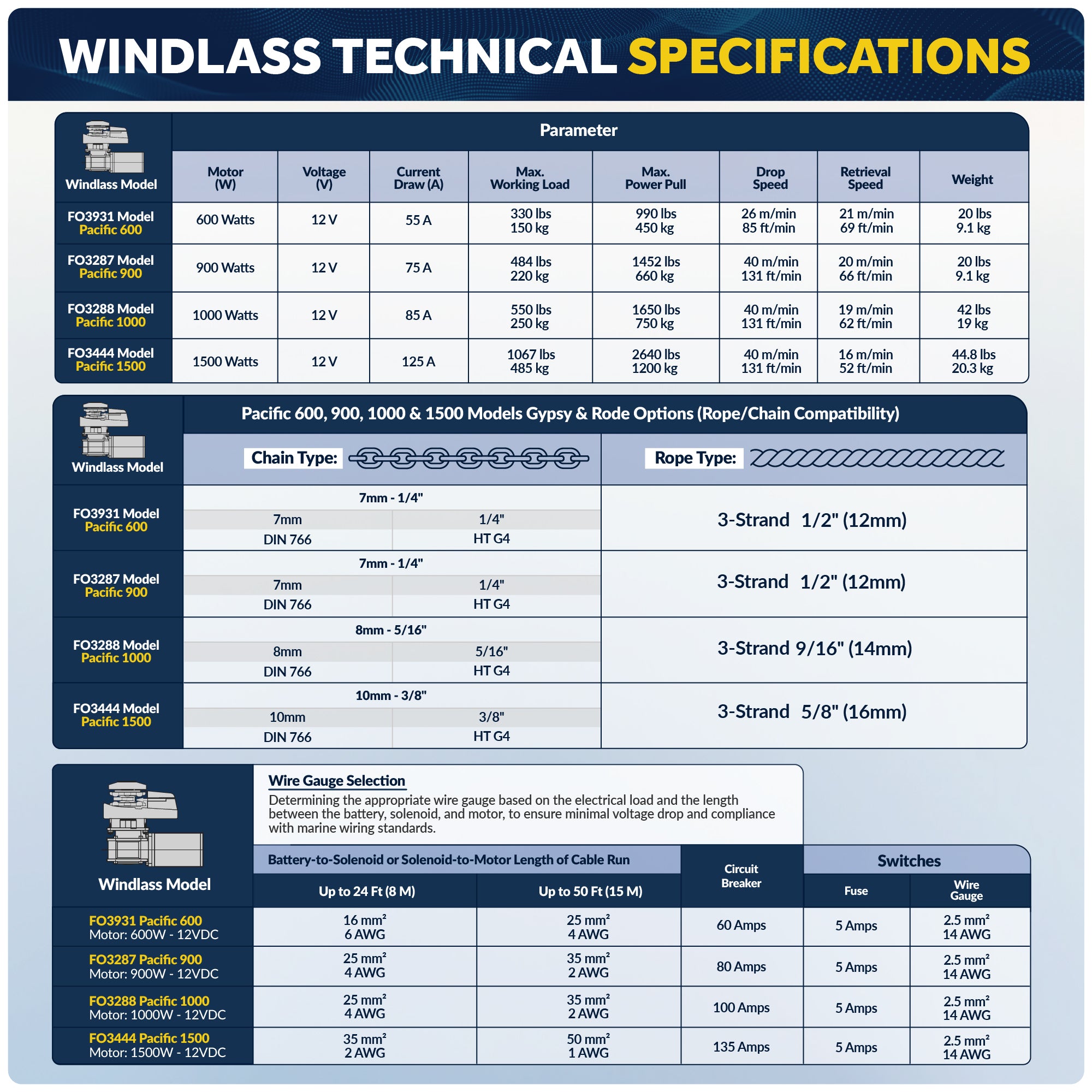

WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1455 Lb / 660 Kg
Maximum Limit Working Load: 485 Lb / 220 Kg
Working Load: 165 Lb / 75 Kg
Drop Speed: 40 m / min (131 Ft / min)
Retreival Spped: 20 m / min (66 Ft / min)
Current Draw: 75 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand

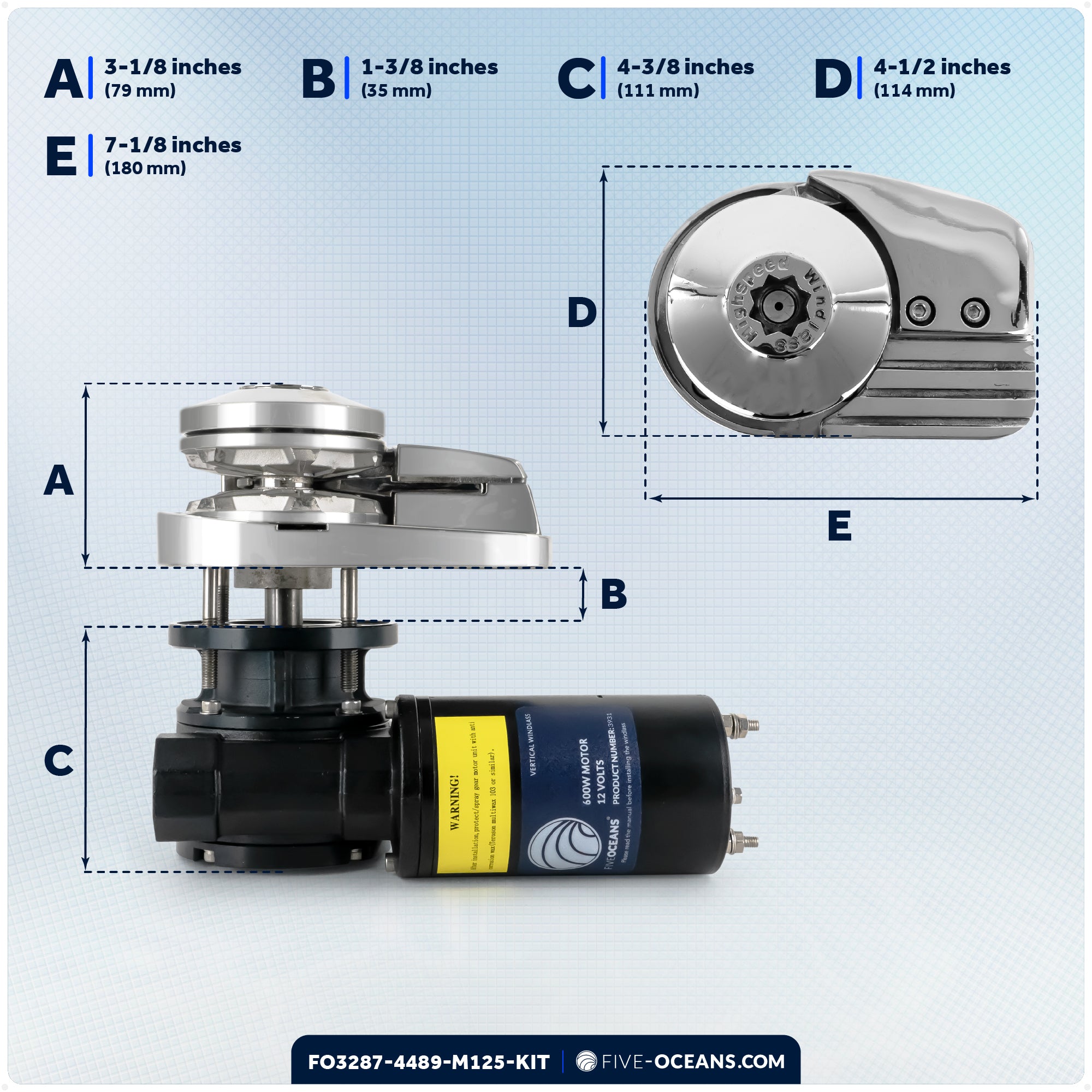

Max deck thickness up to 1-1/4" (32mm)
[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.
Five Oceans Group LLC will not be responsible if the products are used under unusual weather and sea conditions.
PRODUCT NUMBER: FO3287-4489-M125
ALL-CHAIN CONFIGURATION FOR OPTIMAL WINDLASS PERFORMANCE - A full chain setup provides superior grip on the gypsy, minimizes rope slippage, and ensures smoother operation and maximum efficiency when deploying or retrieving your anchor.
MARINE-GRADE DURABILITY - Designed with anodized 316 stainless steel housing and hot-dipped galvanized steel chain, this kit ensures maximum corrosion resistance and reliable performance in saltwater conditions.
HIGH LOAD CAPACITY & PERFORMANCE - Windlass delivers 1455 Lb max pull, chain supports 1818.81 lb maximum working load, and swivel handles up to 2315 lb working load. Built for strength and safety.
EASY INSTALLATION FOR BOATS 20 FT TO 45FT - Under-deck vertical windlass with complete mounting hardware and template. Perfect for sailboats, yachts, fishing boats, and recreational vessels.
SECURE & TANGLE-FREE ANCHORING - The swivel prevents twisting of the rope and chain while allowing 360 degree rotation, providing smooth anchor retrieval and safer docking experience.
WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1455 Lb / 660 Kg
Maximum Limit Working Load: 485 Lb / 220 Kg
Working Load: 165 Lb / 75 Kg
Drop Speed: 40 m / min (131 Ft / min)
Retreival Spped: 20 m / min (66 Ft / min)
Current Draw: 75 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand
Max deck thickness up to 1-1/4" (32mm)
[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.
Five Oceans Group LLC will not be responsible if the products are used under unusual weather and sea conditions.
PRODUCT NUMBER: FO3287-4489-M125
