Pacific Windlass Kit, Vertical 1500 Watts, 12V DC, 5/8" x 200' 3-Strand Rope, 3/8" x 20' Stainless Steel HT G4 Chain, Swivel and Shackle - FO3444-C2
Pacific Windlass Kit, Vertical 1500 Watts, 12V DC, 5/8" x 200' 3-Strand Rope, 3/8" x 20' Stainless Steel HT G4 Chain, Swivel and Shackle - FO3444-C2
Regular price
$2,672.90
Sale price
$2,672.90
Regular price

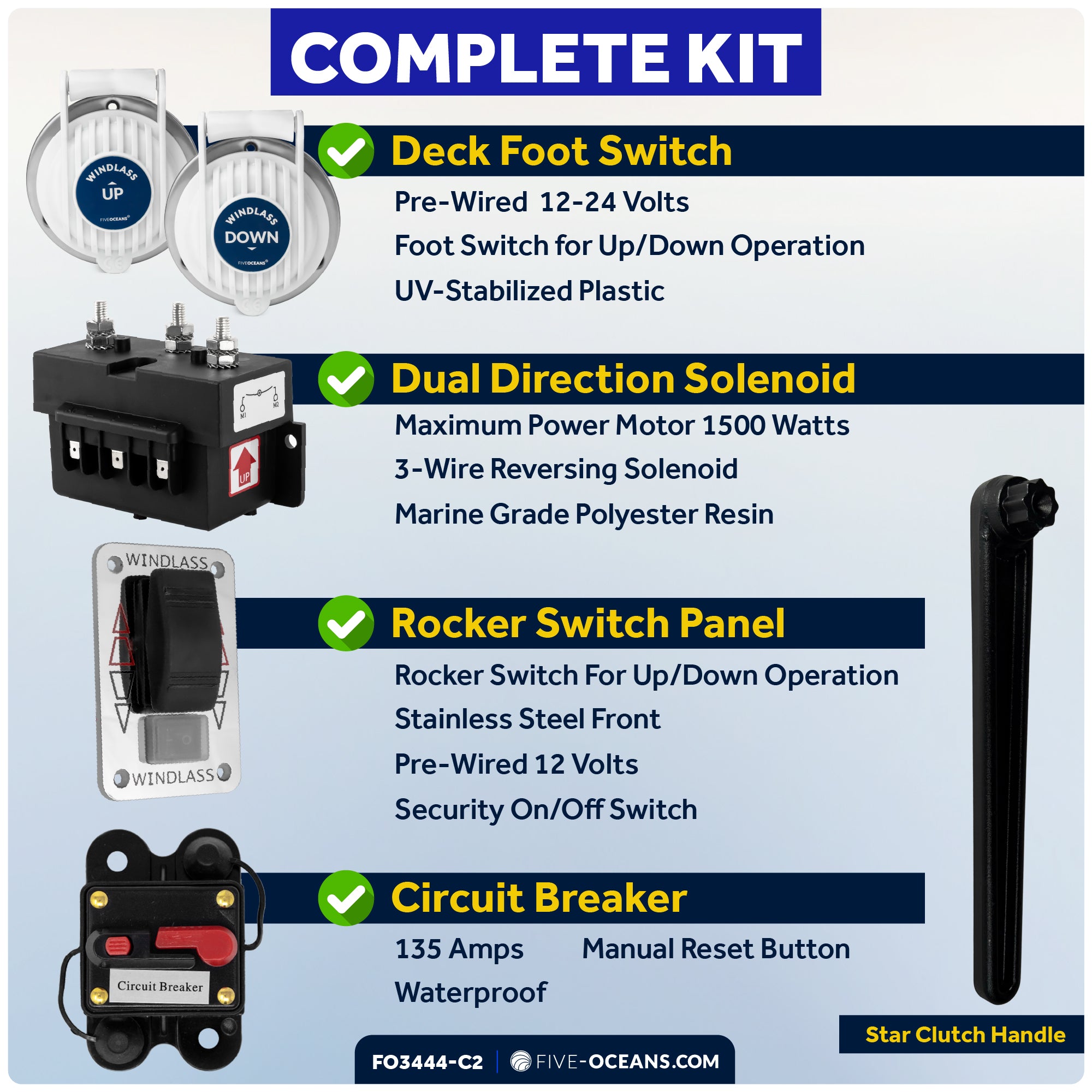

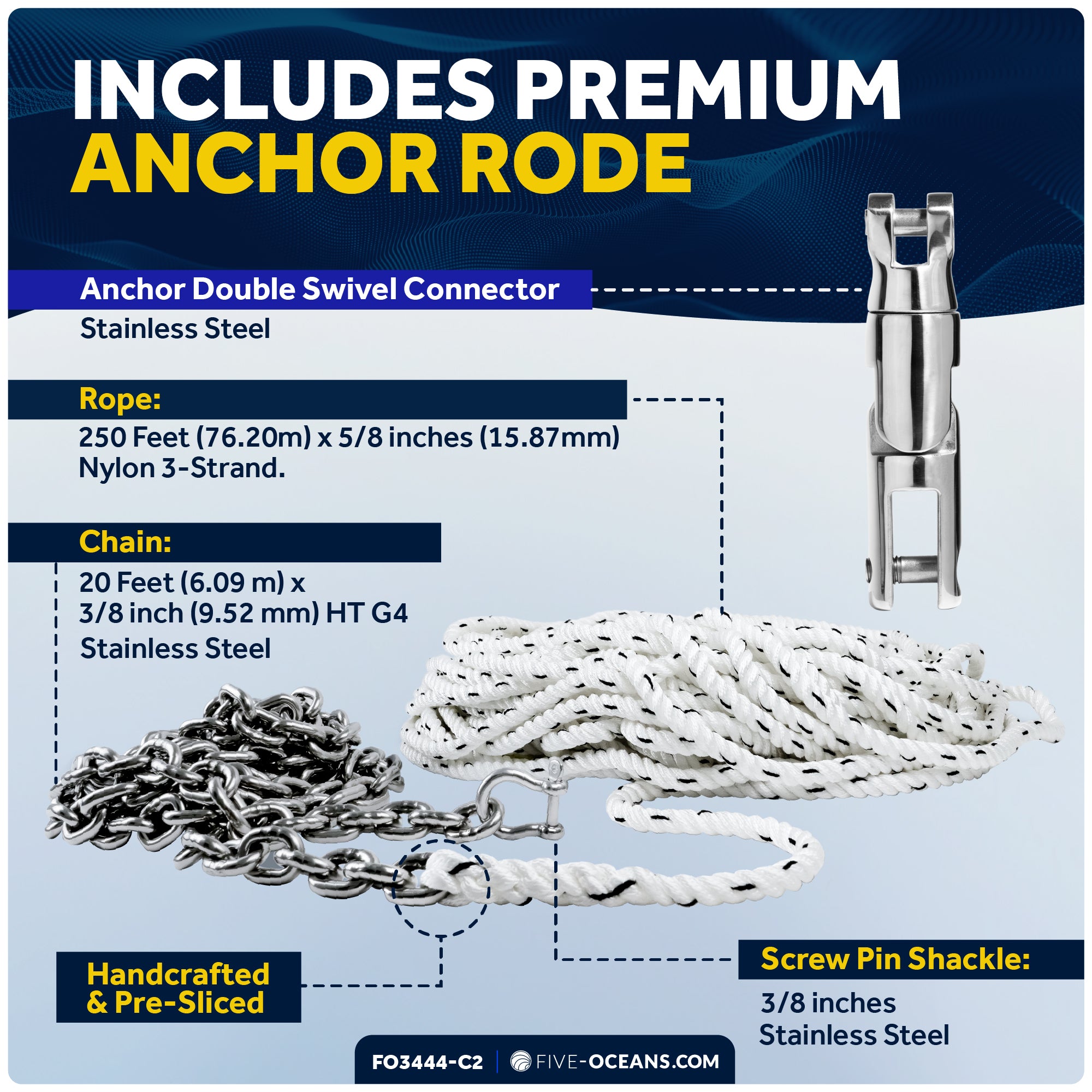

COMPLETE PACIFIC 1500 SERIES WINDLASS ANCHOR KIT: Includes a 1000W vertical windlass (12V), 135A circuit breaker, 3-wire solenoid, up/down foot switch, rocker switch, 250 ft x 5/8" 3-strand nylon and 20 ft x 3/8" stainless steel HT G4 chain anchor rode, 3/8" stainless steel screw pin bow shackle, multi-directional anchor double swivel connector, manual top-cap handle, mounting hardware, and template for easy installation.
HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum limit pulling power of 2645 Lb / 1200 Kg and a maximum limit working load of 1070 Lb / 485 Kg. Achieves a drop speed of 52 feet per minute. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.
SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 3/8" HT G4 chain and 5/8" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.

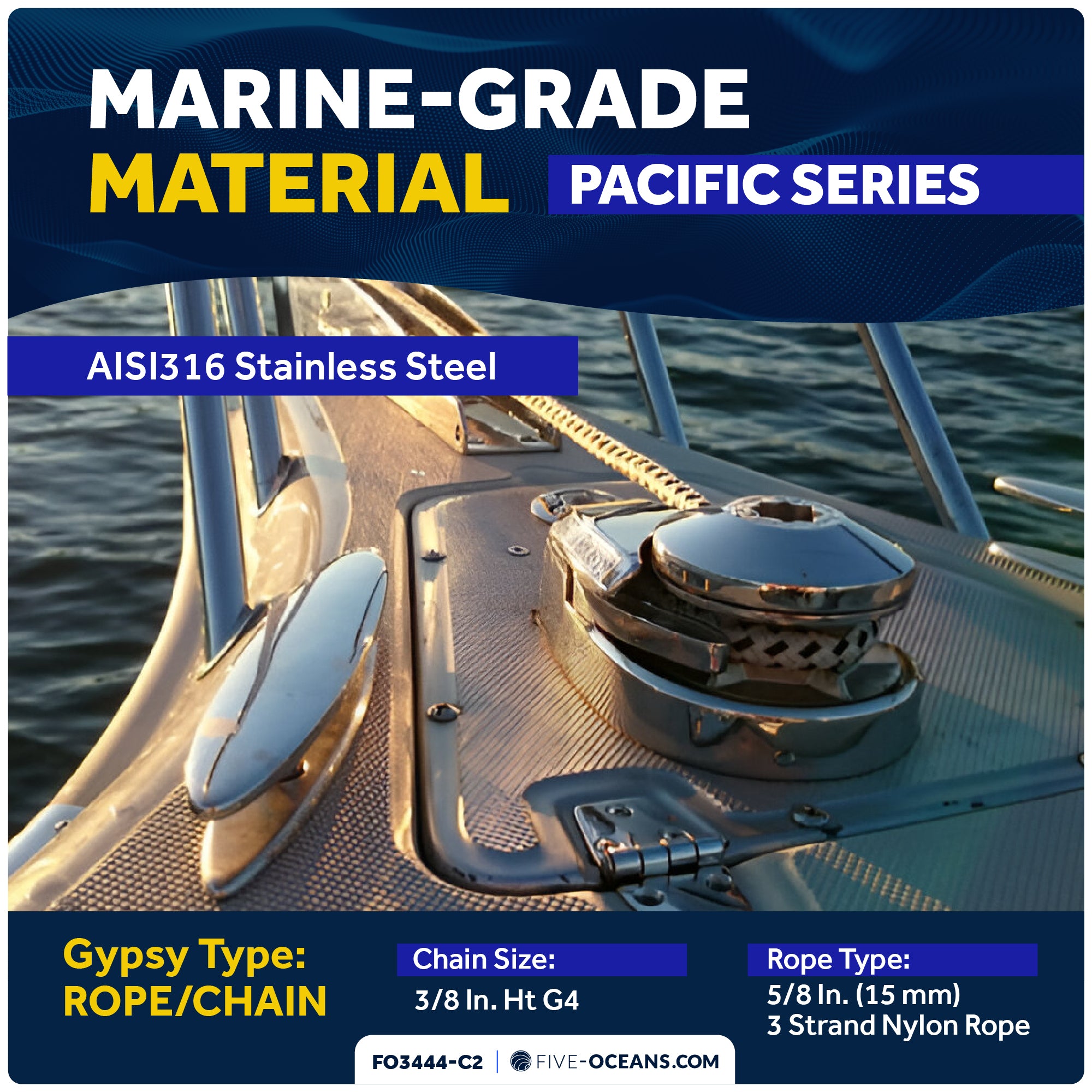

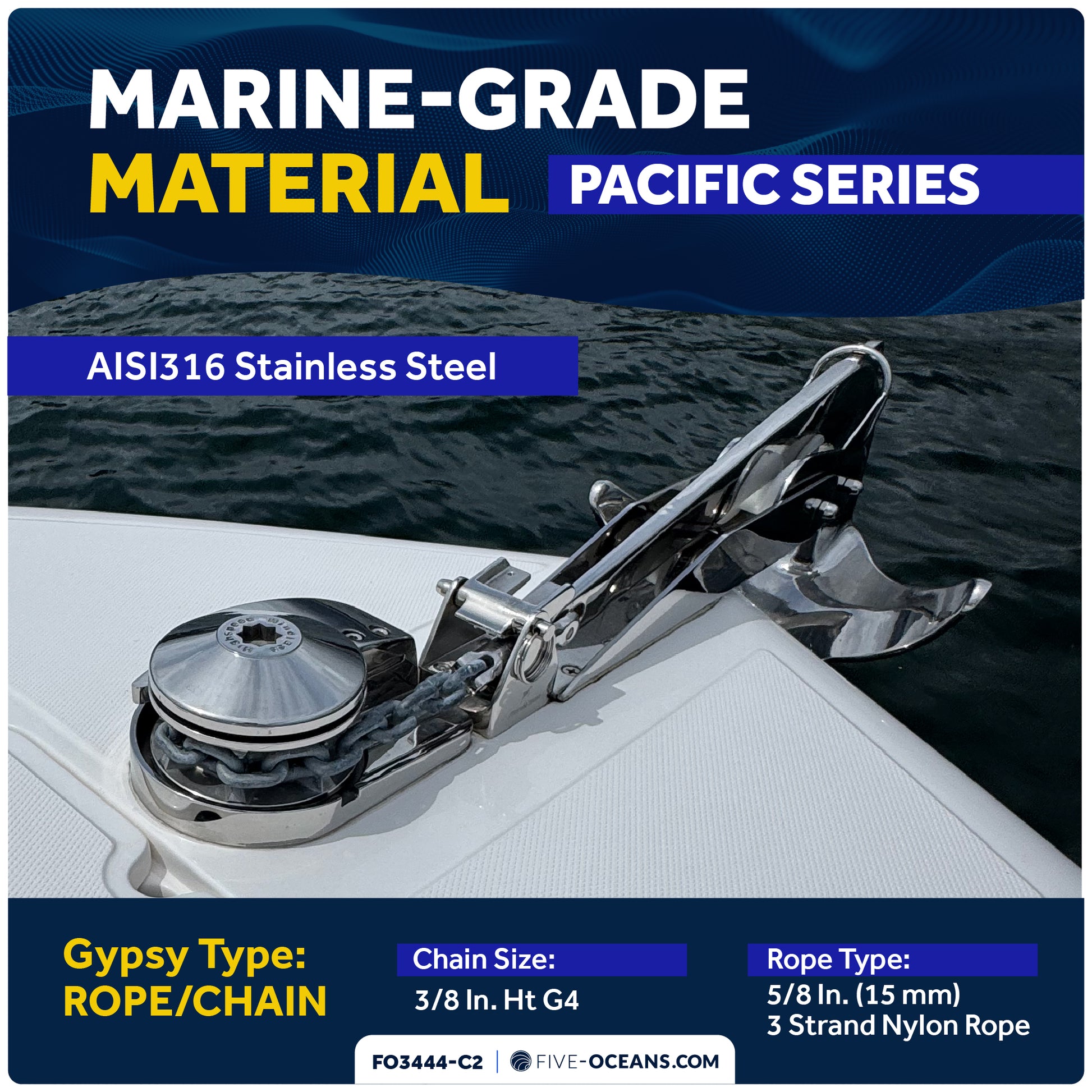

MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.

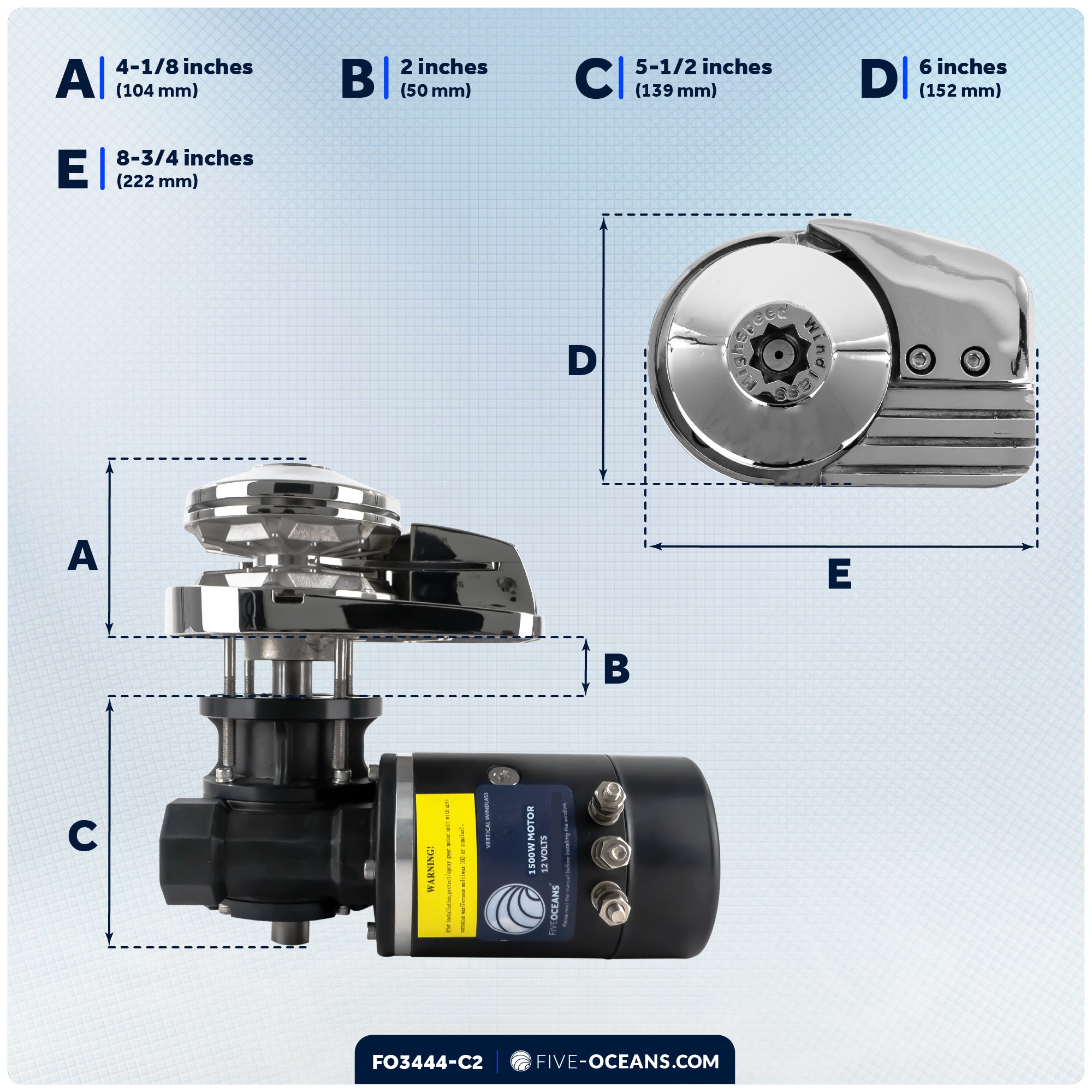

UNDER-DECK VERTICAL WINDLASS INSTALLATION: Includes 4 Standard 3/8 Inch (10mm) thread mounting studs, washers, and nuts supplied. Deck thickness up to 2 Inches (50 mm). Features a vertical rotation about the deck which allows a reduced volume above the deck as the electric motor and the gearbox are sitting in the chain locker. To offer the best performance and functionality, we recommend this Vertical Windlass 1500 Watts for boats up to 60 Ft / 18 m depending on the boat style.

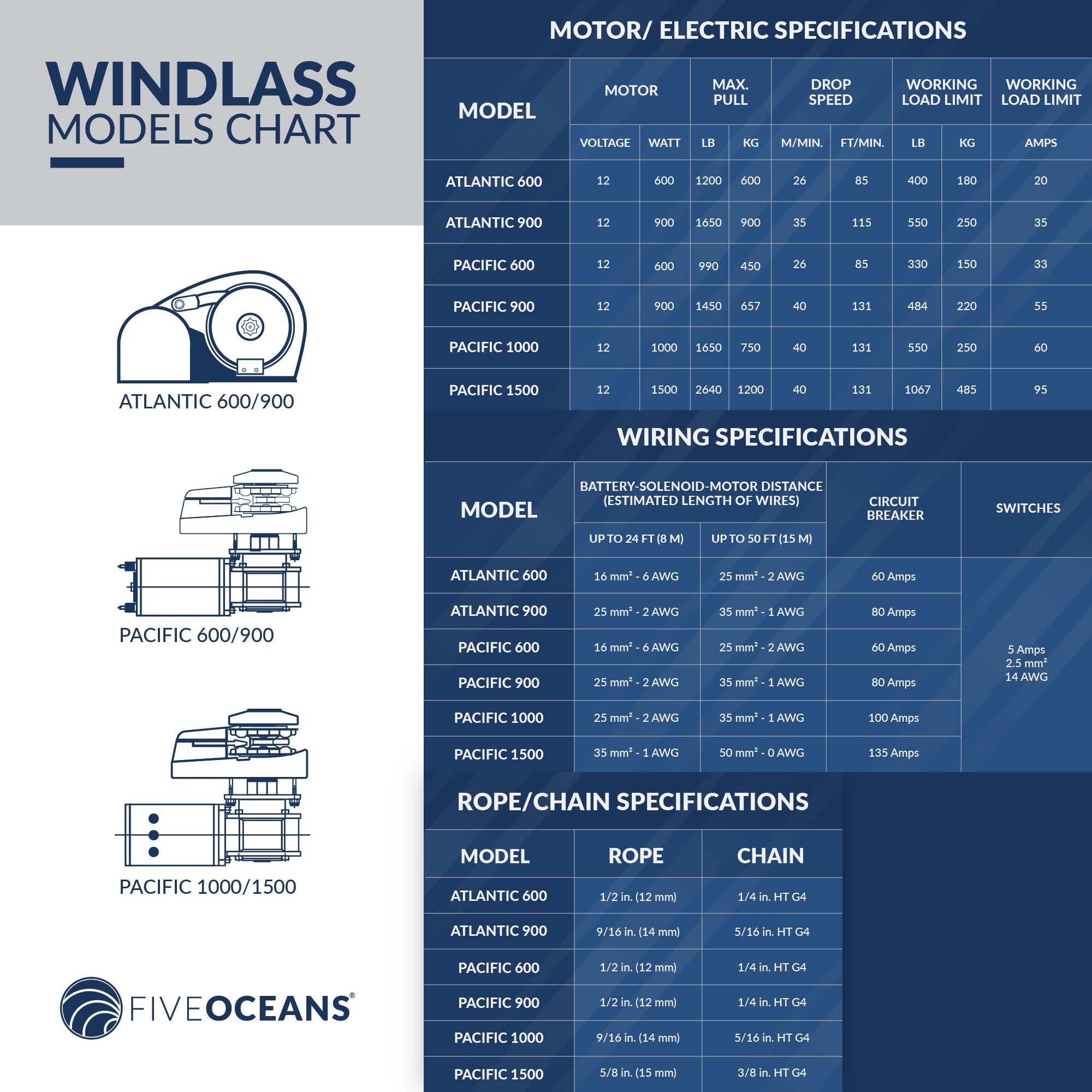

WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 1500 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 2645 Lb / 1200 Kg
Pulling Power: 880 Lb / 400 Kg
Maximum Limit Working Load: 1070 Lb / 485 Kg
Working Load: 352 Lb / 160 Kg
Line Speed: 52 Feet per Minute
Current Draw: 115 Amps
Circuit Breaker: 135 Amps
Dual Gypsy: Chain and Rope
Chain: 3/8 Inch (14mm) - 3 Strand
Rope: 5/8 Inch HT G4
PRODUCT NUMBER: 3444-C2
HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum limit pulling power of 2645 Lb / 1200 Kg and a maximum limit working load of 1070 Lb / 485 Kg. Achieves a drop speed of 52 feet per minute. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.
SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 3/8" HT G4 chain and 5/8" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.
MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.
UNDER-DECK VERTICAL WINDLASS INSTALLATION: Includes 4 Standard 3/8 Inch (10mm) thread mounting studs, washers, and nuts supplied. Deck thickness up to 2 Inches (50 mm). Features a vertical rotation about the deck which allows a reduced volume above the deck as the electric motor and the gearbox are sitting in the chain locker. To offer the best performance and functionality, we recommend this Vertical Windlass 1500 Watts for boats up to 60 Ft / 18 m depending on the boat style.
WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 1500 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 2645 Lb / 1200 Kg
Pulling Power: 880 Lb / 400 Kg
Maximum Limit Working Load: 1070 Lb / 485 Kg
Working Load: 352 Lb / 160 Kg
Line Speed: 52 Feet per Minute
Current Draw: 115 Amps
Circuit Breaker: 135 Amps
Dual Gypsy: Chain and Rope
Chain: 3/8 Inch (14mm) - 3 Strand
Rope: 5/8 Inch HT G4
PRODUCT NUMBER: 3444-C2
