Pacific Windlass Kit, Vertical 1000 Watts, 12V DC, 9/16" x 200' 3-Strand Rope, 5/16" x 20' Stainless Steel HT G4 Chain, Swivel and Shackle - FO3288-C2
Pacific Windlass Kit, Vertical 1000 Watts, 12V DC, 9/16" x 200' 3-Strand Rope, 5/16" x 20' Stainless Steel HT G4 Chain, Swivel and Shackle - FO3288-C2
Regular price
$1,983.90
Sale price
$1,983.90
Regular price

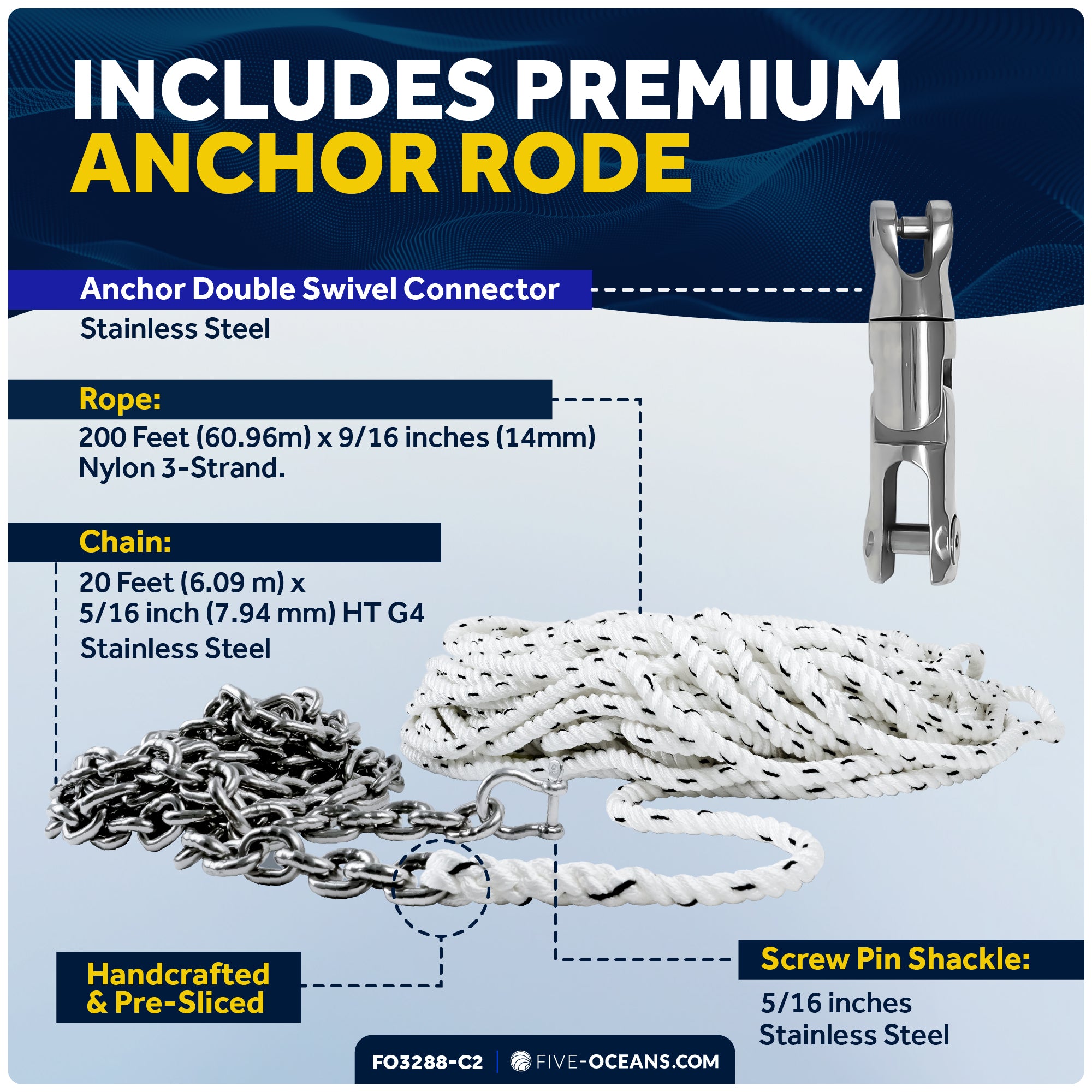

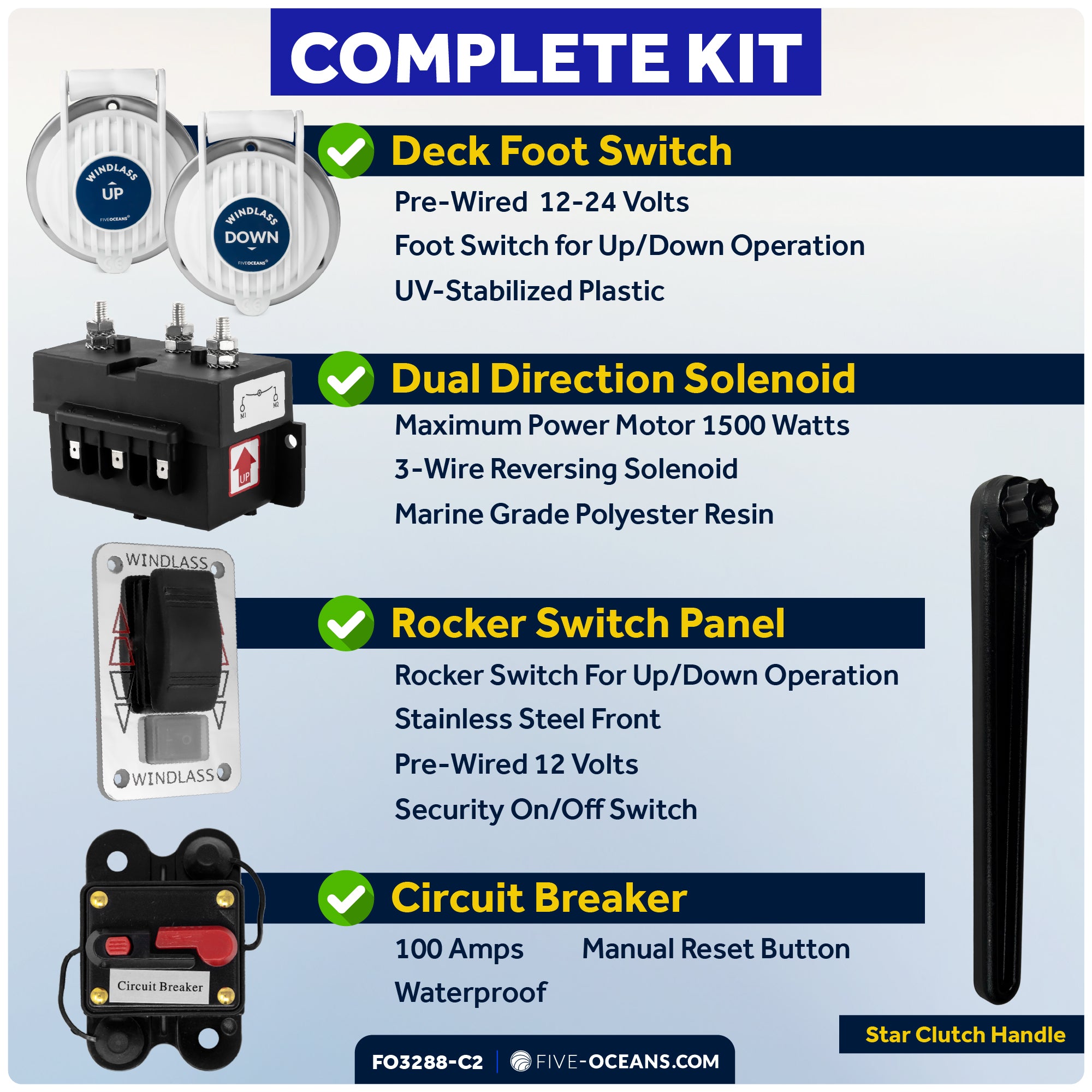

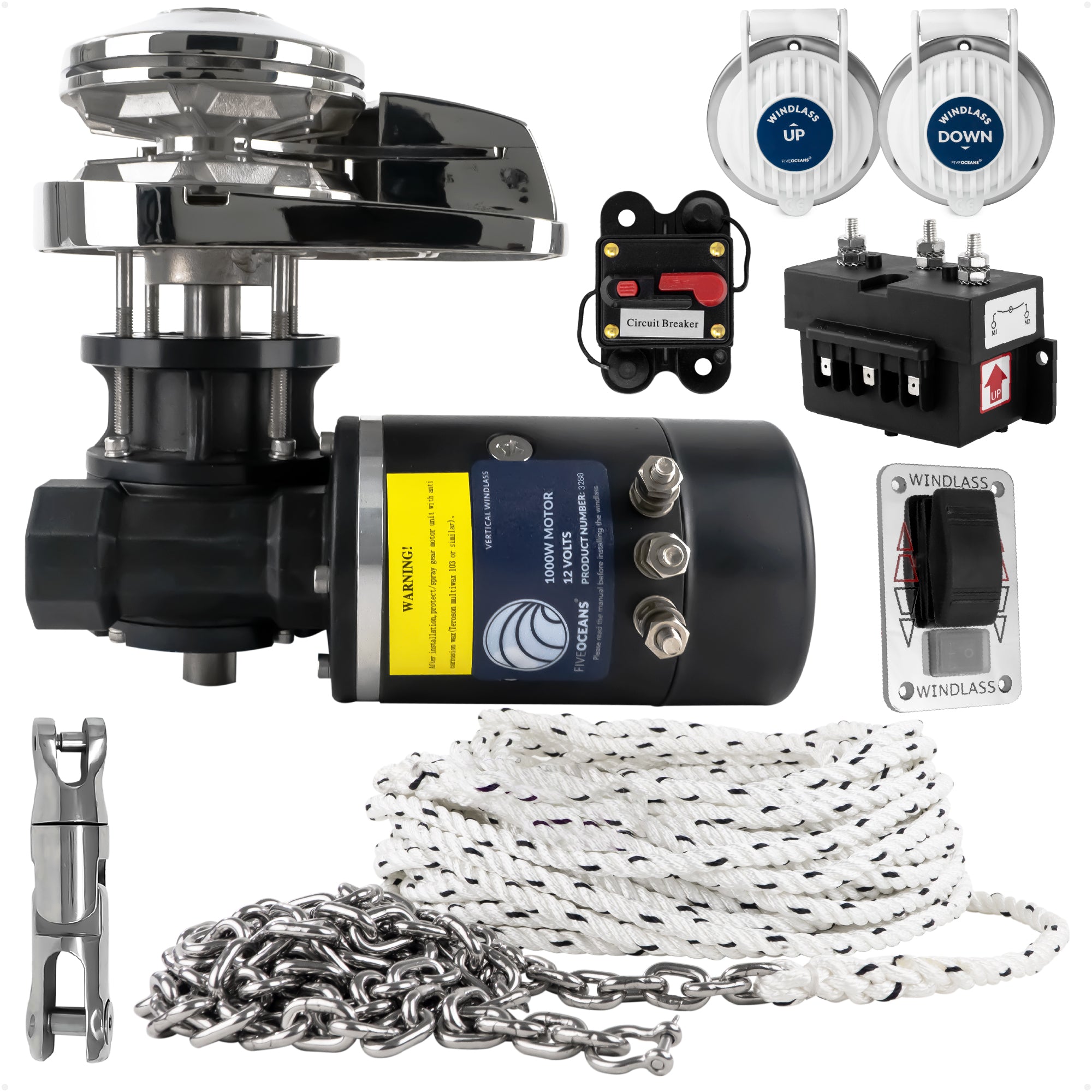

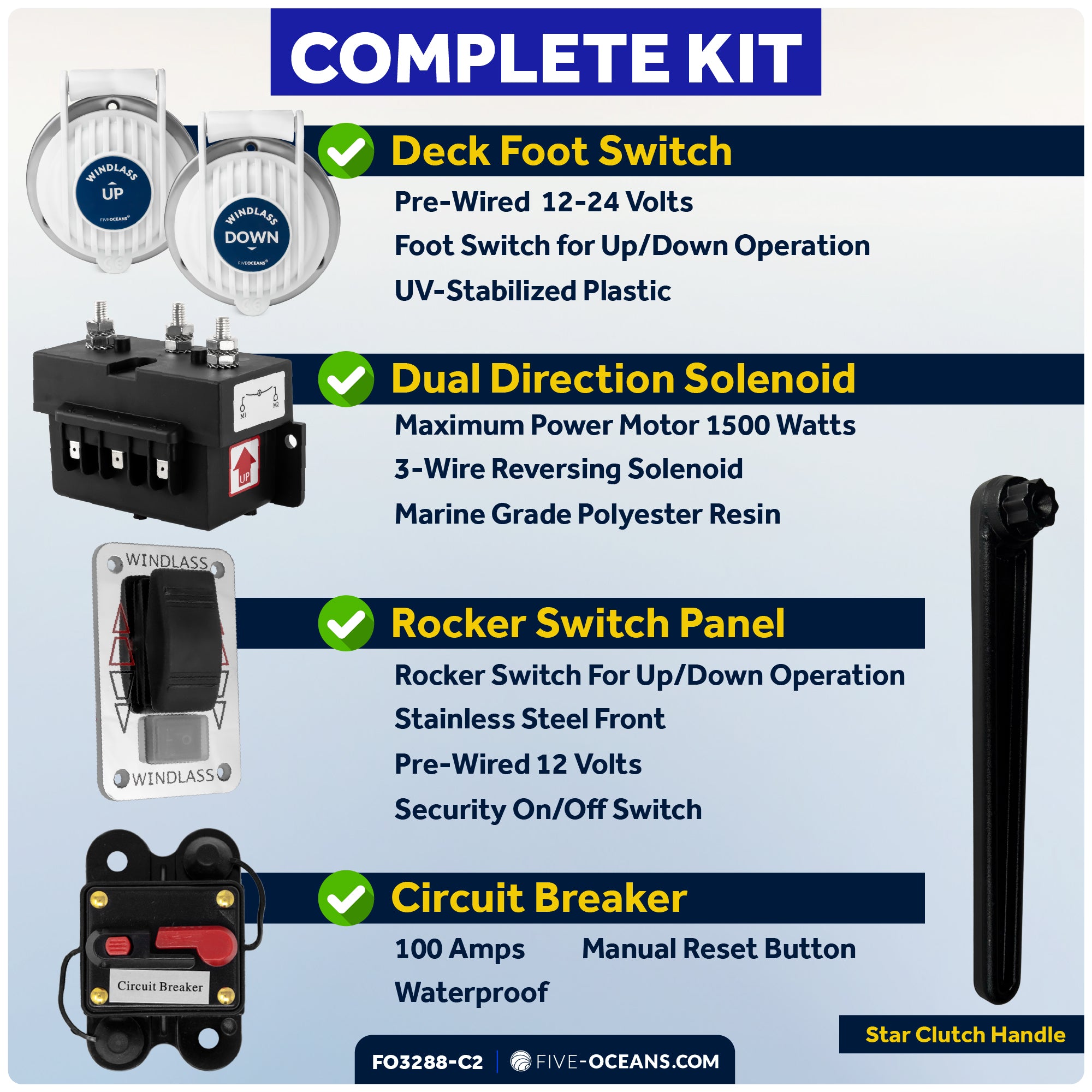

COMPLETE PACIFIC 1000 SERIES WINDLASS ANCHOR KIT: Includes a 1000W vertical windlass (12V), 100A circuit breaker, 3-wire solenoid, up/down foot switch, rocker switch, 200 ft x 9/16" 3-strand nylon and 20 ft x 5/16" stainless steel HT G4 chain anchor rode, 5/16" stainless steel screw pin bow shackle, multi-directional anchor double swivel connector, manual top-cap handle, mounting hardware, and template for easy installation.
HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum pulling power of 1654 Lb / 750 Kg and a maximum working load of 550 Lb / 250 Kg. Achieves a drop speed of 62 ft/min. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.
SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 5/16" HT G4 chain and 9/16" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.

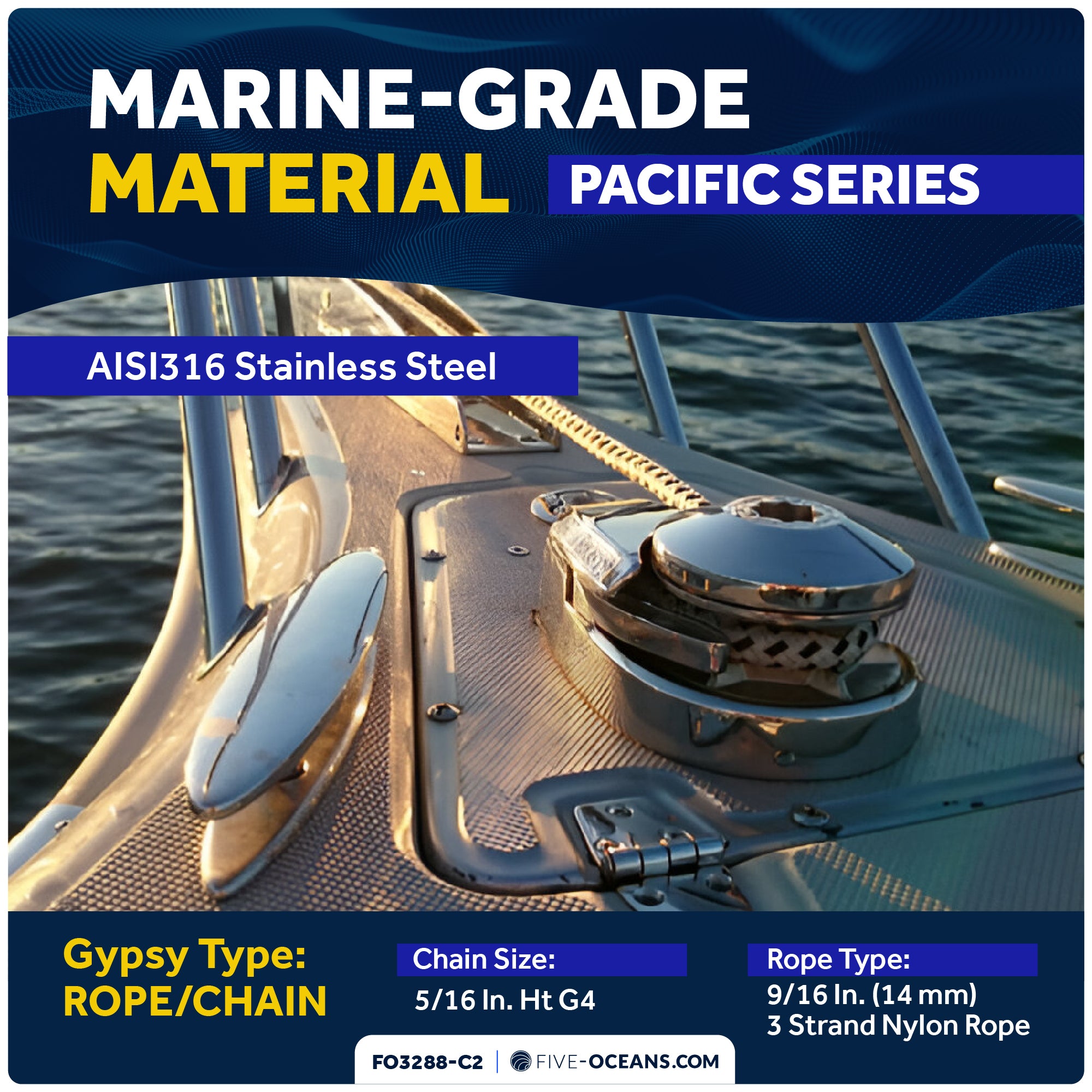

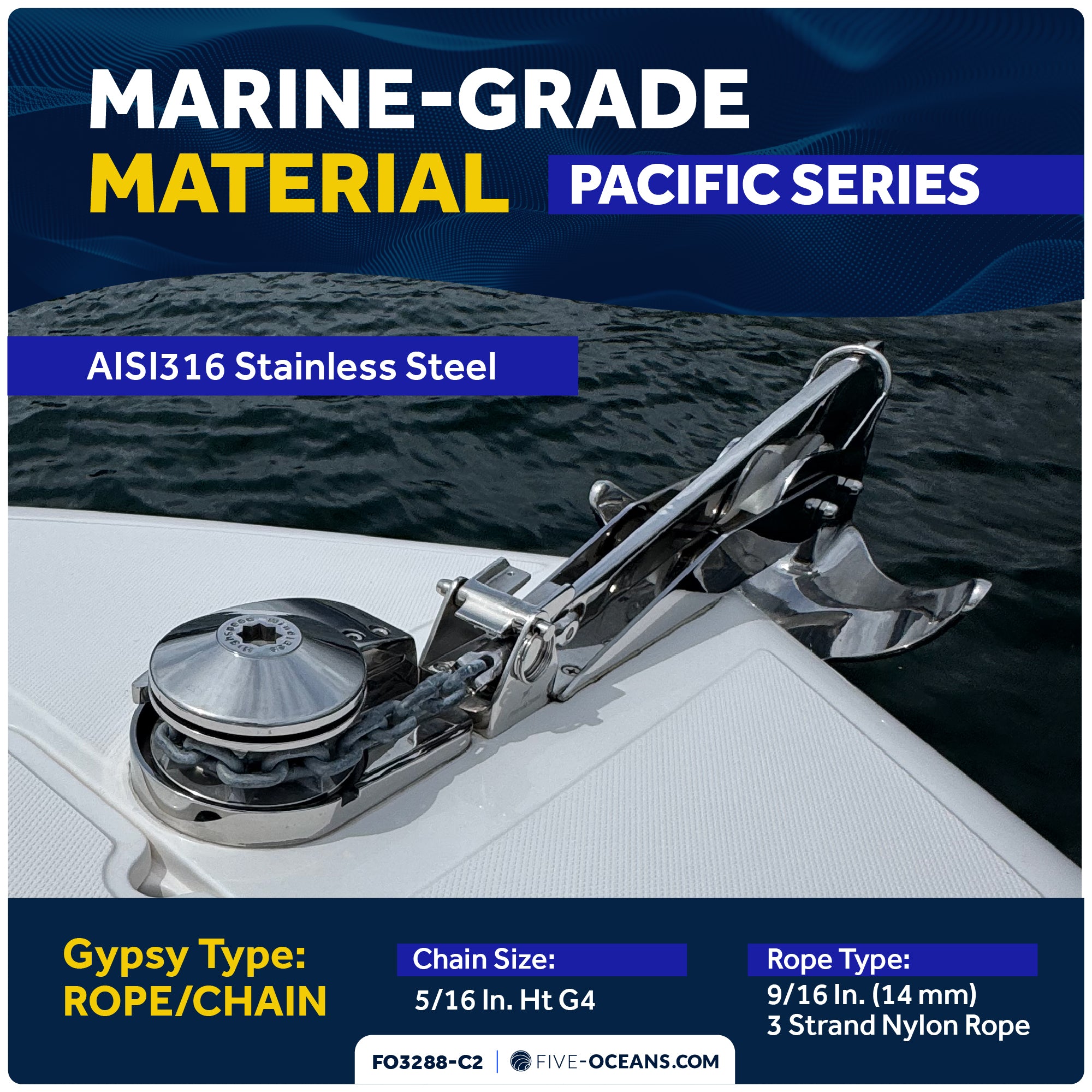

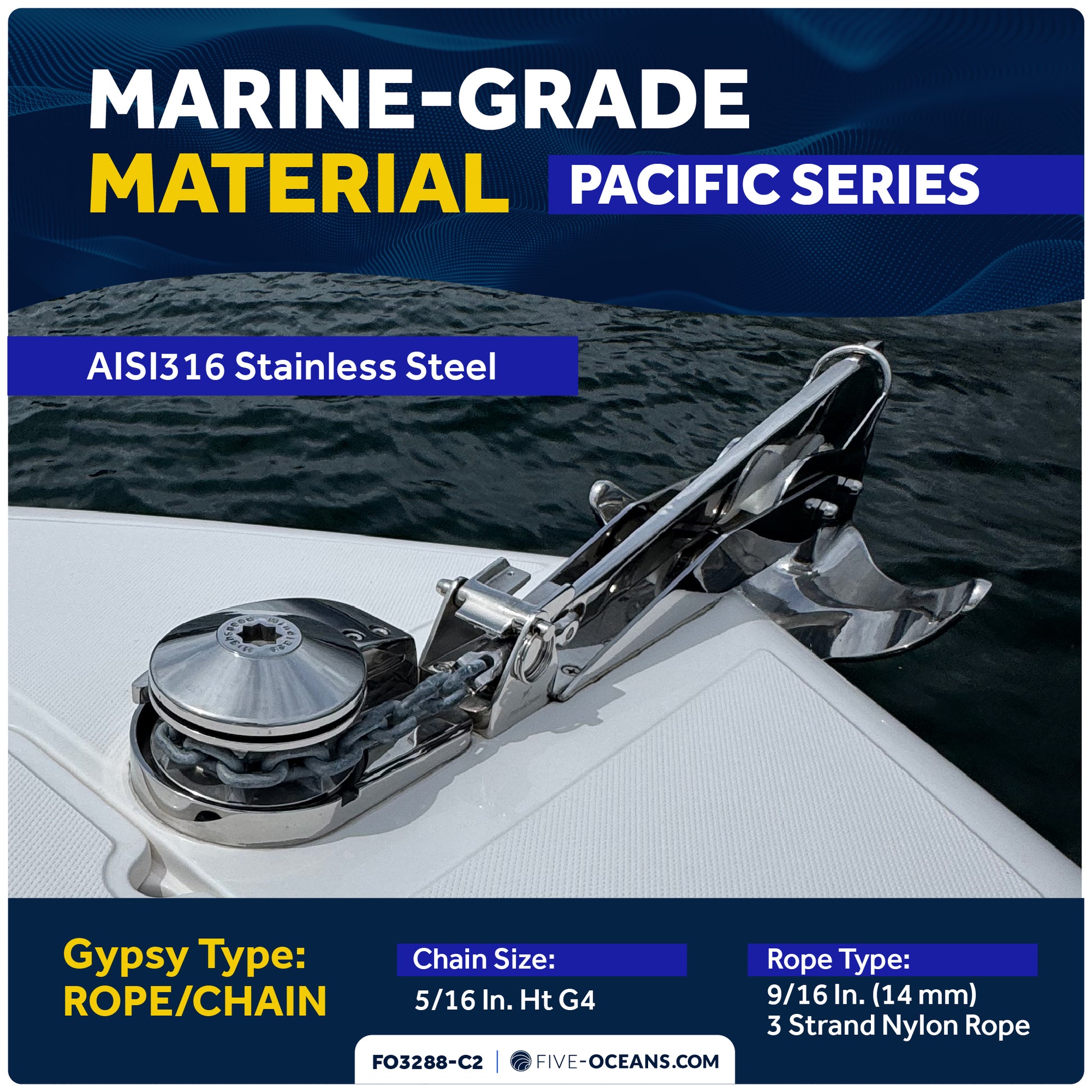

MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.

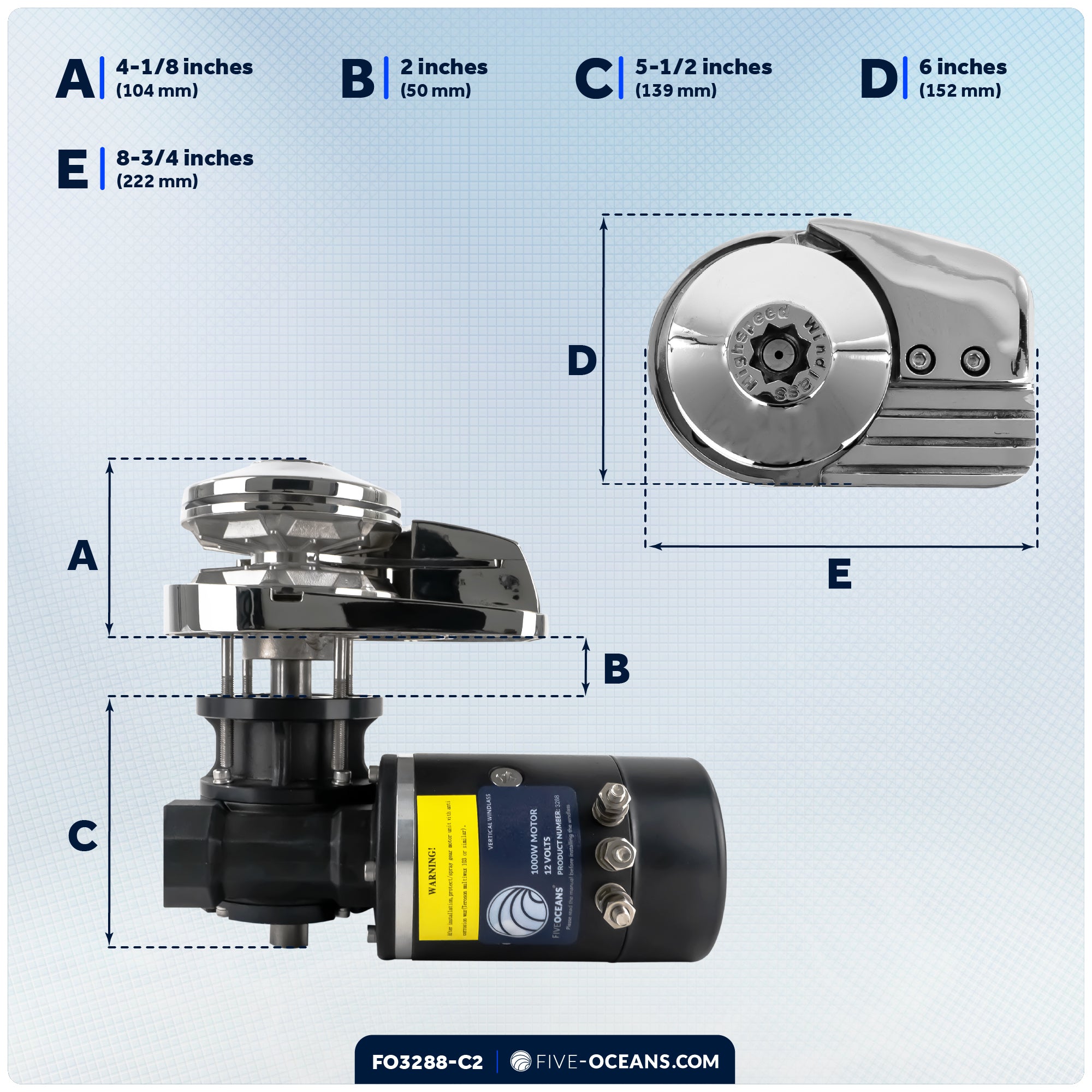

UNDER-DECK VERTICAL WINDLASS INSTALLATION: Includes four standard 5/16-inch (8 mm) threaded mounting studs, washers, and nuts. Suitable for deck thicknesses up to 2 inches (50 mm). Features vertical rotation, minimizing above-deck space by housing the electric motor and gearbox in the chain locker. For optimal performance, we recommend this 1000-watt vertical windlass for boats up to 50 feet (15 m), depending on boat style.

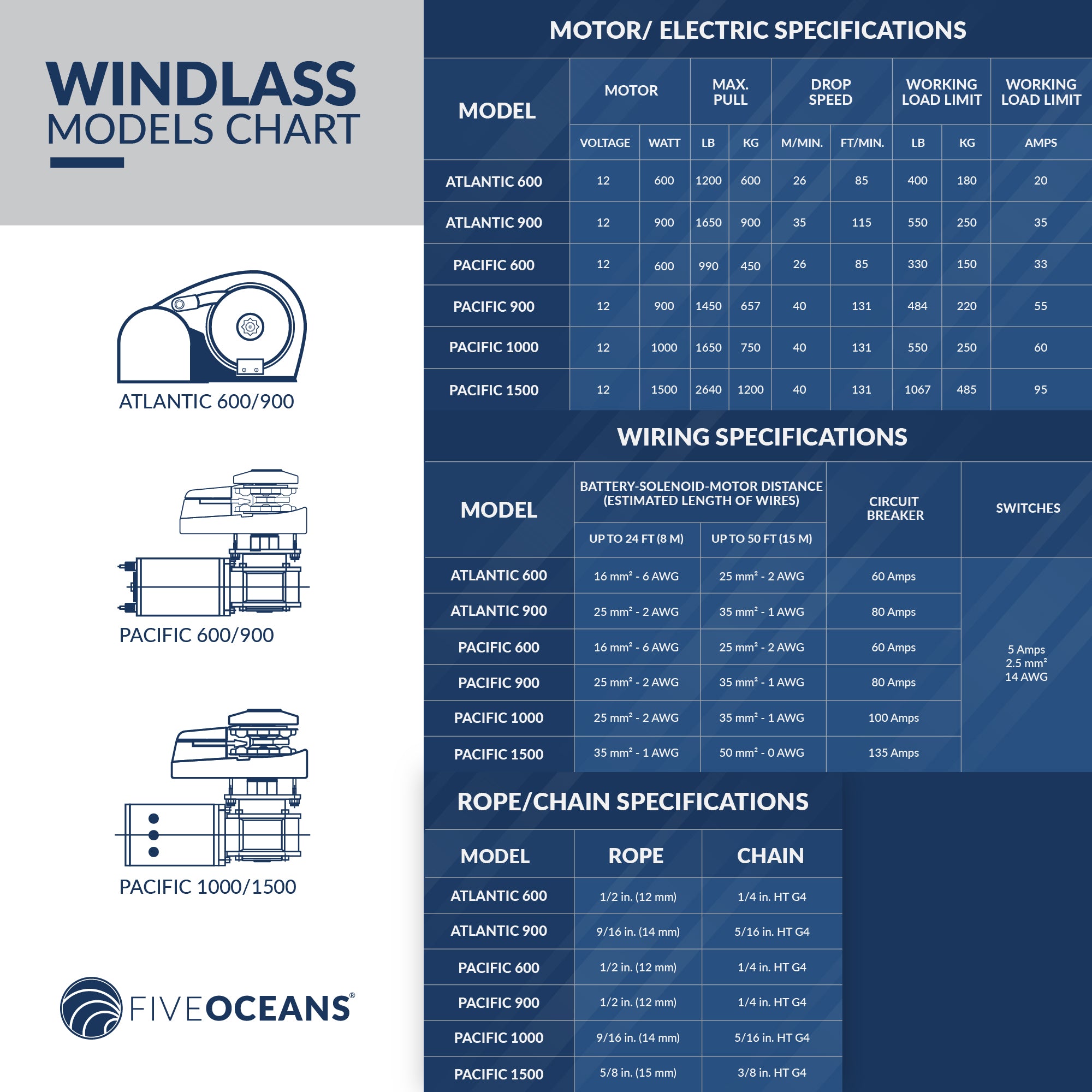

WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 1000 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1654 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 187 Lb / 85 Kg
Line Speed: 62 Feet per Minute
Current Draw: 65 Amps
Circuit Breaker: 100 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand
PRODUCT NUMBER: FO3288-C2
HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum pulling power of 1654 Lb / 750 Kg and a maximum working load of 550 Lb / 250 Kg. Achieves a drop speed of 62 ft/min. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.
SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 5/16" HT G4 chain and 9/16" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.
MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.
UNDER-DECK VERTICAL WINDLASS INSTALLATION: Includes four standard 5/16-inch (8 mm) threaded mounting studs, washers, and nuts. Suitable for deck thicknesses up to 2 inches (50 mm). Features vertical rotation, minimizing above-deck space by housing the electric motor and gearbox in the chain locker. For optimal performance, we recommend this 1000-watt vertical windlass for boats up to 50 feet (15 m), depending on boat style.
WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 1000 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1654 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 187 Lb / 85 Kg
Line Speed: 62 Feet per Minute
Current Draw: 65 Amps
Circuit Breaker: 100 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand
PRODUCT NUMBER: FO3288-C2
