Pacific Windlass Kit - Compatible with 1/4" HTG4 Chain & 1/2" Rope, Vertical 900W 12V DC - FO3287
Pacific Windlass Kit - Compatible with 1/4" HTG4 Chain & 1/2" Rope, Vertical 900W 12V DC - FO3287
Regular price
$1,235.00
Sale price
$1,235.00
Regular price

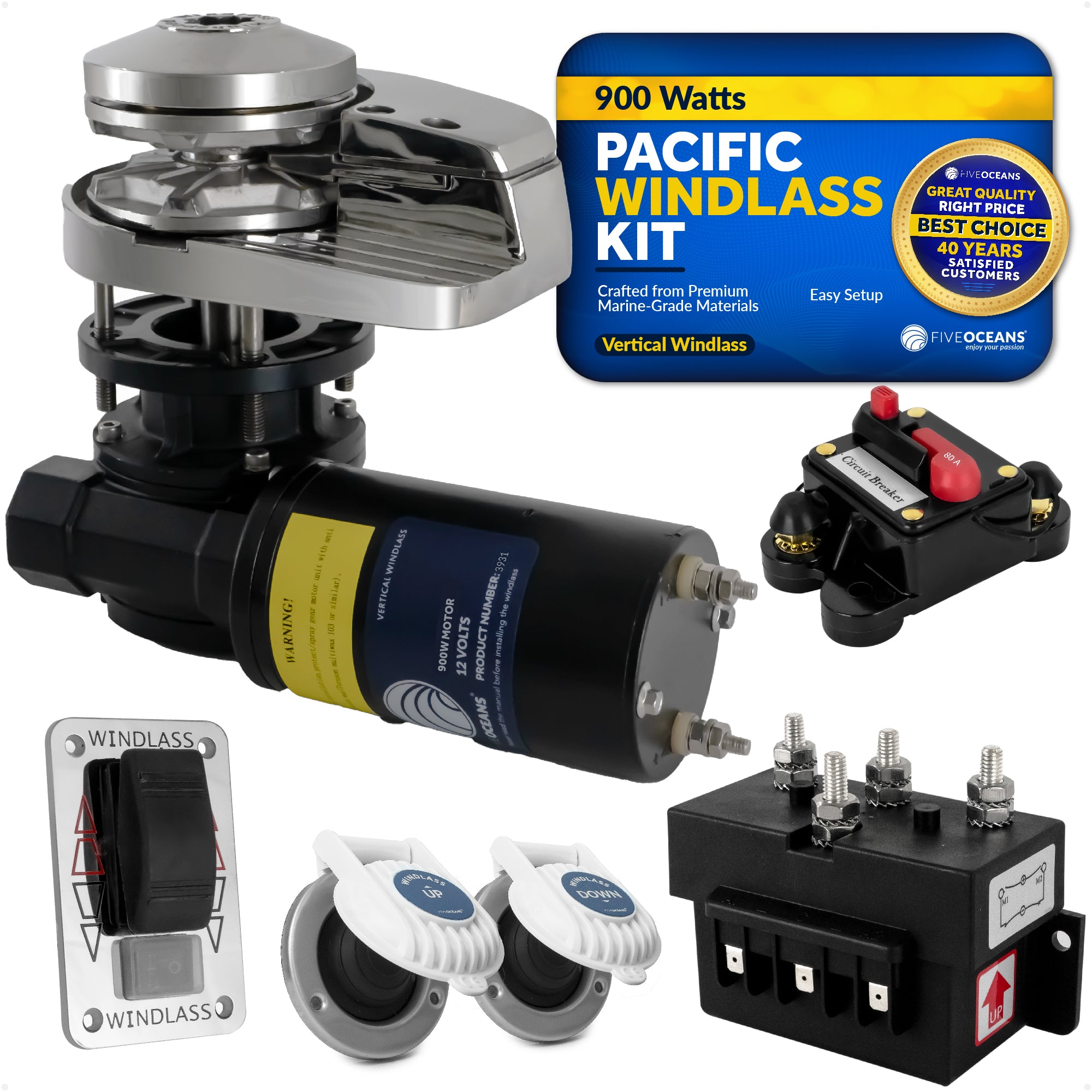

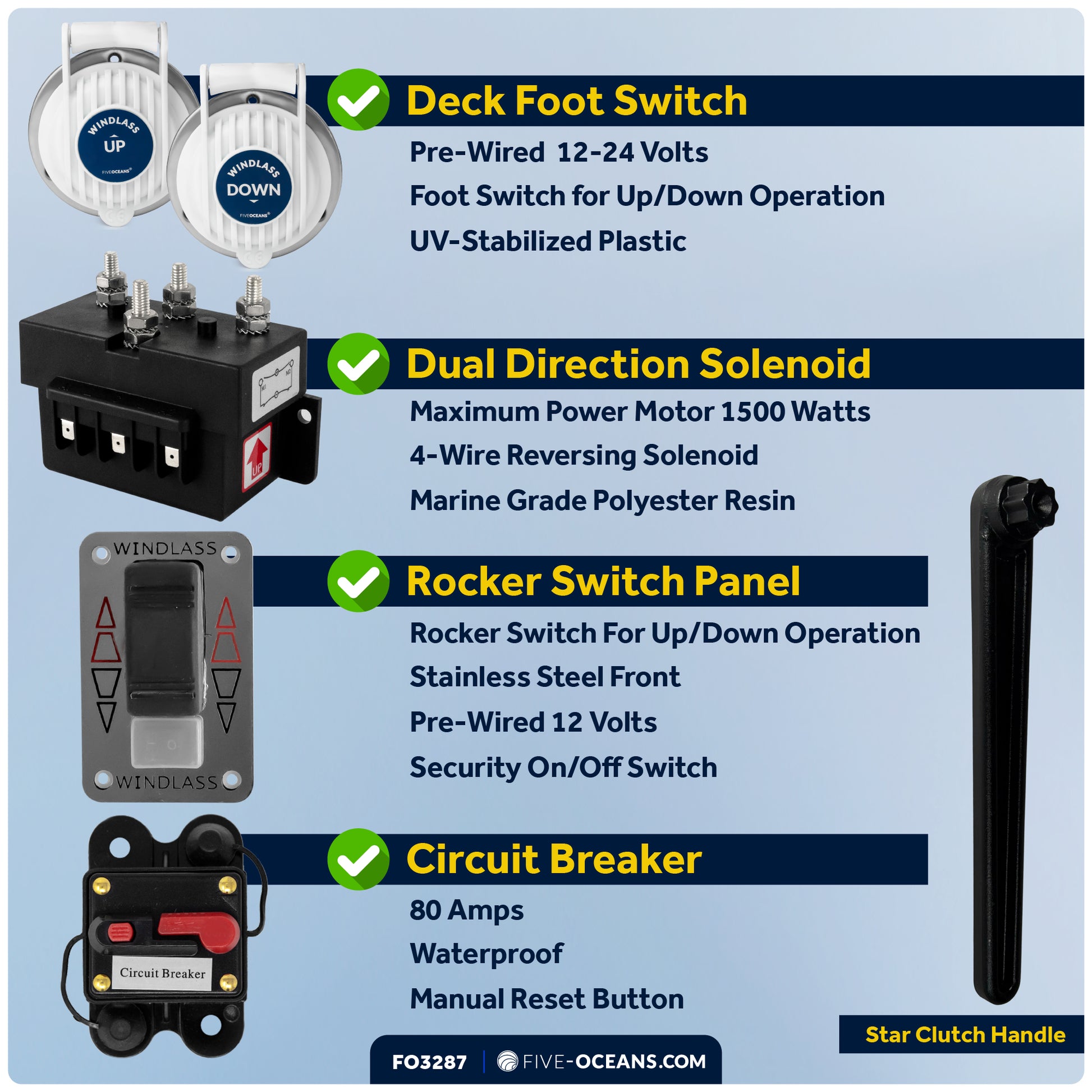

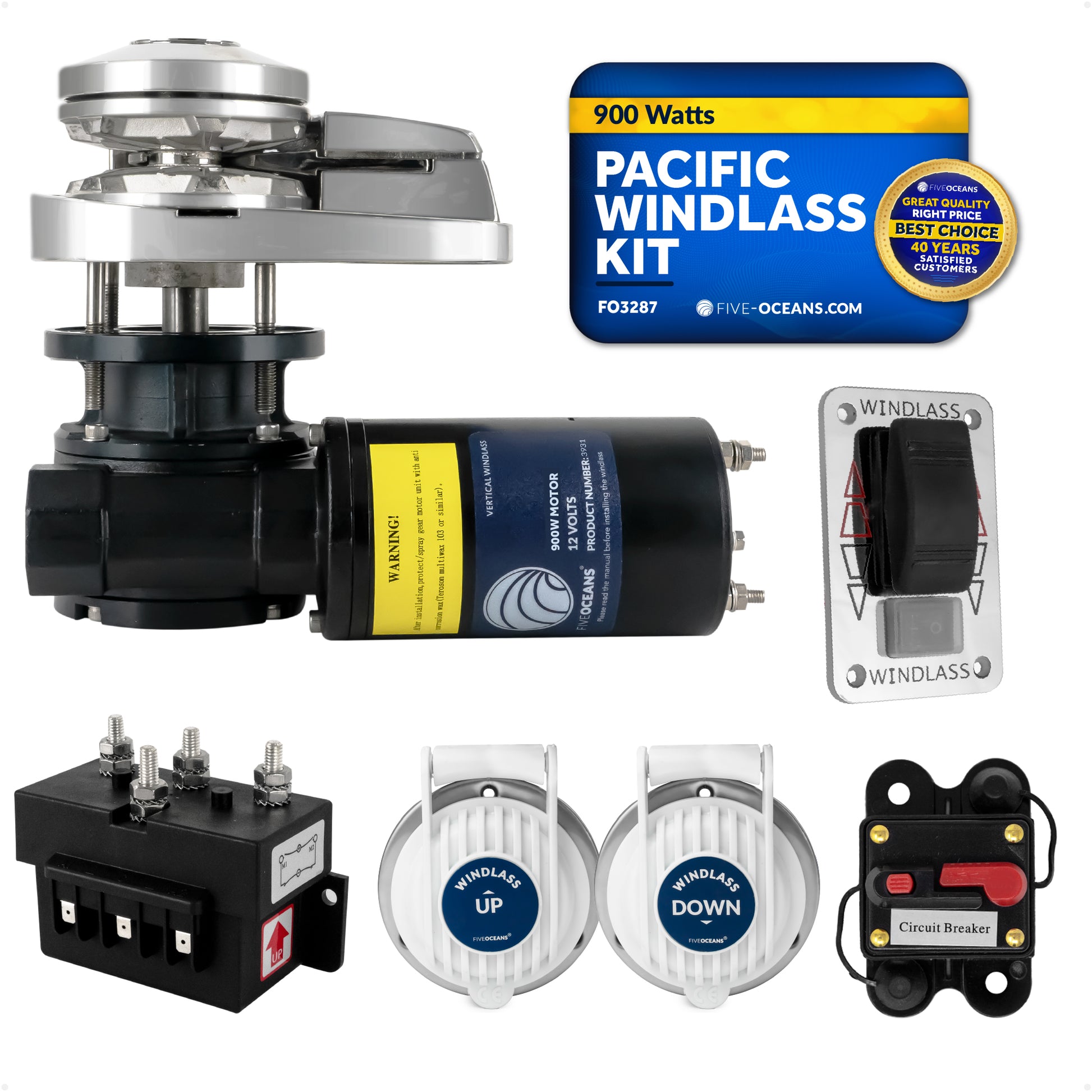

WINDLASS ANCHOR SYSTEM MODEL: Pacific 900 Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 900 Watts. Gypsy: Chain and Rope. Includes 4-Wire Solenoid, 80A Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.

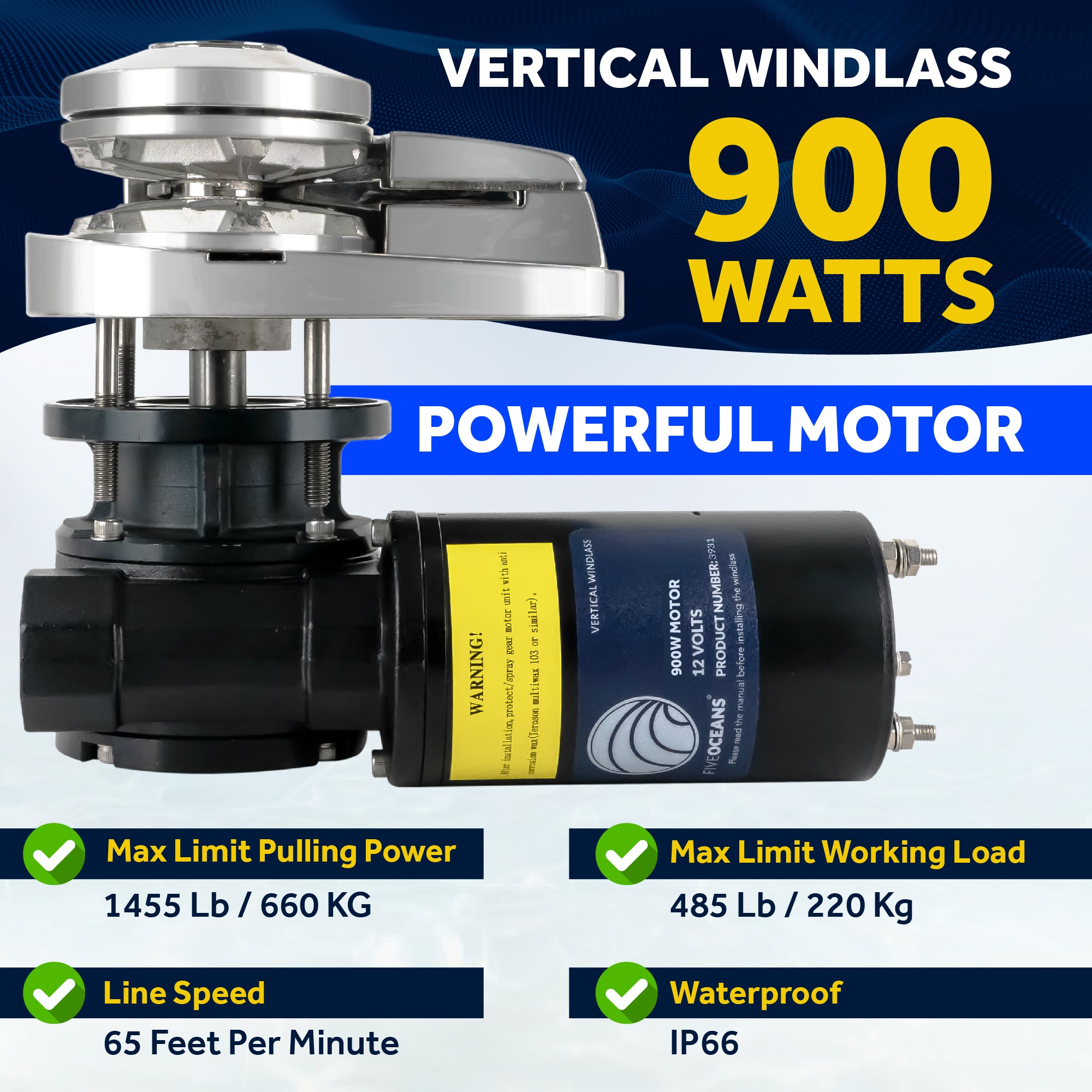

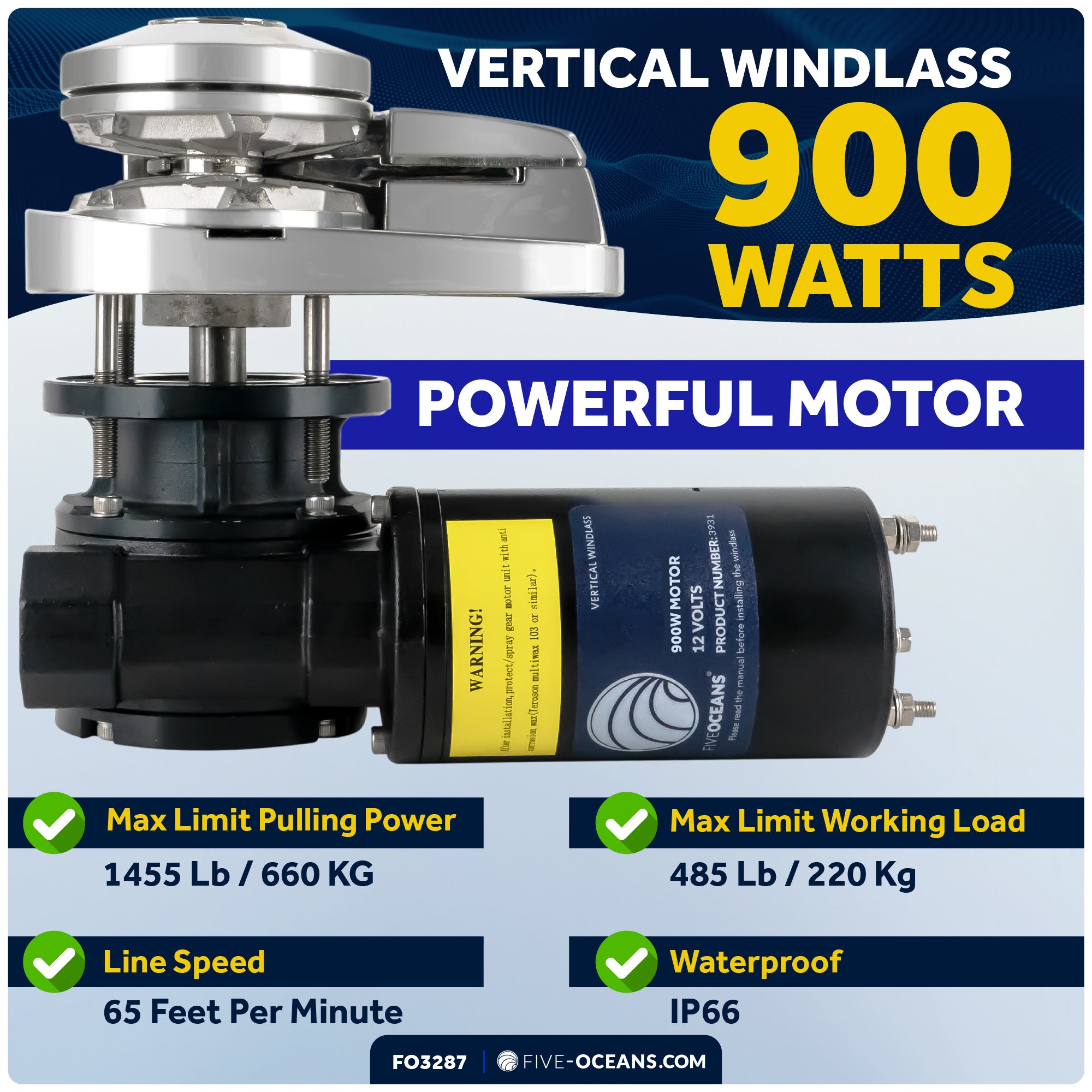

HIGH-PERFORMANCE ANCHOR MOTOR: The High-Power 900 Watts provides a maximum pulling power of 1455 Lb / 660 Kg and a maximum working load of 485 Lb / 220 Kg. It allows a drop speed of 65 feet per minute. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.
ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 1/4 Inch HT G4. Rope: 1/2 Inch (12mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.

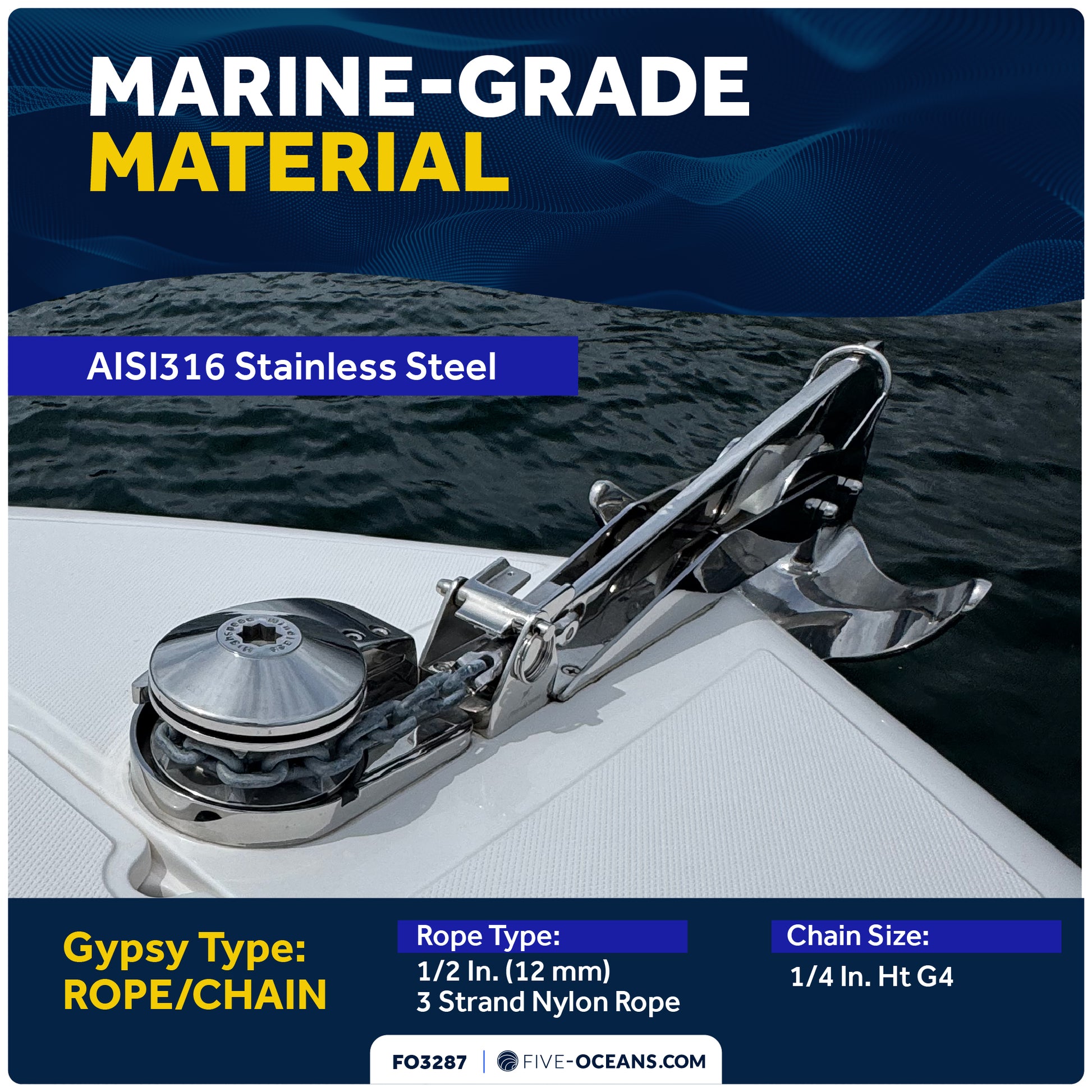

MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they can withstand the high-load strain.

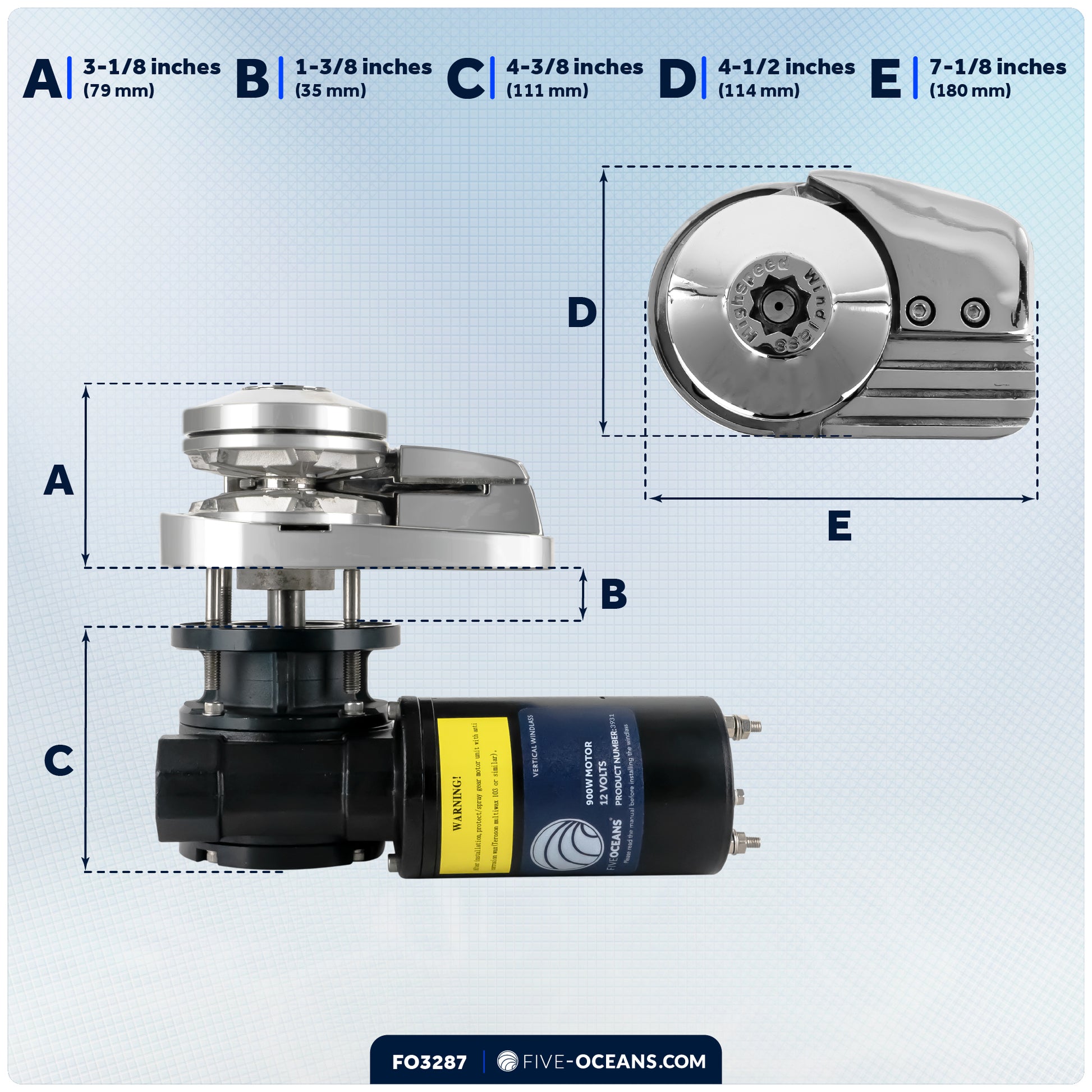

VERTICAL WINDLASS INSTALLATION: Under-Deck installation. 4 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. Deck thickness up to 1 3/8 Inch (35 mm). Features a vertical rotation about the deck which allows a reduced volume above the deck as the electric motor and the gearbox are sitting in the chain locker. To offer the best performance and functionality, we recommend this Vertical Windlass 900 Watts for boats up to 45 Ft / 14 m depending on the boat style.

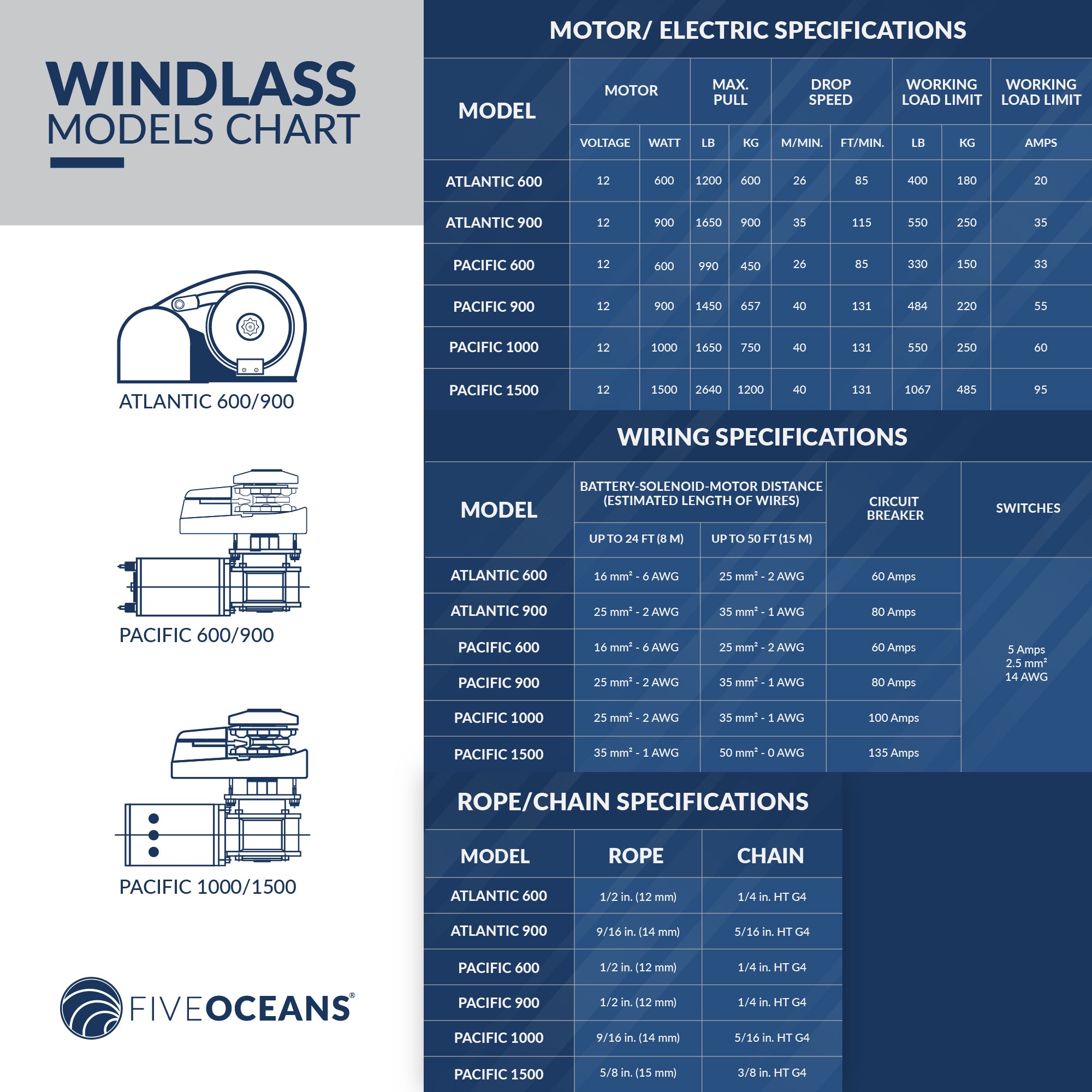

TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1455 Lb / 660 Kg
Pulling Power: 485 Lb / 220 Kg
Maximum Limit Working Load: 485 Lb / 220 Kg
Working Load: 165 Lb / 75 Kg
Line Speed: 65 Feet per Minute
Current Draw: 65 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand
[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.
Five Oceans/Baron USA will not be responsible if the products are used under unusual weather and sea conditions.
PRODUCT NUMBER: FO3287
HIGH-PERFORMANCE ANCHOR MOTOR: The High-Power 900 Watts provides a maximum pulling power of 1455 Lb / 660 Kg and a maximum working load of 485 Lb / 220 Kg. It allows a drop speed of 65 feet per minute. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.
ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 1/4 Inch HT G4. Rope: 1/2 Inch (12mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.
MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they can withstand the high-load strain.
VERTICAL WINDLASS INSTALLATION: Under-Deck installation. 4 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. Deck thickness up to 1 3/8 Inch (35 mm). Features a vertical rotation about the deck which allows a reduced volume above the deck as the electric motor and the gearbox are sitting in the chain locker. To offer the best performance and functionality, we recommend this Vertical Windlass 900 Watts for boats up to 45 Ft / 14 m depending on the boat style.
TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1455 Lb / 660 Kg
Pulling Power: 485 Lb / 220 Kg
Maximum Limit Working Load: 485 Lb / 220 Kg
Working Load: 165 Lb / 75 Kg
Line Speed: 65 Feet per Minute
Current Draw: 65 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand
[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.
Five Oceans/Baron USA will not be responsible if the products are used under unusual weather and sea conditions.
PRODUCT NUMBER: FO3287
