Pacific Series Vertical Windlass Kit, 12V DC (3-Terminal Motor)

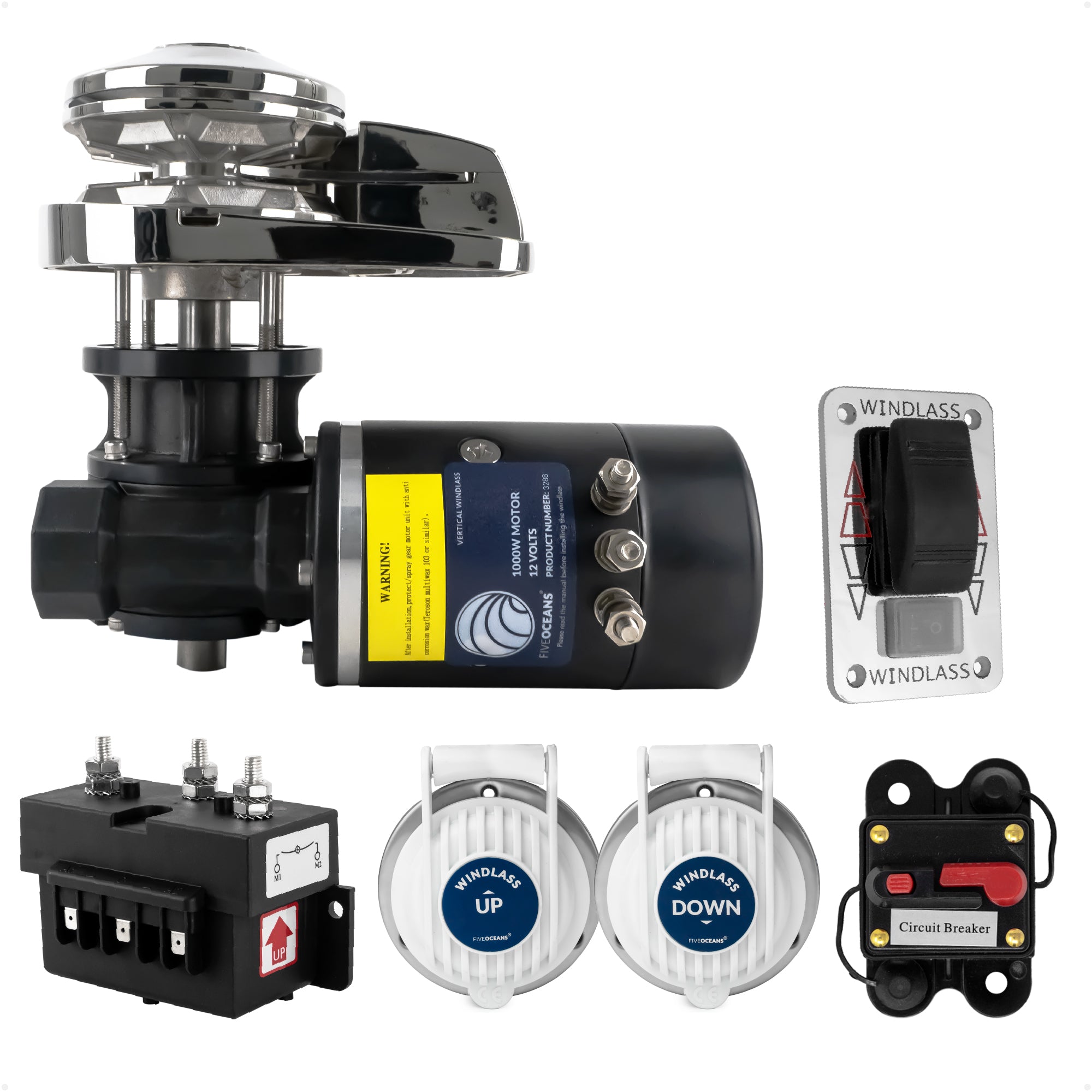

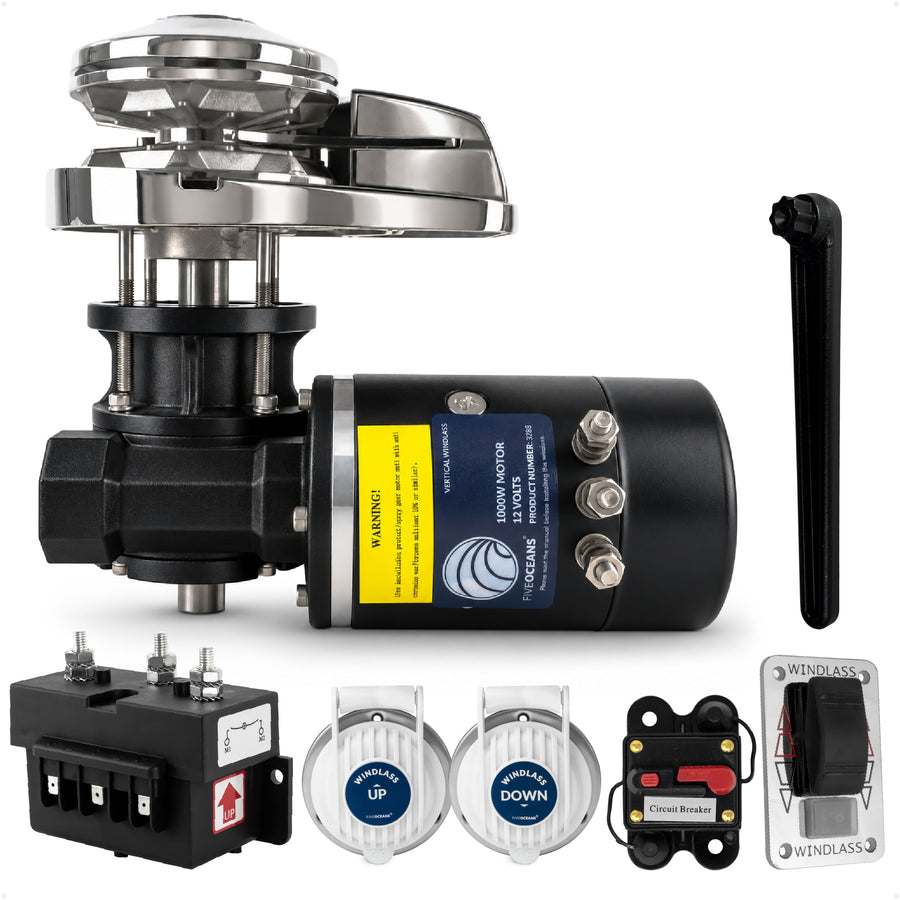

WINDLASS ANCHOR SYSTEM MODEL: Pacific Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power. Gypsy: Chain and Rope. Includes 3-Wire Solenoid, Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.
HIGH-PERFORMANCE ANCHOR MOTOR: High-Power motor. Waterproof IP66 rating. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.
MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they can withstand the high-load strain.
VERTICAL WINDLASS INSTALLATION: Under-deck setup with 4 standard 5/16" (8mm) mounting studs, washers, and nuts included. Supports max deck thickness up to 2" (50mm). Vertical rotation minimizes above-deck space, placing the motor and gearbox in the chain locker.
