Windlass Kit - Pacific 900 Series Vertical, 900W, 12V, with Anchor Rode Galvanized Chain & Swivel
Regular price
$1,429.00
Sale price
Regular price
$0.00
Order Now — Ships Today
Cutoff 2:30 pm EST · Miramar, FL
Why buy from us — Trusted for 45 years
Same-day shipping
Before 2:30 pm EST
Same-day pickup
Miramar, FL
30-day returns
Hassle-free
1-year warranty
Guaranteed

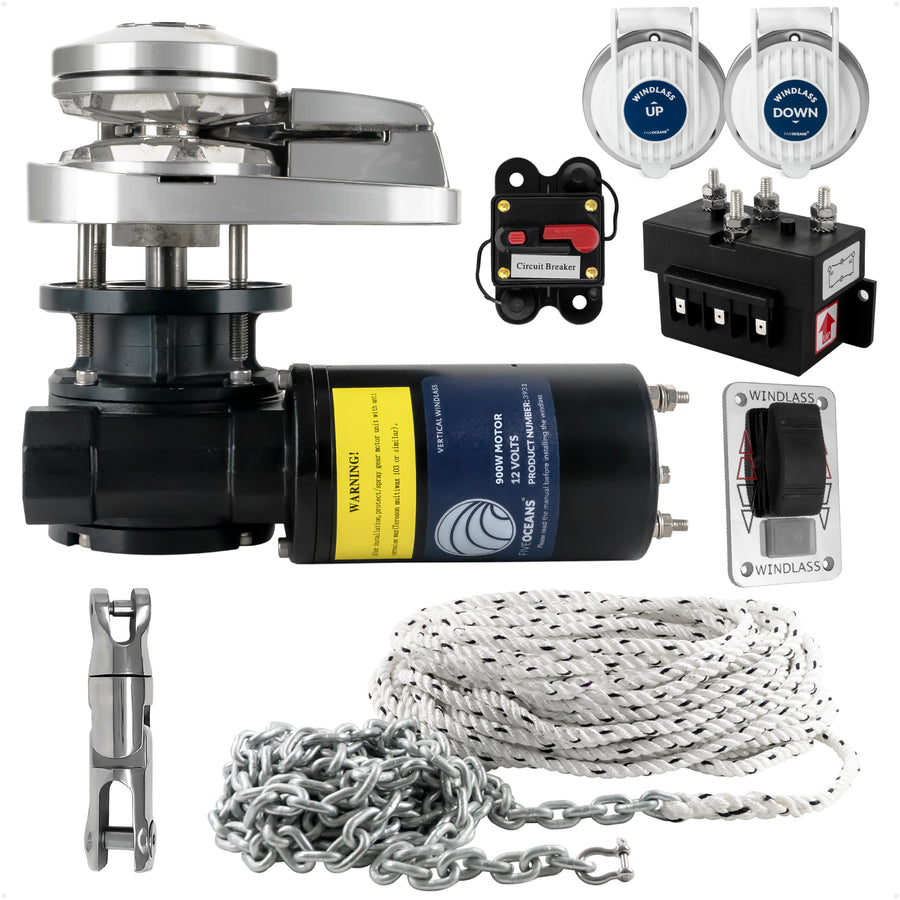

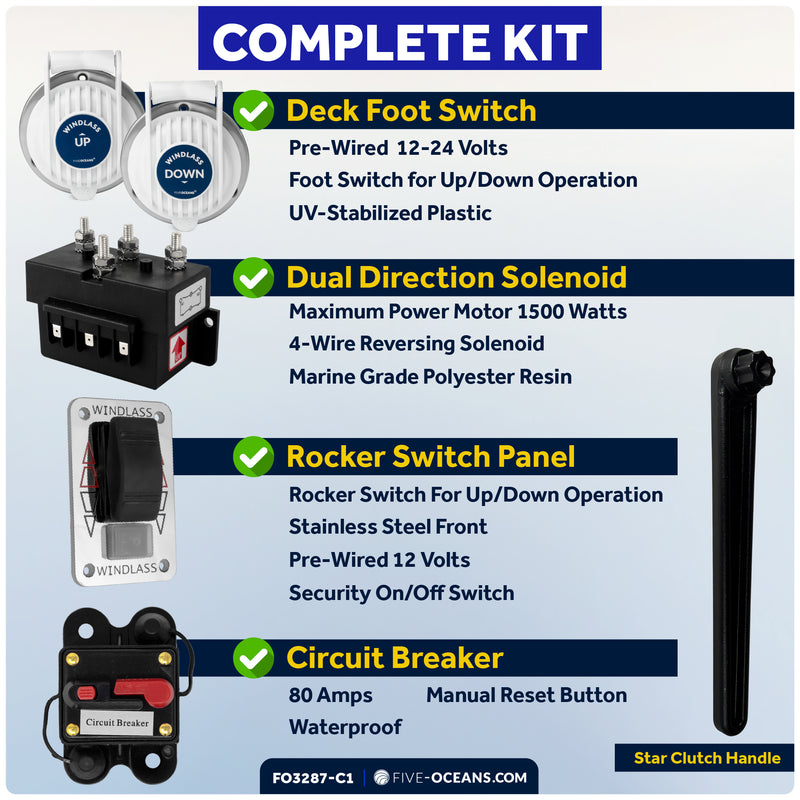

WINDLASS ANCHOR KIT INCLUDES: Pacific 900 Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 900W. Gypsy: Chain and Rope, 4-Wire Solenoid, 80A Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Anchor Rode Nylon Three Strand 1/2 in x 150 ft, Galvanized HT G4 Chain 1/4 in x 15 ft, Screw Pin Bow Shackle Stainless Steel 1/4 inches, Multi-directional Anchor Double Swivel Connector, Up to 1/2 in. Chain, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.

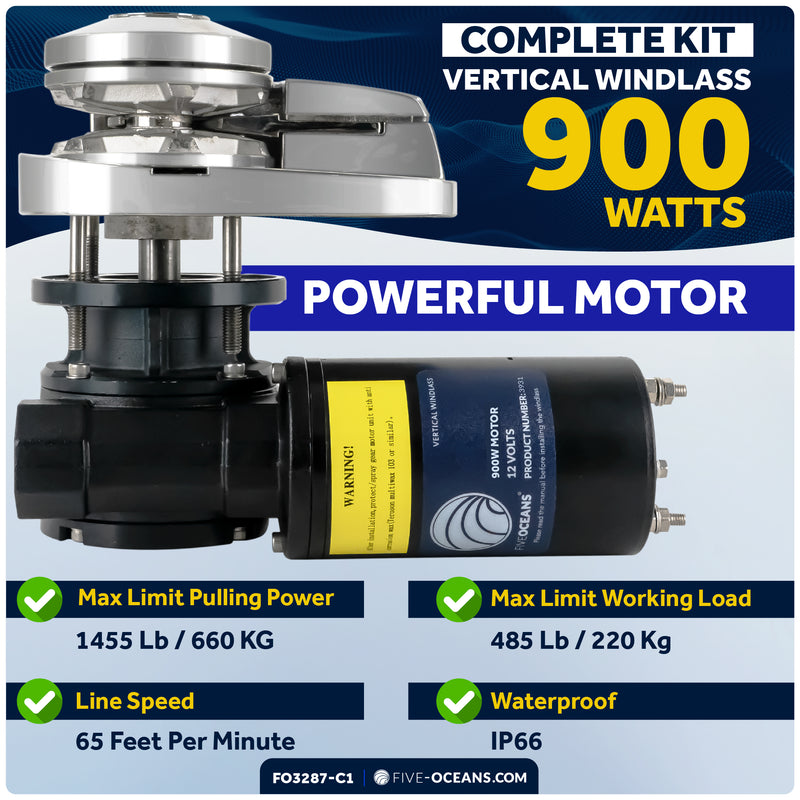

HIGH-PERFORMANCE ANCHOR MOTOR: The High-Power 900 Watts provides a maximum pulling power of 1455 Lb / 660 Kg and a maximum working load of 485 Lb / 220 Kg. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.

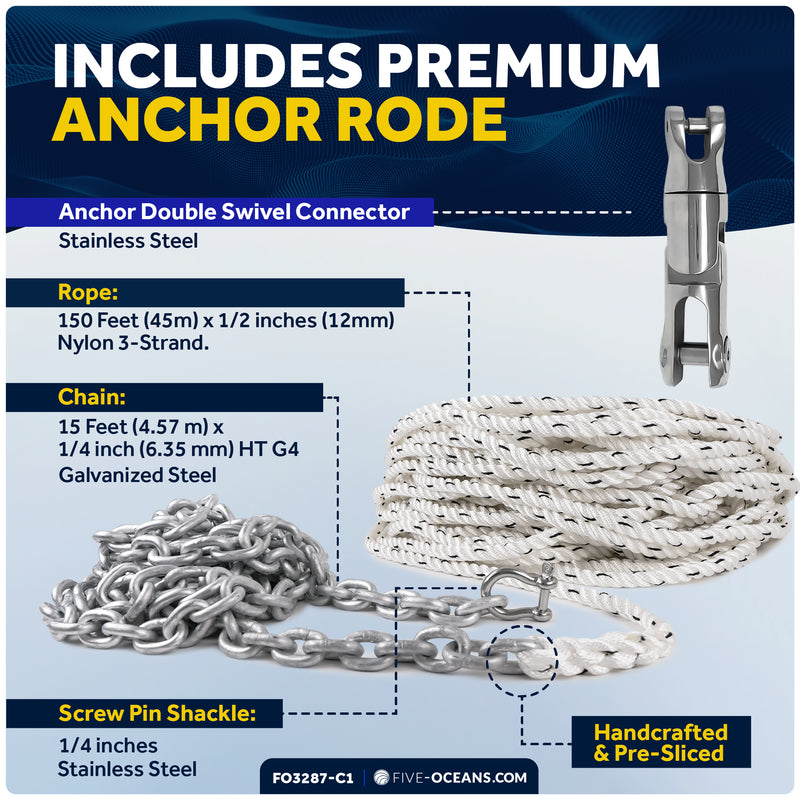

ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 1/4 Inch HT G4. Rope: 1/2 Inch (12mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.

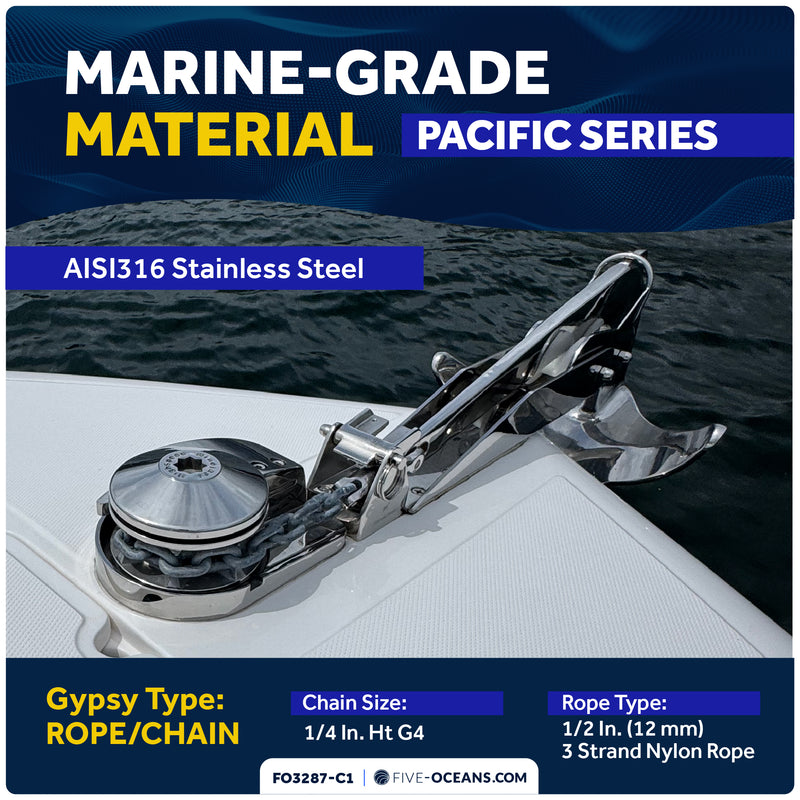

MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they can withstand the high-load strain.

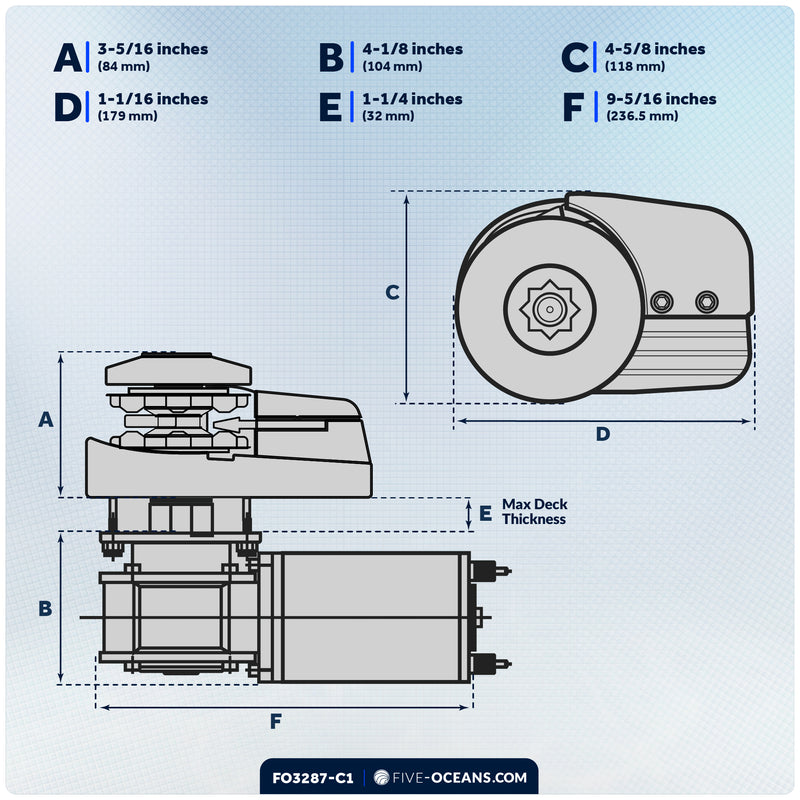

VERTICAL WINDLASS INSTALLATION: Under-deck setup with 4 standard 5/16" (8mm) mounting studs, washers, and nuts included. Supports max deck thickness up to 1-1/4" (32mm). Vertical rotation minimizes above-deck space, placing the motor and gearbox in the chain locker. Recommended 600W windlass for boats 20-45 ft, depending on vessel design and displacement.

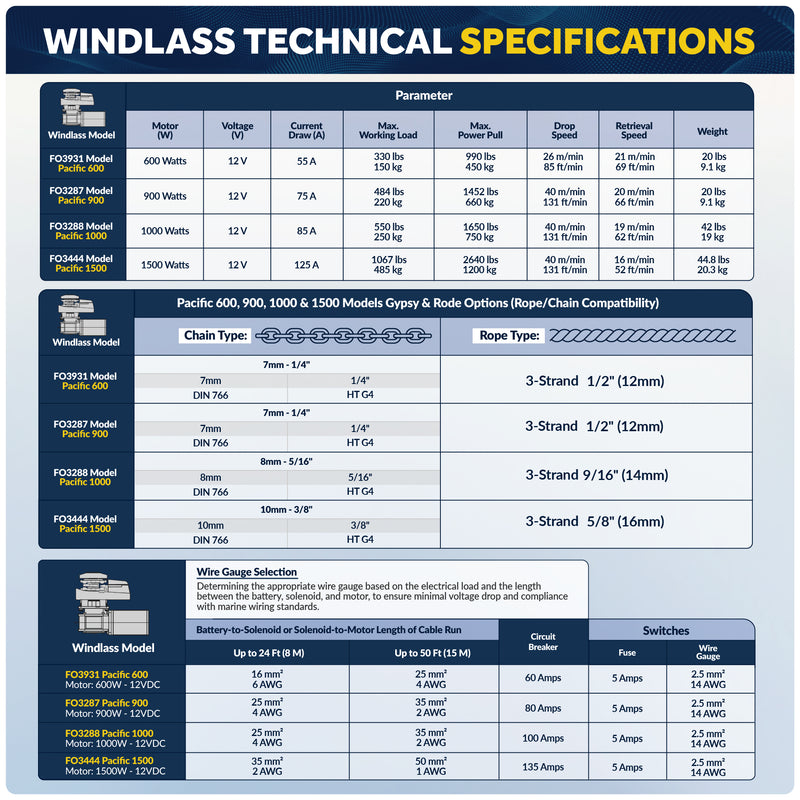

WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1455 Lb / 660 Kg
Maximum Limit Working Load: 485 Lb / 220 Kg
Working Load: 165 Lb / 75 Kg
Drop Speed: 40 m / min (131 Ft / min)
Retrieval Speed: 20 m / min (66 Ft / min)
Current Draw: 75 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand
Max deck thickness up to 1-1/4" (32mm)
[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.
Five Oceans Group LLC will not be responsible if the products are used under unusual weather and sea conditions.
PRODUCT NUMBER: 3287-C1
