Windlass Kit - Pacific 900 Series Vertical, 900W, 12, with 125' Stainless Steel Chain

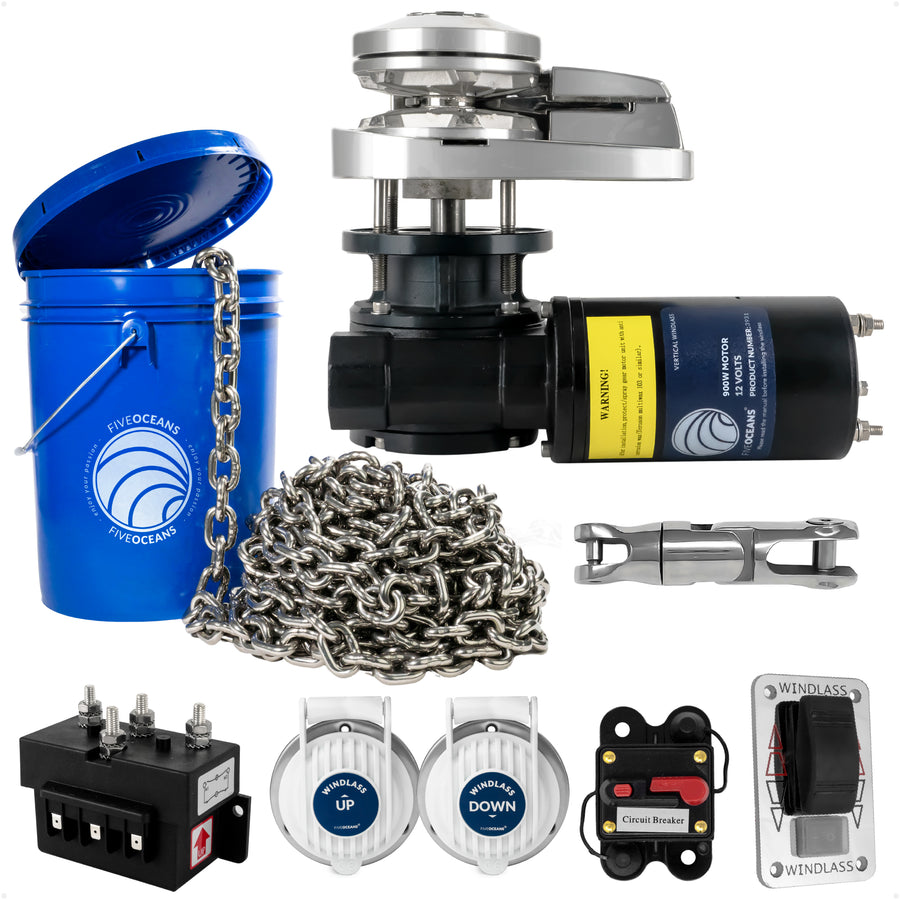

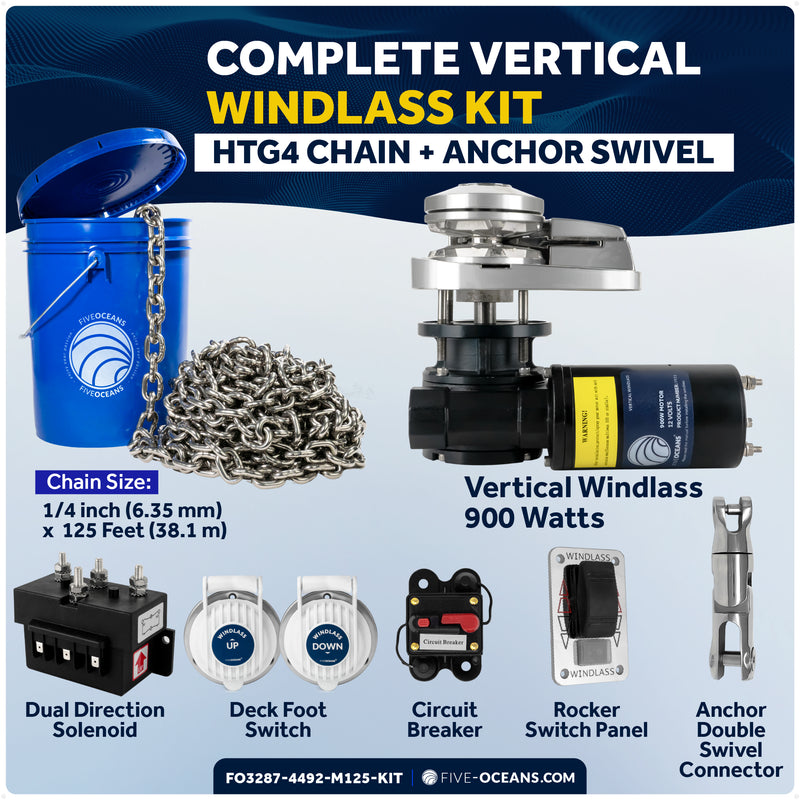

COMPLETE BOAT WINDLASS ANCHOR KIT - Includes a powerful Pacific 900W Vertical Windlass, 125 Ft of 1/4" HT G4 stainless steel anchor chain, and a heavy-duty 316 stainless steel anchor swivel.

ALL-CHAIN CONFIGURATION FOR OPTIMAL WINDLASS PERFORMANCE - A full chain setup provides superior grip on the gypsy, minimizes rope slippage, and ensures smoother operation and maximum efficiency when deploying or retrieving your anchor.

MARINE-GRADE DURABILITY - Designed with anodized 316 stainless steel housing and stainless steel chain, this kit ensures maximum corrosion resistance and reliable performance in saltwater conditions.

HIGH LOAD CAPACITY & PERFORMANCE - Windlass delivers 1455 Lb max pull, chain supports 1818.81 lb maximum working load, and swivel handles up to 2315 lb working load. Built for strength and safety.

EASY INSTALLATION FOR BOATS 20 FT TO 45FT - Under-deck vertical windlass with complete mounting hardware and template. Perfect for sailboats, yachts, fishing boats, and recreational vessels.

SECURE & TANGLE-FREE ANCHORING - The swivel prevents twisting of the rope and chain while allowing 360 degree rotation, providing smooth anchor retrieval and safer docking experience.

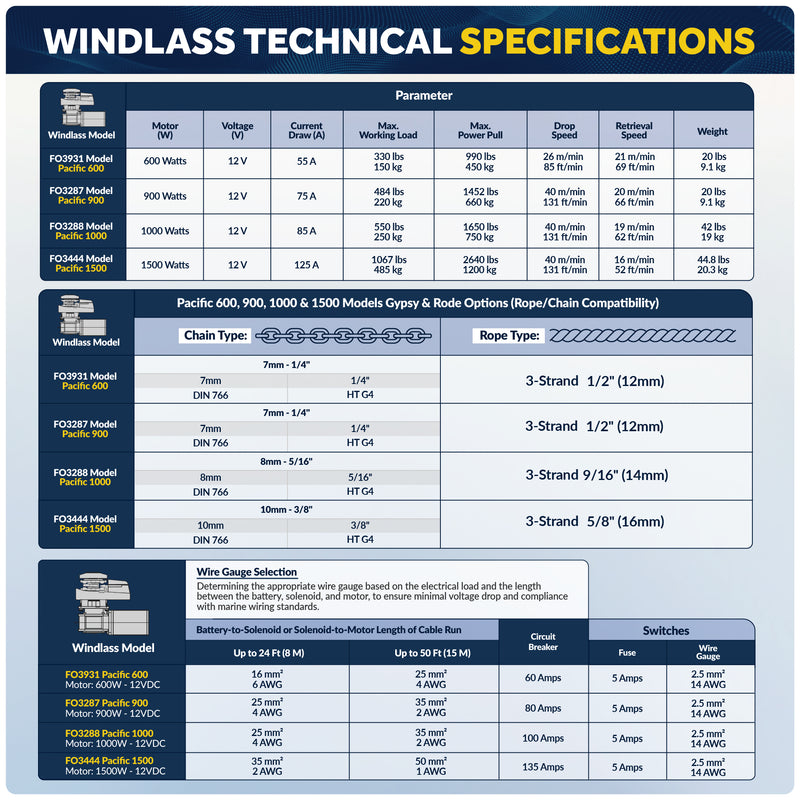

WINDLASS TECHNICAL SPECIFICATIONS:

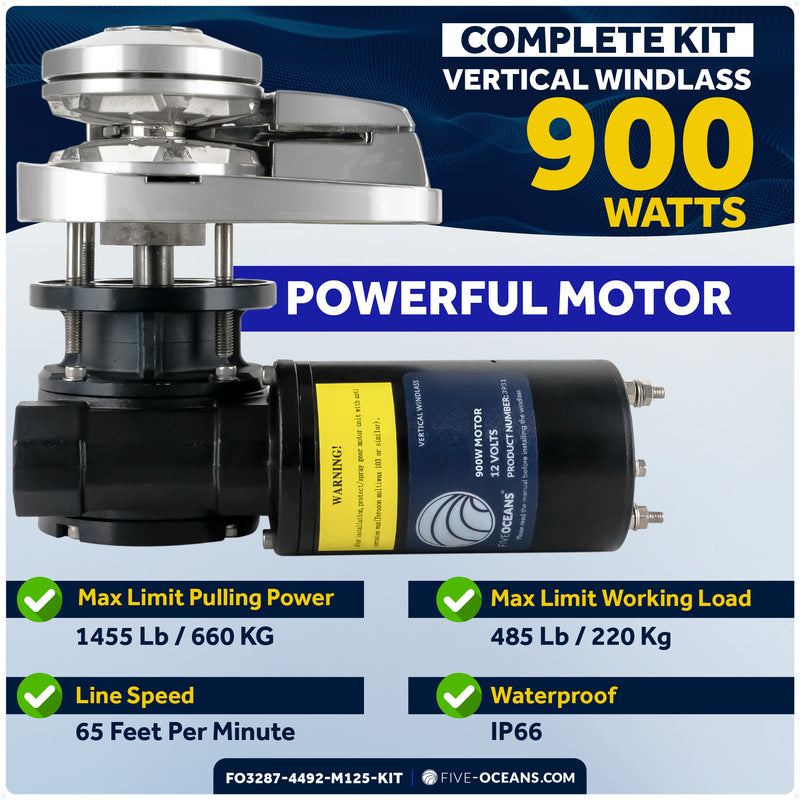

Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1455 Lb / 660 Kg
Maximum Limit Working Load: 485 Lb / 220 Kg
Working Load: 165 Lb / 75 Kg
Drop Speed: 40 m / min (131 Ft / min)
Retrieval Speed: 20 m / min (66 Ft / min)
Current Draw: 75 Amps
Circuit Breaker: 80 Amps

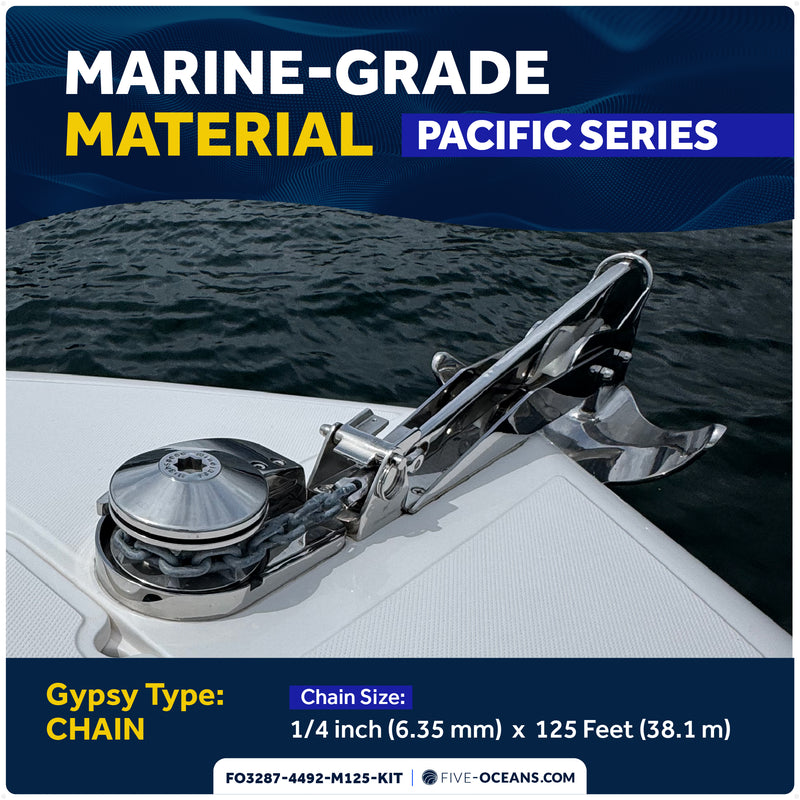

Dual Gypsy: Chain and Rope

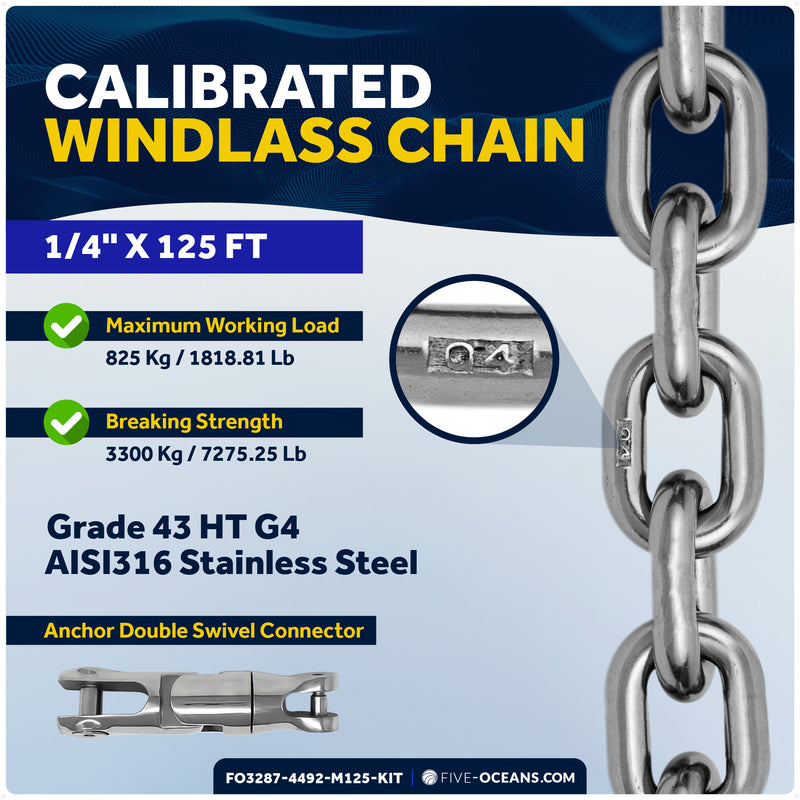

Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand

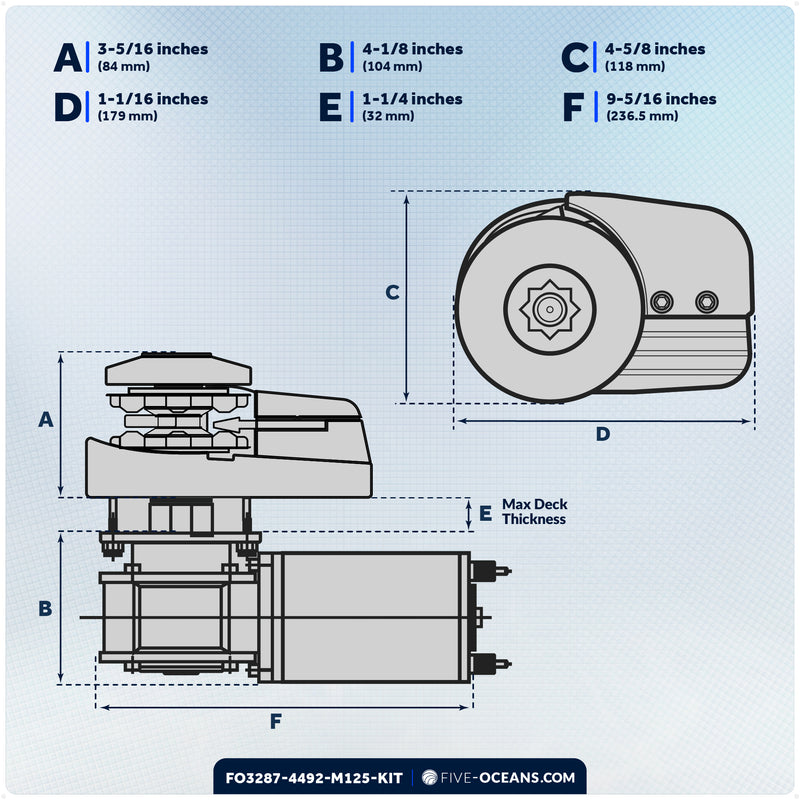

Max deck thickness up to 1-1/4" (32mm)

PRODUCT NUMBER: FO3287-4492-M125-KIT
