Windlass Kit - Pacific 1500 Series Vertical, 1500W, 12V, with Anchor Rode Stainless Steel Chain & Swivel

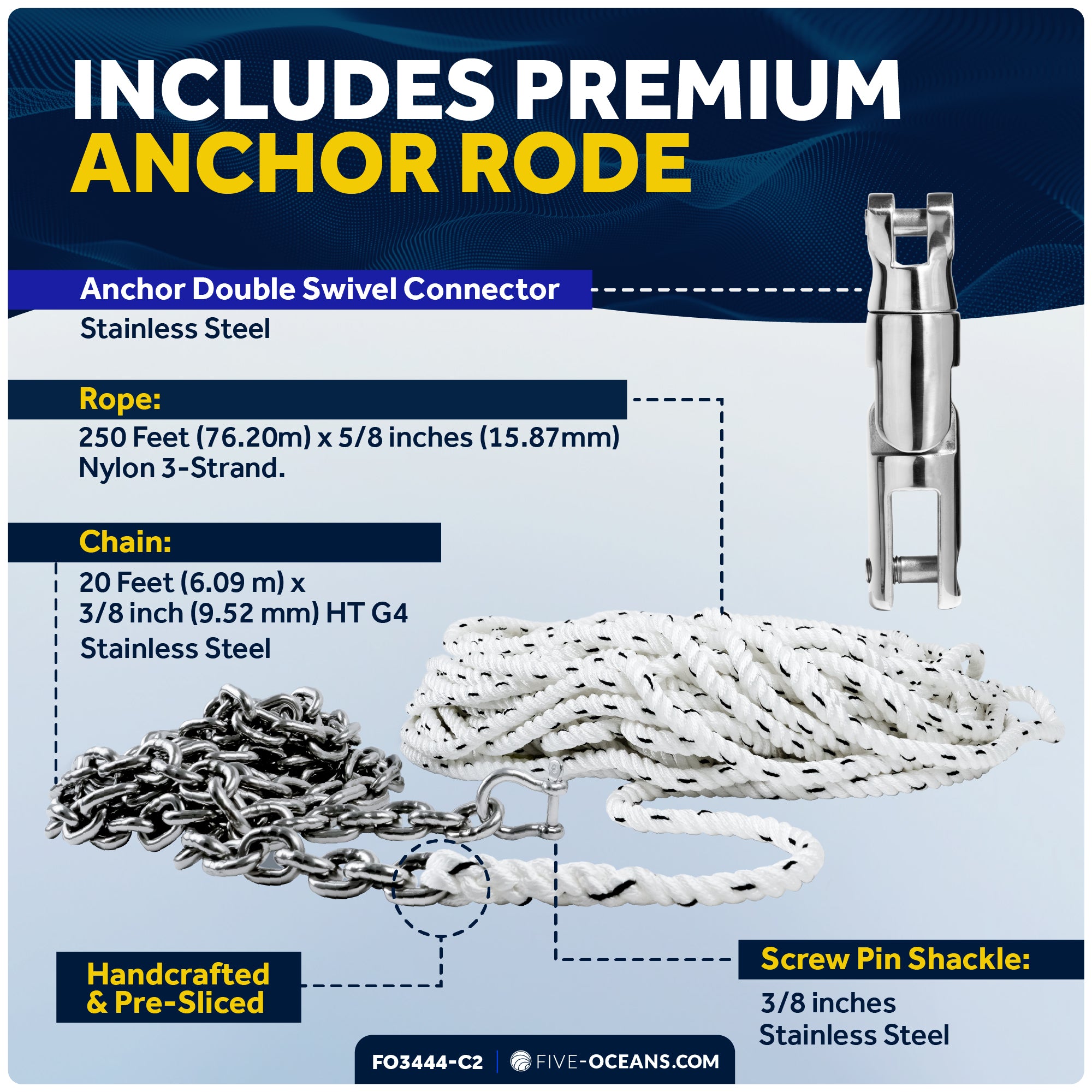

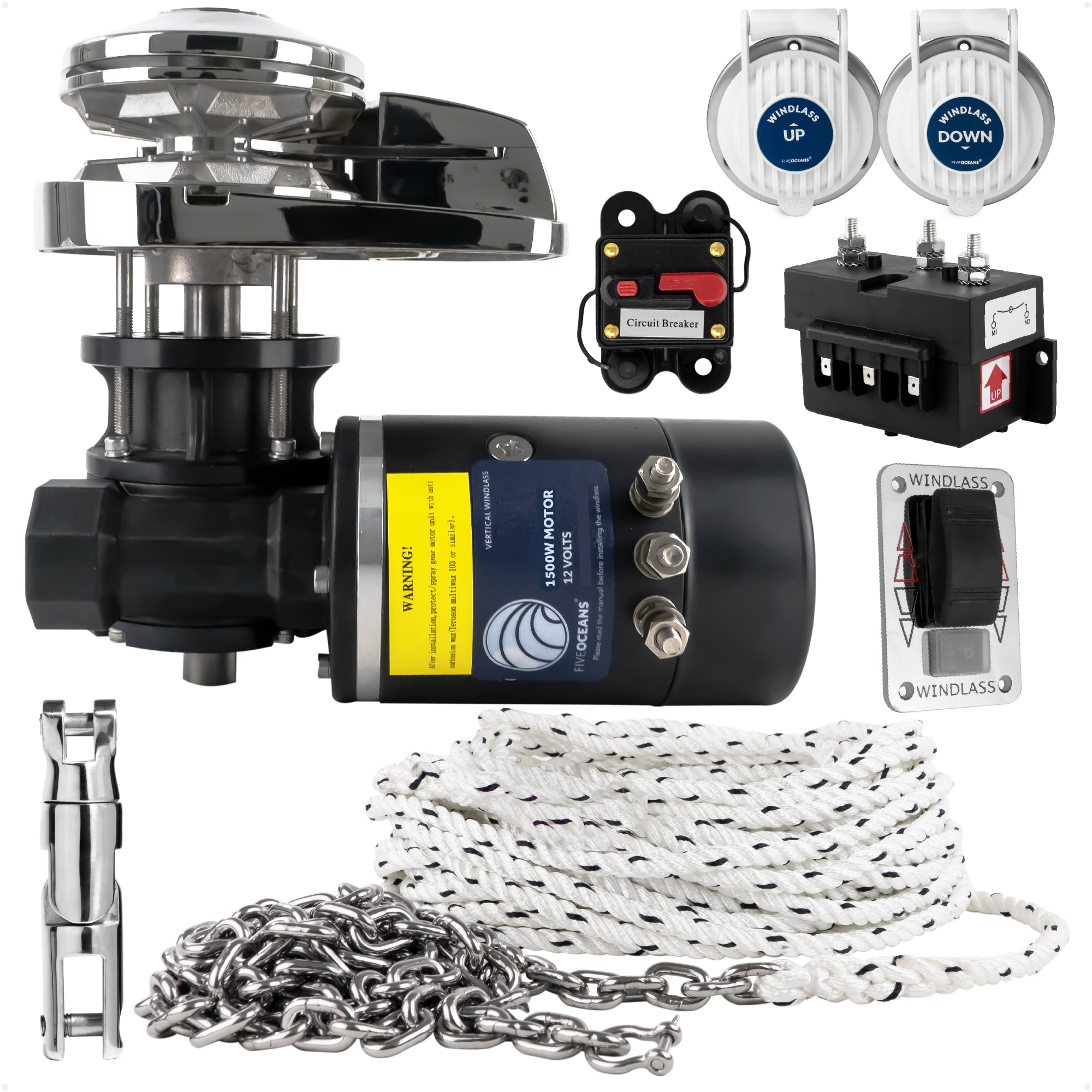

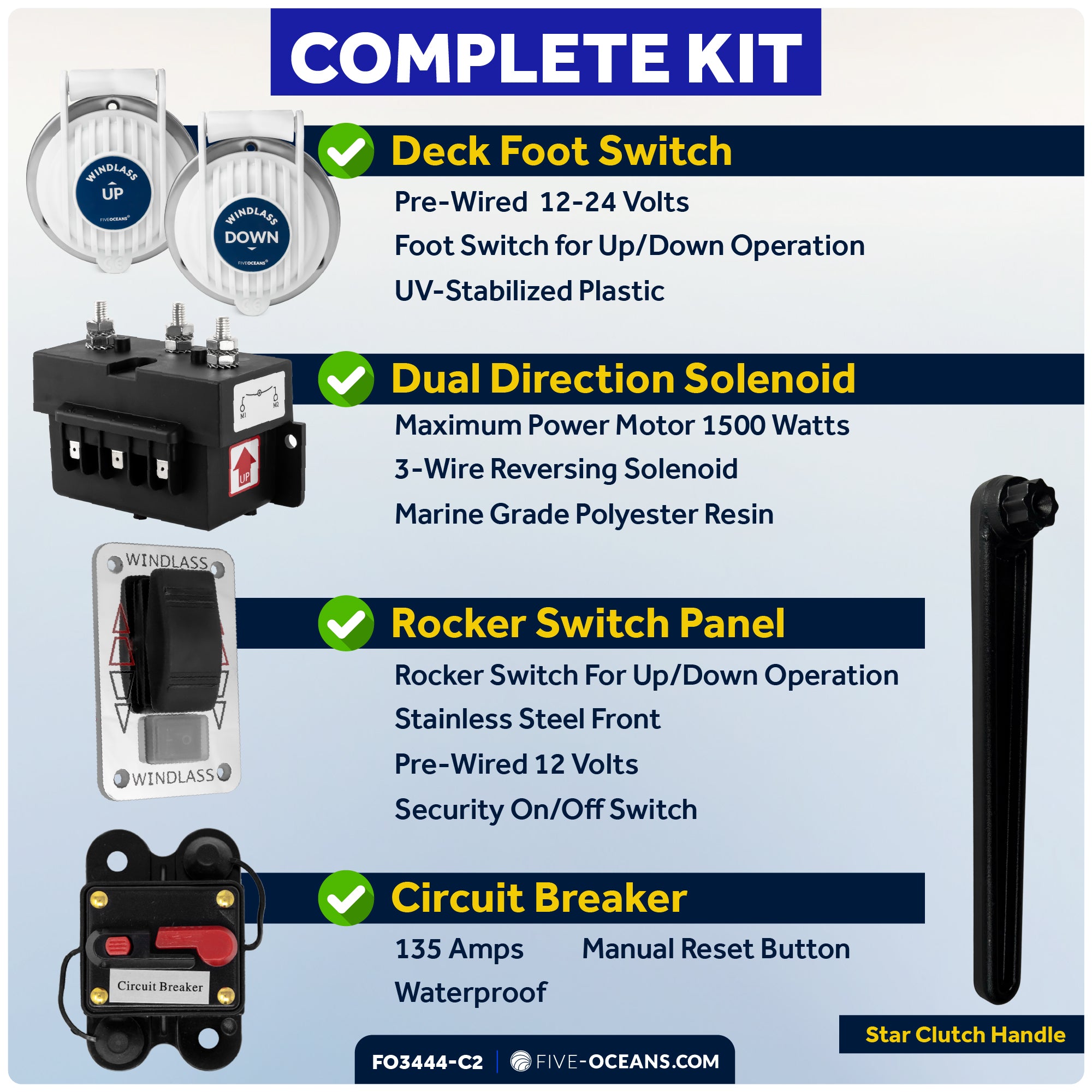

COMPLETE PACIFIC 1500 SERIES WINDLASS ANCHOR KIT: Includes a Pacific 1500W vertical windlass (12V), 135A circuit breaker, 3-wire solenoid, up/down foot switch, rocker switch, 250 ft x 5/8" 3-strand nylon and 20 ft x 3/8" stainless steel HT G4 chain anchor rode, 3/8" stainless steel screw pin bow shackle, multi-directional anchor double swivel connector, manual top-cap handle, mounting hardware, and template for easy installation.

HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum limit pulling power of 2645 Lb / 1200 Kg and a maximum limit working load of 1070 Lb / 485 Kg. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.

SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 3/8" HT G4 chain and 5/8" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.

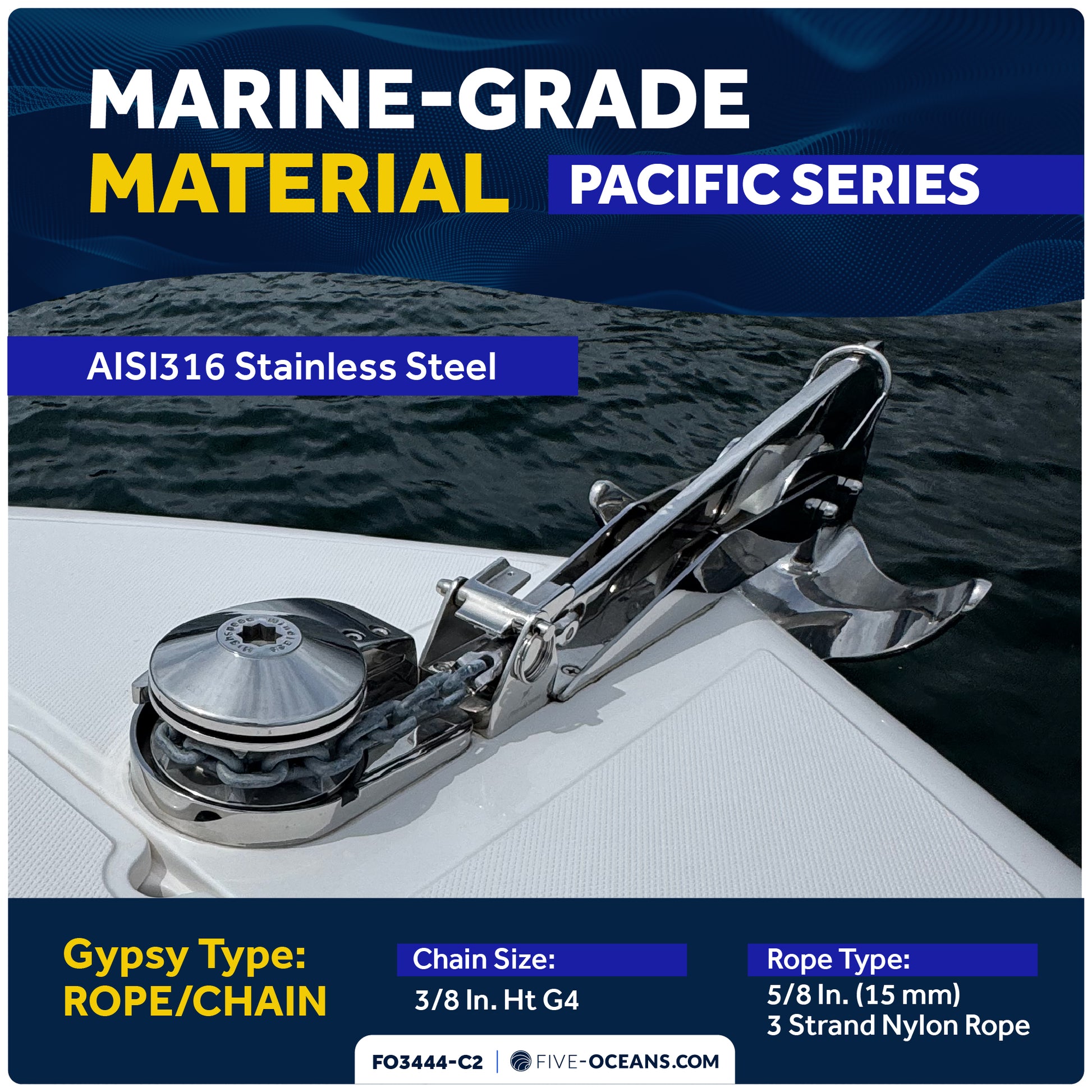

MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.

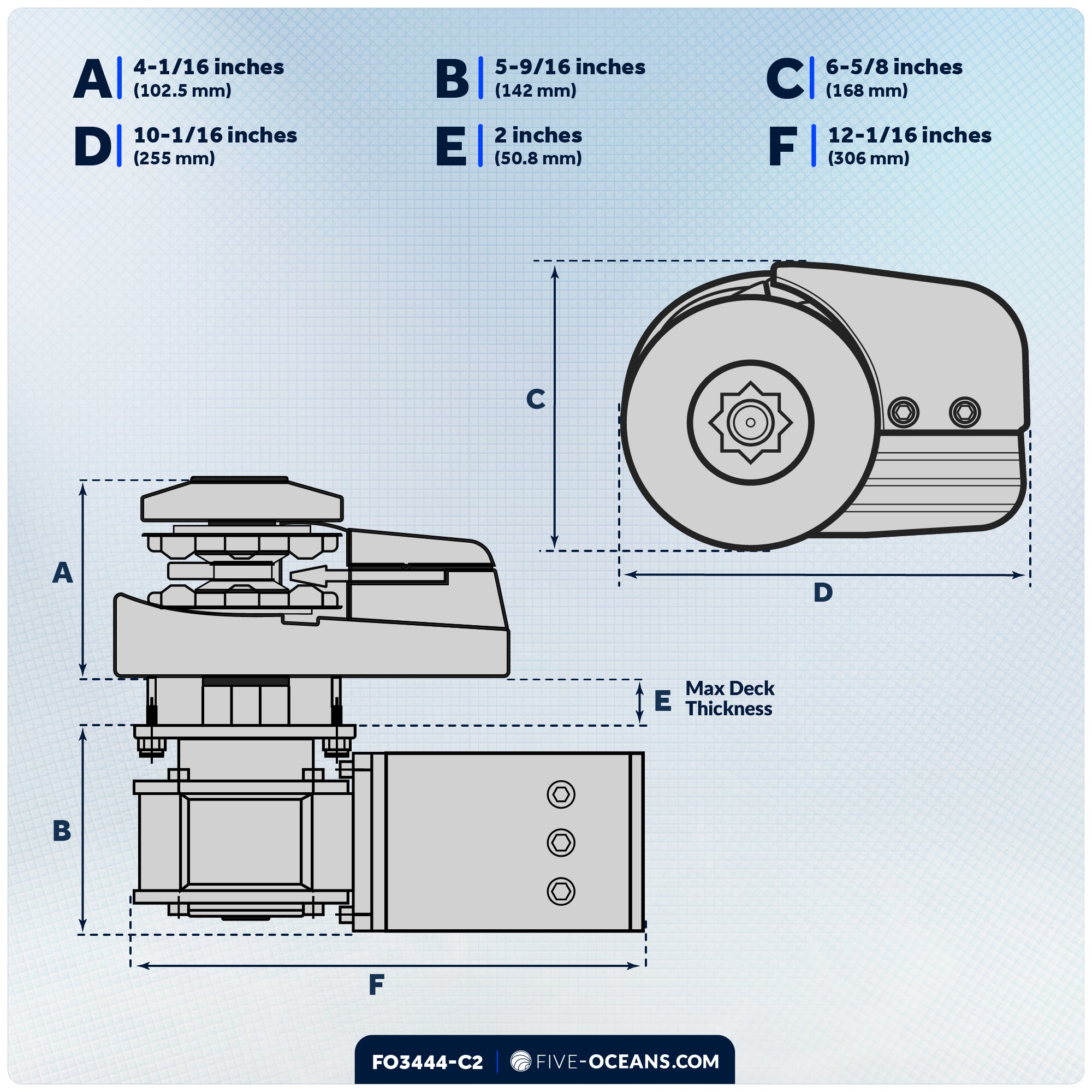

VERTICAL WINDLASS INSTALLATION: Under-deck setup with 4 standard 5/16" (8mm) mounting studs, washers, and nuts included. Supports max deck thickness up to 2" (50mm). Vertical rotation minimizes above-deck space, placing the motor and gearbox in the chain locker. Recommended 600W windlass for boats 40-65 ft, depending on vessel design and displacement.

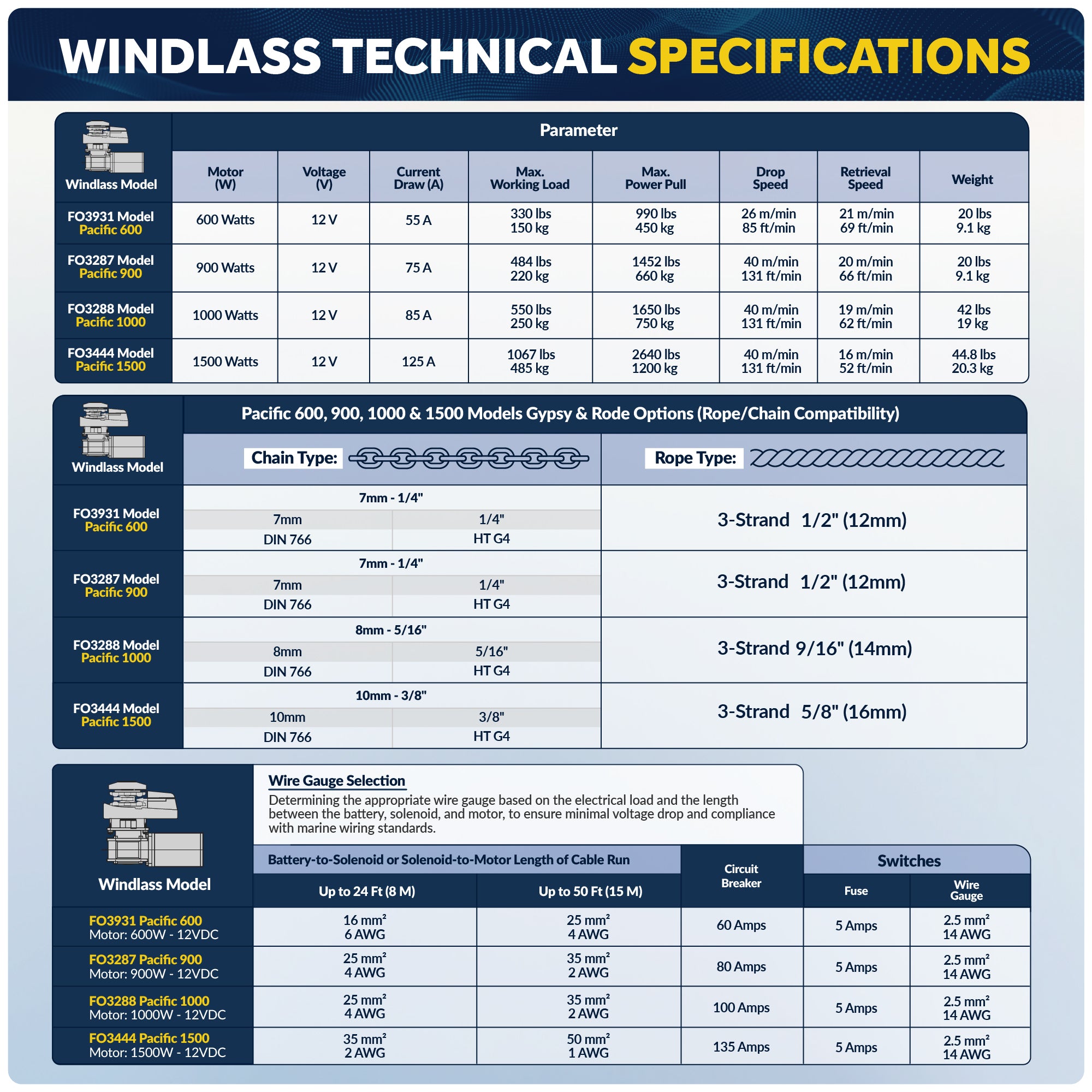

WINDLASS TECHNICAL SPECIFICATIONS:

Motor Power: 1500 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 2645 Lb / 1200 Kg
Maximum Limit Working Load: 1067 Lb / 485 Kg
Working Load: 352 Lb / 160 Kg
Drop Speed: 40 m / min (131 Ft / min)
Retrieval Speed: 16 m / min (52 Ft / min)
Current Draw: 125 Amps
Circuit Breaker: 135 Amps
Dual Gypsy: Chain and Rope
Chain: 3/8 Inch (14mm) - 3 Strand
Rope: 5/8 Inch HT G4

[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.

Five Oceans Group LLC will not be responsible if the products are used under unusual weather and sea conditions.

PRODUCT NUMBER: 3444-C2
