Pacific 1000 Series Vertical Windlass Kit, 1000W, 12V with Anchor Rode & Swivel - FO3288-C2

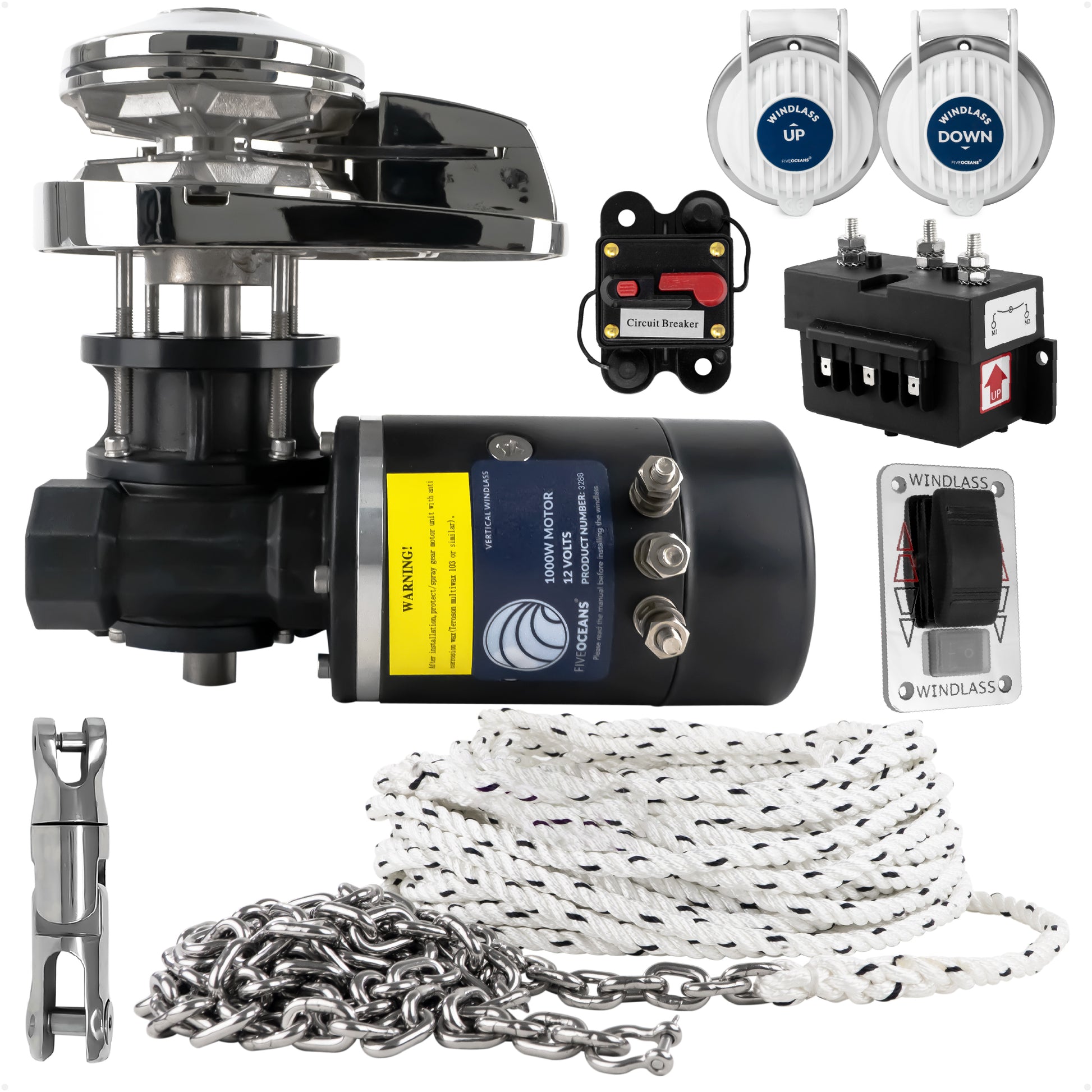

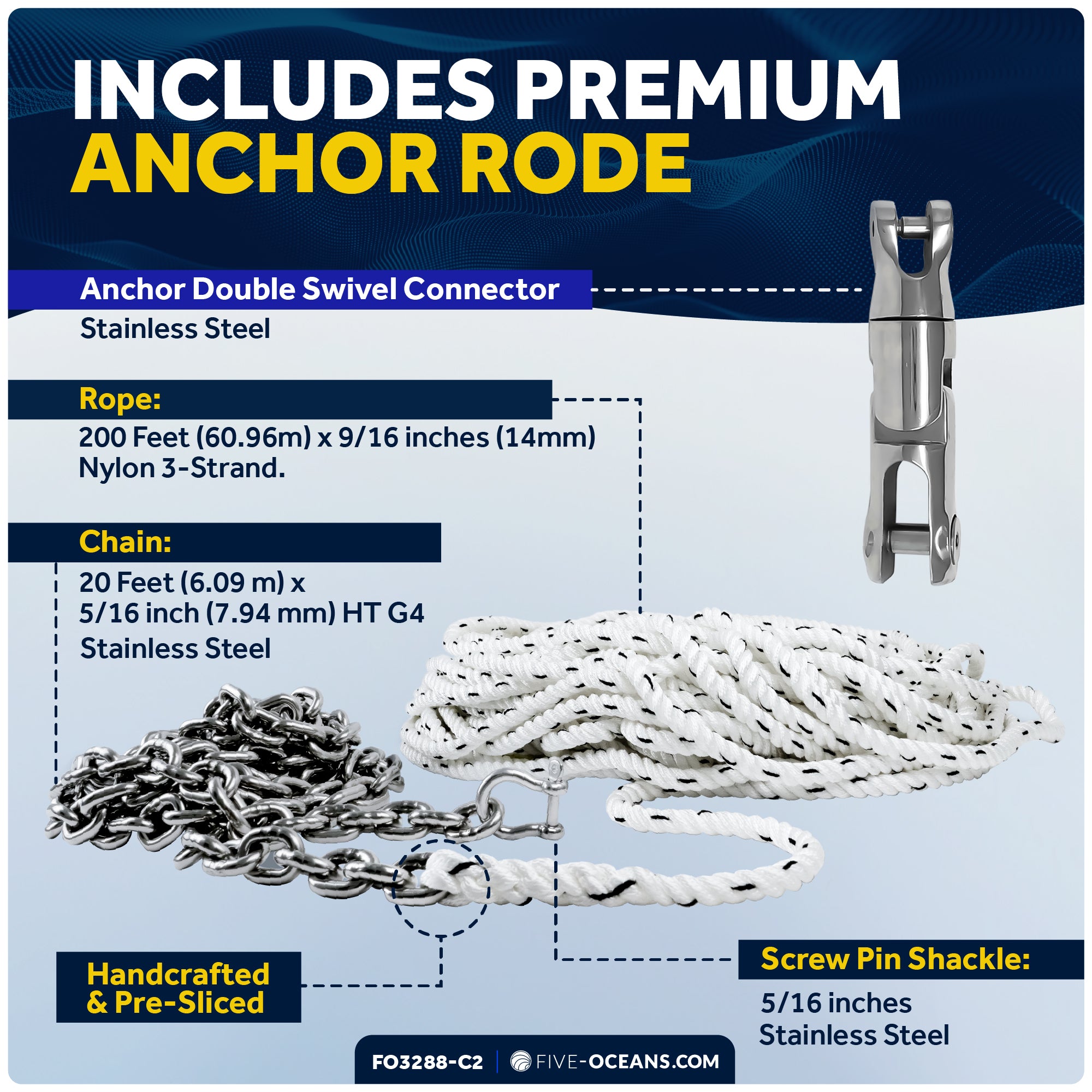

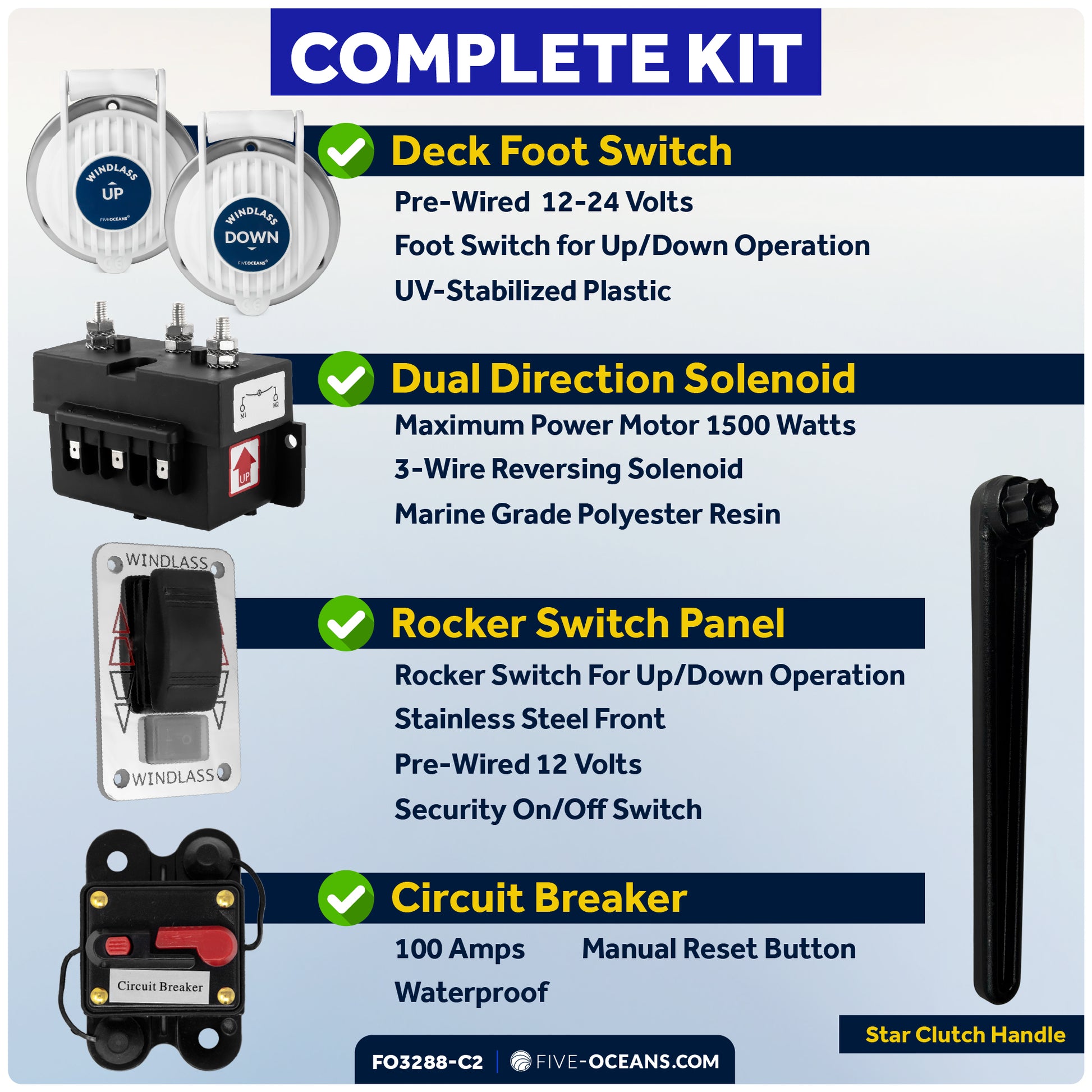

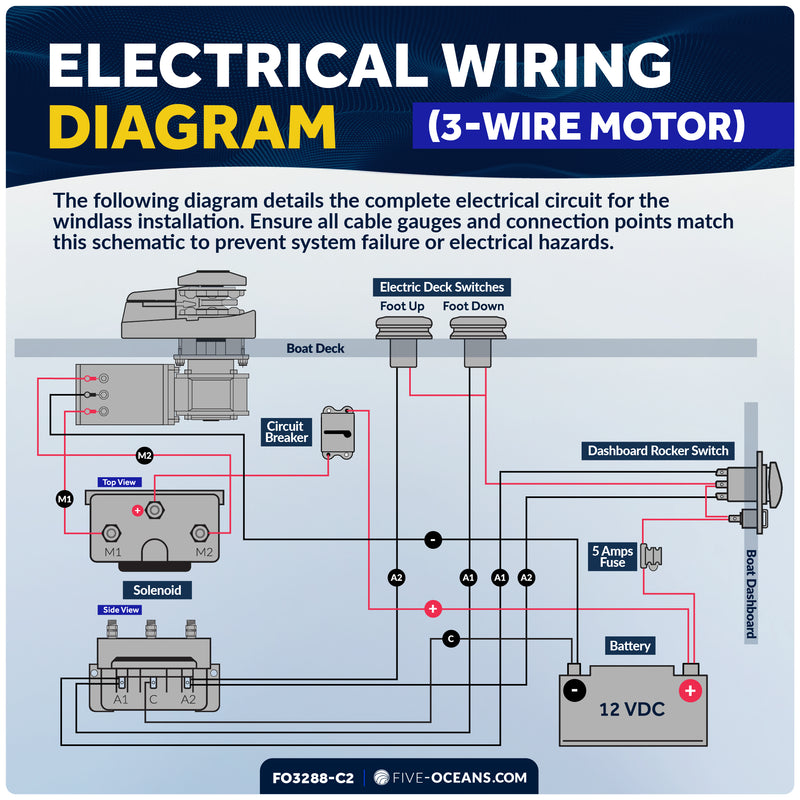

COMPLETE PACIFIC 1000 SERIES WINDLASS ANCHOR KIT: Includes a Pacific 1000W vertical windlass (12V), 100A circuit breaker, 3-wire solenoid, up/down foot switch, rocker switch, 200 ft x 9/16" 3-strand nylon and 20 ft x 5/16" stainless steel HT G4 chain anchor rode, 5/16" stainless steel screw pin bow shackle, multi-directional anchor double swivel connector, manual top-cap handle, mounting hardware, and template for easy installation.

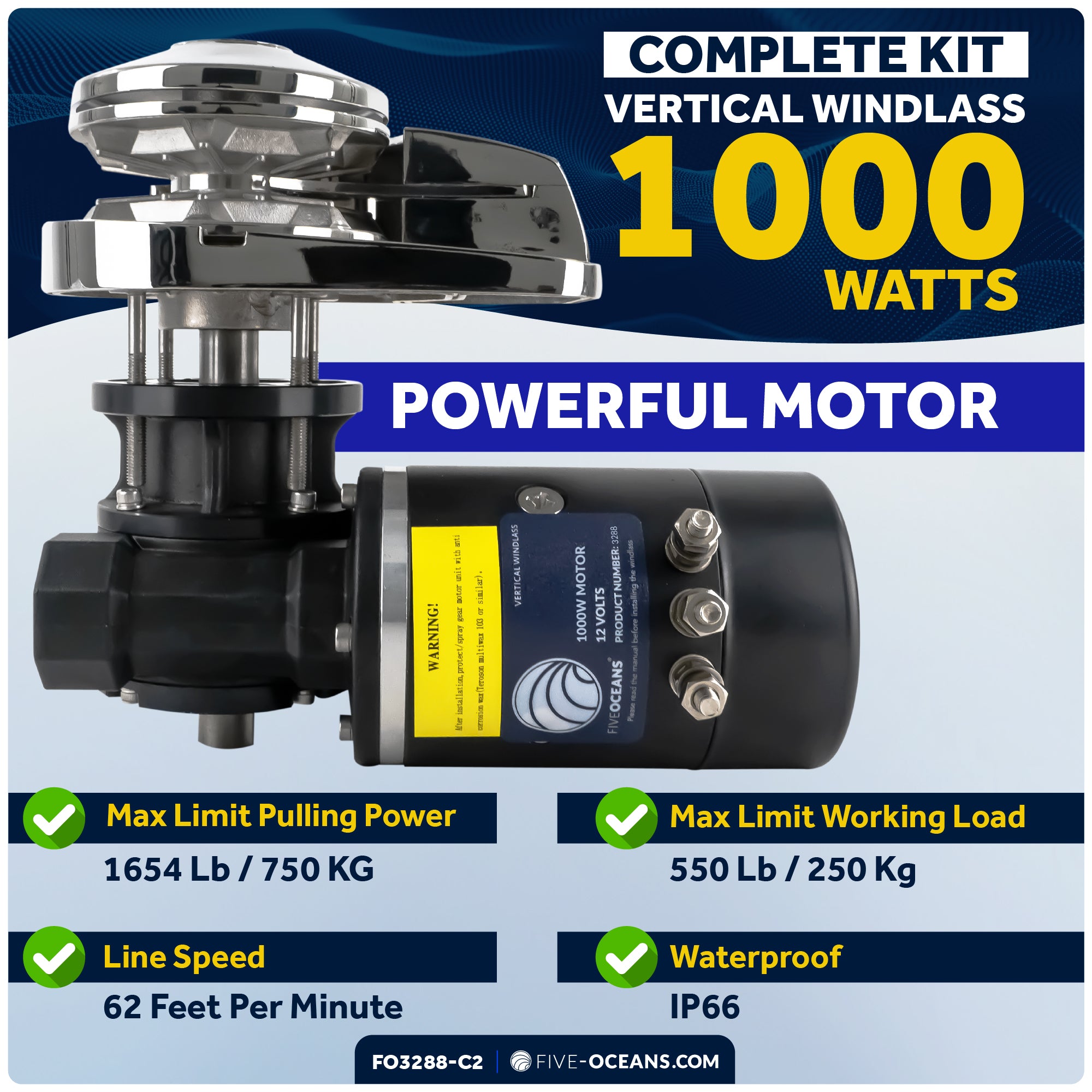

HIGH-PERFORMANCE 1000W MOTOR: Delivers a maximum pulling power of 1654 Lb / 750 Kg and a maximum working load of 550 Lb / 250 Kg. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.

SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 5/16" HT G4 chain and 9/16" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.

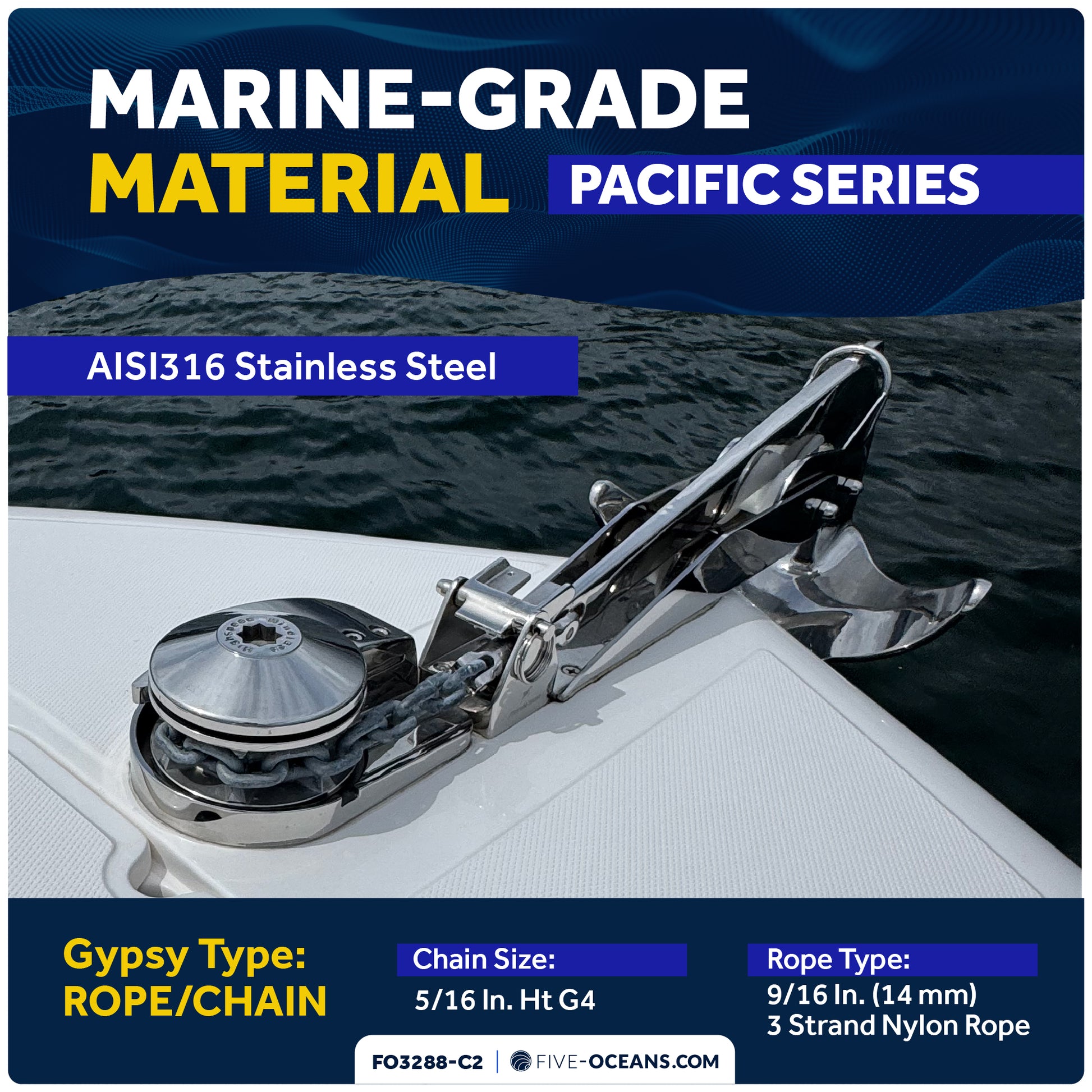

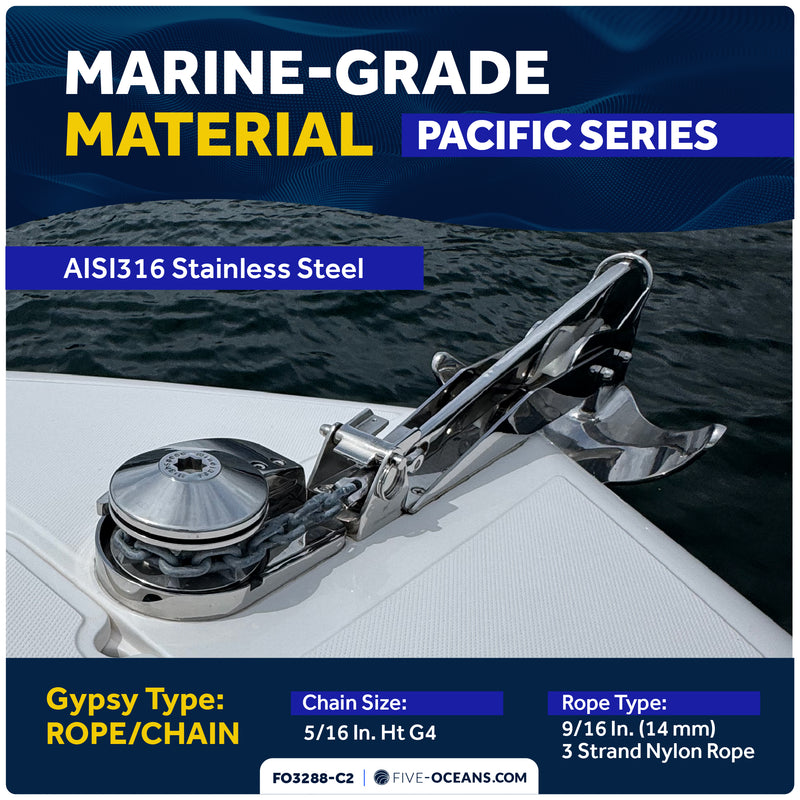

MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.

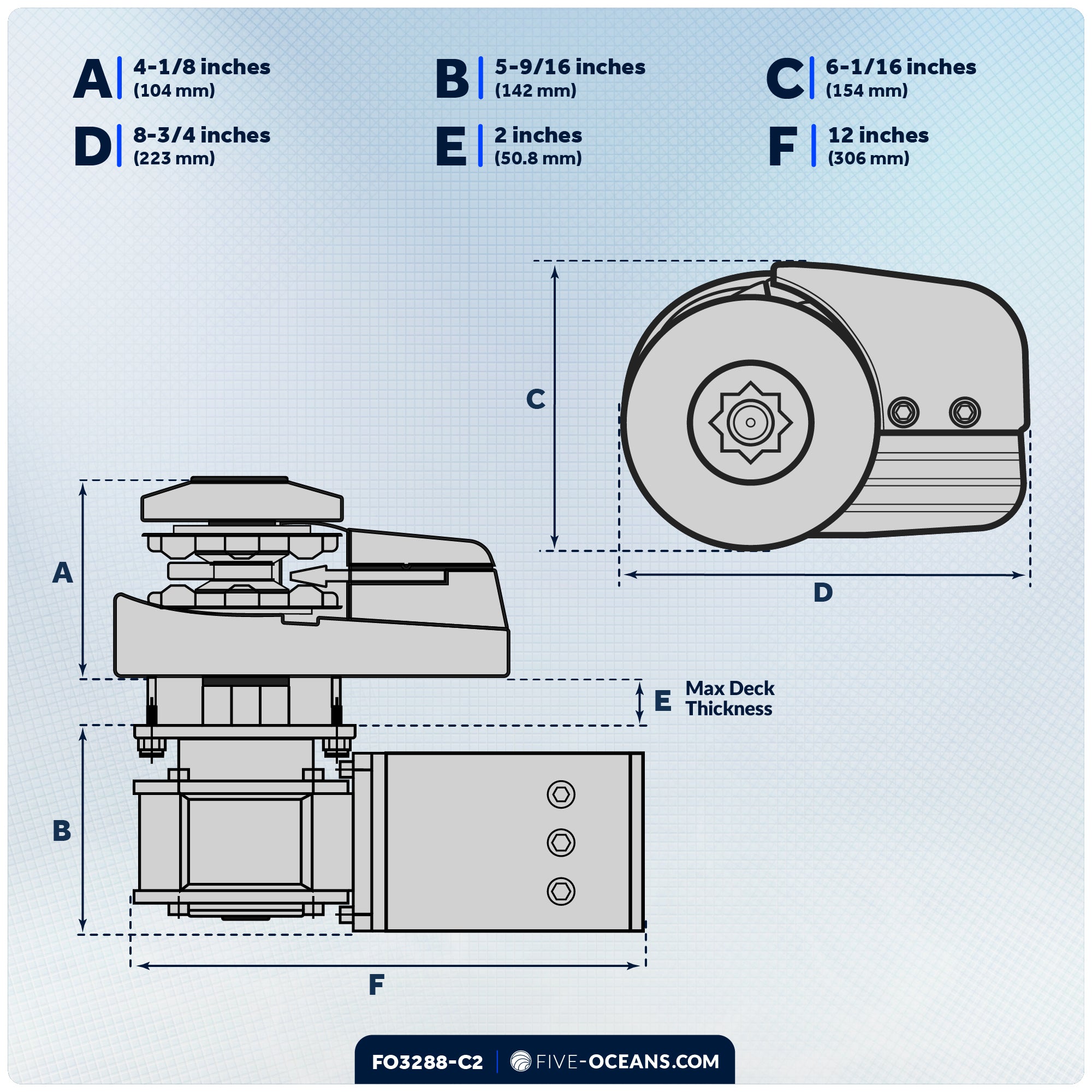

VERTICAL WINDLASS INSTALLATION: Under-deck setup with 4 standard 5/16" (8mm) mounting studs, washers, and nuts included. Supports max deck thickness up to 2" (50mm). Vertical rotation minimizes above-deck space, placing the motor and gearbox in the chain locker. Recommended 600W windlass for boats 32-55 ft, depending on vessel design and displacement.

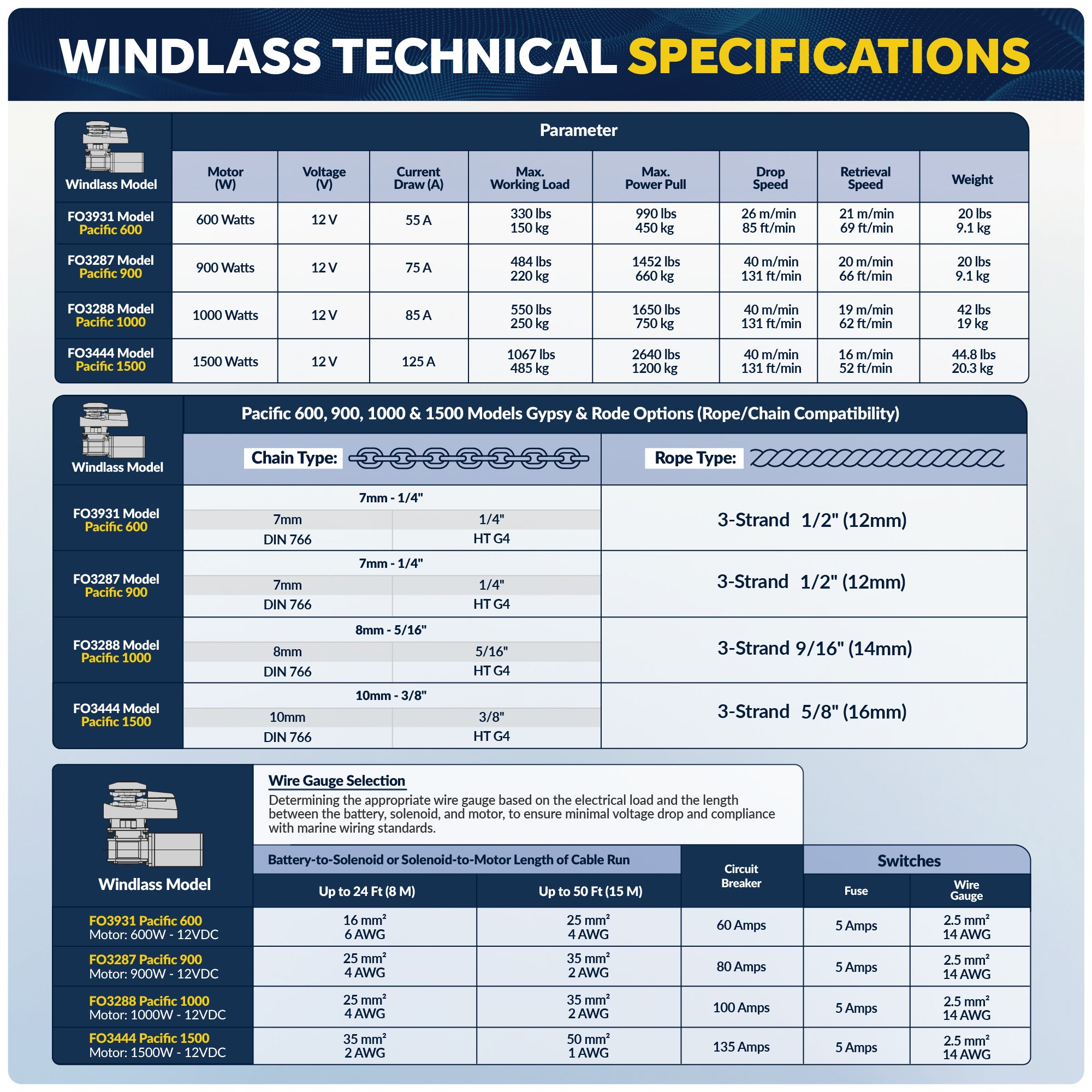

WINDLASS TECHNICAL SPECIFICATIONS:

Motor Power: 1000 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1654 Lb / 750 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 187 Lb / 85 Kg
Drop Speed: 40 m / min (131 Ft / min)
Retreival Speed: 19 m / min / (62 Ft / min)
Current Draw: 85 Amps
Circuit Breaker: 100 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand
Max deck thickness: 2" (50mm)

[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.

Five Oceans Group LLC will not be responsible if the products are used under unusual weather and sea conditions.

PRODUCT NUMBER: FO3288-C2
