Horizontal Windlass Kit 900W, 12V - Atlantic 900 Series - FO3442

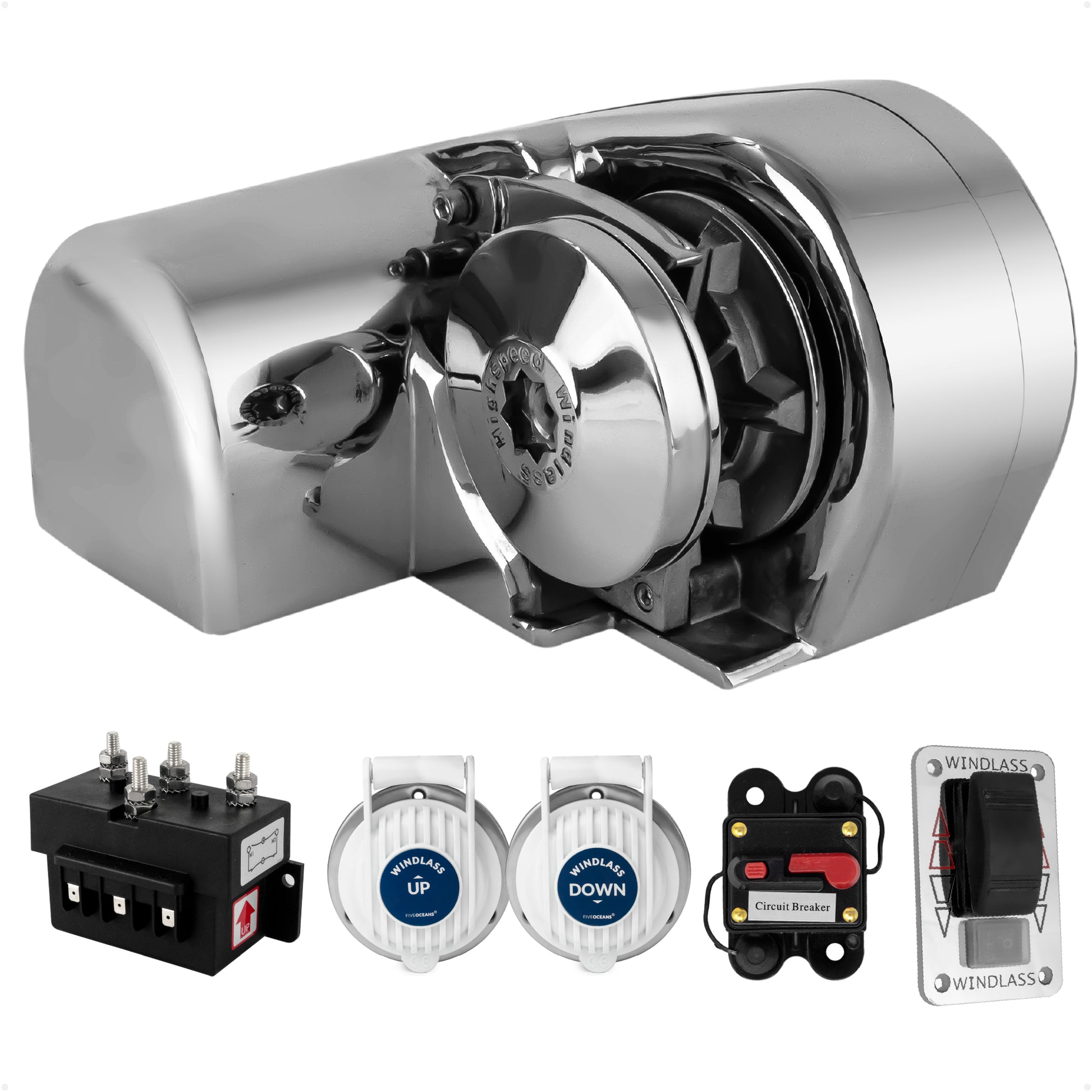

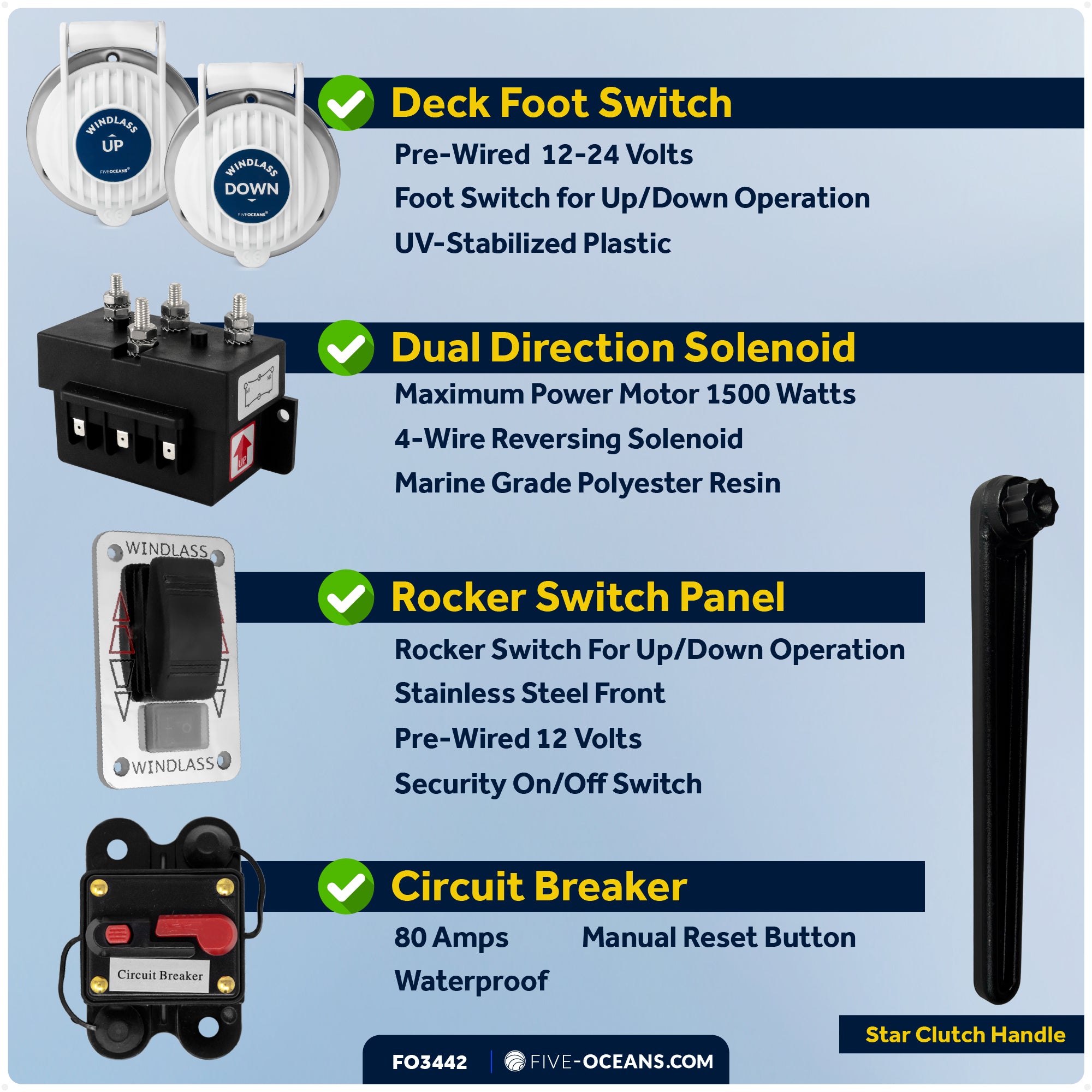

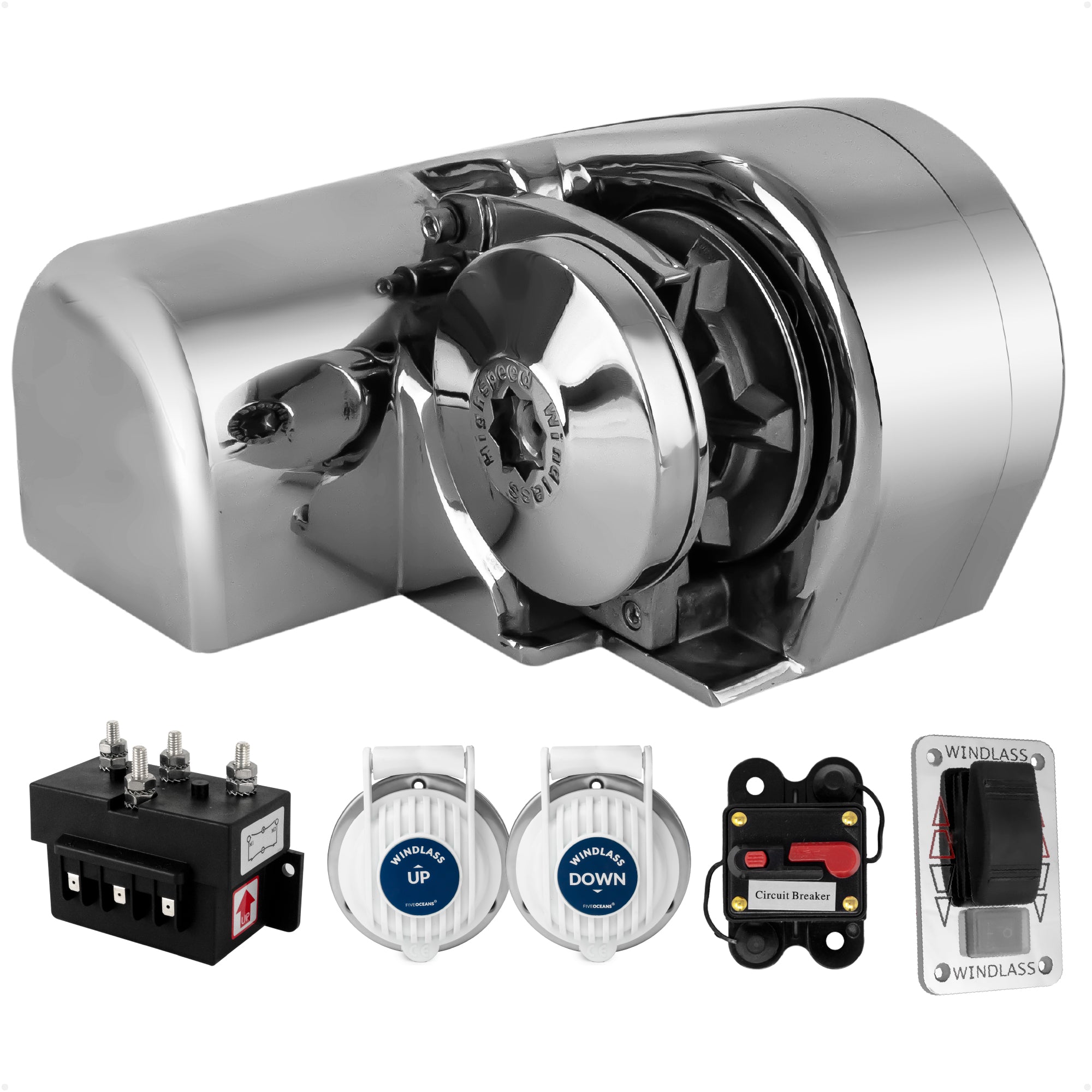

WINDLASS ANCHOR SYSTEM MODEL: Atlantic 900 Series. Horizontal Windlass. Motor Supply Voltage: 12V. Motor Power: 900W. Gypsy: Chain and Rope. Includes 4-Wire Solenoid, 80A Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.

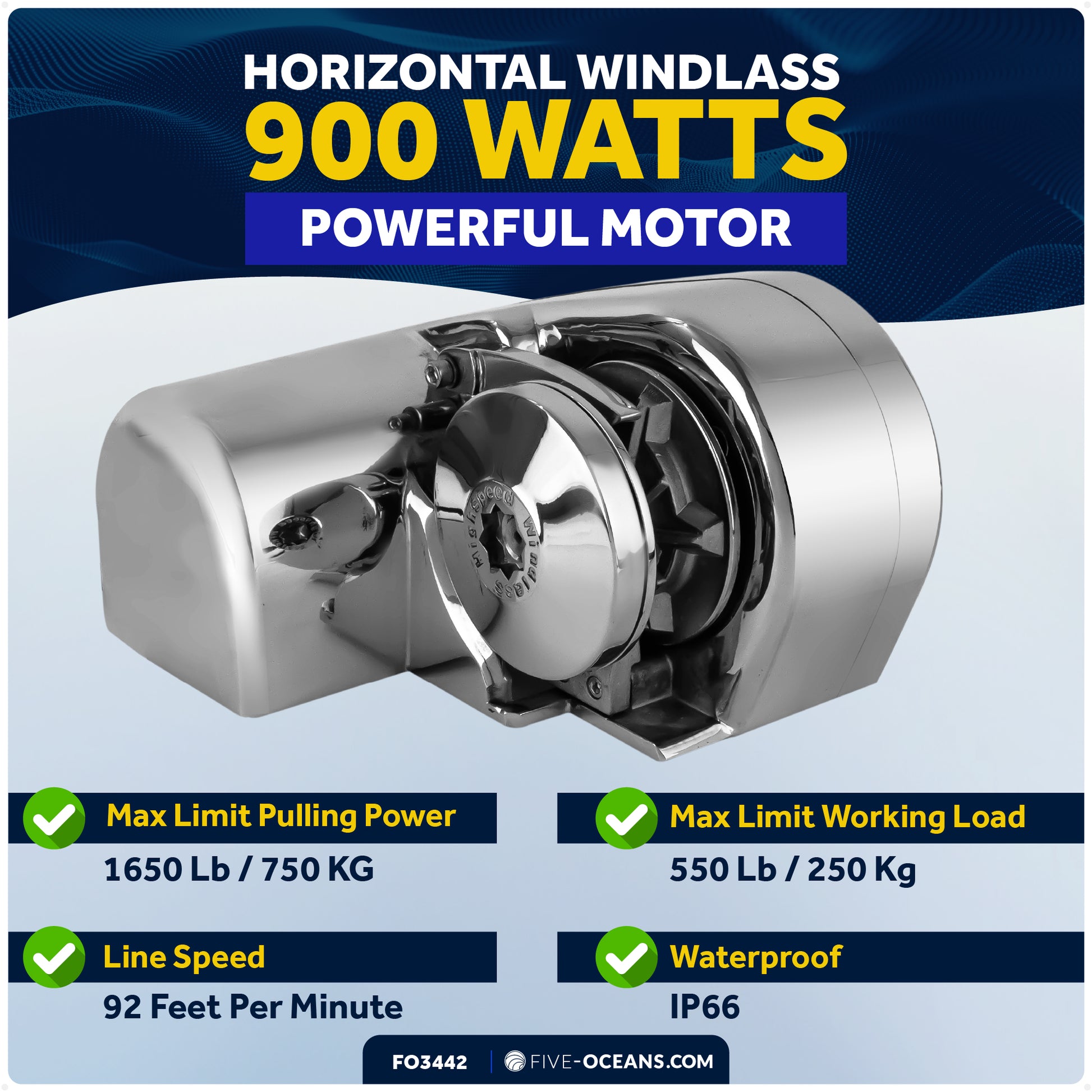

HIGH-PERFORMANCE WINDLASS MOTOR: The High-Power 900 Watts Motor provides a Maximum Limit Pulling Power of 1650 Lb / 750 Kg and a Maximum Limit Working Load of 550 Lb / 250 Kg. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.

ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 5/16 Inch HT G4. Rope: 9/16 Inch (14mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.

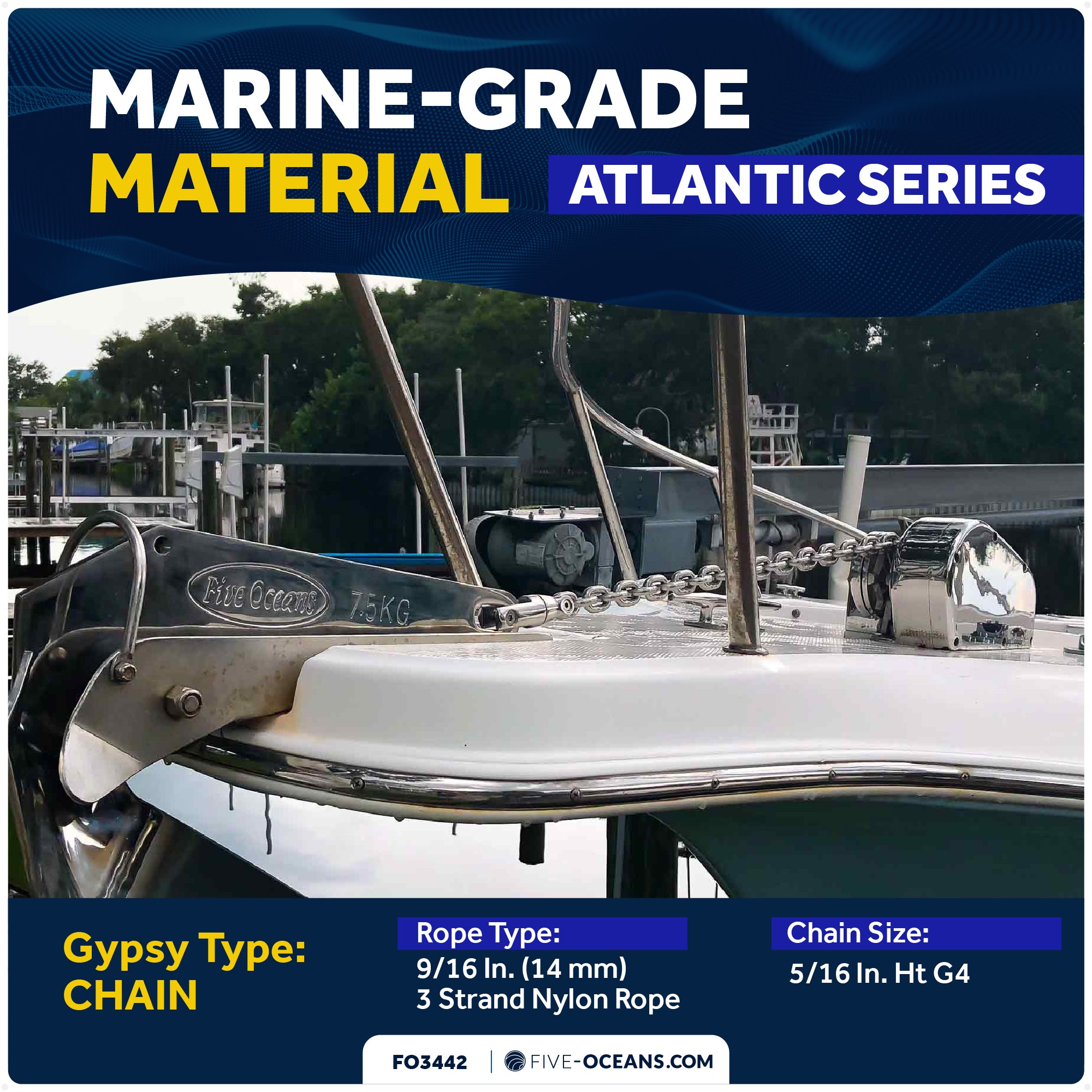

MARINE-GRADE WINDLASS ANCHOR KIT: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they are able to withstand the high-load strain.

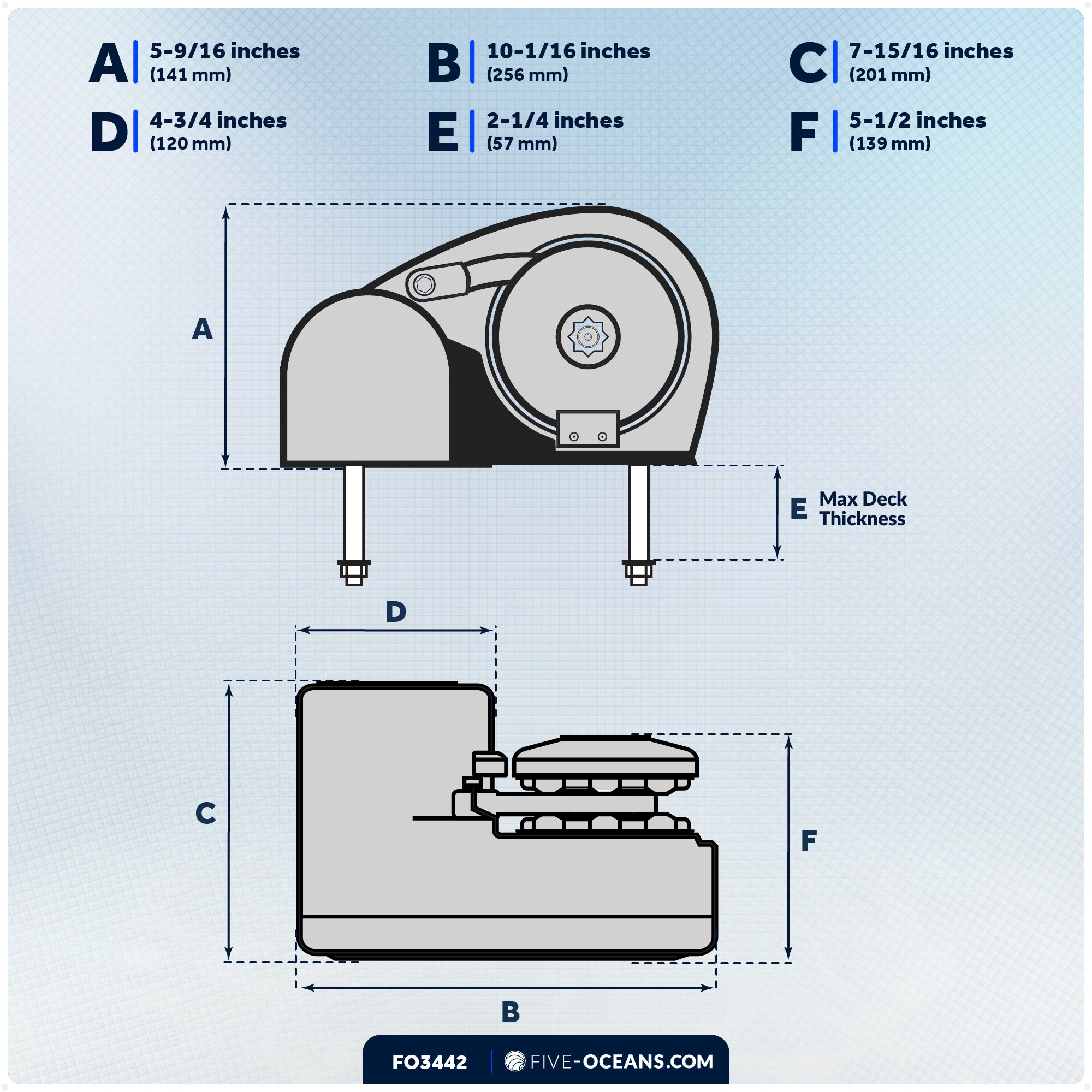

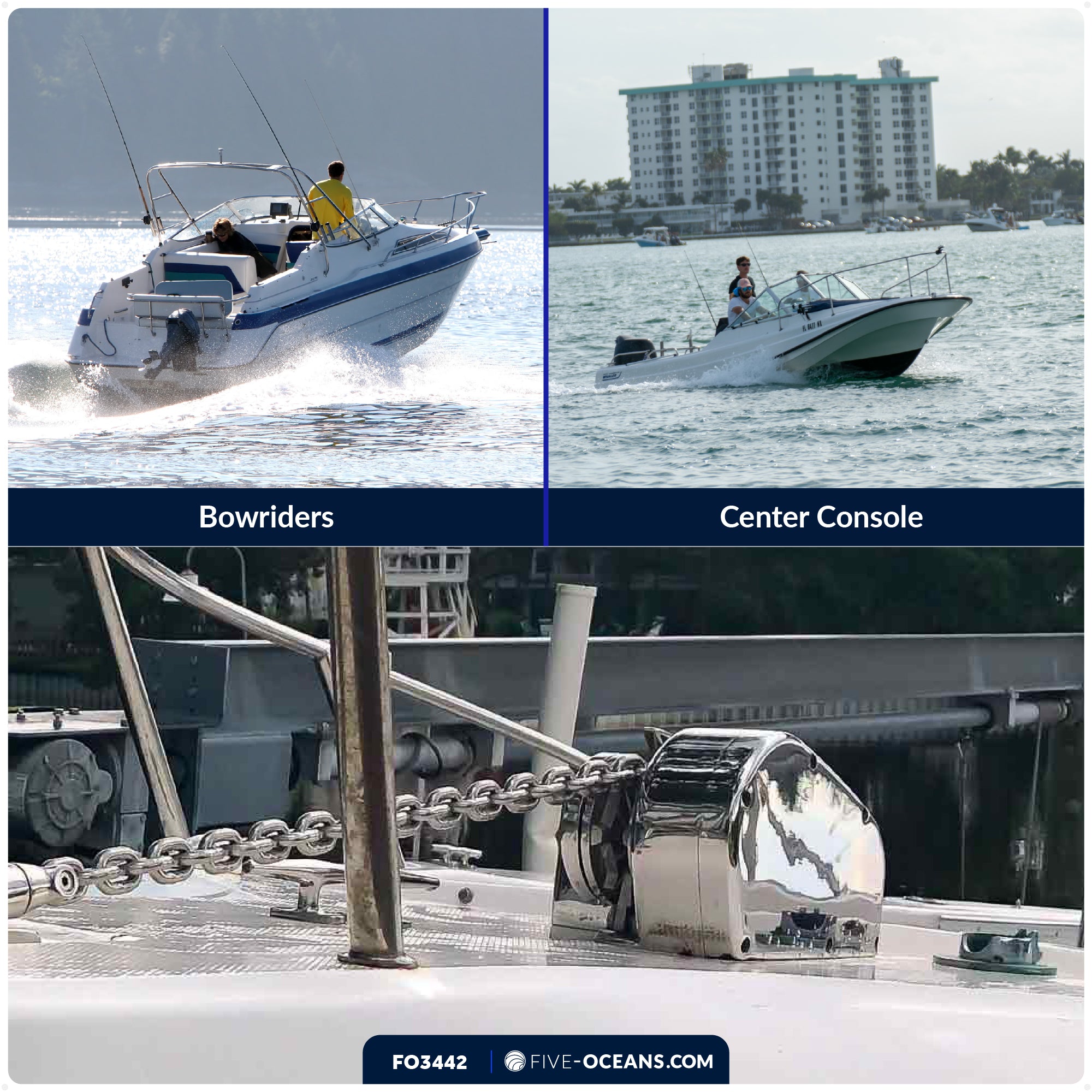

HORIZONTAL WINDLASS ANCHOR INSTALLATION: On-Deck installation. 3 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. Supports max deck thickness up to 2-1/4" (57mm). To offer the best performance and functionality, we recommend this Horizontal Windlass 900W for boats from 20 Ft to 45 Ft, depending on the vessel's design and displacement.

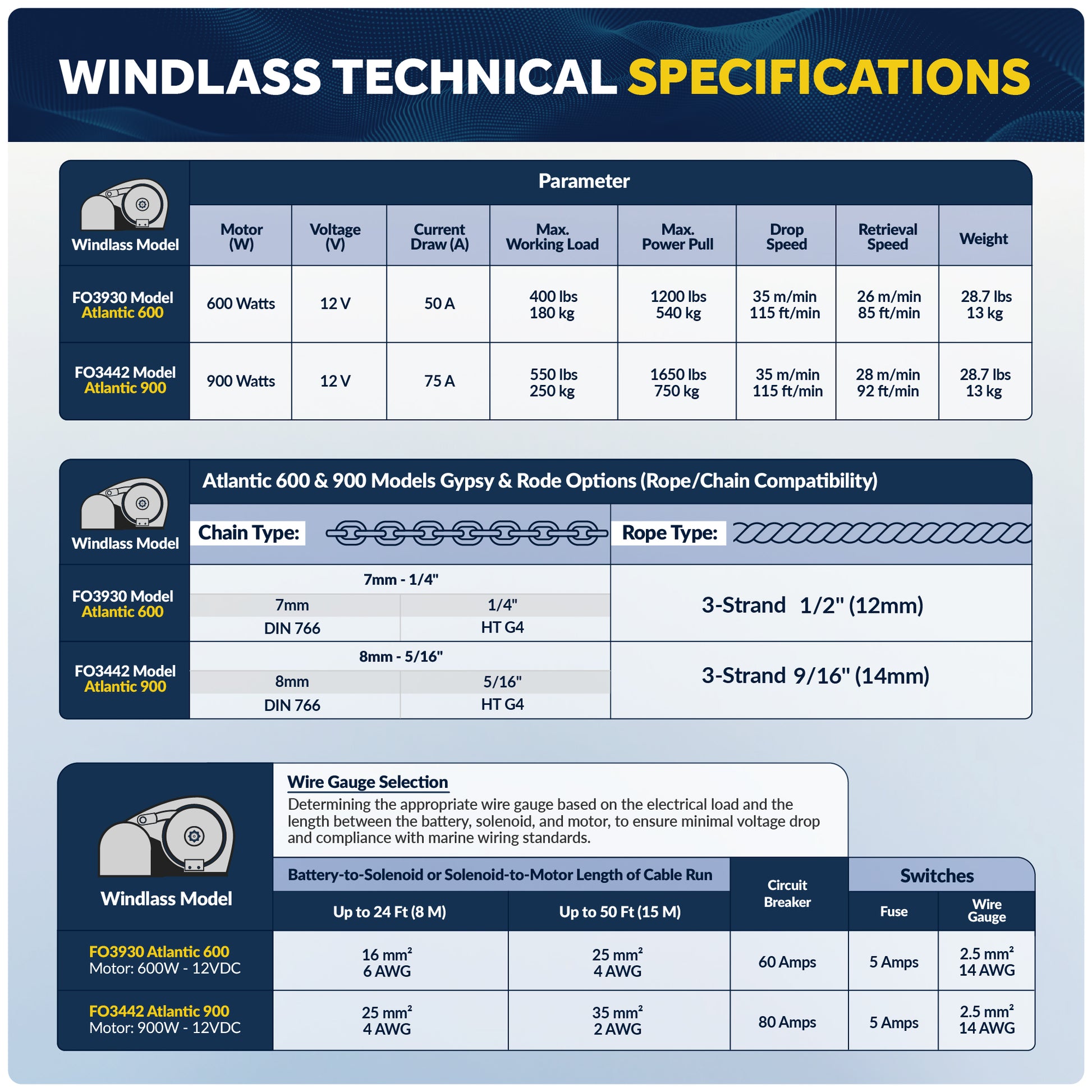

TECHNICAL SPECIFICATIONS:

Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1650 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 176 Lb / 80 Kg
Drop Speed: 35 m / min (115 Ft / min)
Retreival Speed: 26 m / min (92 Ft / min)
Current Draw: 75 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand

[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.

Five Oceans Group LLC will not be responsible if the products are used under unusual weather and sea conditions.

PRODUCT NUMBER: FO3442
