Electric Hoist, Electric Winch with 20' Remote Control, 1320 Lb - FO4016-C1

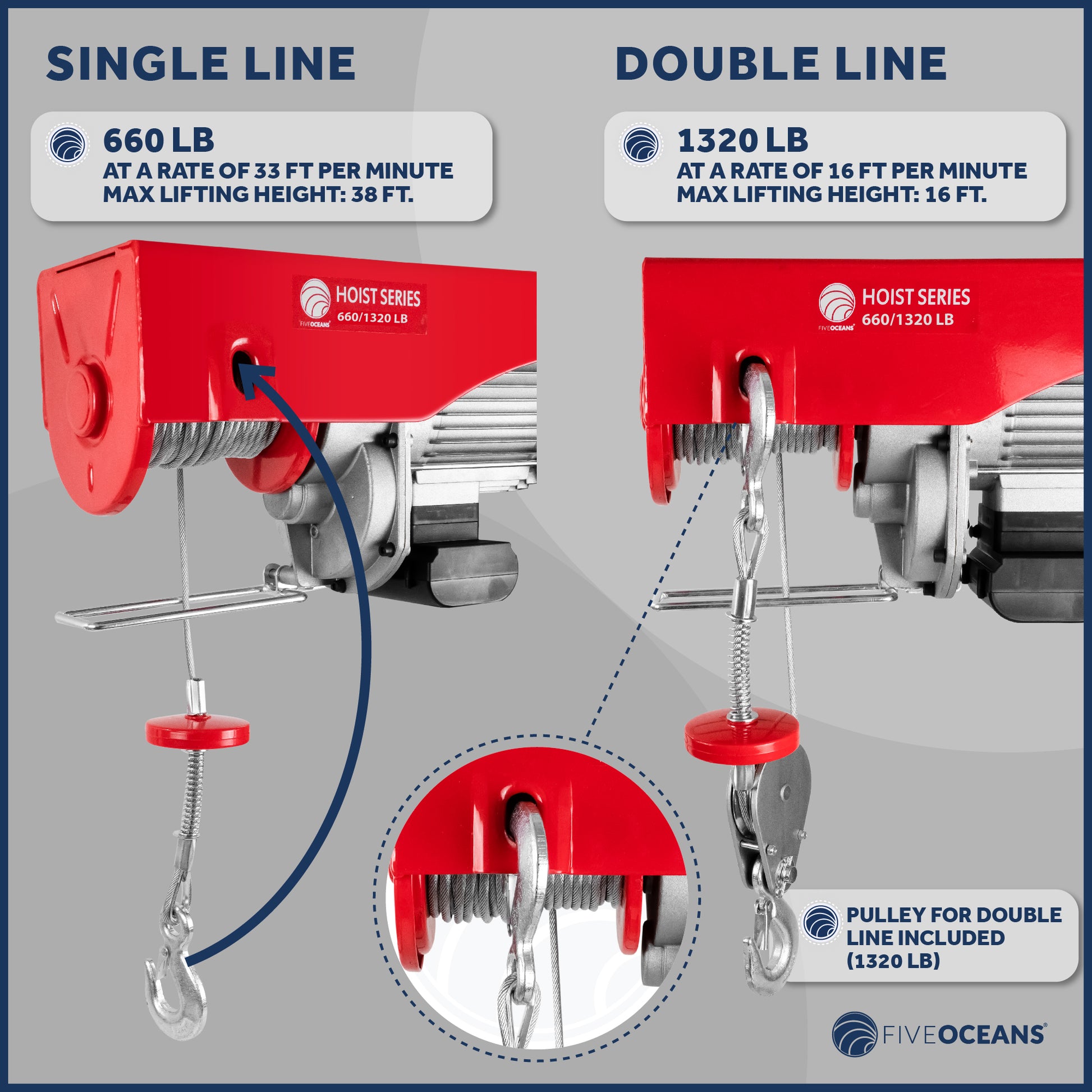

CAPACITY: Choose single-line capacity, and lift up to 660 Lb at a rate of 33 Ft per minute - Max Lifting Height: 38 Ft. With Double-line capacity, this hoist can lift up to 1320 Lb at a rate of 16 Ft per minute with the included pulley hook - Max Lifting Height: 16 Ft.

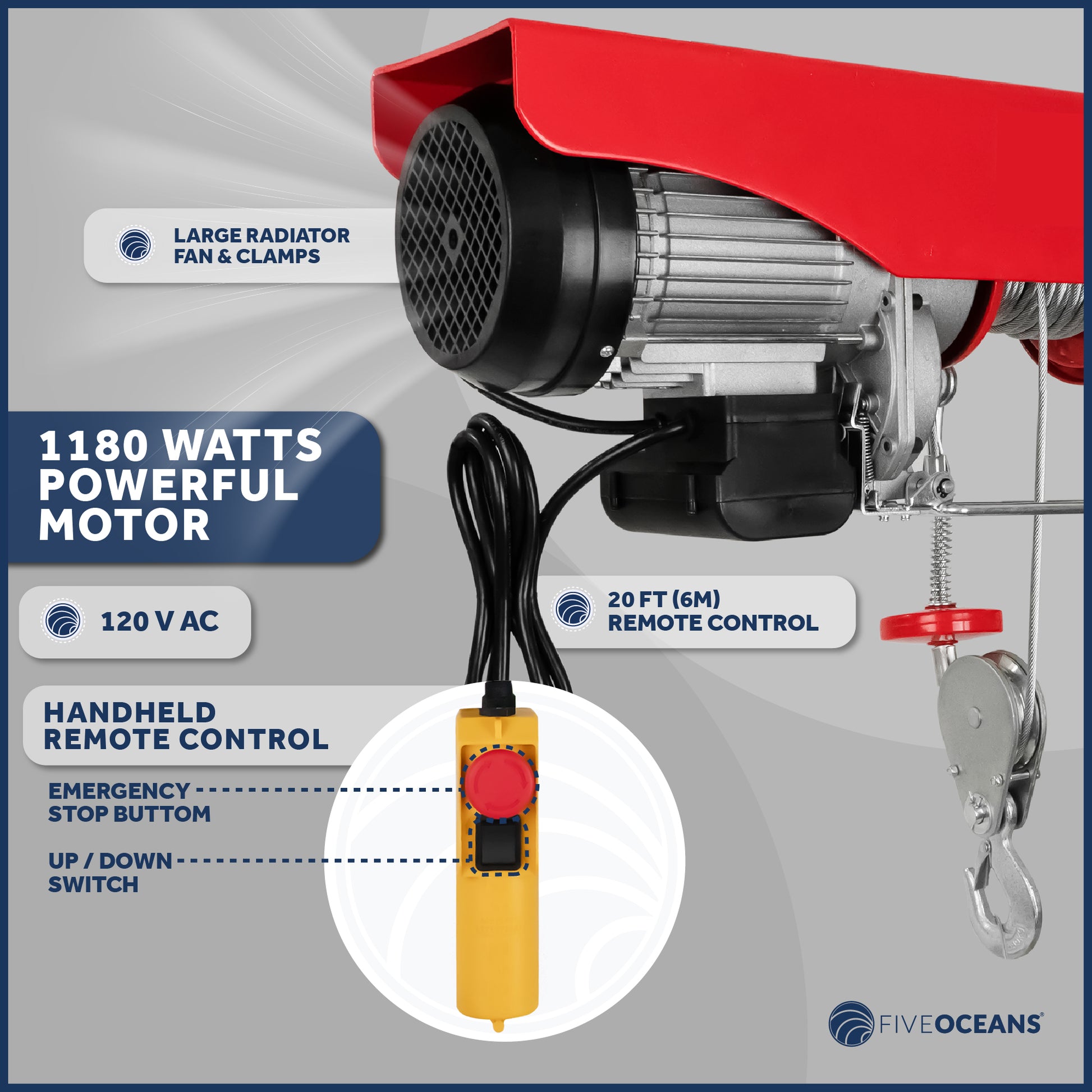

POWERFUL MOTOR: The 1180 Watts Electric motor is powerful enough to make this hoist the perfect solution for lifting heavy engines, bulky loads, heavy building materials, tools, or machinery. The unit comes with a large radiator fan that cools the motor quickly preventing unit overheating. Voltage: 120V AC. Horsepower: 1.58 hp. Max Current at Full Load: 9.85A. Duty Cycle Intermittent: (S3-25%).

SAFETY: Includes a heavy-duty galvanized steel stop bracket and line blocker. Anti-twist design and High-strength 39.4 Ft braided steel wire cable. The handheld 20 Ft remote control comes with an emergency stop button for easy and safe operation. Your Safety is important to us. For that reason, we have included working gloves for your protection.

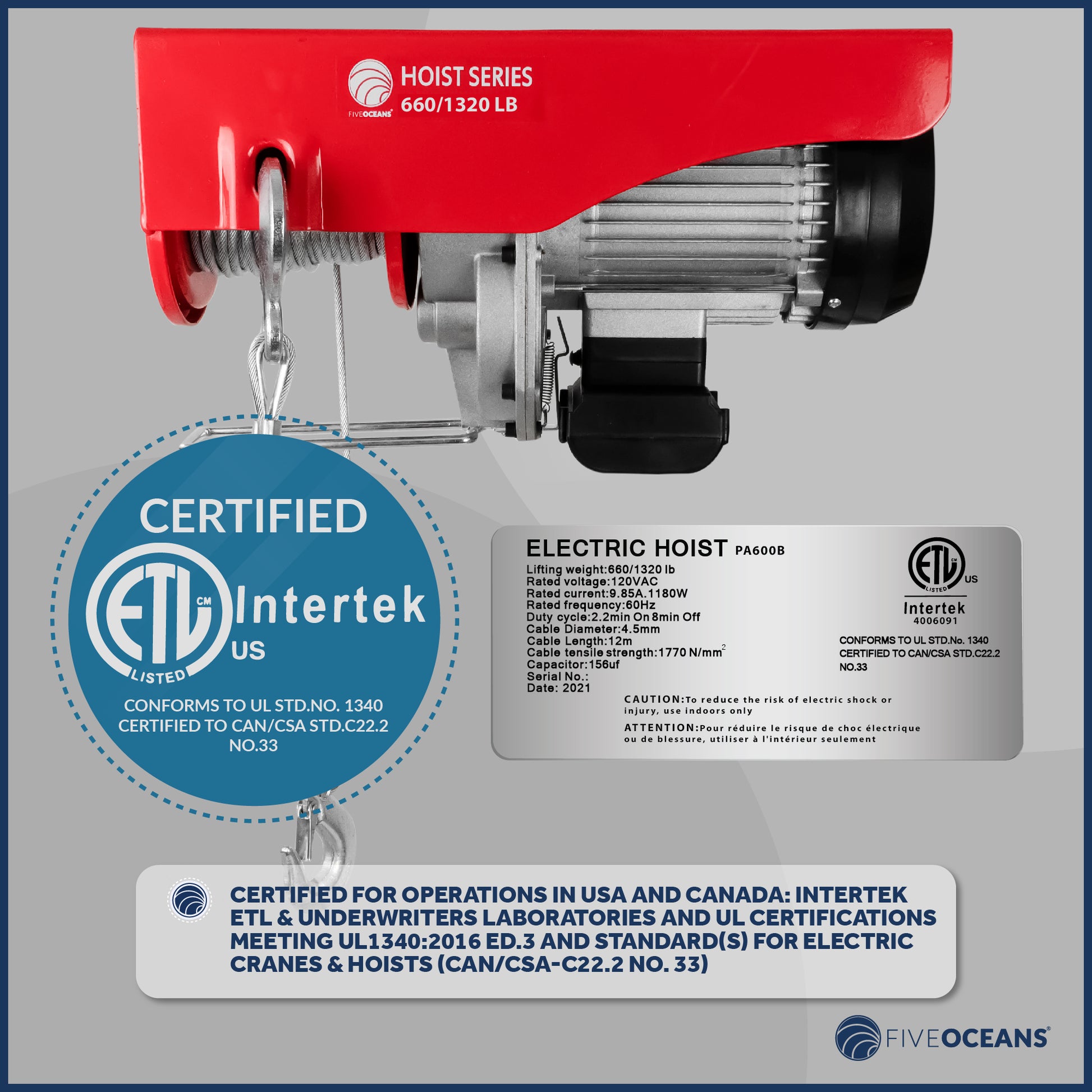

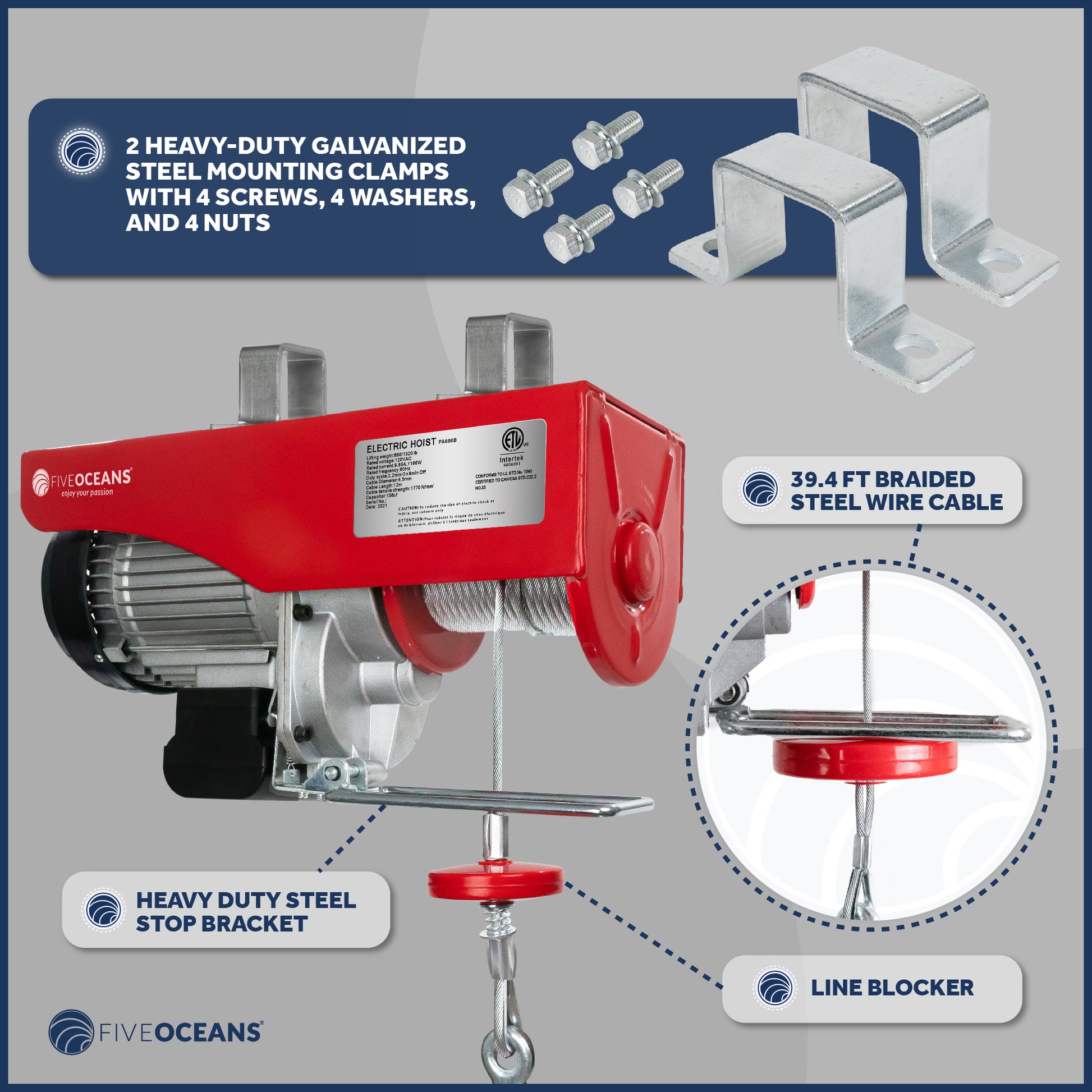

DURABLE MATERIAL AND CERTIFICATIONS: Constructed of a sturdy steel shell, this electric hoist features a heavy-duty galvanized steel stop bracket, 2 galvanized steel mounting clamps with 4 screws, 4 washers, and 4 nuts. Certified for operations in USA and CANADA: Intertek ETL & Underwriters Laboratories and UL certifications meeting UL1340:2016 Ed.3 and Standard(s) for Electric Cranes & Hoists (CAN/CSA-C22.2 No. 33). IP rating of 40.

WIDE APPLICATIONS: Great tool for working in indoor or outdoor environments. For use in Garages, ceilings, lofts, attics, Warehouses, Factories, or anywhere you need it. It allows the lifting of regular or irregularly shaped parts.

TECHNICAL SPECIFICATIONS:

Single Line Lift Weight: 660 lb
Double Line Lift Weight: 1320 lb
Single Line Lift Speed: 33.0 ft/min
Double Line Lift Speed: 16.5 ft/min
Single Line Lift Height: 38.0 ft.
Double Line Lift Height: 19.0 ft.
Cable Material: Galvanized Steel
Cable Length: 39.4 ft.
Cable Diameter: 11/64 in. (4.5mm)
Power Cord Length: 5 ft
Tethered Control Length: 20 ft
Stop Bracket: Yes
Line Blocker: Yes
Double Line Pulley Included: Yes
Voltage: 120V AC
Horsepower: 1.58 hp
Max Current at Full Load: 9.85A
Duty Cycle Intermittent: (S3-25%)

PRODUCT NUMBER: FO-4016-C1
