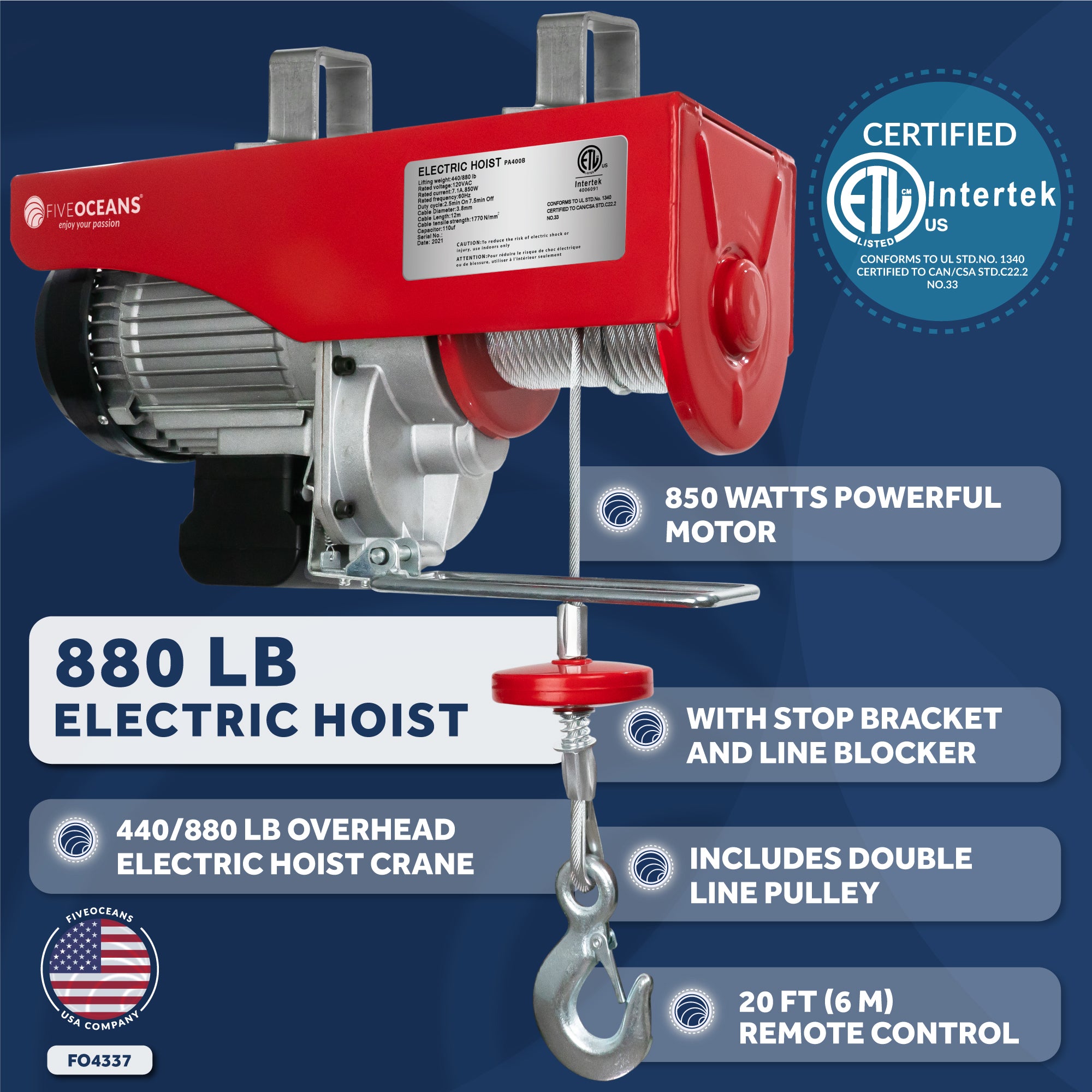

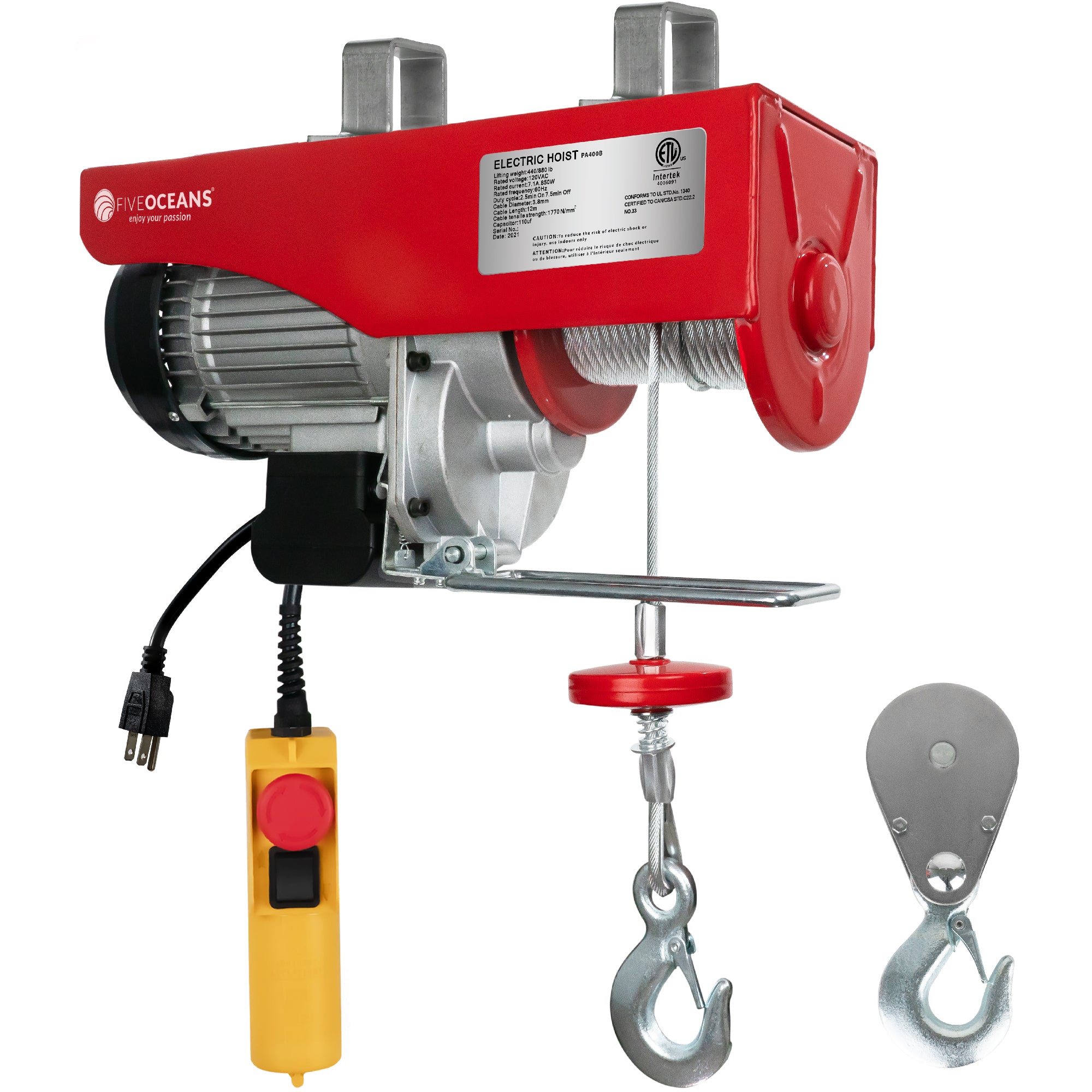

Electric Hoist, 880 Lb Electric Winch, 20FT Remote Control 120 Volts - FO4337

Sale price$89.00

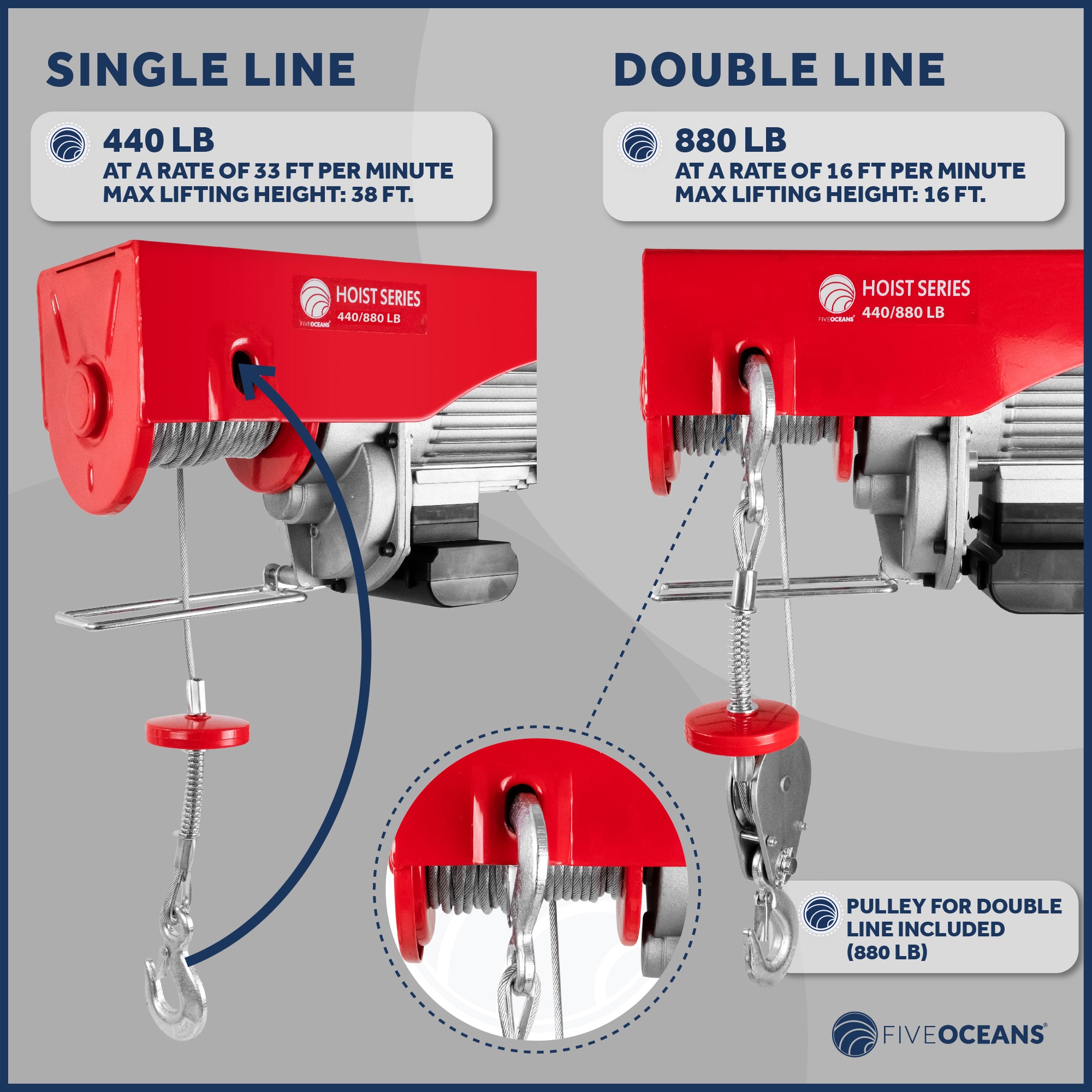

CAPACITY: Choose single-line capacity, and lift up to 440 Lb at a rate of 33 Ft per minute - Max Lifting Height: 38 Ft. With Double-line capacity, this hoist can lift up to 880 Lb at a rate of 16 Ft per minute with the included pulley hook - Max Lifting Height: 16 Ft.

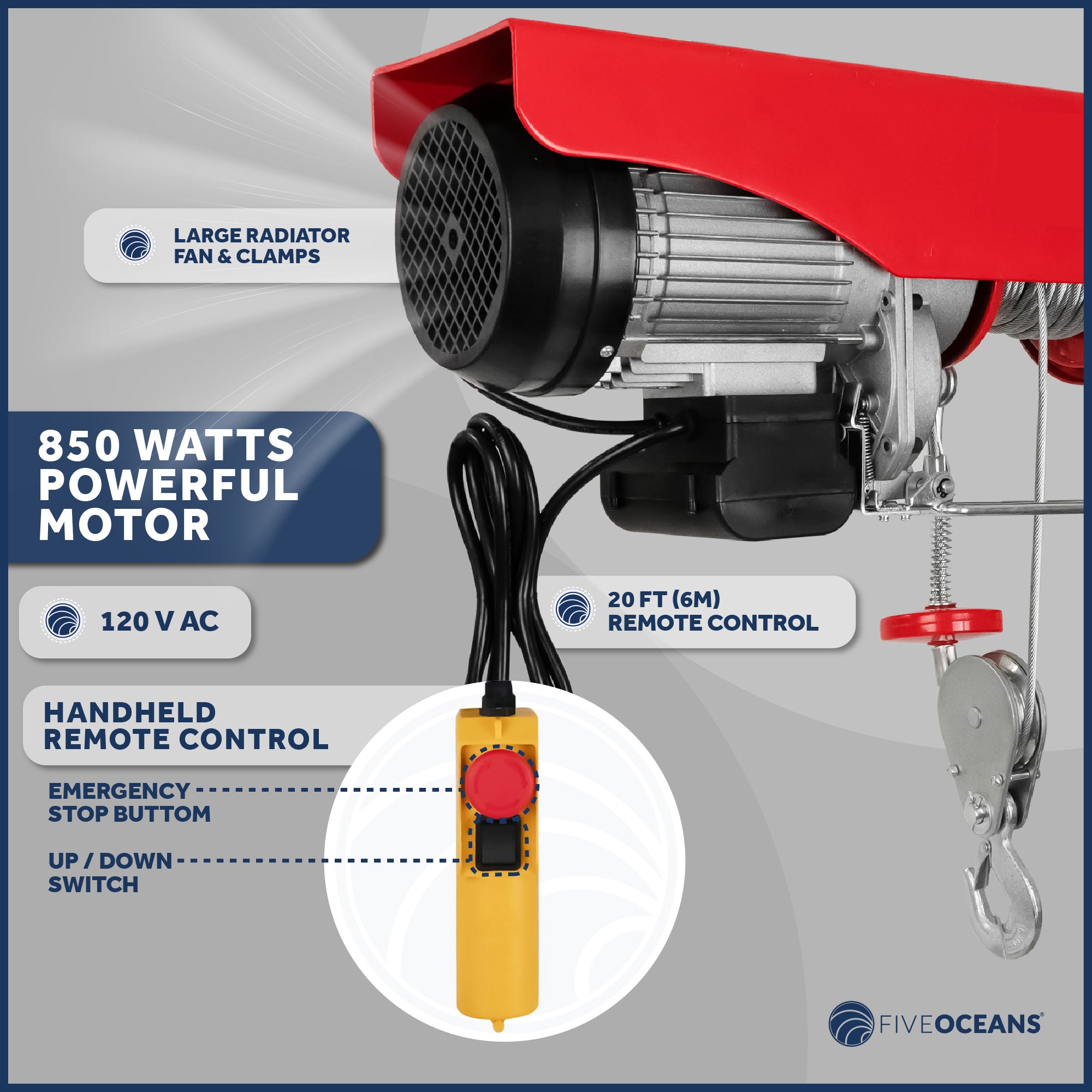

POWERFUL MOTOR: The 850 Watts Electric motor is powerful enough to make this hoist the perfect solution for lifting heavy engines, bulky loads, heavy building materials, tools, or machinery. The unit comes with a large radiator fan that cools the motor quickly preventing unit overheating. Voltage: 120V AC. Horsepower: 1.08 hp. Current Draw @ Rated Lifting Capacity: 7.1 Amps. Duty Cycle Intermittent: (S3-25%).

SAFETY: Includes a heavy-duty galvanized steel stop bracket and line blocker. Anti-twist design and High-strength 39.4 Ft braided steel wire cable. The handheld 20 Ft remote control comes with an emergency stop button for easy and safe operation.

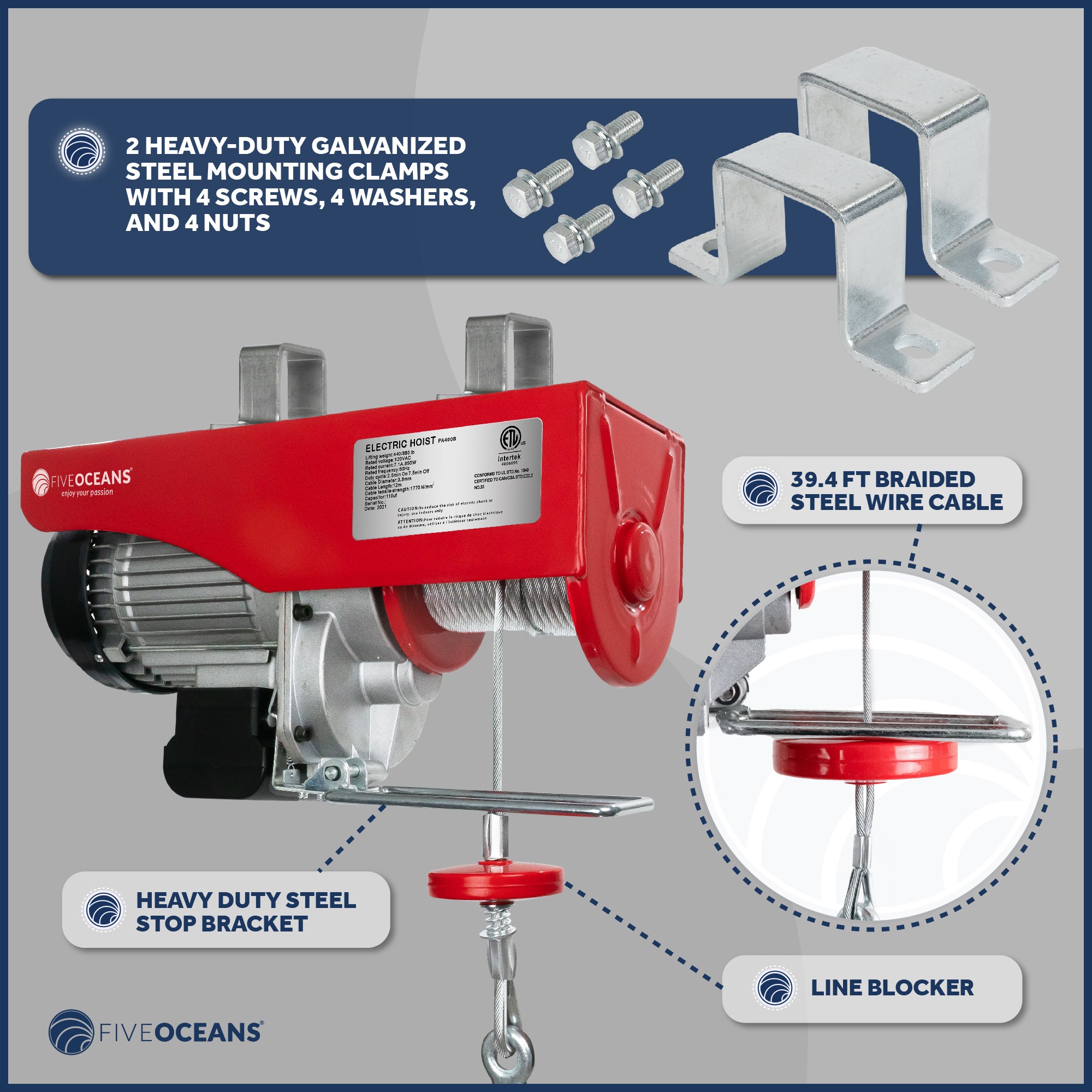

DURABLE MATERIAL AND CERTIFICATIONS: Constructed of a sturdy steel shell, this electric hoist features a heavy-duty galvanized steel stop bracket, 2 galvanized steel mounting clamps with 4 screws, 4 washers, and 4 nuts. Certified for operations in USA and CANADA: Intertek ETL & Underwriters Laboratories and UL certifications meeting UL1340:2016 Ed.3 and Standard(s) for Electric Cranes & Hoists (CAN/CSA-C22.2 No. 33). IP rating of 40.

WIDE APPLICATIONS: Great tool for working in indoor or outdoor environments. For use in Garages, ceilings, lofts, attics, Warehouses, Factories, or anywhere you need it. It allows the lifting of regular or irregularly shaped parts.

TECHNICAL SPECIFICATIONS:

Single Line Lift Weight: 440 lb
Double Line Lift Weight: 880 lb
Single Line Lift Speed: 33.0 ft/min
Double Line Lift Speed: 16.5 ft/min
Single Line Lift Height: 38.0 ft
Double Line Lift Height: 19.0 ft
Cable Material: Galvanized Steel
Cable Length: 39.4 ft
Cable Diameter: 5/32 in. (3.8mm)
Power Cord Length: 5 ft
Tethered Control Length: 20 ft
Stop Bracket: Yes
Line Blocker: Yes
Double Line Pulley Included: Yes
Voltage: 120V AC
Horsepower: 1.08 hp
Max Current at Full Load: 7.1A
Duty Cycle Intermittent: (S3-25%)

PRODUCT NUMBER: FO-4337

Product Video:

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jimmie Cox
No Complaints

It Works! It does as advertised, what else it to there to say really? I wish the mounting holes were a little easier to get to, but given the minimal design, it's fine. I ran the cable looped through the pulley for the full 880lbs instead of a single cable for 440lbs. I have been using it on and off for about 6 months and it holds about a 500lb load (24/7) with no issues.

C
Carlos
Just what I needed

Hoist worked perfect
