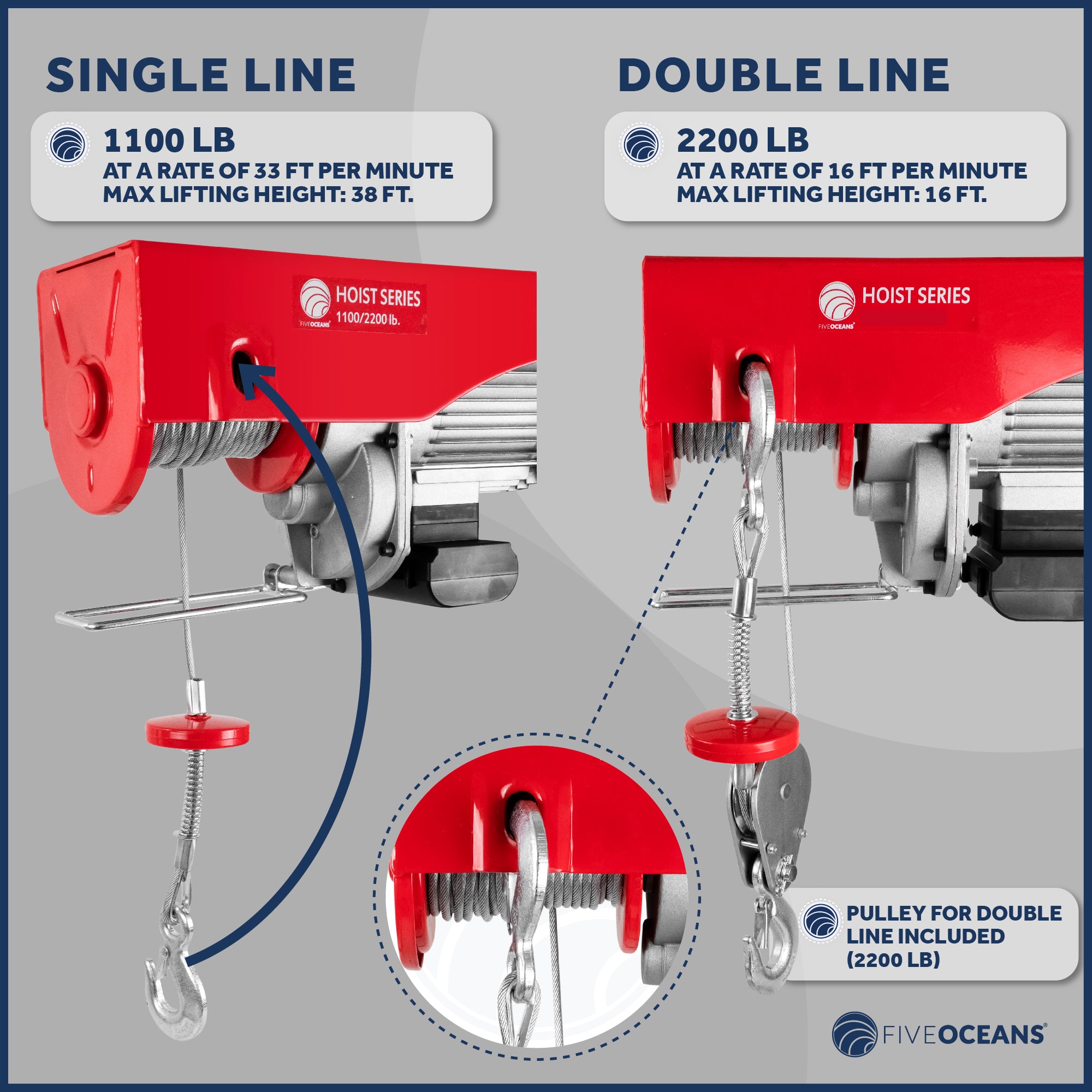

CAPACITY: Choose single-line capacity, and lift up to 1100 Lb at a rate of 33 Ft per minute - Max Lifting Height: 38 Ft. With Double-line capacity, this hoist can lift up to 2200 Lb at a rate of 16 Ft per minute with the included pulley hook - Max Lifting Height: 16 Ft.

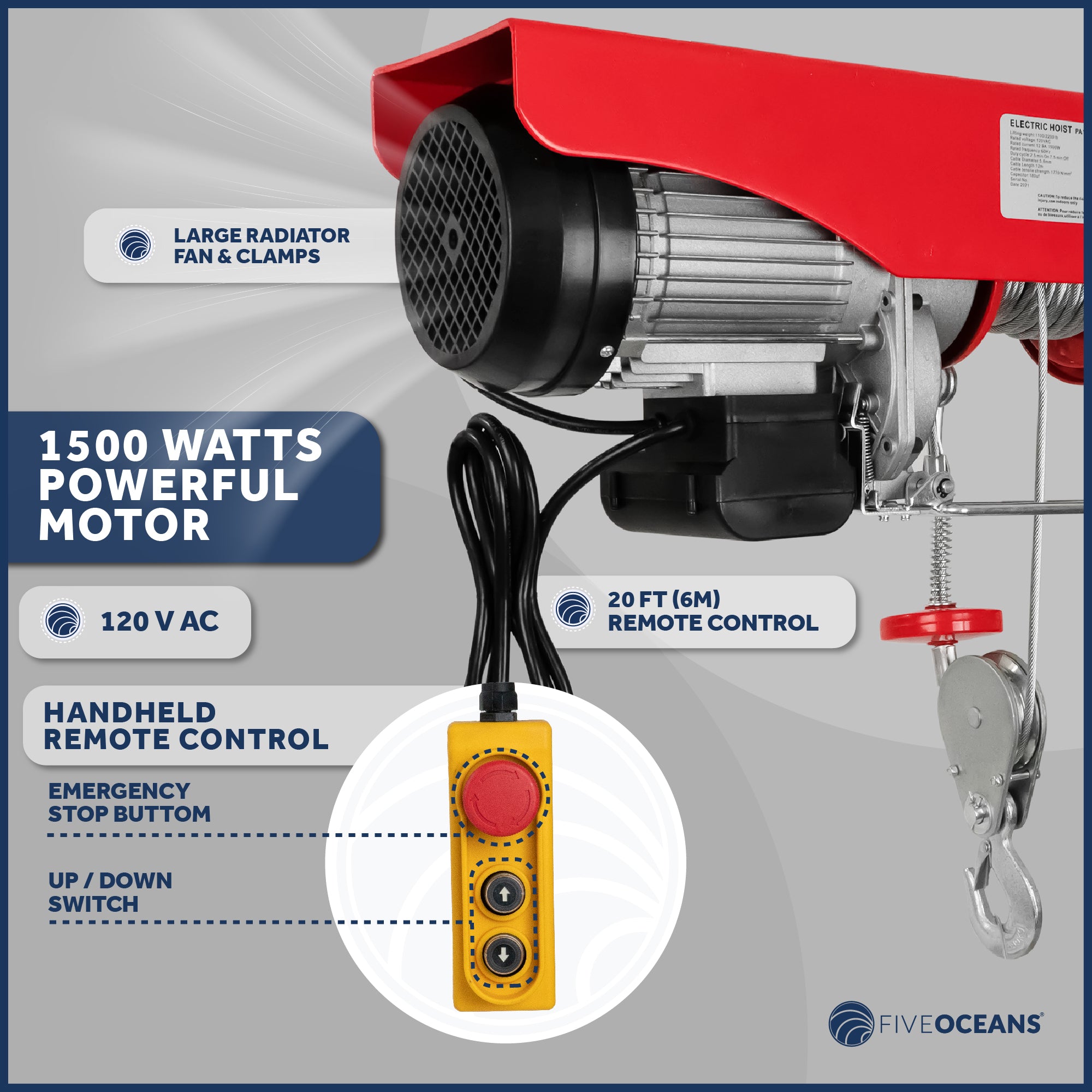

POWERFUL MOTOR: The 1500 Watts Electric motor is powerful enough to make this hoist the perfect solution for lifting heavy engines, bulky loads, heavy building materials, tools, or machinery. The unit comes with a large radiator fan that cools the motor quickly preventing unit overheating. Voltage: 120V AC. Horsepower: 2 hp. Max Current at Full Load: 13.1A. Duty Cycle: Intermittent (S3-25%)

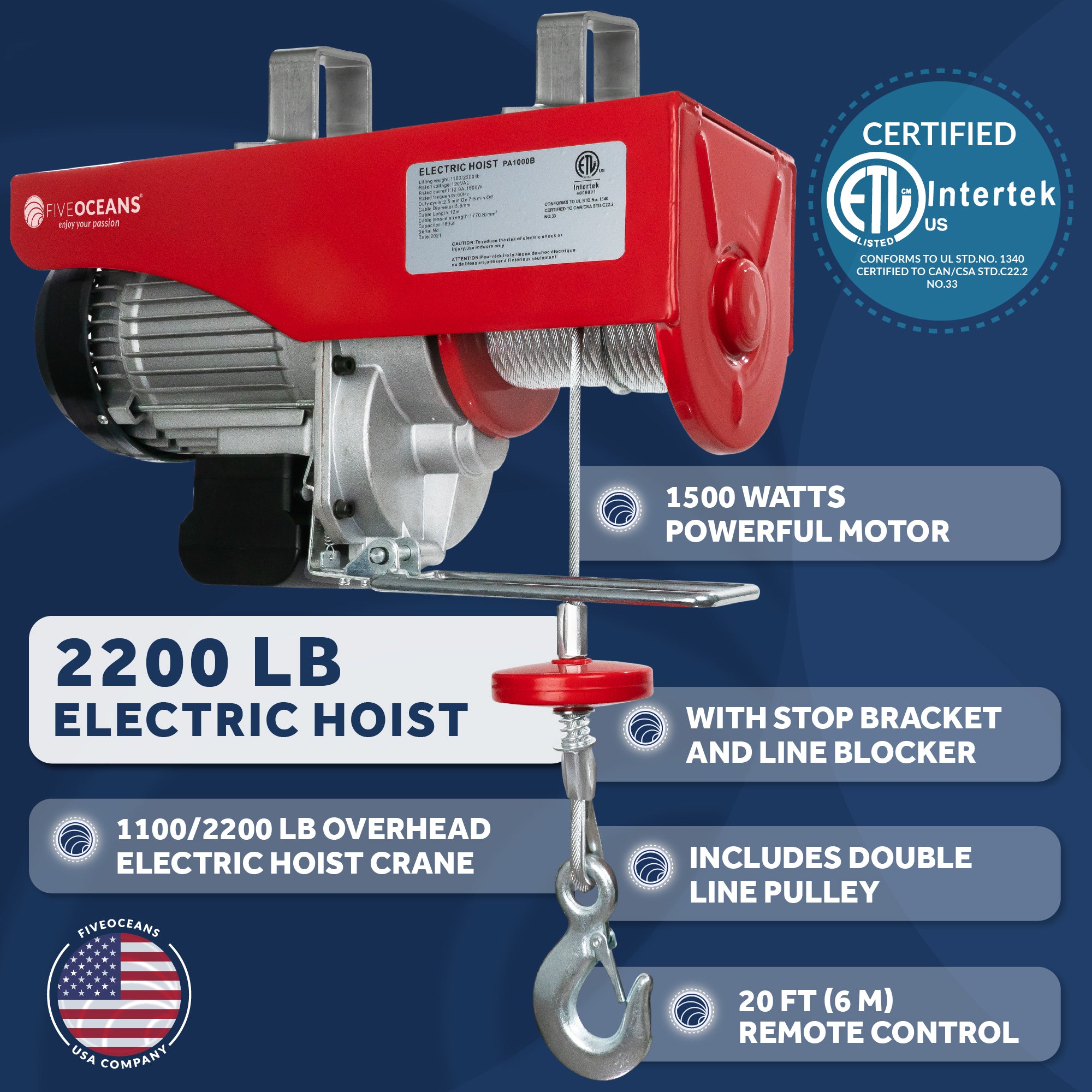

SAFETY: Includes a heavy-duty galvanized steel stop bracket and line blocker. Anti-twist design and High-strength 39.4 Ft braided steel wire cable. The handheld 20 Ft remote control comes with an emergency stop button for easy and safe operation.

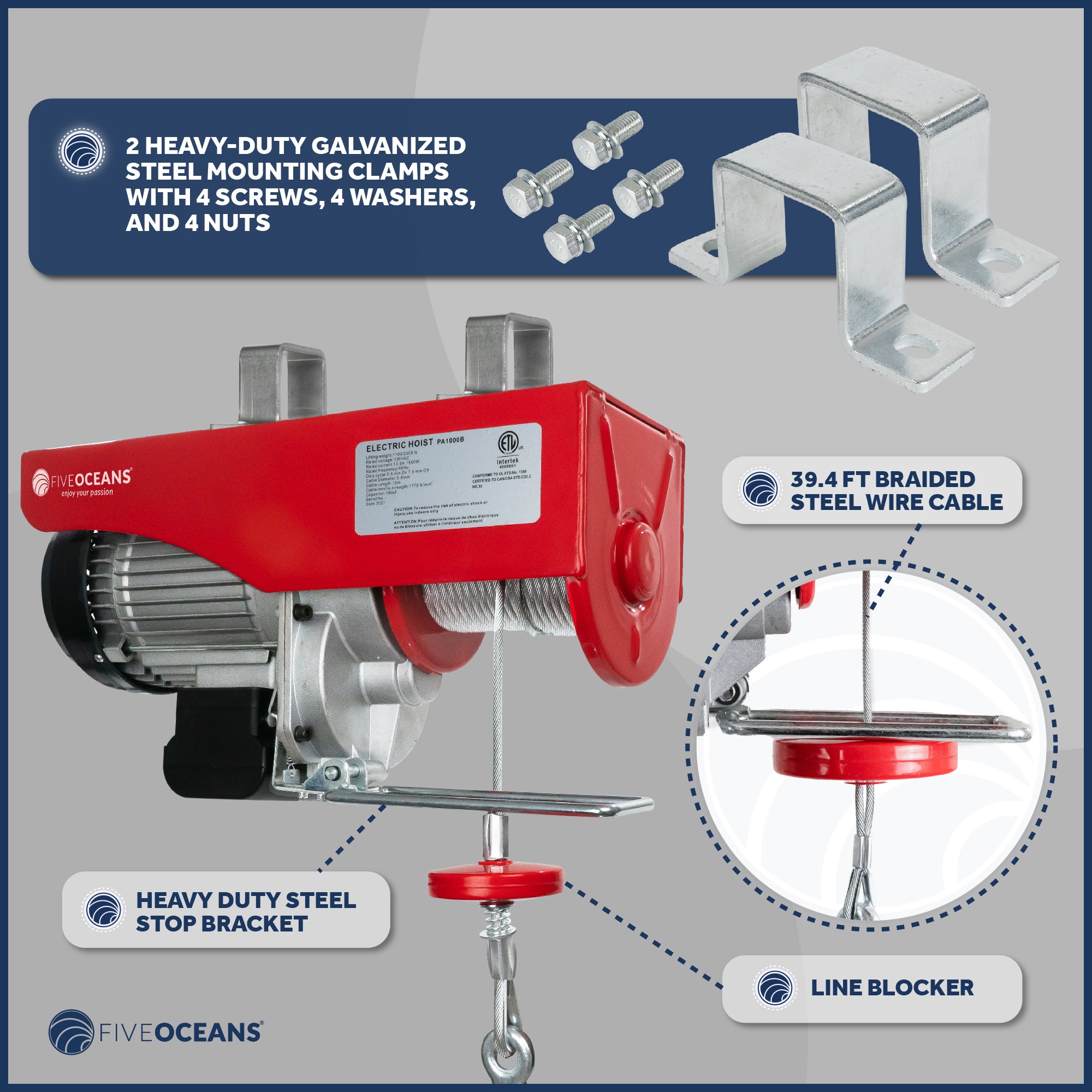

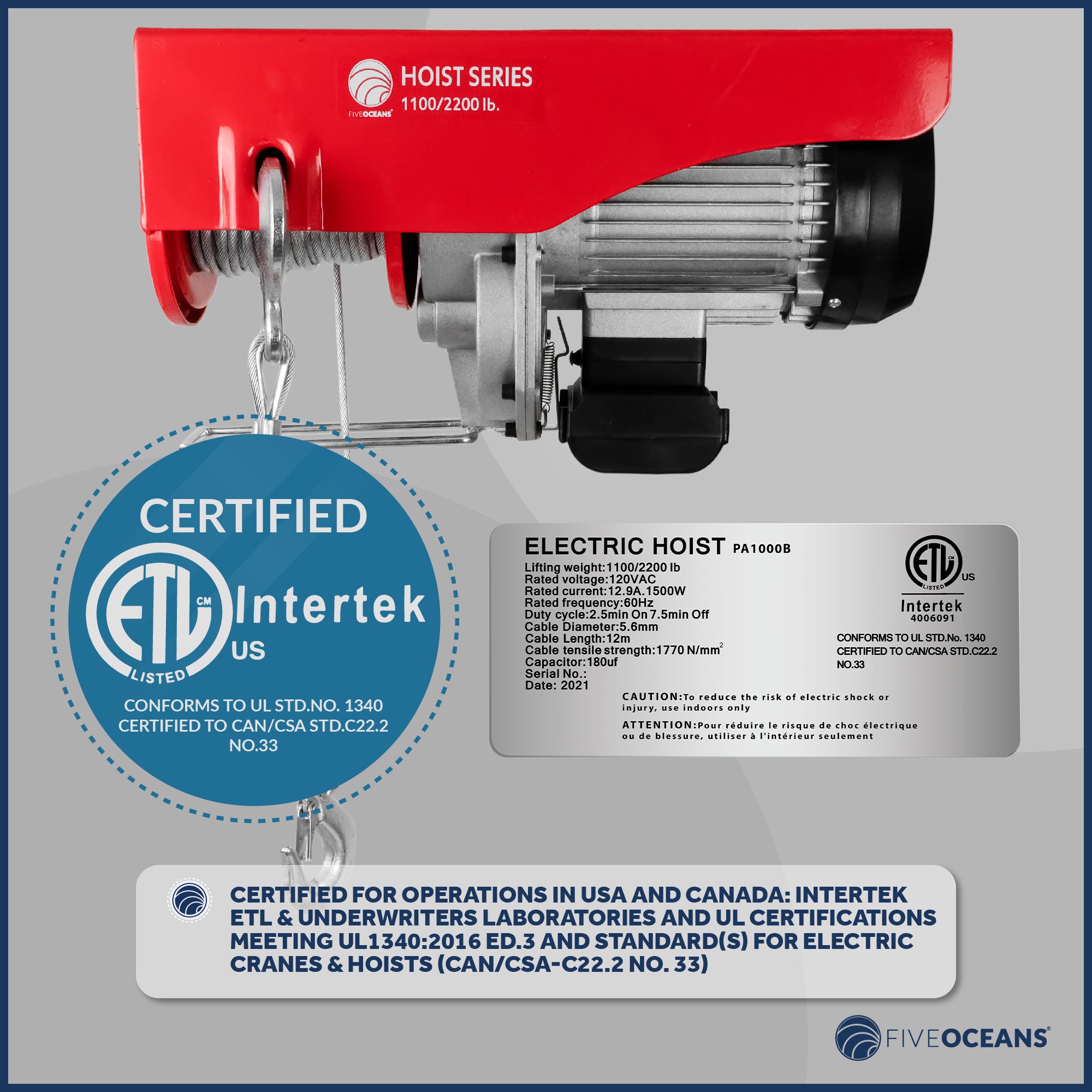

DURABLE MATERIAL AND CERTIFICATIONS: Constructed of a sturdy steel shell, this electric hoist features a heavy-duty galvanized steel stop bracket, 2 galvanized steel mounting clamps with 4 screws, 4 washers, and 4 nuts. Certified for operations in USA and CANADA: Intertek ETL & Underwriters Laboratories and UL certifications meeting UL1340:2016 Ed.3 and Standard(s) for Electric Cranes & Hoists (CAN/CSA-C22.2 No. 33). IP rating of 40.

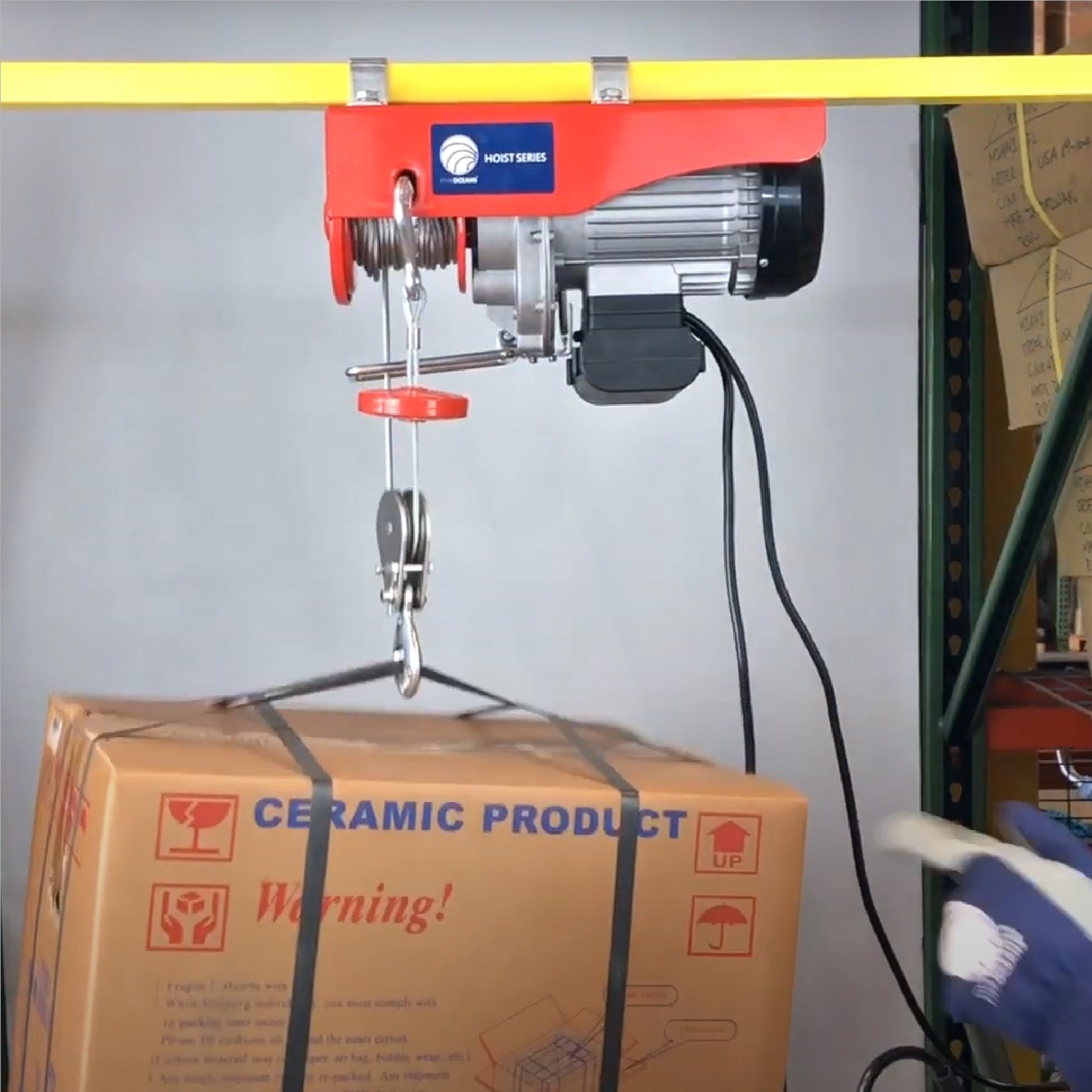

WIDE APPLICATIONS: Great tool for working in indoor or outdoor environments. For use in Garages, ceilings, lofts, attics, Warehouses, Factories, or anywhere you need it. It allows the lifting of regular or irregularly shaped parts.
Single Line Lift Weight: 1100 lb.
Double Line Lift Weight: 2200 lb.
Single Line Lift Speed: 33.0 ft/min
Double Line Lift Speed: 16.5 ft/min
Single Line Lift Height: 38.0 ft.
Double Line Lift Height: 19.0 ft.
Cable Material: Galvanized Steel
Cable Length: 39.4 ft.
Cable Diameter: 7/32 in. (5.6mm)
Power Cord Length: 5 ft

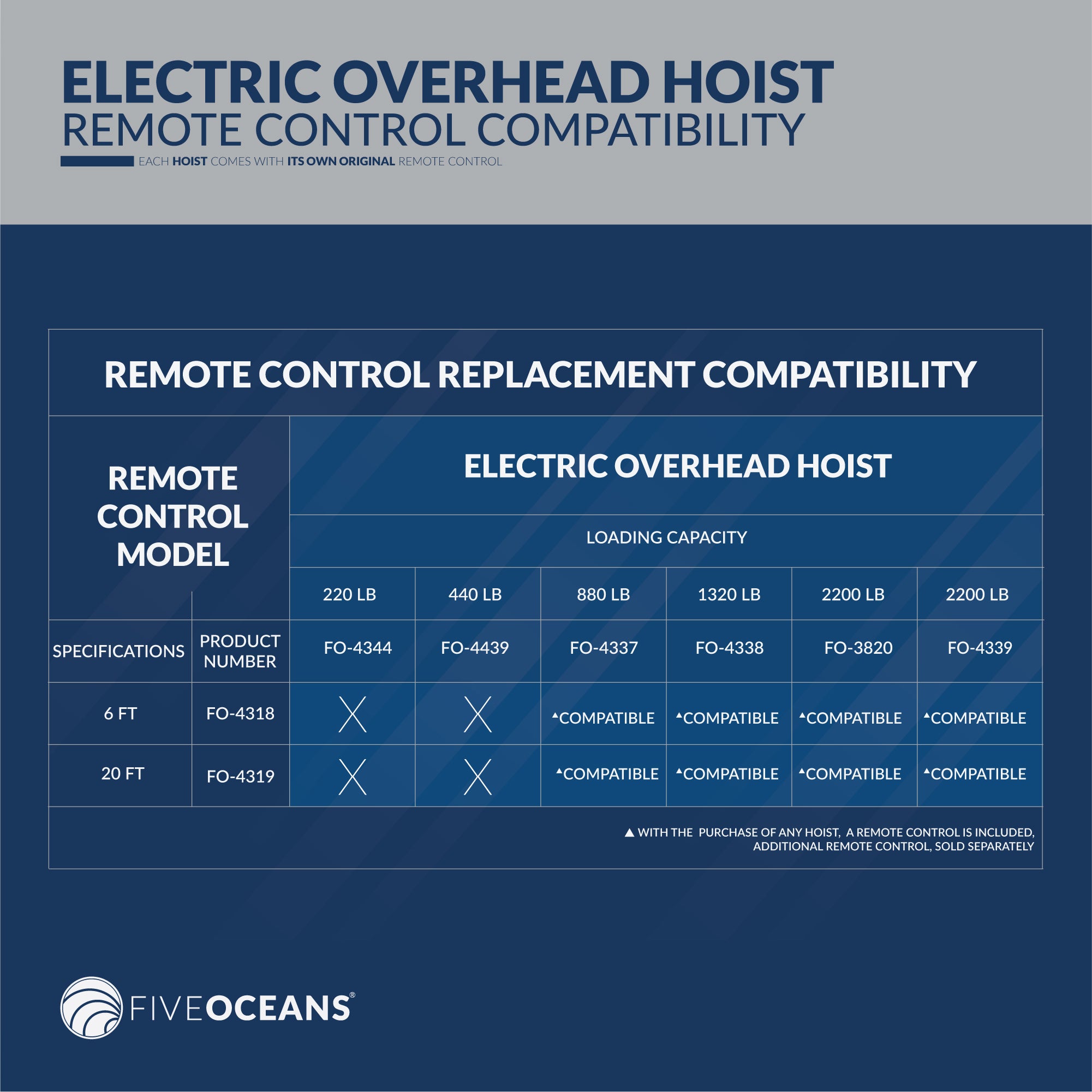

Tethered Remote Control Length: 20 ft
Stop Bracket: Yes
Line Blocker: Yes

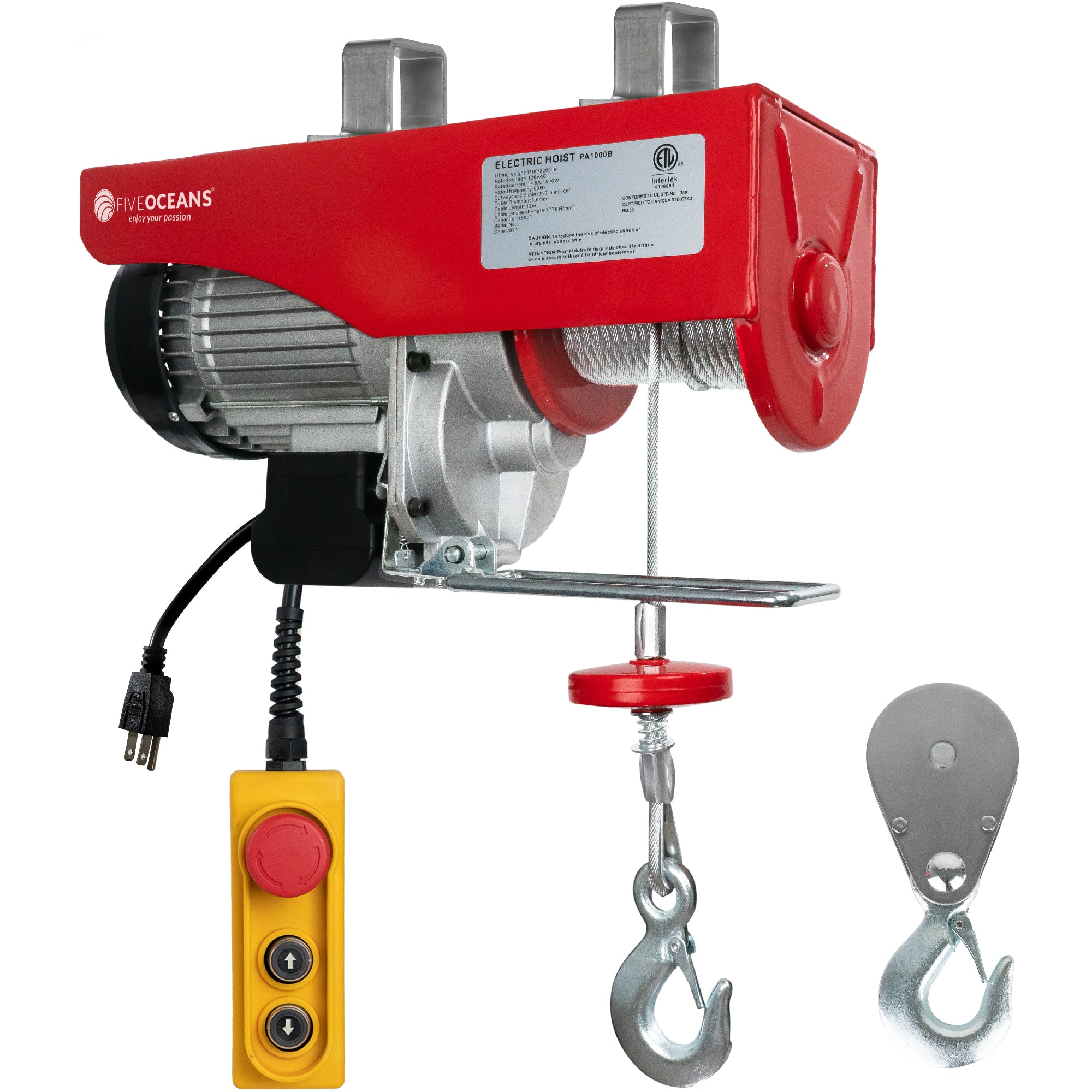

Double Line Pulley Included: Yes
Voltage: 120V AC
Horsepower: 2 hp
Max Current at Full Load: 13.1A
Duty Cycle Intermittent: (S3-25%)
PRODUCT NUMBER: FO-4339
DOWNLOAD PRODUCT MANUAL(S):
One (1) Year Warranty
We take enjoyment in the products we make and guarantee the buyer that all Five Oceans products are ready to handle the extreme conditions of the open sea or terrain. However, we also know things can happen that's why we've got you covered for a year.
Click Here to read the warranty document
