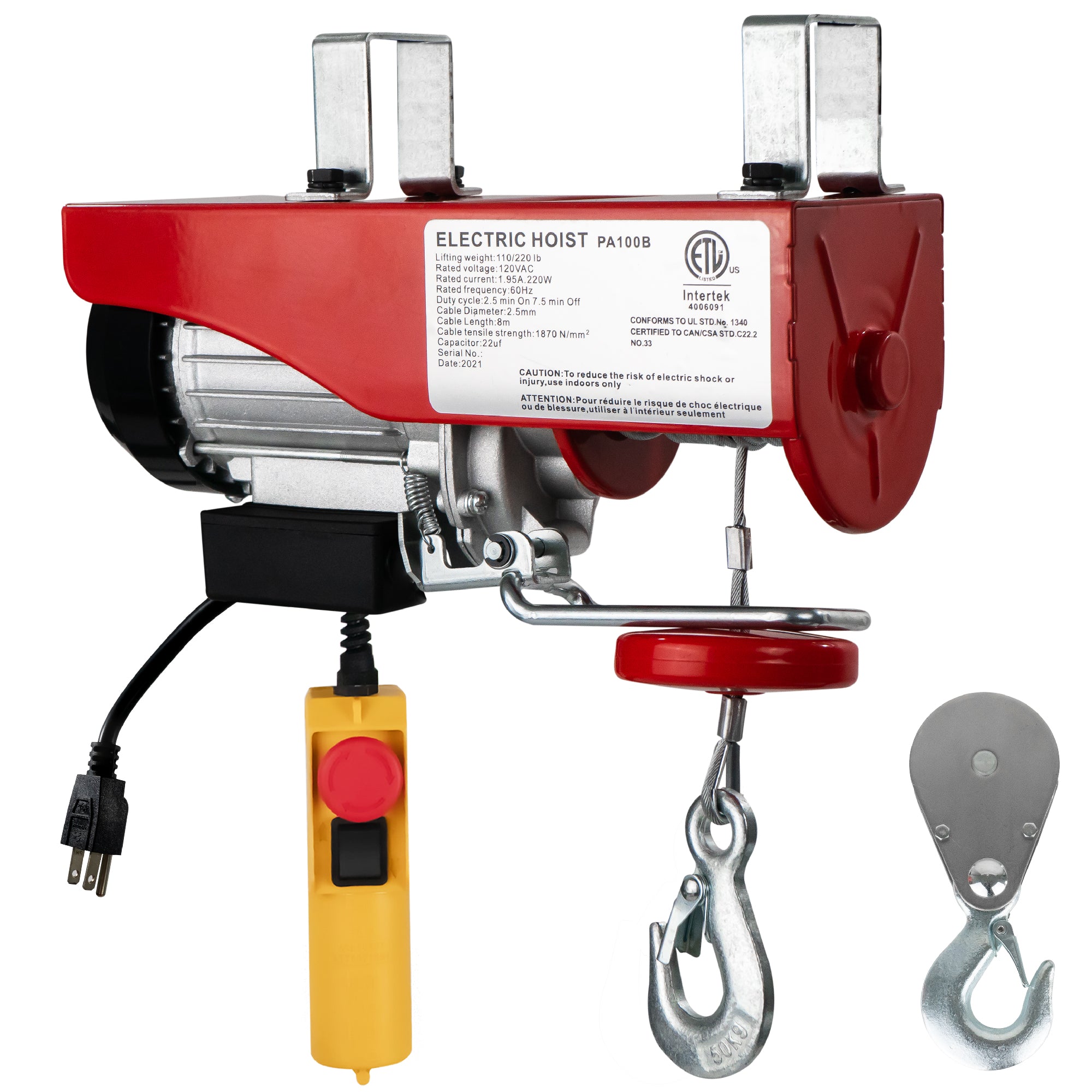

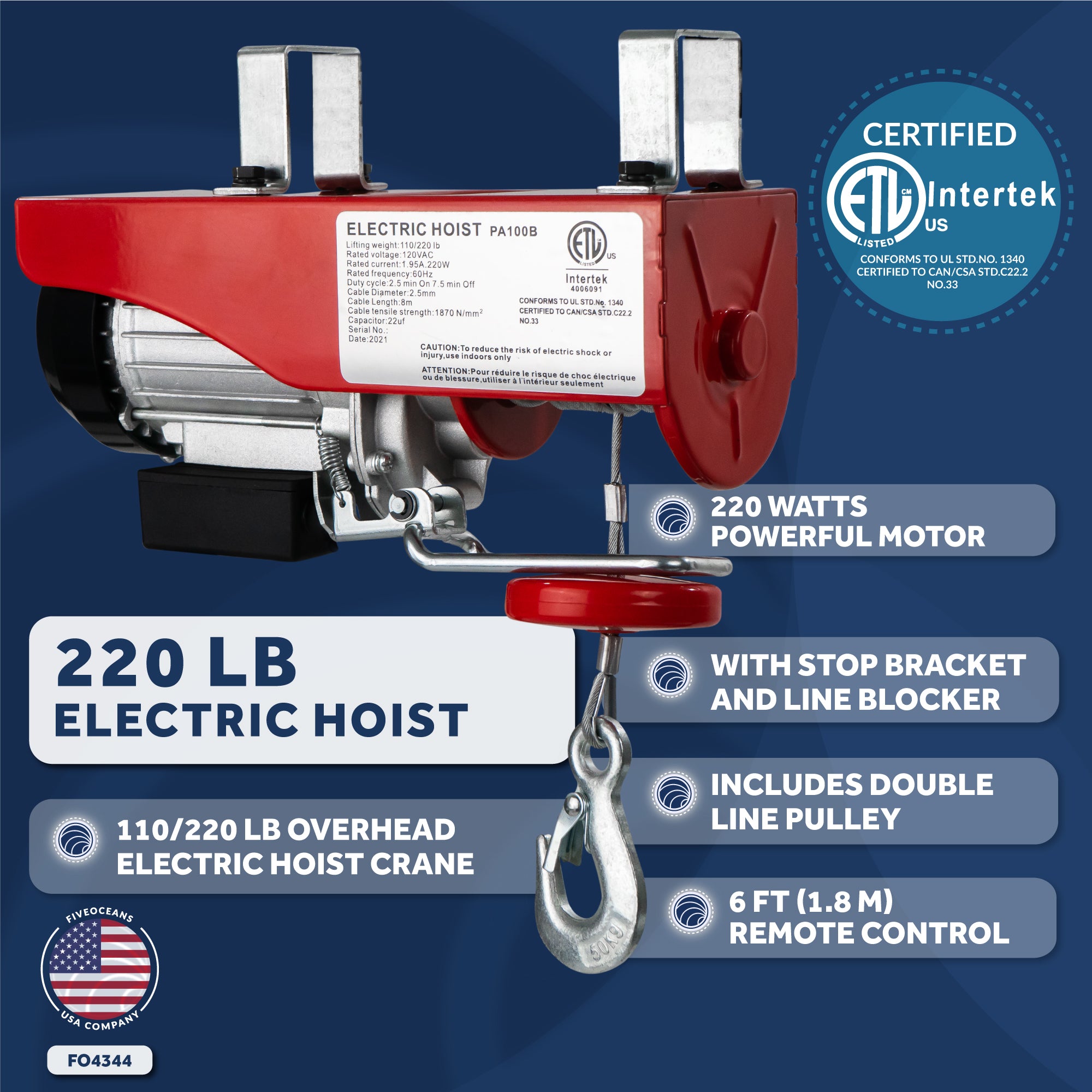

Electric Hoist, 220 Lb Electric Winch, 6FT Remote Control 120 Volts - FO4344

Sale price$66.60
Sold out

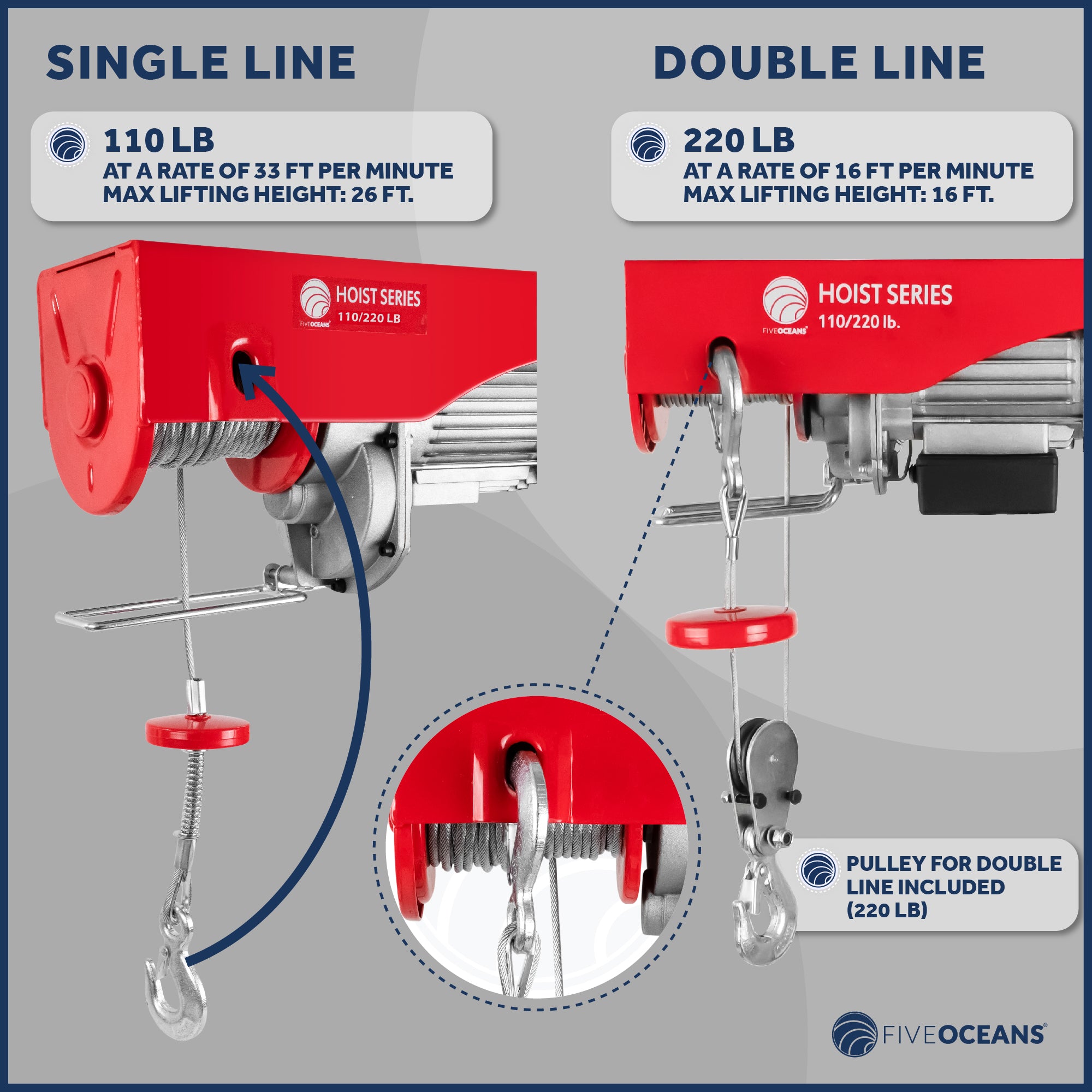

CAPACITY: Choose single-line capacity, and lift up to 110 Lb at a rate of 33 Ft per minute - Max Lifting Height: 26 Ft. With Double-line capacity, this hoist can lift up to 220 Lb at a rate of 16 Ft per minute with the included pulley hook - Max Lifting Height: 16 Ft.

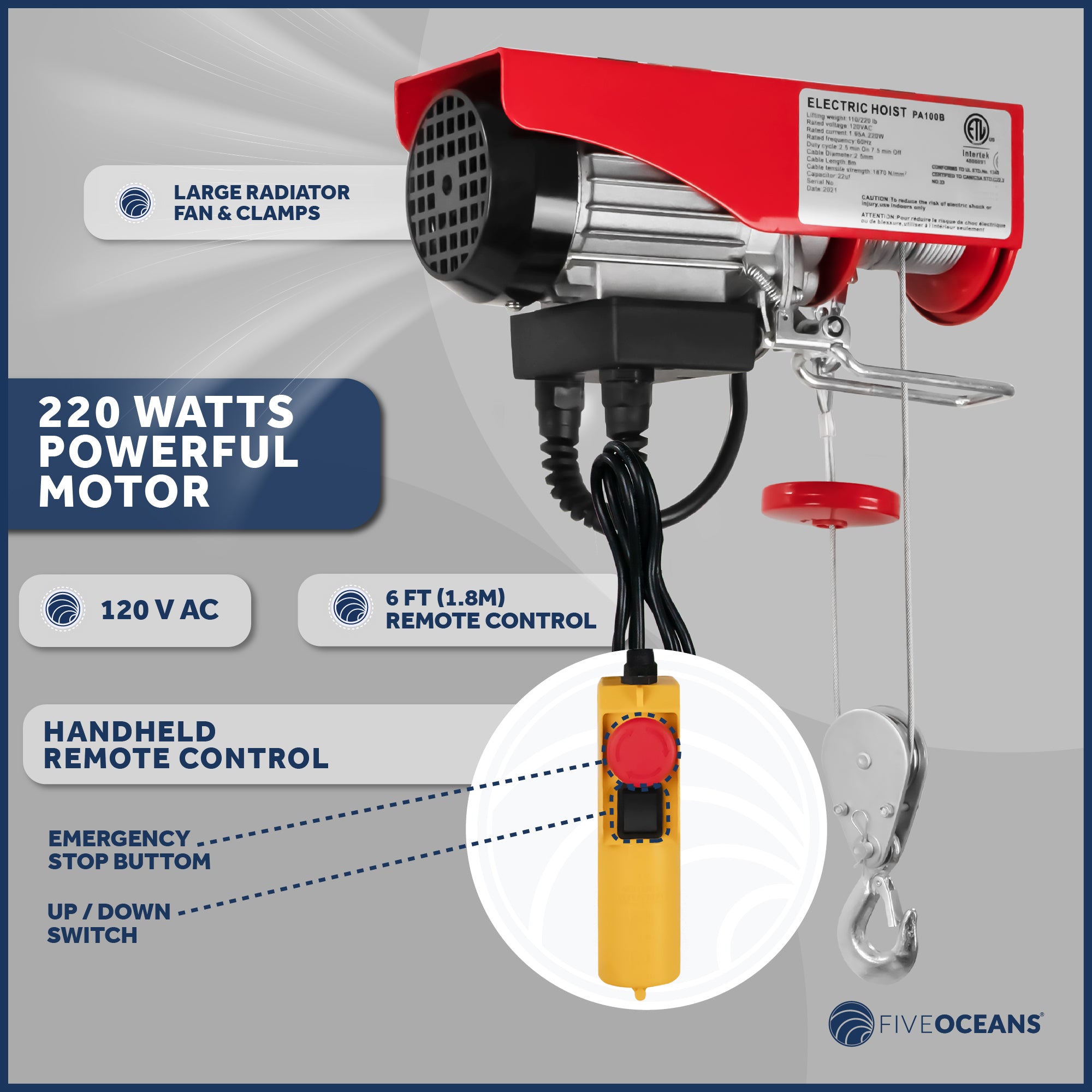

POWERFUL MOTOR: The 220 Watts Electric motor is powerful enough to make this hoist the perfect solution for lifting heavy engines, bulky loads, heavy building materials, tools, or machinery. The unit comes with a large radiator fan that cools the motor quickly preventing unit overheating. Voltage: 120V AC. Horsepower: 0.30 hp. Current Draw @ Rated Lifting Capacity: 1.95 Amps. Duty Cycle: Intermittent (S3 25%).

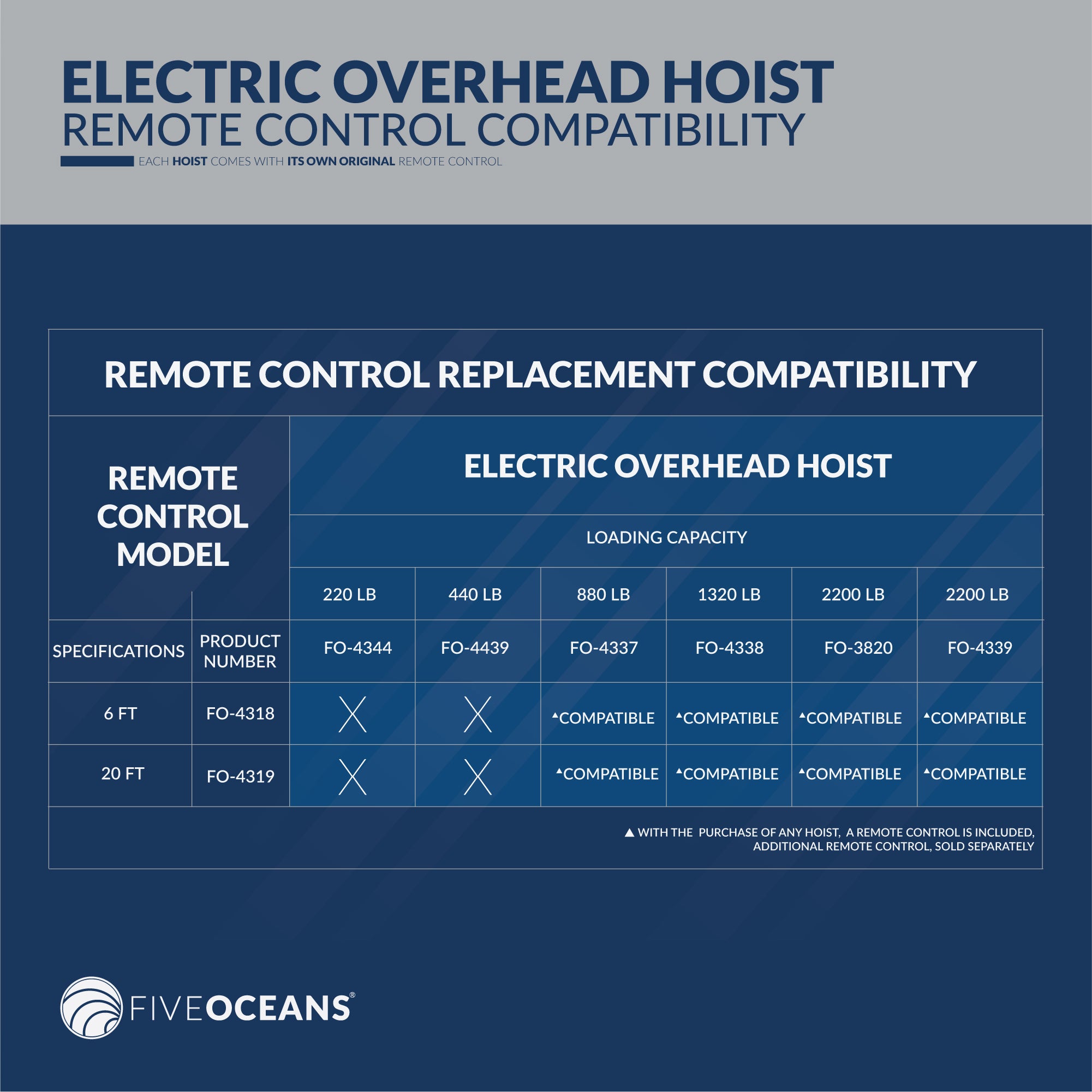

SAFETY: Includes a heavy-duty galvanized steel stop bracket and line blocker. Anti-twist design and High-strength 26.25 Ft braided steel wire cable. The handheld 6 Ft remote control comes with an emergency stop button for easy and safe operation.

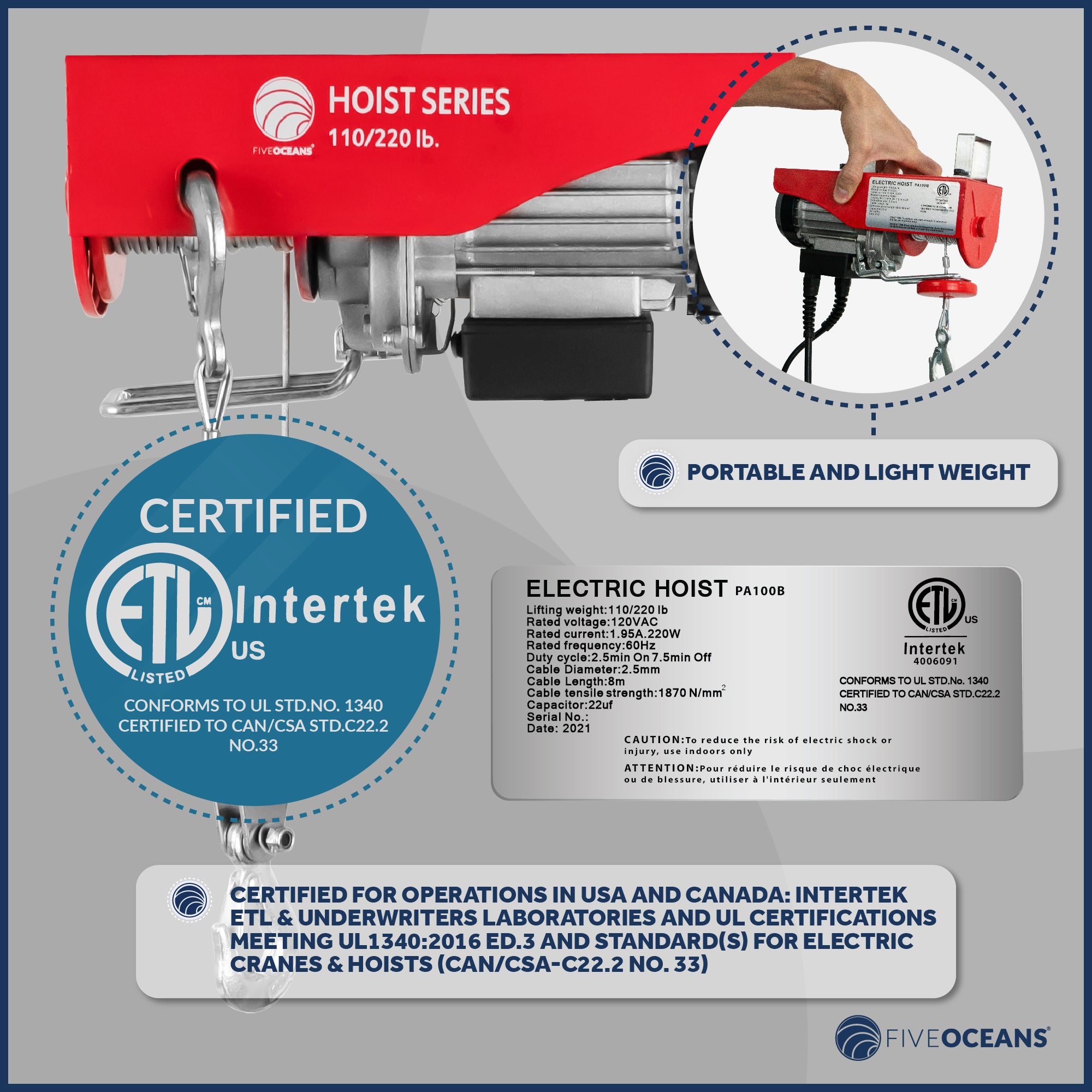

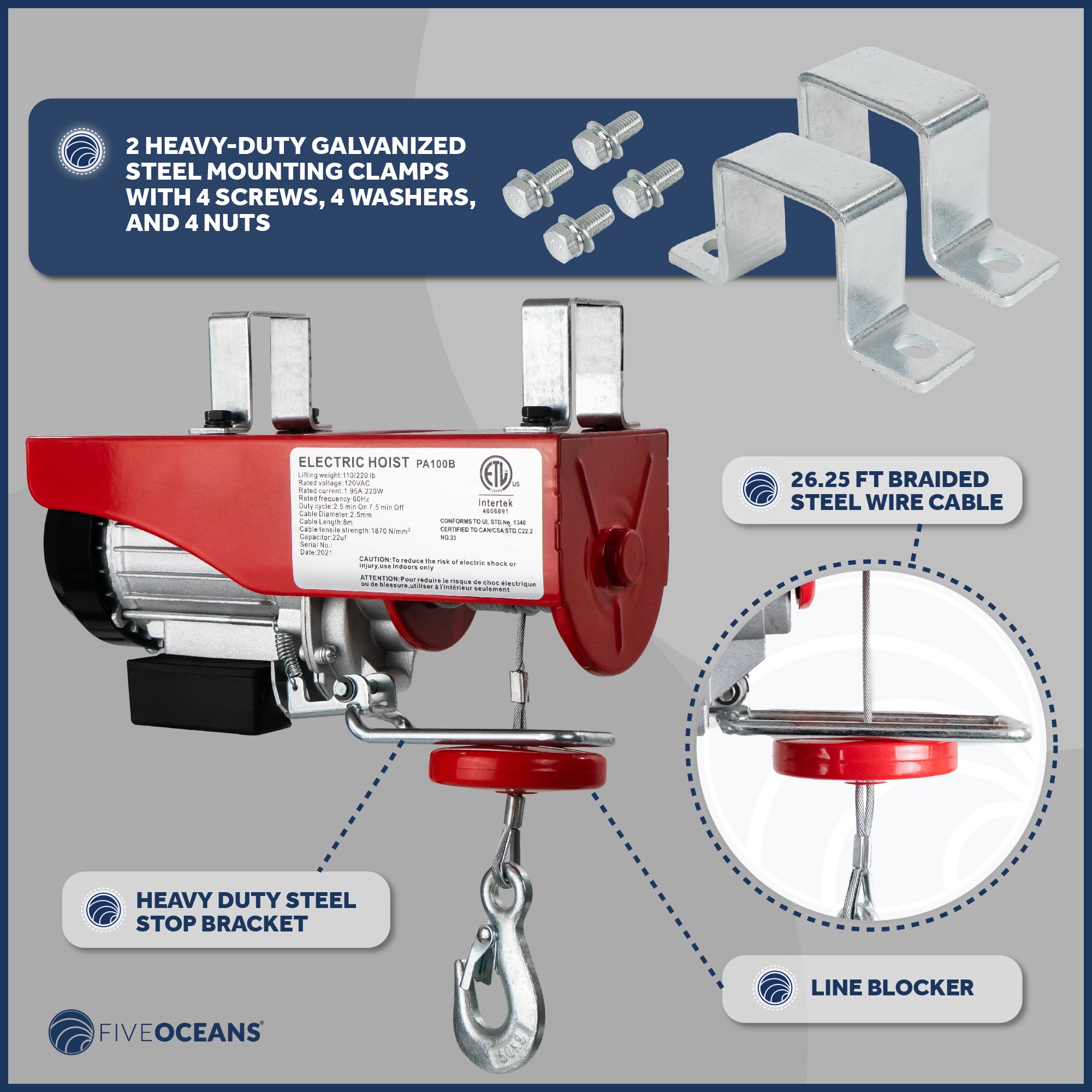

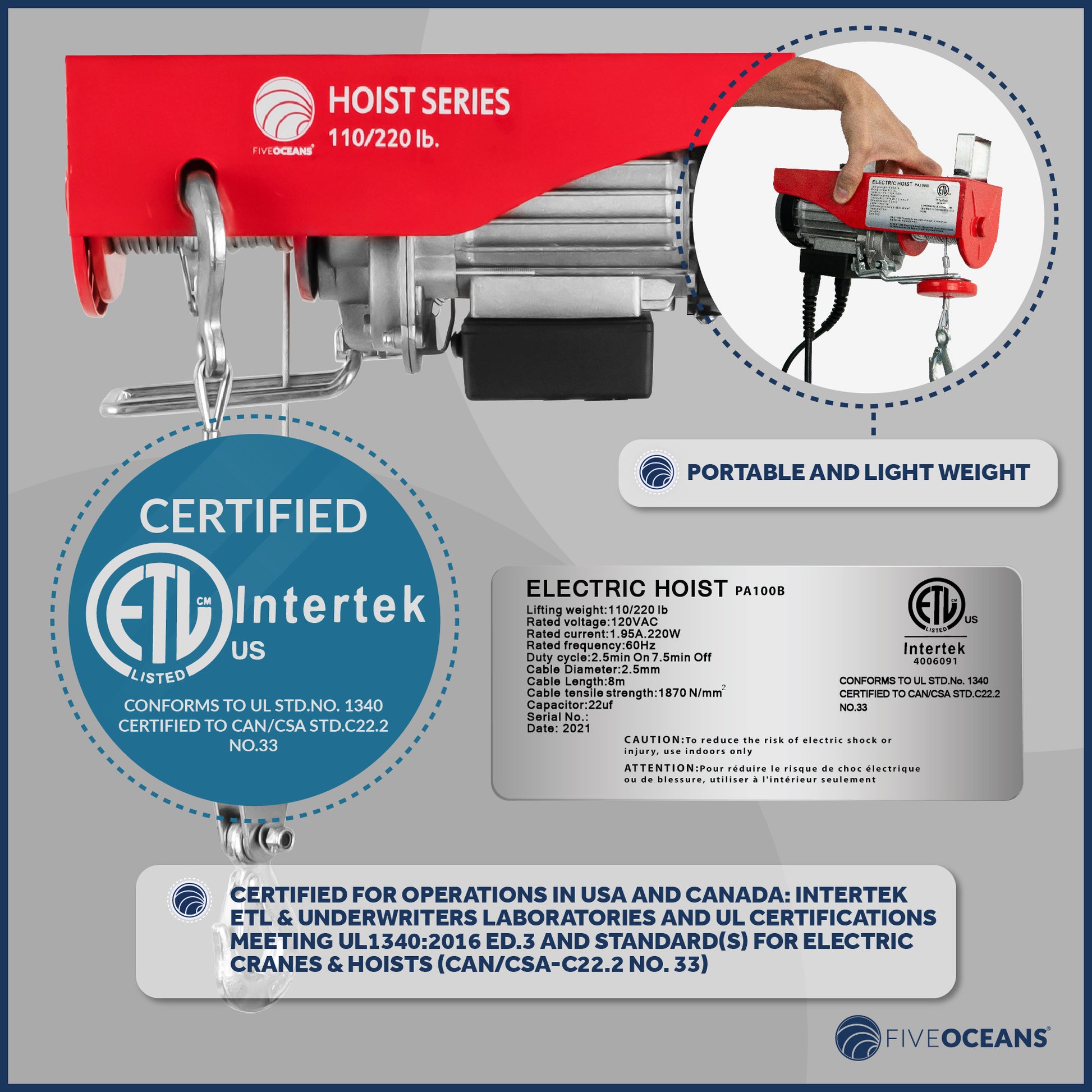

DURABLE MATERIAL AND CERTIFICATIONS: Constructed of a sturdy steel shell, this electric hoist features a heavy-duty galvanized steel stop bracket, 2 galvanized steel mounting clamps with 4 screws, 4 washers, and 4 nuts. Certified for operations in USA and CANADA: Intertek ETL & Underwriters Laboratories and UL certifications meeting UL1340:2016 Ed.3 and Standard(s) for Electric Cranes & Hoists (CAN/CSA-C22.2 No. 33). IP rating of 40.

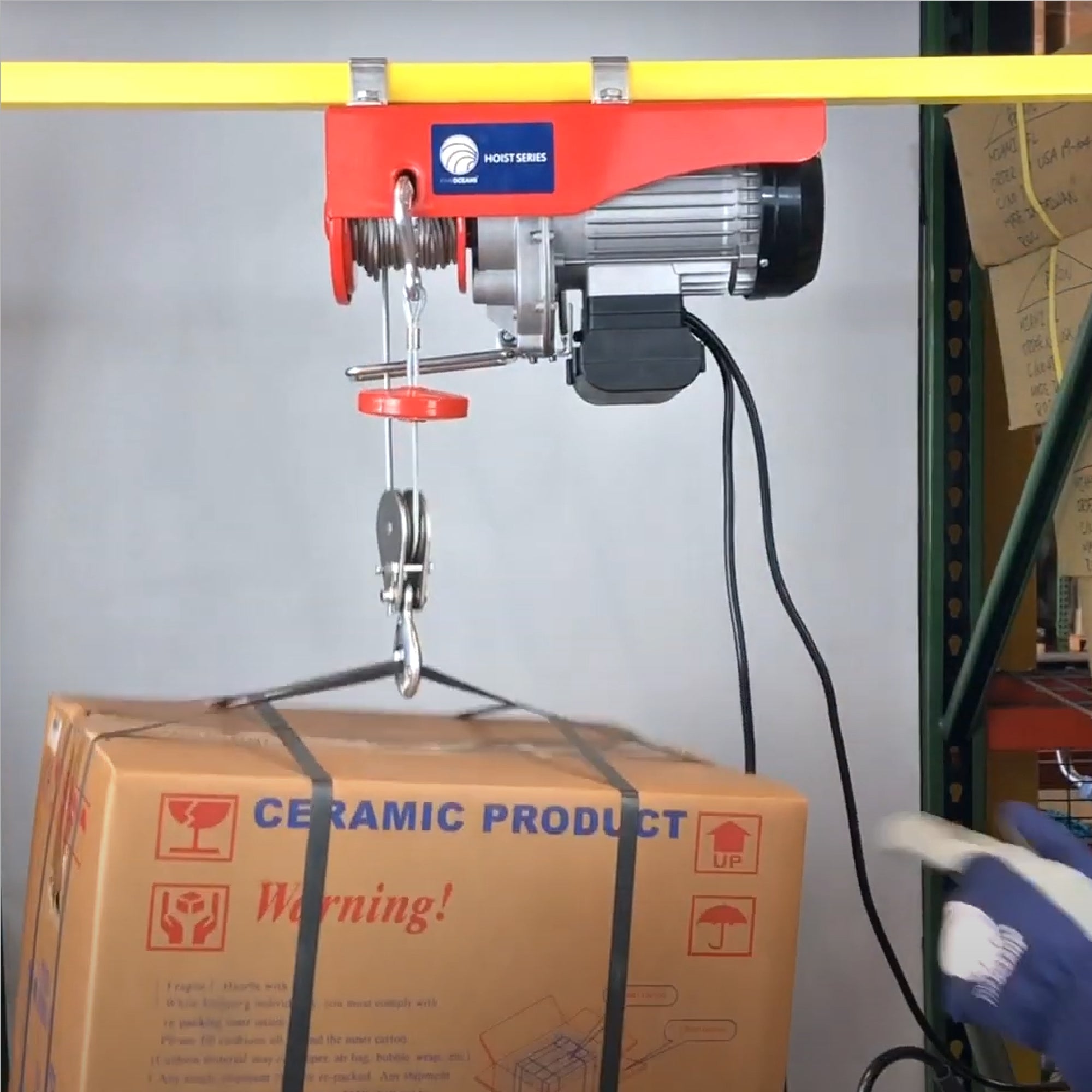

WIDE APPLICATIONS: Great tool for working in indoor environments. For use in Garages, ceilings, lofts, attics, Warehouses, Factories, or anywhere you need it. It allows the lifting of regular or irregularly shaped parts.

TECHNICAL SPECIFICATIONS:

Single Line Lift Weight: 110 lb
Double Line Lift Weight: 220 lb
Single Line Lift Speed: 33.0 ft/min
Double Line Lift Speed: 16.5 ft/min
Single Line Lift Height: 24 ft
Double Line Lift Height: 12 ft
Cable Material: Galvanized Steel
Cable Length: 26.25 ft
Cable Diameter: 3/32 in. (2.5mm)
Power Cord Length: 5 ft
Stop Bracket: Yes
Line Blocker: Yes
Double Line Pulley Included: Yes
Tethered Remote Control Length: 6 ft
Voltage: 120V AC
Horsepower: 0.30 hp
Max Current at Full Load: 1.95A
Duty Cycle: Intermittent (S3 25%)

PRODUCT NUMBER: FO-4344
