Bolt Electric Trim Tab System 12" x 9", Complete Kit BOLT129, 12V DC - FO4320
Bennett

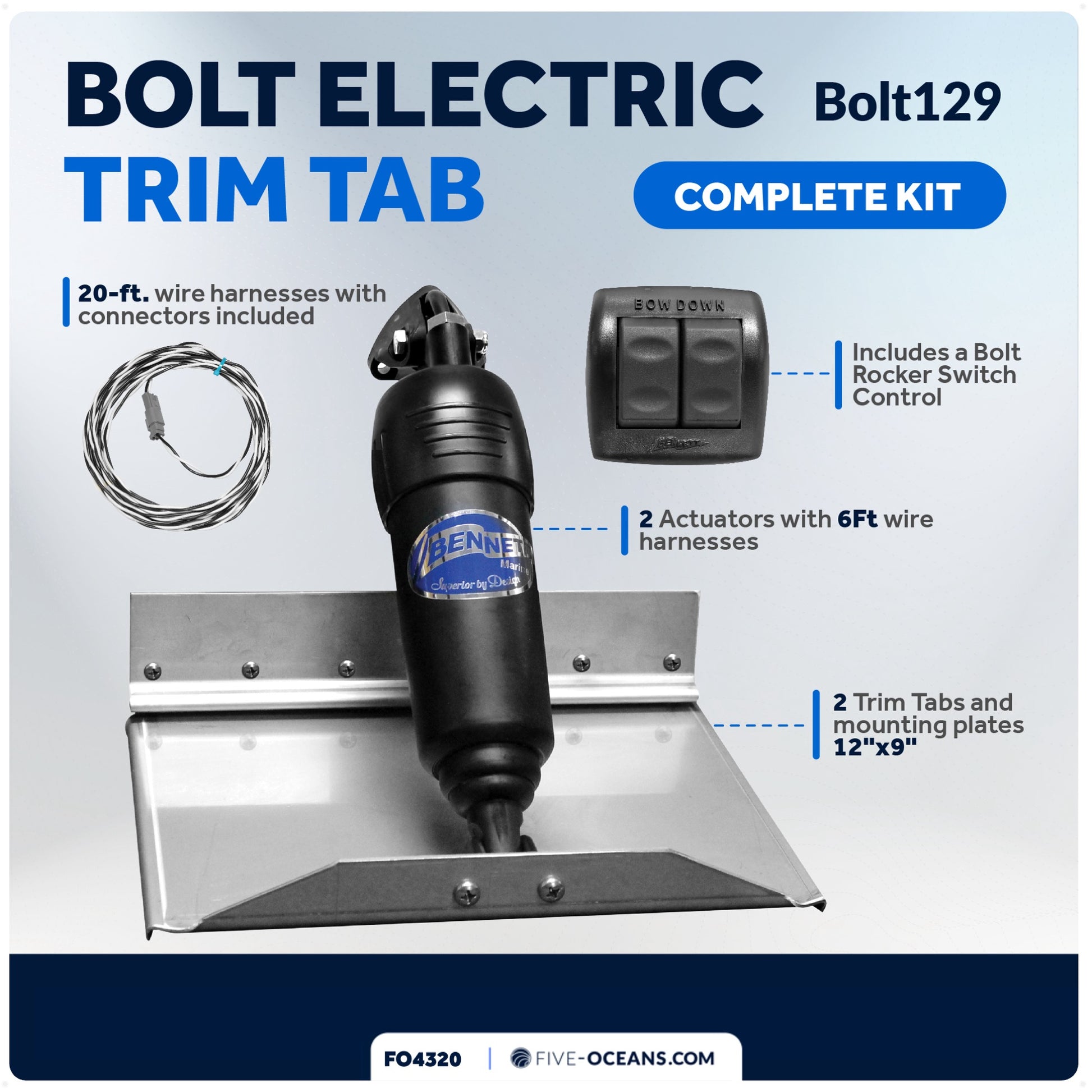

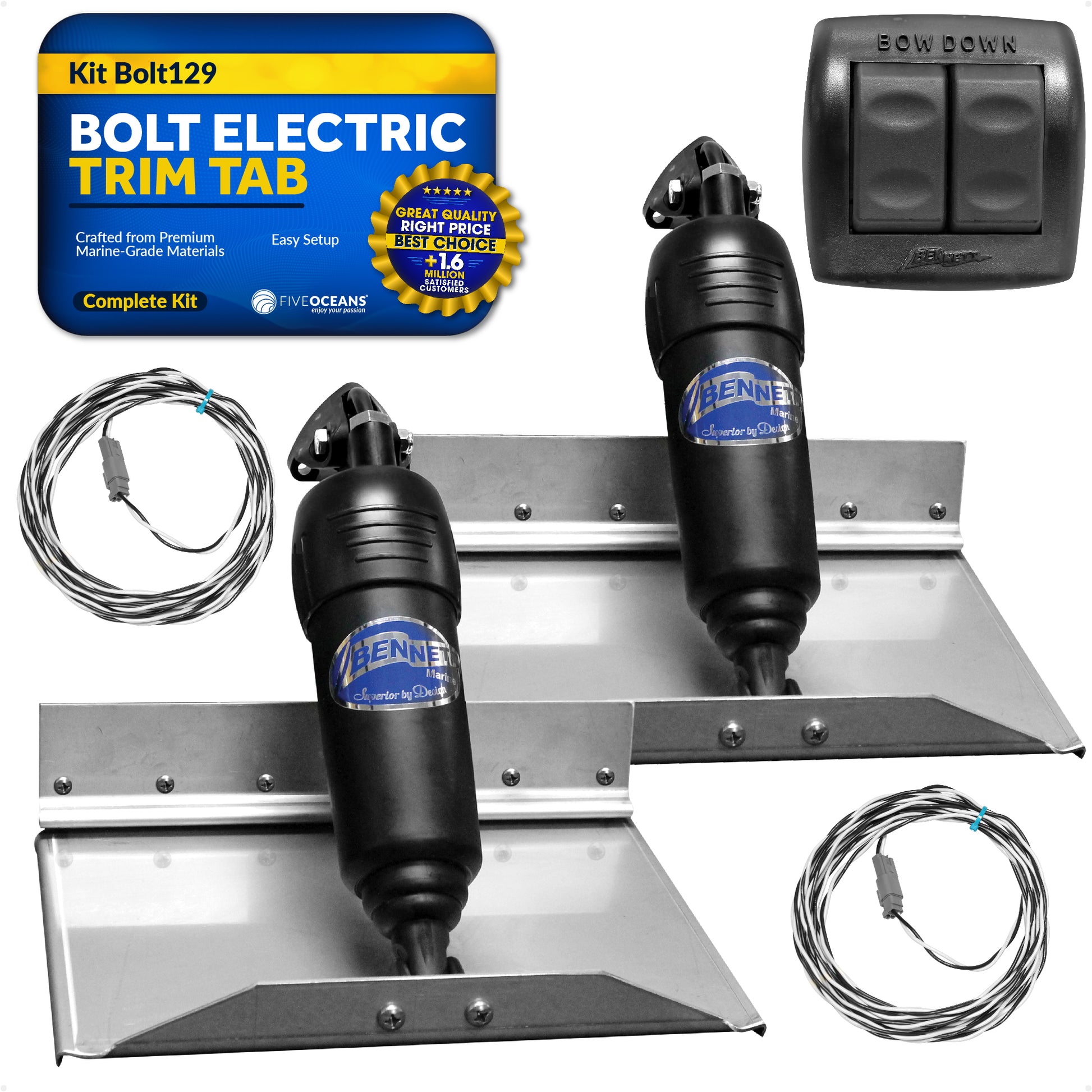

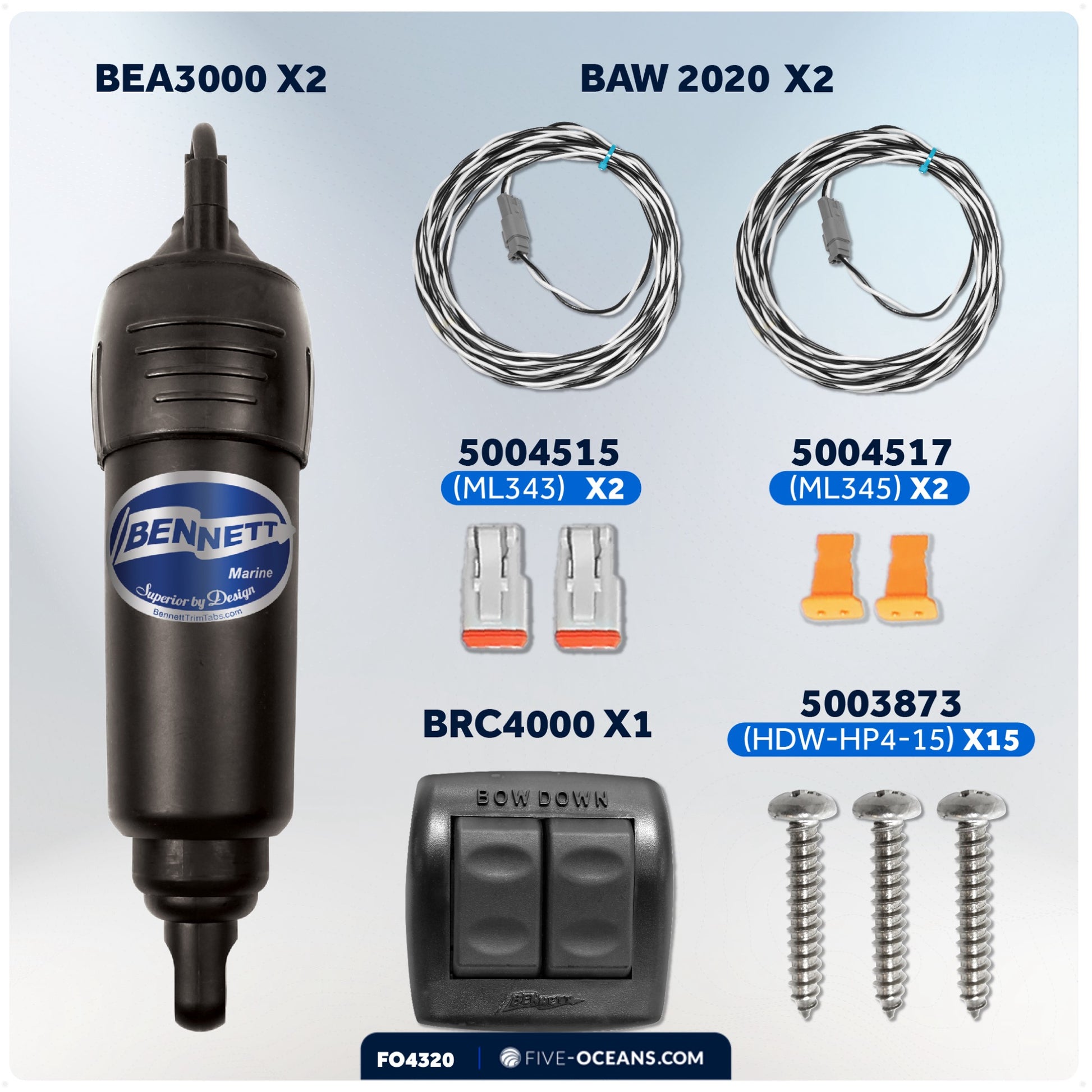

BOLT ELECTRIC TRIM TAB SYSTEM BOLT129 - Includes a Bolt Rocker Switch Control, 2 Actuators with 6Ft wire harnesses and waterproof connectors, and 2 Stainless steel Trim Tabs and mounting plates 12"x 9".

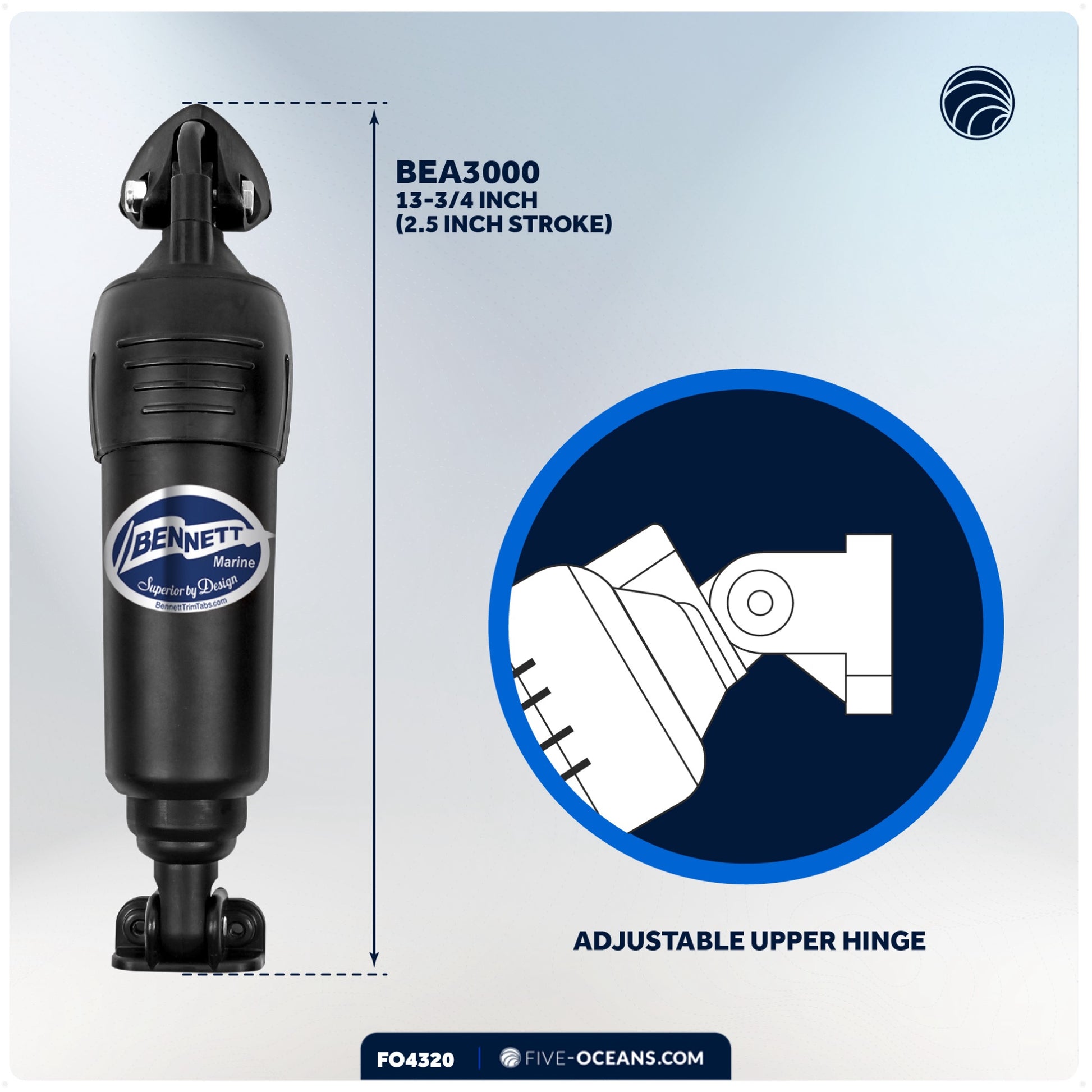

BOLT ELECTRIC ACTUATORS - Adjustable Upper Hinge. Completely waterproof, submersible, and maintenance-free. Each 12-volt Actuator comes with 6Ft wire harnesses and waterproof connectors Mfg. PN# BEA3000.
BOLT ELECTRIC ROCKER SWITCH CONTROL - For Electric System Only. Attractive, ergonomic design. Positive click action for precise trim tab adjustment Mfg. PN# BRC4000.
ACTUATOR WIRE HARNESSES - 20-ft. wire harnesses with waterproof connectors included. Mfg# BAW2020.
HIGH PERFORMANCE - Balance loads, plane faster, and increase efficiency and performance with Bennett BOLT Electric Trim Tab systems. Lifetime warranty for electric actuators. The water-tight design provides trouble-free operation for years. Solid construction is built to last.
SPECIFICATIONS:

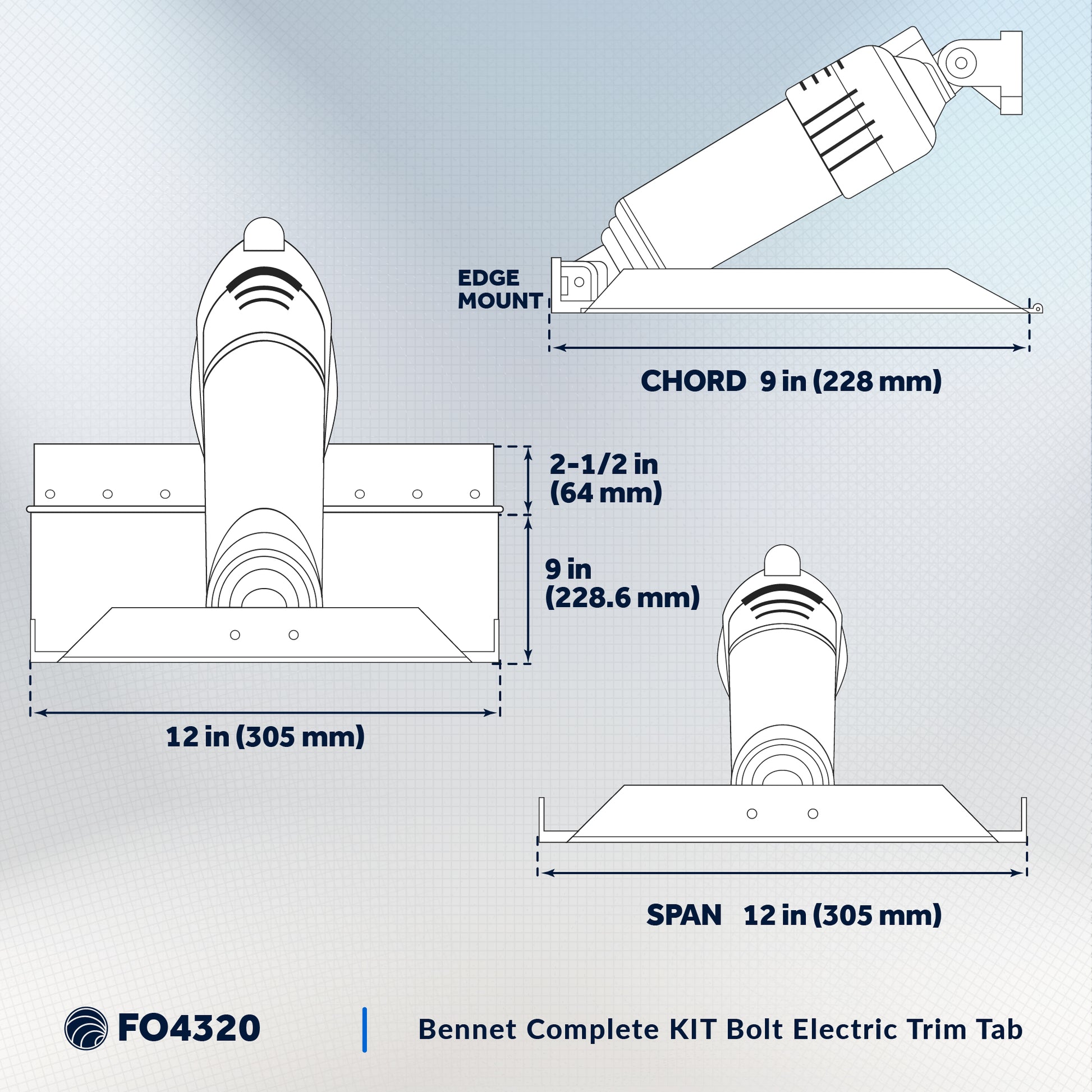

Dimensions: 12 Length x 9 Width inches
Voltage: 12 Volts
Trim Tab Actuator: Electric System
Actuator Chord: 6FT
Trim Tab Control Type: Various available
Working forces: Actuation force: 750Lb. | Return Force: 750Lb.
(This is max capacity; typically operates at 250 lbs)
Current draw: 10 - 30 Amp - 30 Amp max - will usually never get to this point
Type: Trim Tab Kits (Edge Mount)

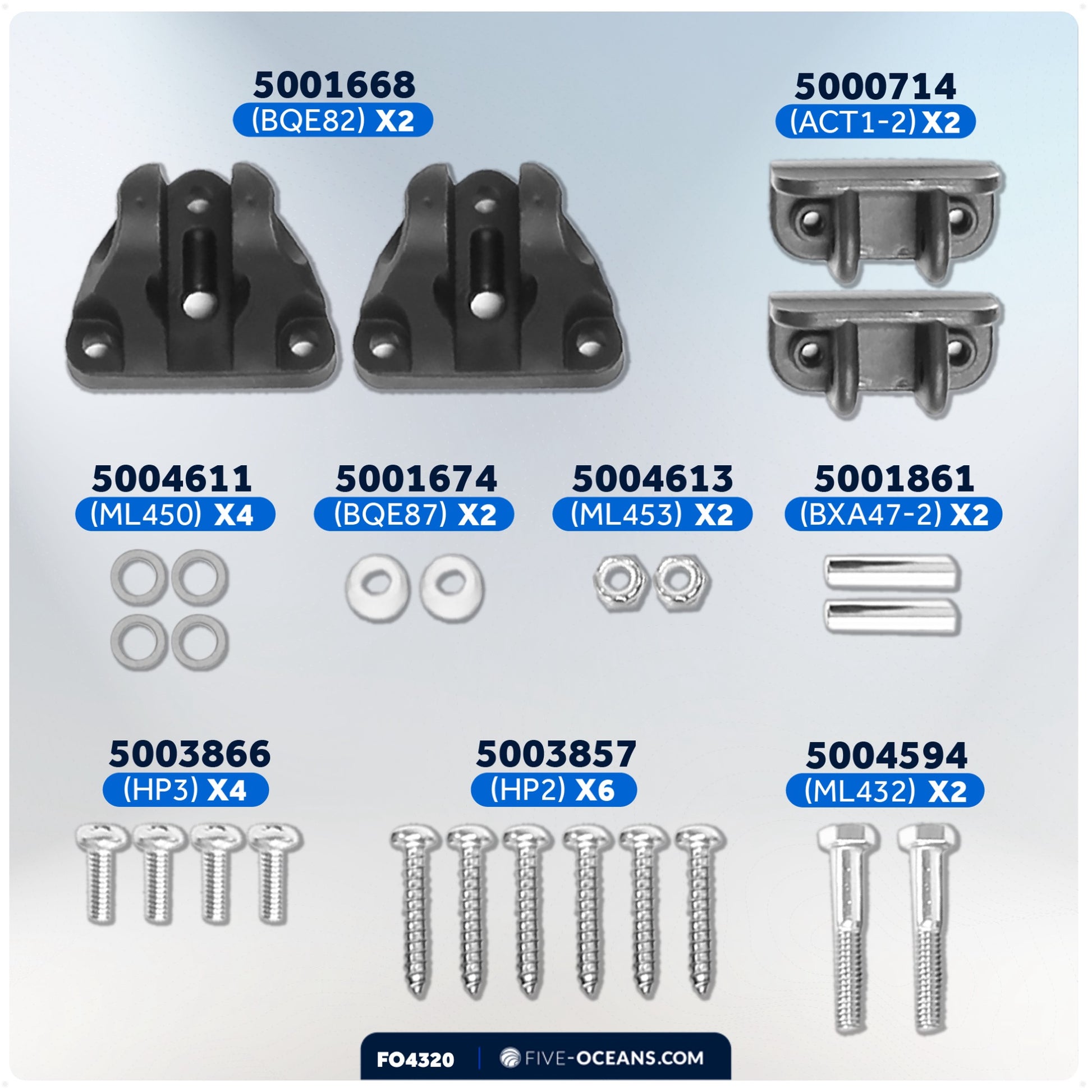

Mounting Hardware: Mounting Hardware (Included)
Warranty Details: Limited Lifetime Warranty provided by the manufacturer
PRODUCT NUMBER: FO-4320
BOLT ELECTRIC ACTUATORS - Adjustable Upper Hinge. Completely waterproof, submersible, and maintenance-free. Each 12-volt Actuator comes with 6Ft wire harnesses and waterproof connectors Mfg. PN# BEA3000.
BOLT ELECTRIC ROCKER SWITCH CONTROL - For Electric System Only. Attractive, ergonomic design. Positive click action for precise trim tab adjustment Mfg. PN# BRC4000.
ACTUATOR WIRE HARNESSES - 20-ft. wire harnesses with waterproof connectors included. Mfg# BAW2020.
HIGH PERFORMANCE - Balance loads, plane faster, and increase efficiency and performance with Bennett BOLT Electric Trim Tab systems. Lifetime warranty for electric actuators. The water-tight design provides trouble-free operation for years. Solid construction is built to last.
SPECIFICATIONS:
Dimensions: 12 Length x 9 Width inches
Voltage: 12 Volts
Trim Tab Actuator: Electric System
Actuator Chord: 6FT
Trim Tab Control Type: Various available
Working forces: Actuation force: 750Lb. | Return Force: 750Lb.
(This is max capacity; typically operates at 250 lbs)
Current draw: 10 - 30 Amp - 30 Amp max - will usually never get to this point
Type: Trim Tab Kits (Edge Mount)
Mounting Hardware: Mounting Hardware (Included)
Warranty Details: Limited Lifetime Warranty provided by the manufacturer
PRODUCT NUMBER: FO-4320
