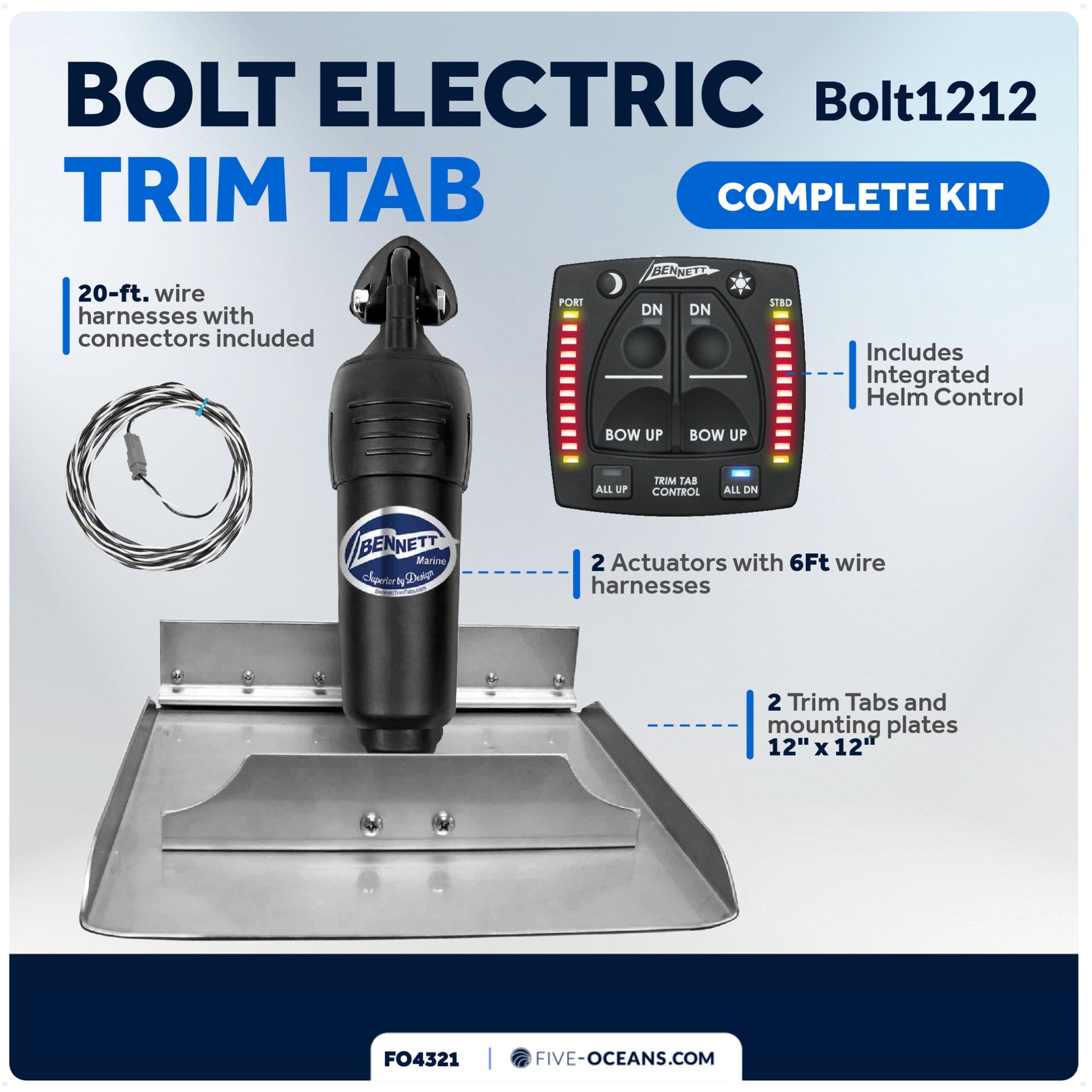

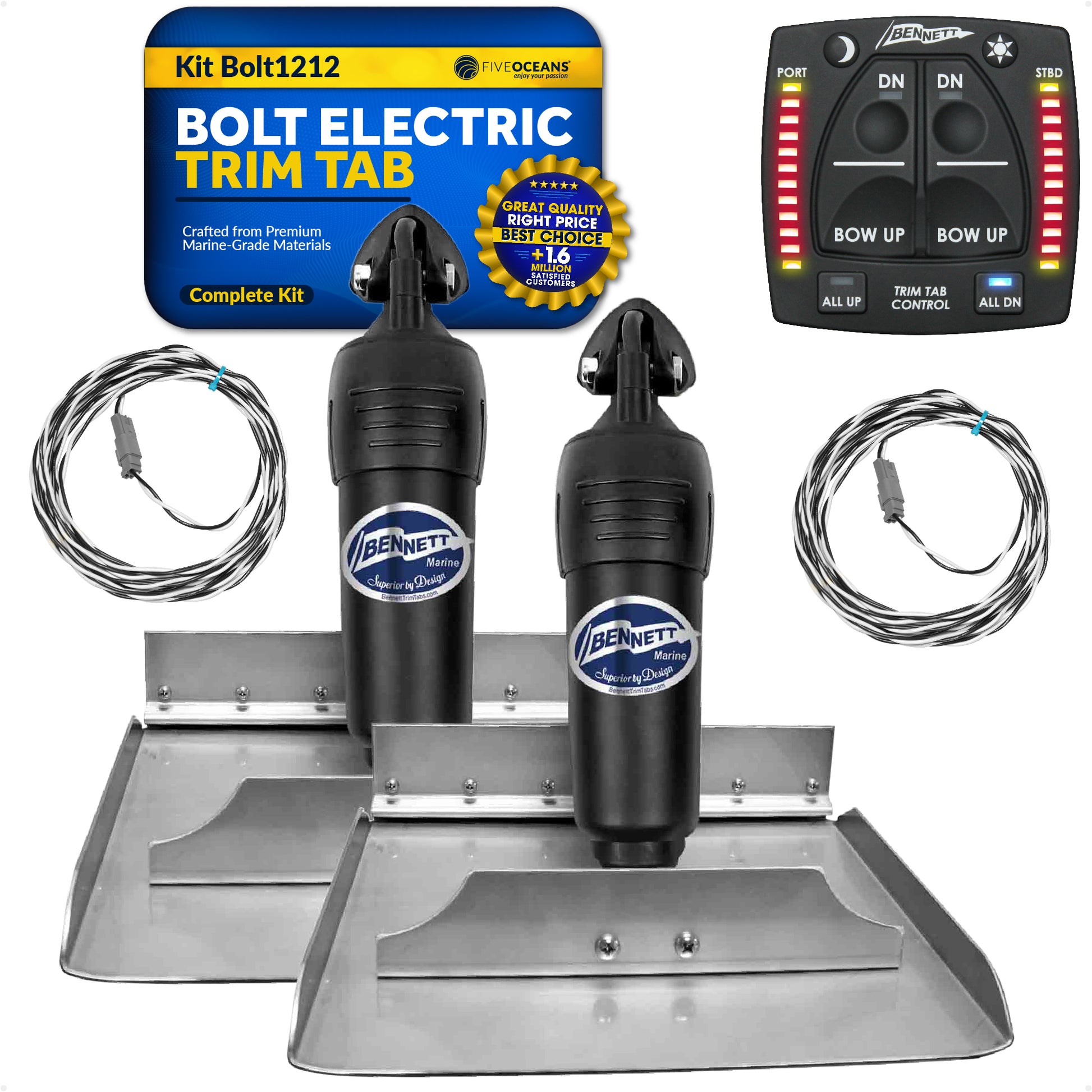

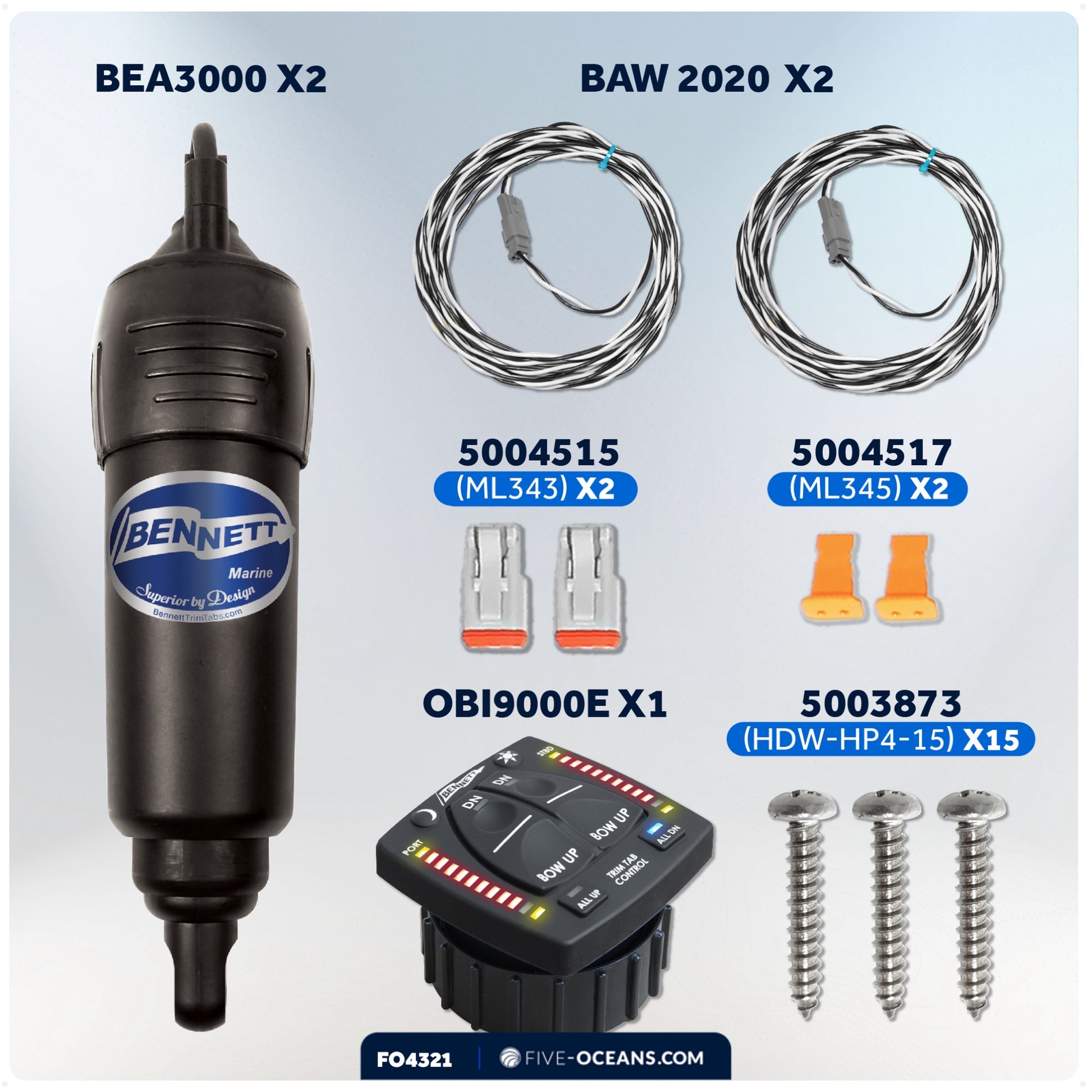

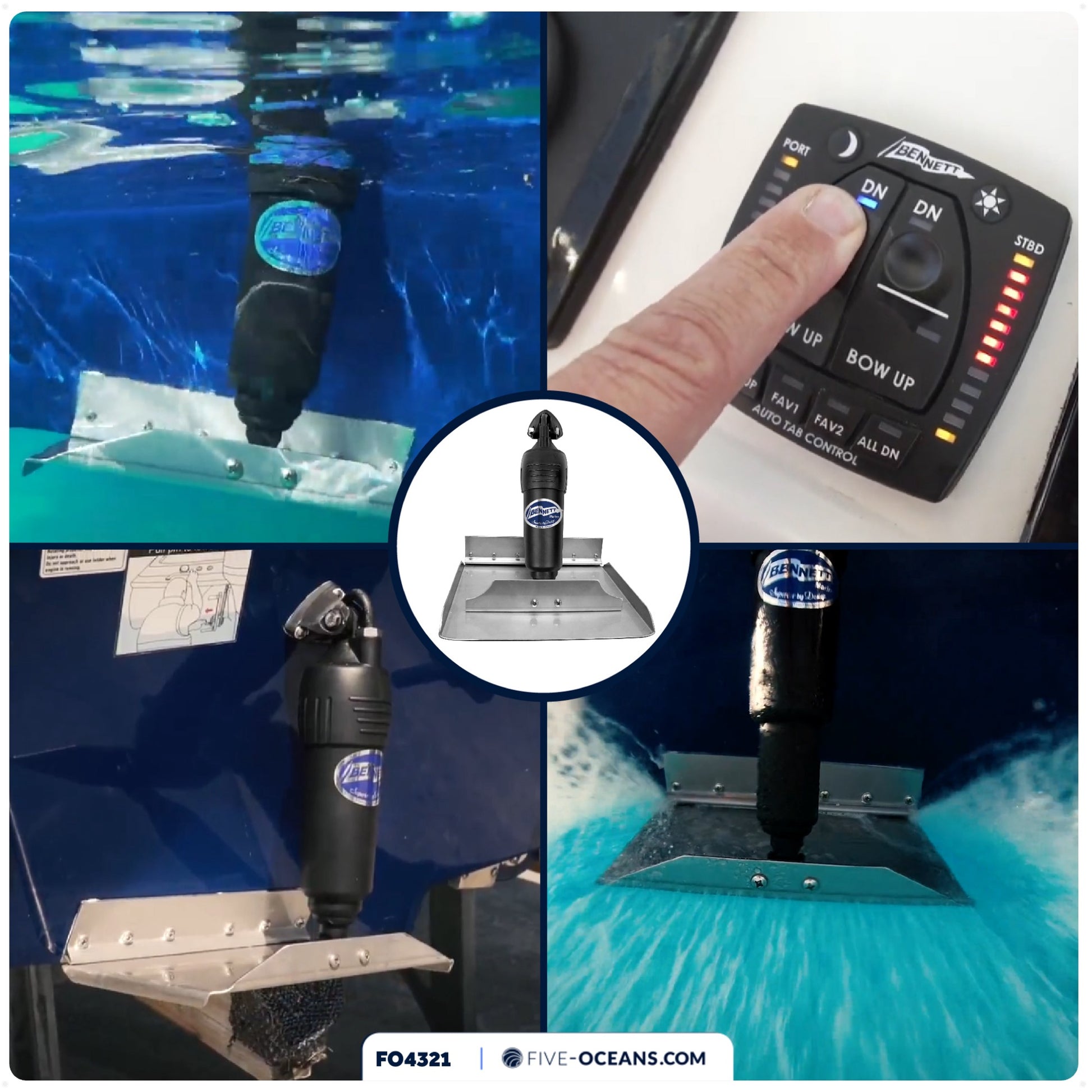

BOLT ELECTRIC TRIM TAB SYSTEM BOLT1212 - Includes a Bolt Rocker Switch Control, 2 Actuators with 6Ft wire harnesses and waterproof connectors, and 2 Stainless steel Trim Tabs and mounting plates 12"x12".

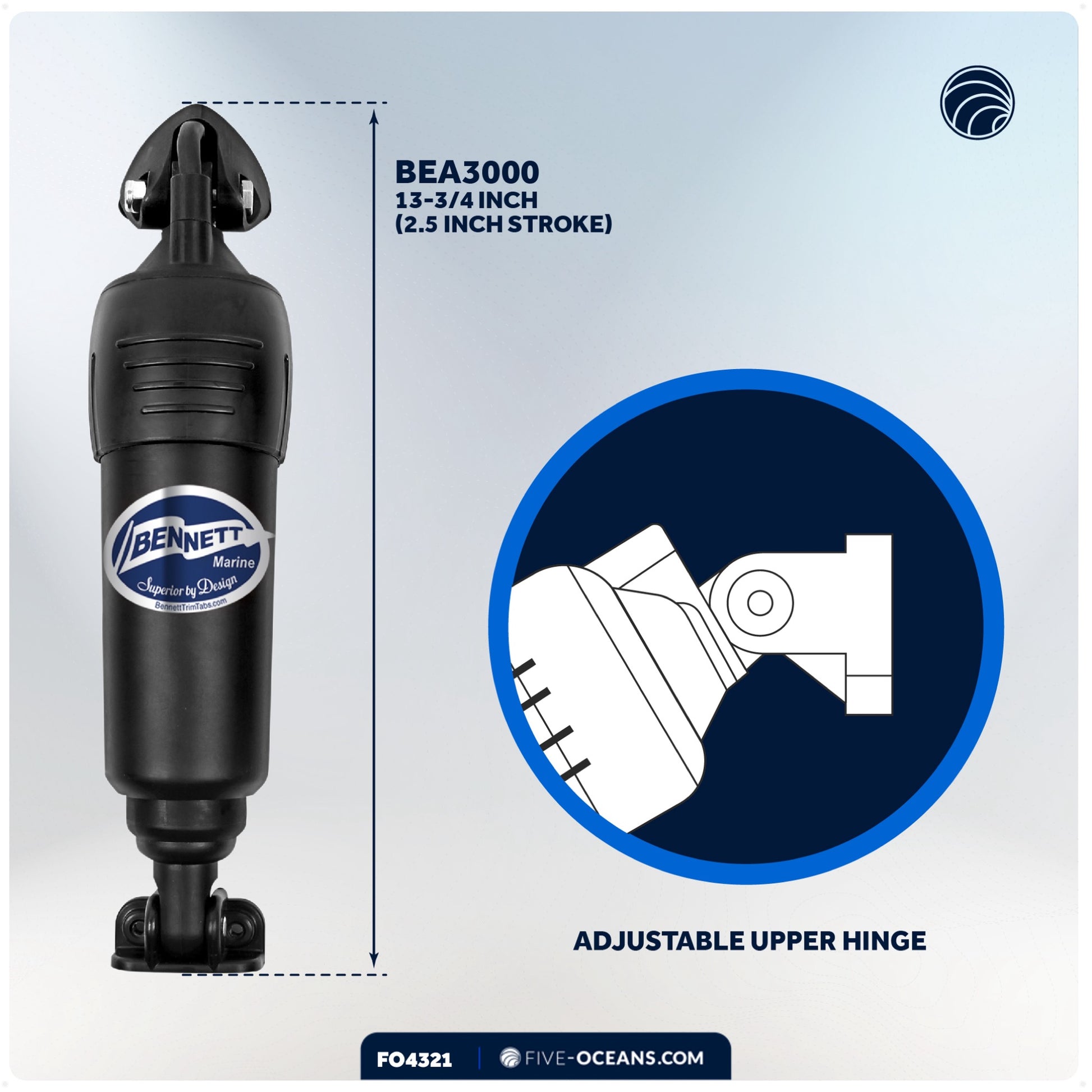

BOLT ELECTRIC ACTUATORS - Adjustable Upper Hinge. Completely waterproof, submersible, and maintenance-free. Each 12-volt Actuator comes with 6Ft wire harnesses and waterproof connectors Mfg. PN# BEA3000.
ELECTRIC INTEGRATED HELM CONTROL - An attractive and user-friendly, stand-alone helm control without the need for an external control unit. Convenient All Up and All Down buttons. Auto tab retraction - tabs retract up when the ignition is powered off. Trim tab position LEDs always show you where your tabs are. Mfg. PN# OBI9000E.
ACTUATOR WIRE HARNESSES - 20-ft. wire harnesses with waterproof connectors included. Mfg# BAW2020.
HIGH PERFORMANCE - Balance loads, plane faster, and increase efficiency and performance with Bennett BOLT Electric Trim Tab systems. Lifetime warranty for electric actuators. The water-tight design provides trouble-free operation for years. Solid construction is built to last.

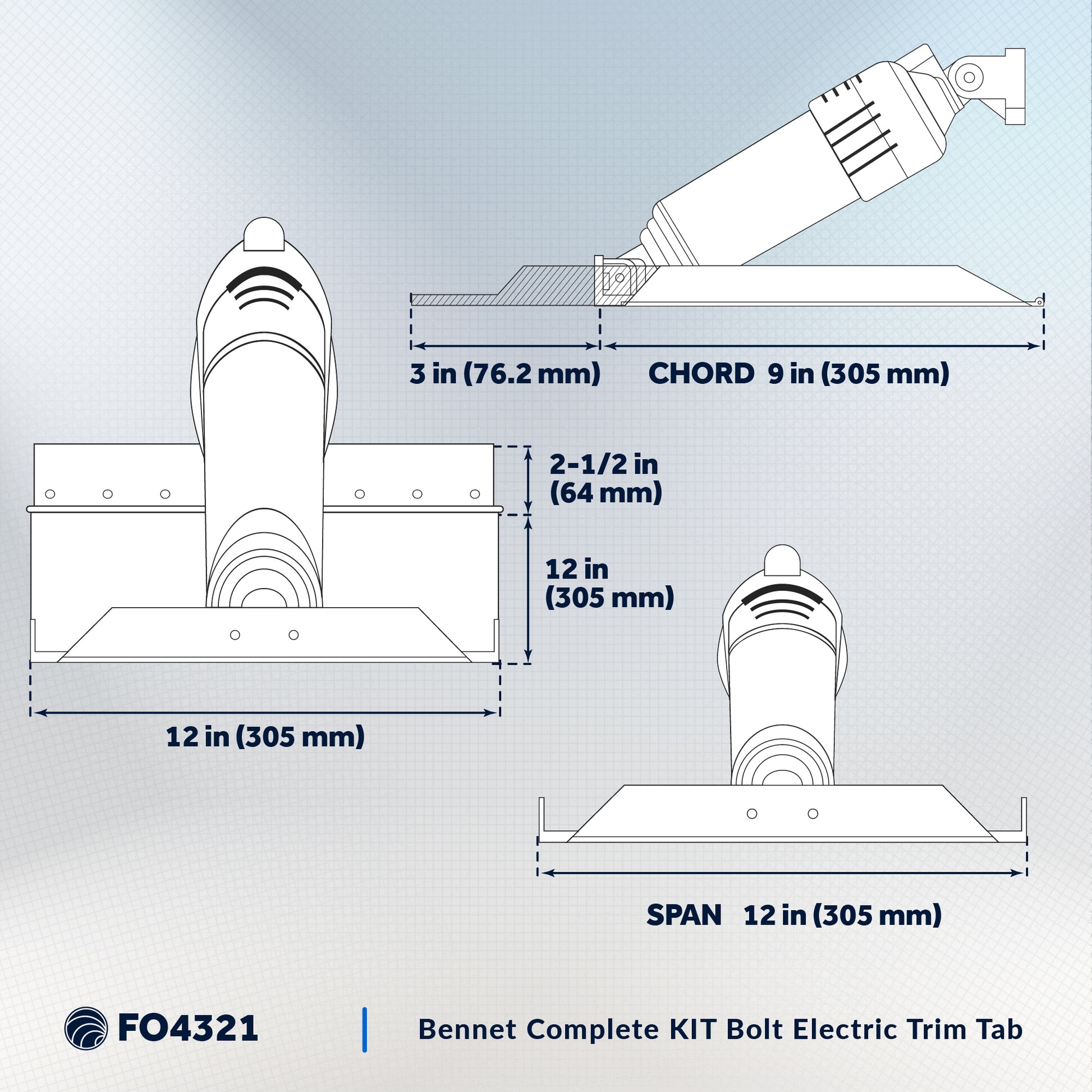

Dimensions: 12x12 inches
Voltage: 12 Volts
Trim Tab Actuator: Electric System
Actuator Chord: 6FT
Voltage: 12 Volts
Working forces: Actuation force: 750 lb. | Return Force: 750 lb.
Current draw: 250 lb: 10 Amps | 750 lb: 30 Amps
Type: Trim Tab Kits

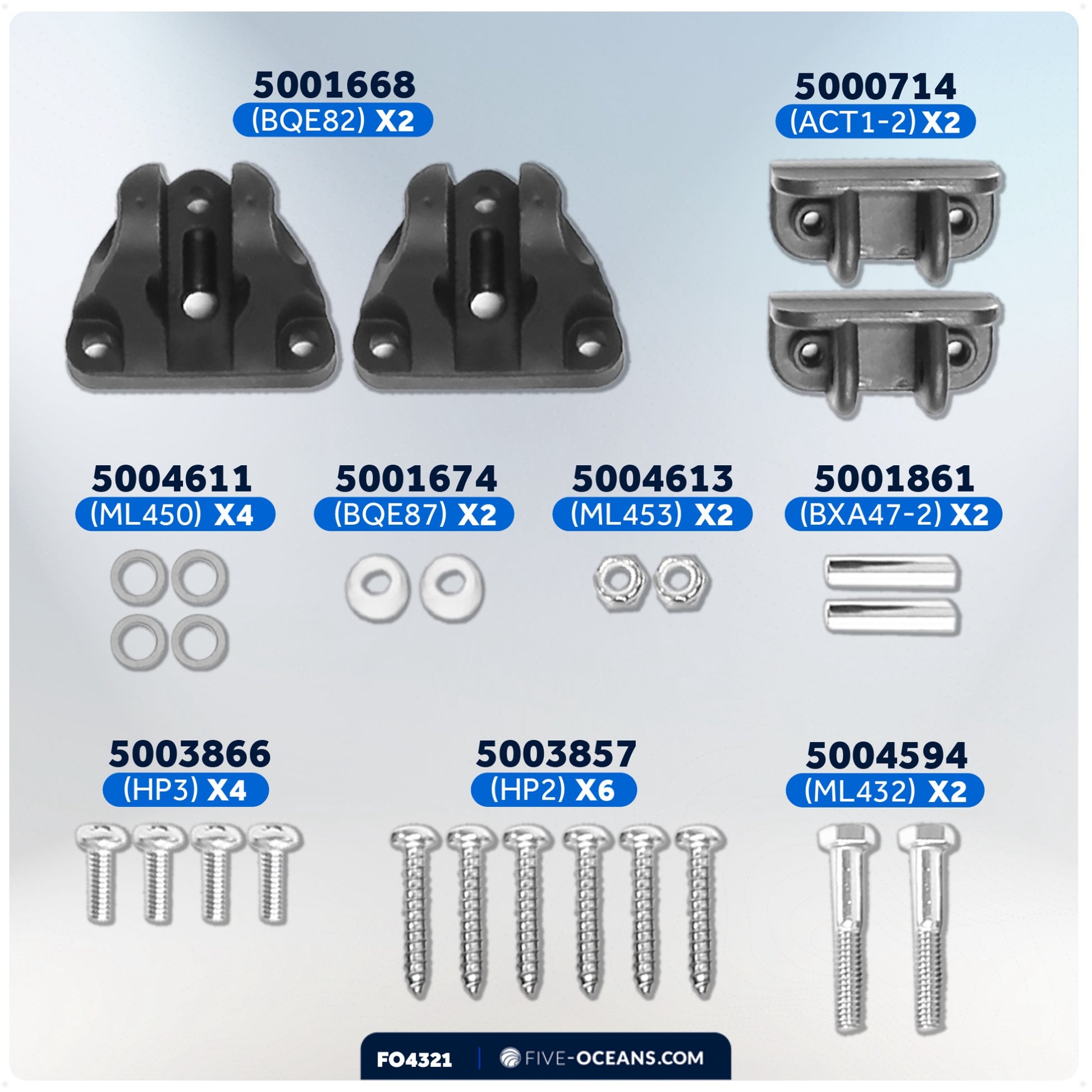

Mounting Hardware: Mounting Hardware (Included)
Warranty Details: Limited Lifetime Warranty provided by the manufacturer
PRODUCT NUMBER: FO-4321
One (1) Year Warranty
We take enjoyment in the products we make and guarantee the buyer that all Five Oceans products are ready to handle the extreme conditions of the open sea or terrain. However, we also know things can happen that's why we've got you covered for a year.
Click Here to read the warranty document
Install this kit on a 2013 Carolina Skiff 238 DLV with 150HP Mercury 4 stroke. It was easy and only took a couple of hours, I took my time to make sure I did everything right! Made a huge difference in how quickly I get the boat on a plane and will stay on a plane at a lot slower speed! Also made for a lot smoother ride.
