Bennett Marine Electric Trim Tab System 24" x 12", Complete Kit BOLT2412, 12V DC

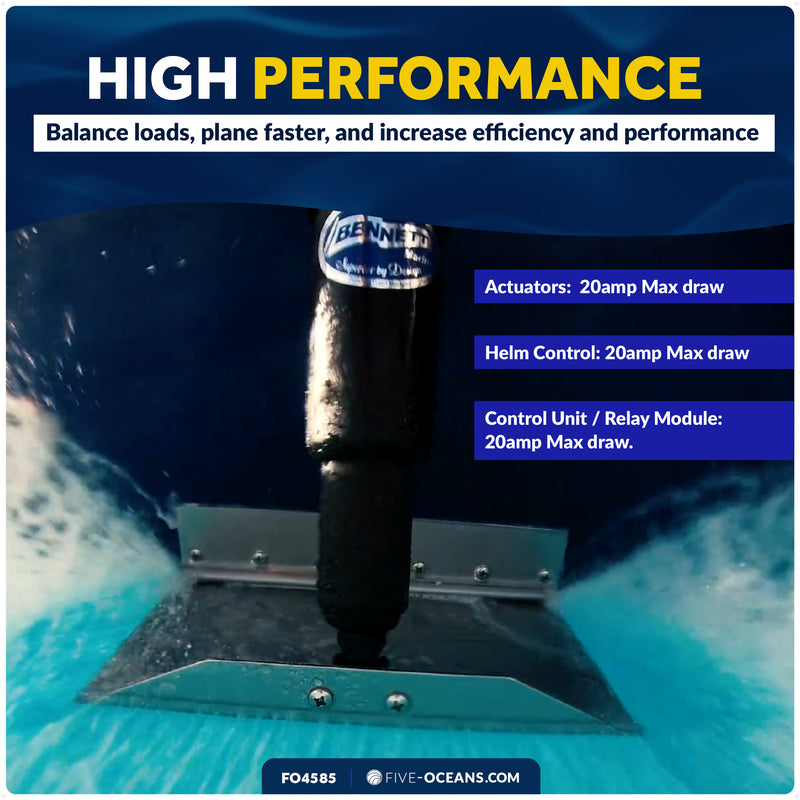

HIGH PERFORMANCE TRIM CONTROL - Eliminates boat porpoising, improves stability at high speed, and helps your boat plane faster with better control and smoother ride in rough water conditions.

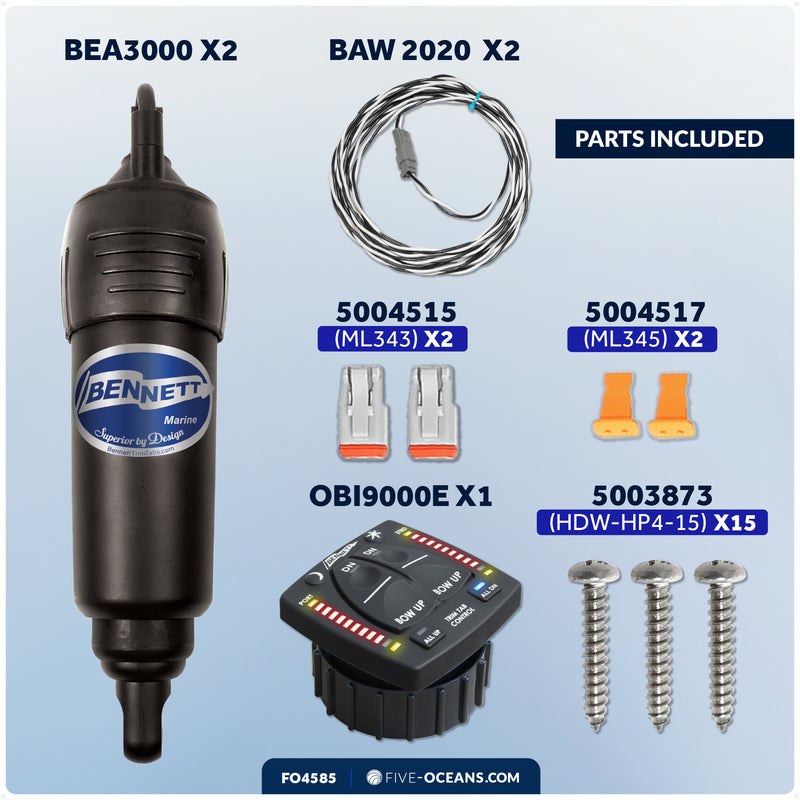

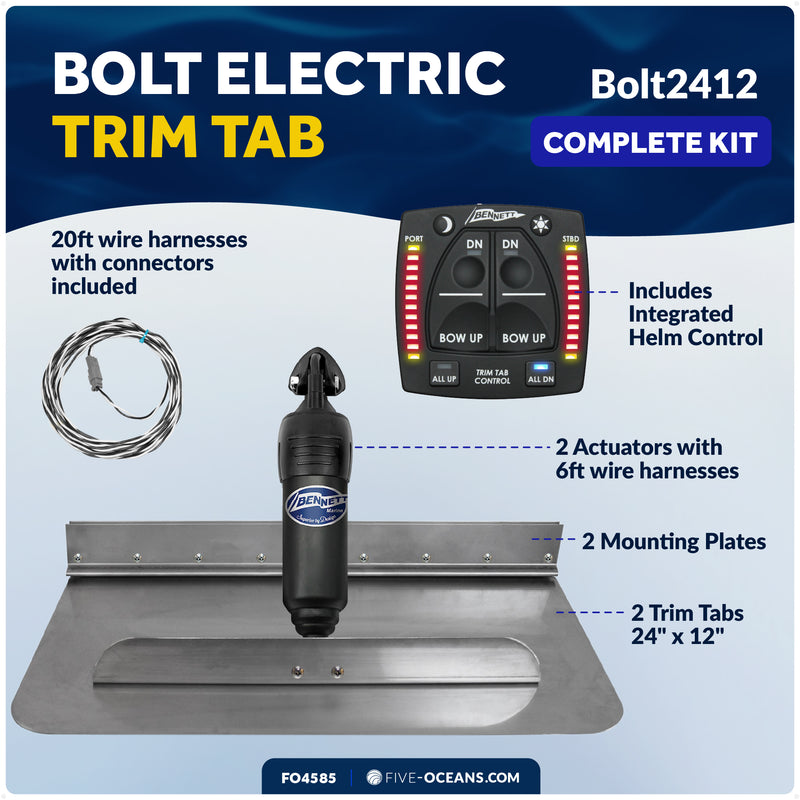

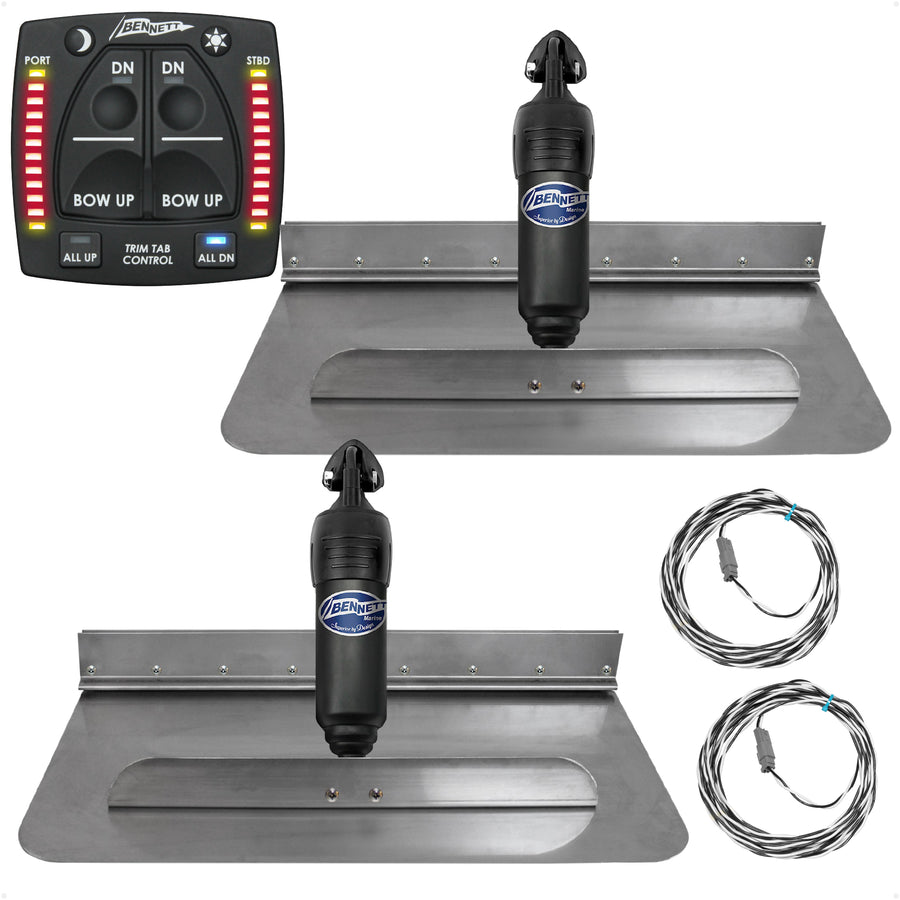

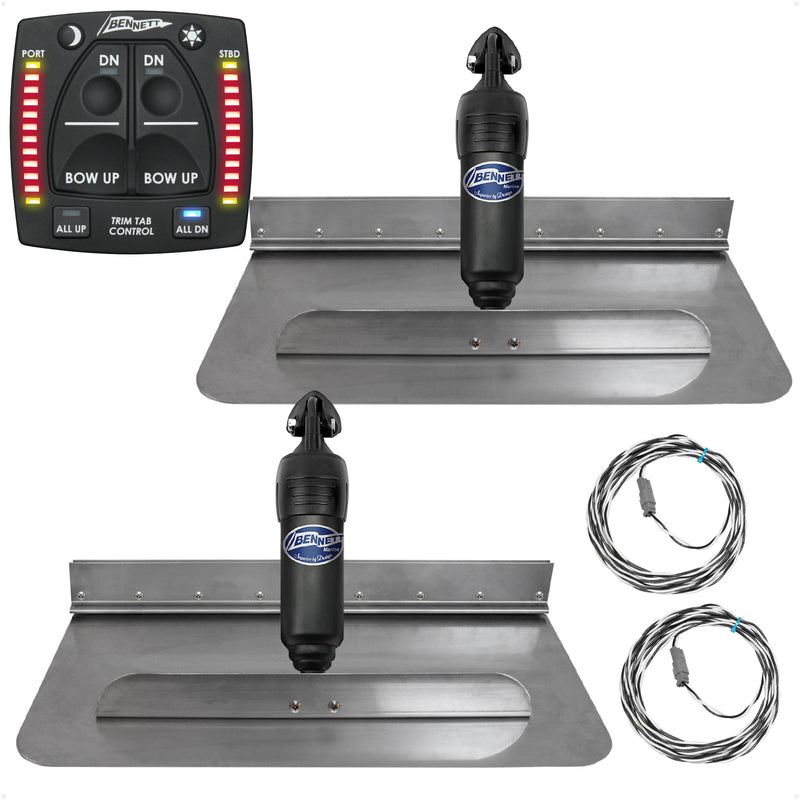

BOLT ELECTRIC TRIM TAB SYSTEM BOLT2412 - Trim tabs for boats include a Bolt Rocker Switch Control, 2 Actuators with 6Ft wire harnesses and waterproof connectors, and 2 Stainless steel Trim Tabs and mounting plates 24"x12".

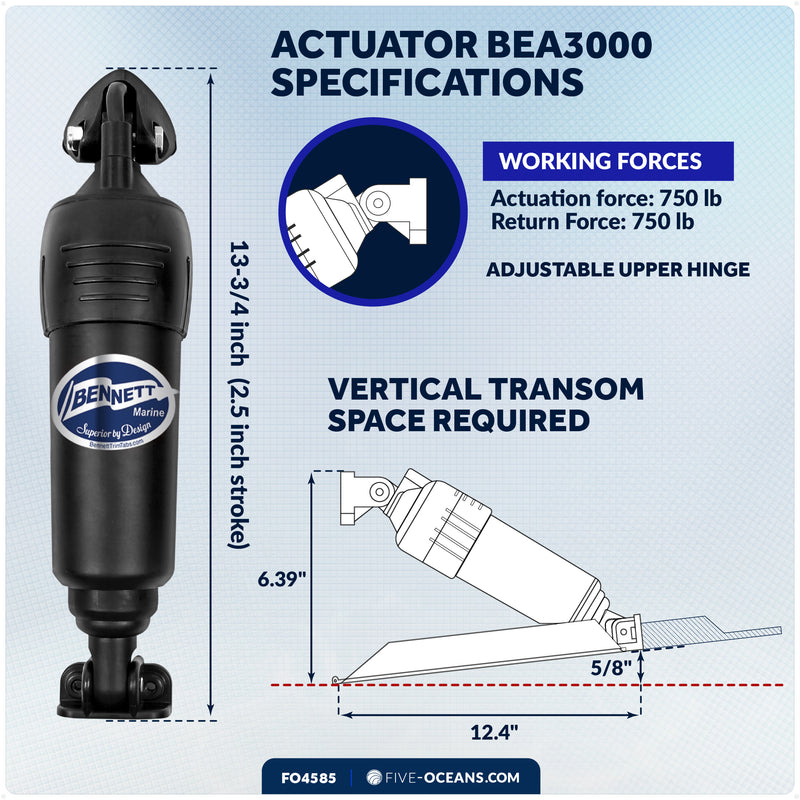

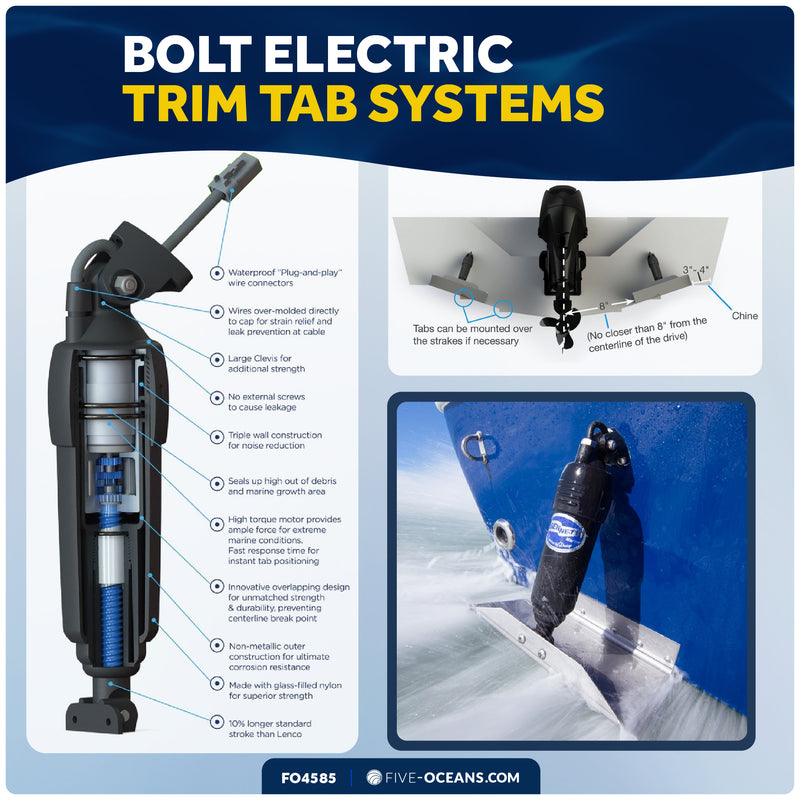

BOLT ELECTRIC ACTUATORS - Adjustable Upper Hinge. Completely waterproof, submersible, and maintenance-free. Each 12-volt Actuator comes with 6Ft wire harnesses and waterproof connectors Mfg. PN# BEA3000 Stroke: 2.5". Length: 13.25" - Vertical transom space required: 6.39".

ELECTRIC INTEGRATED HELM CONTROL - An attractive and user-friendly, stand-alone helm control without the need for an external control unit. Convenient All Up and All Down buttons. Auto tab retraction - tabs retract up when the ignition is powered off. Trim tab position LEDs always show you where your tabs are. Mfg. PN# OBI9000E.

ACTUATOR WIRE HARNESSES - 20-ft. wire harnesses with waterproof connectors included. Mfg# BAW2020

SPECIFICATIONS:

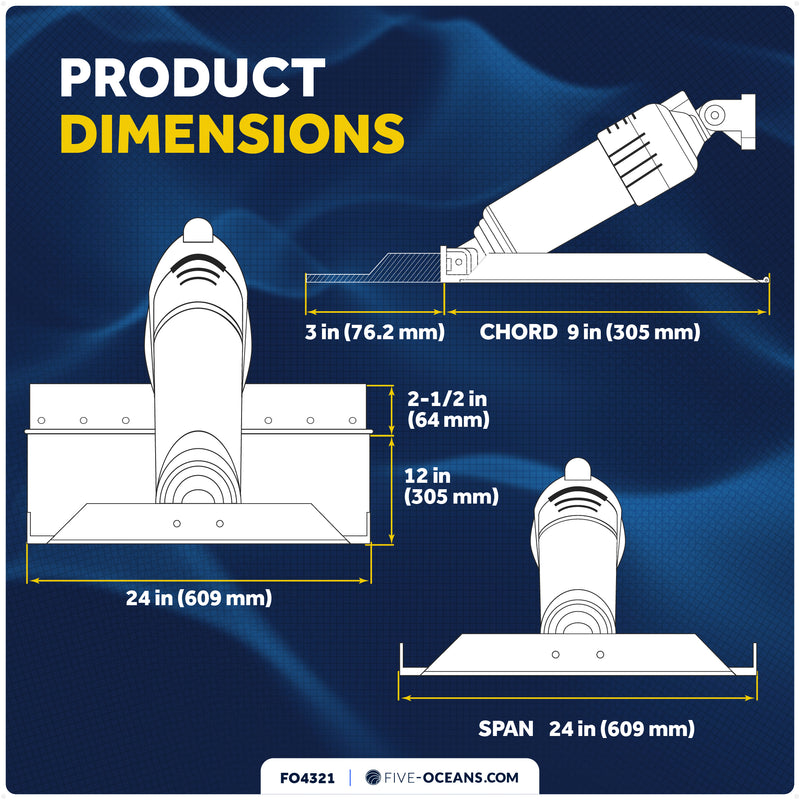

Dimensions: 24 x 12 inches
Voltage: 12 Volts
Trim Tab Actuator: Electric System
Actuator Stroke: 2.5"
Actuator Length: 13.25"
Vertical transom space required: Adjustable upper hinge (BEA3000): 6.39"
Actuator Chord: 6FT
Voltage: 12 Volts
Working forces: Actuation force: 750 lb. | Return Force: 750 lb.
Current draw: 250 lb: 10 Amps | 750 lb: 30 Amps
Type: Trim Tab Kits

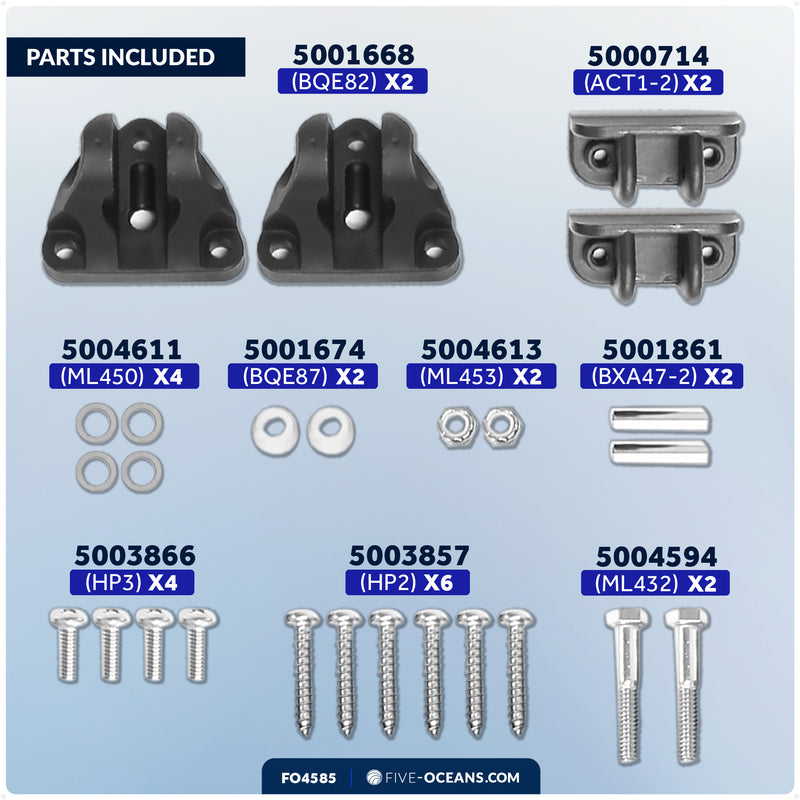

Mounting Hardware: Mounting Hardware (Included)
Warranty Details: Limited Lifetime Warranty provided by the manufacturer.

PRODUCT NUMBER: FO-4585
