Bennett Marine Electric Trim Tab System 12" x 9", Complete Kit BOLT129, 12V DC

HIGH PERFORMANCE TRIM CONTROL - Eliminates boat porpoising, improves stability at high speed, and helps your boat plane faster with better control and smoother ride in rough water conditions.

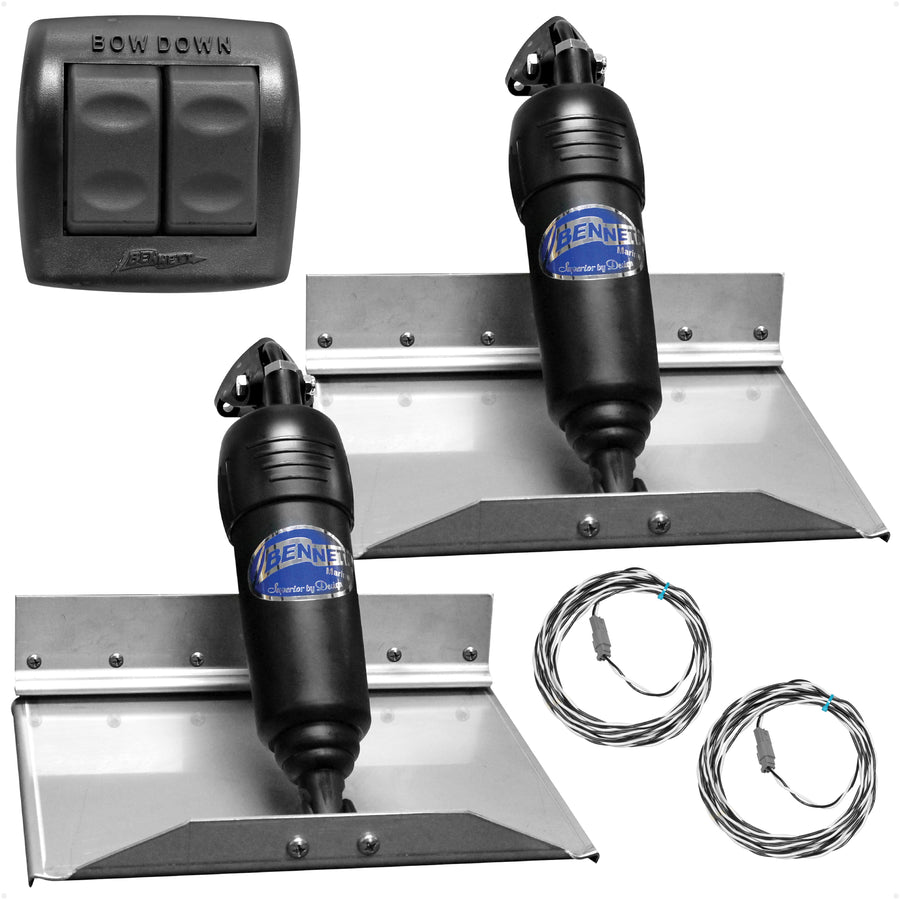

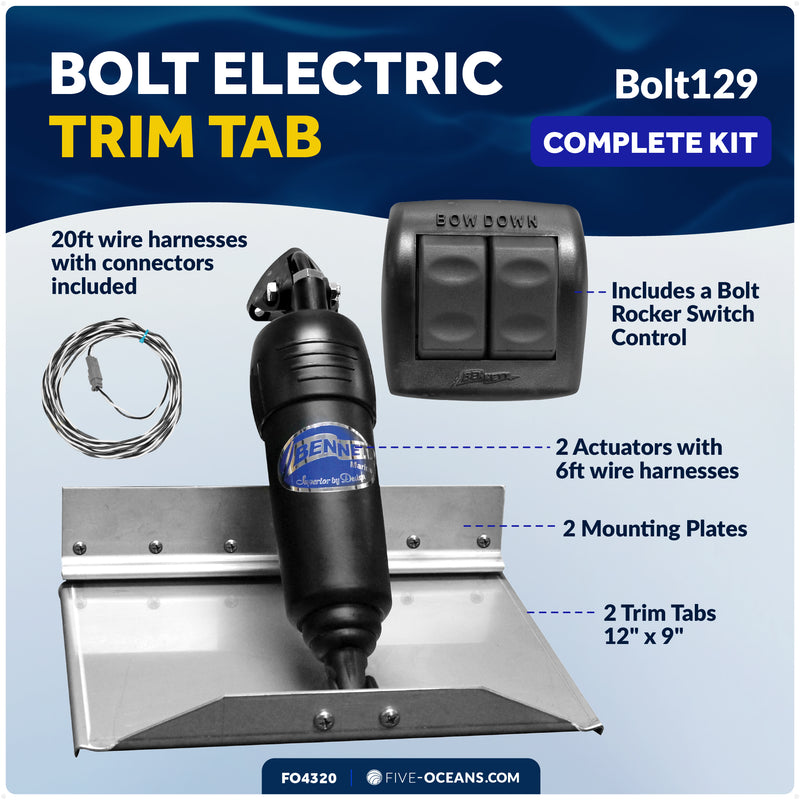

BOLT ELECTRIC TRIM TAB SYSTEM BOLT129 - Trim tabs for boats include a Bolt Rocker Switch Control, 2 Actuators with 6Ft wire harnesses and waterproof connectors, and 2 Stainless steel Trim Tabs and mounting plates 12"x 9".

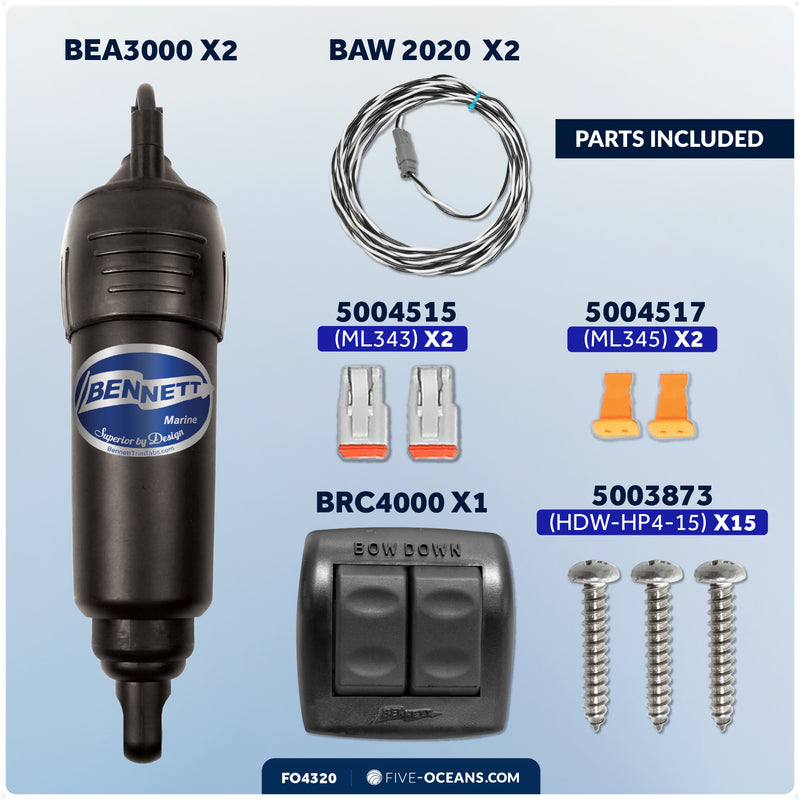

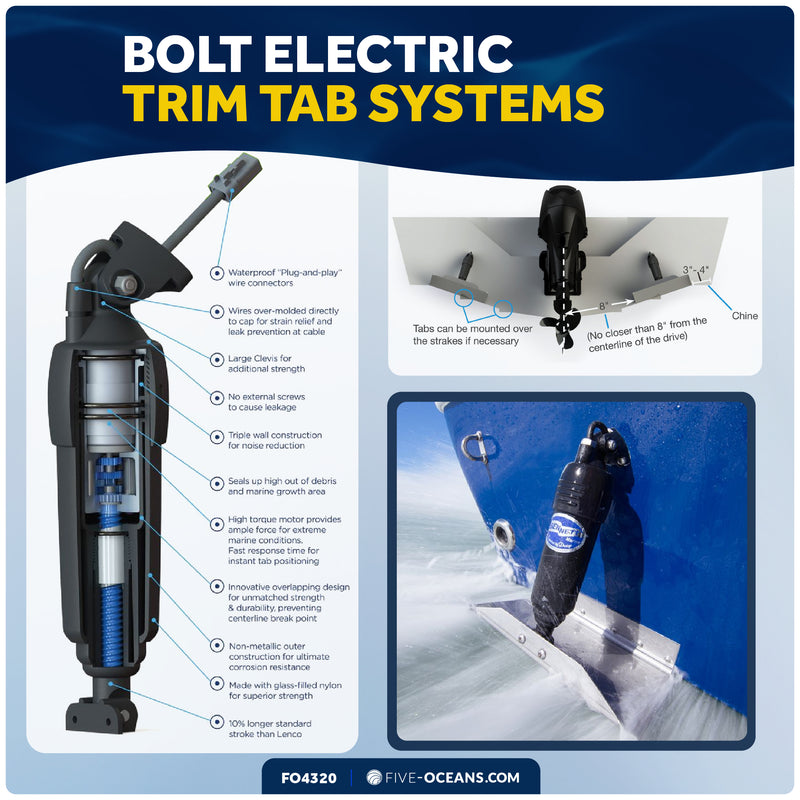

BOLT ELECTRIC ACTUATORS - Adjustable Upper Hinge. Completely waterproof, submersible, and maintenance-free. Each 12-volt Actuator comes with 6Ft wire harnesses and waterproof connectors Mfg. PN# BEA3000 - Vertical transom space required: 6.39".

BOLT ELECTRIC ROCKER SWITCH CONTROL - For Electric System Only. Attractive, ergonomic design. Positive click action for precise trim tab adjustment Mfg. PN# BRC4000.

ACTUATOR WIRE HARNESSES - 20-ft. wire harnesses with waterproof connectors included. Mfg# BAW2020.



SPECIFICATIONS:

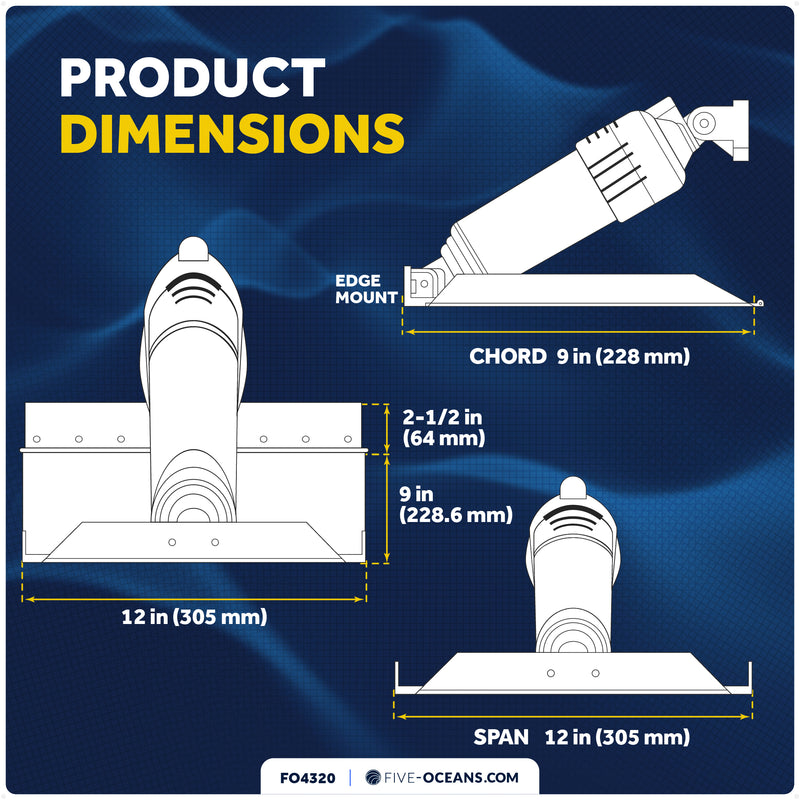

Dimensions: 12 Length x 9 Width inches
Voltage: 12 Volts
Trim Tab Actuator: Electric System
Actuator Stroke: 2.5"
Actuator Length: 13.25"

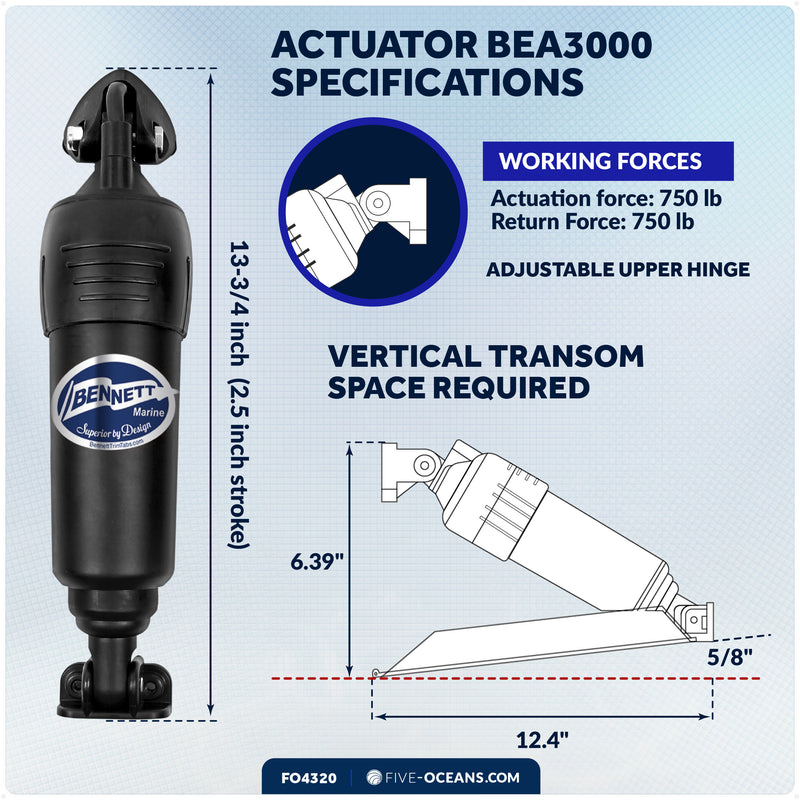

Vertical transom space required: Adjustable upper hinge (BEA3000): 6.39"
Actuator Chord: 6FT
Trim Tab Control Type: Various available
Working forces: Actuation force: 750Lb. | Return Force: 750Lb.
(This is max capacity; typically operates at 250 lbs)

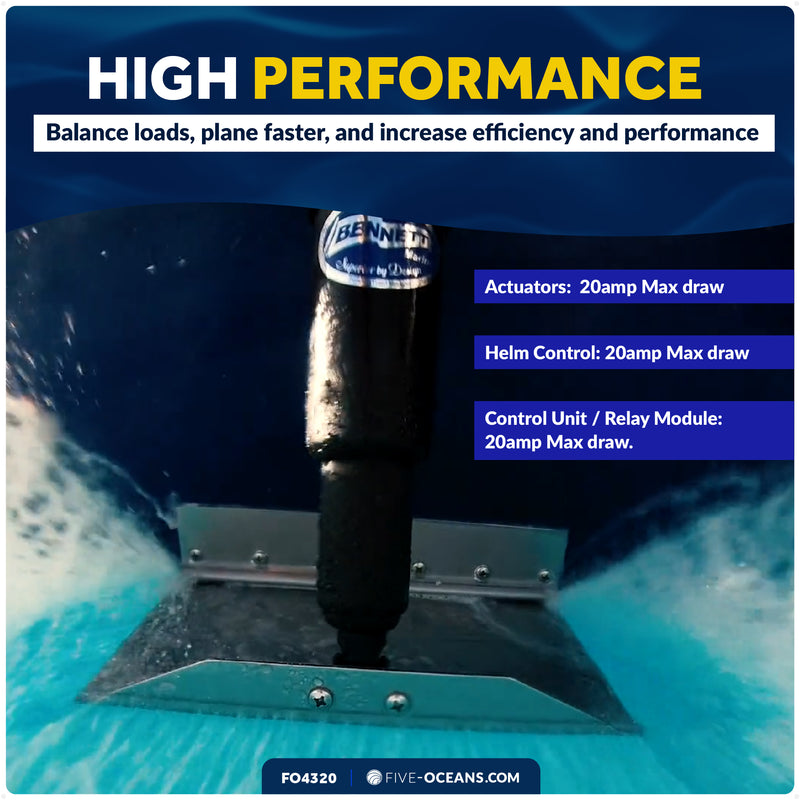

Current draw: 10 - 30 Amp - 30 Amp max - will usually never get to this point
Type: Trim Tab Kits (Edge Mount)

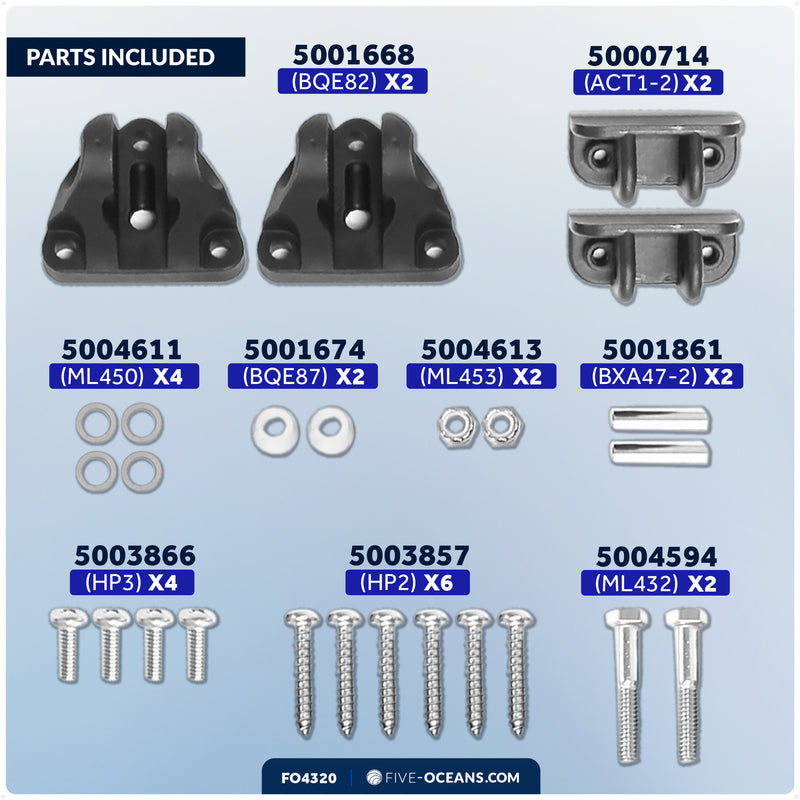

Mounting Hardware: Mounting Hardware (Included)
Warranty Details: Limited Lifetime Warranty provided by the manufacturer

PRODUCT NUMBER: FO-4320
