Bennett Marine 12" x 12" Bolt Electric Trim Tab Systems with Indicator Helm Control, Complete Kit BOLT1212, 12V DC

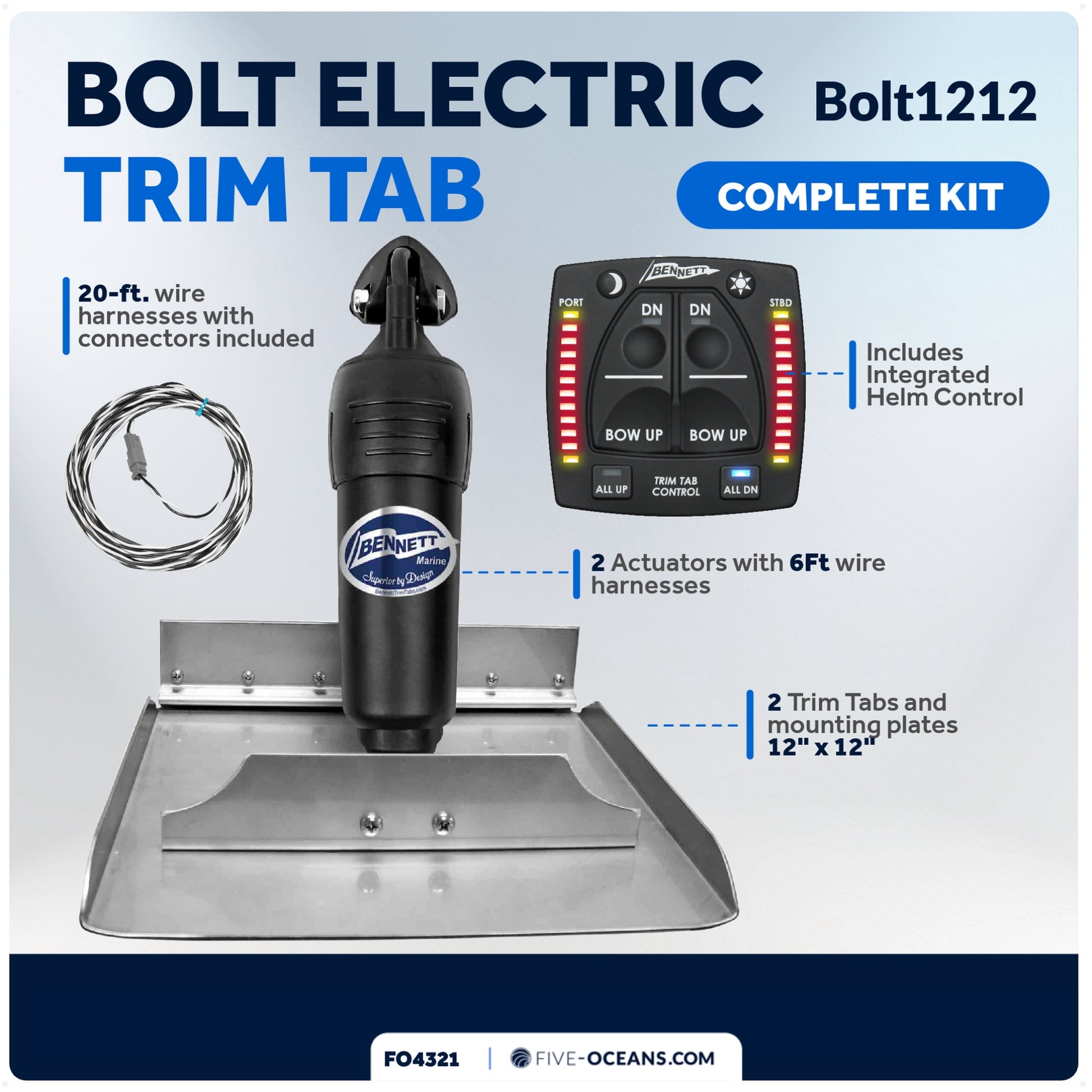

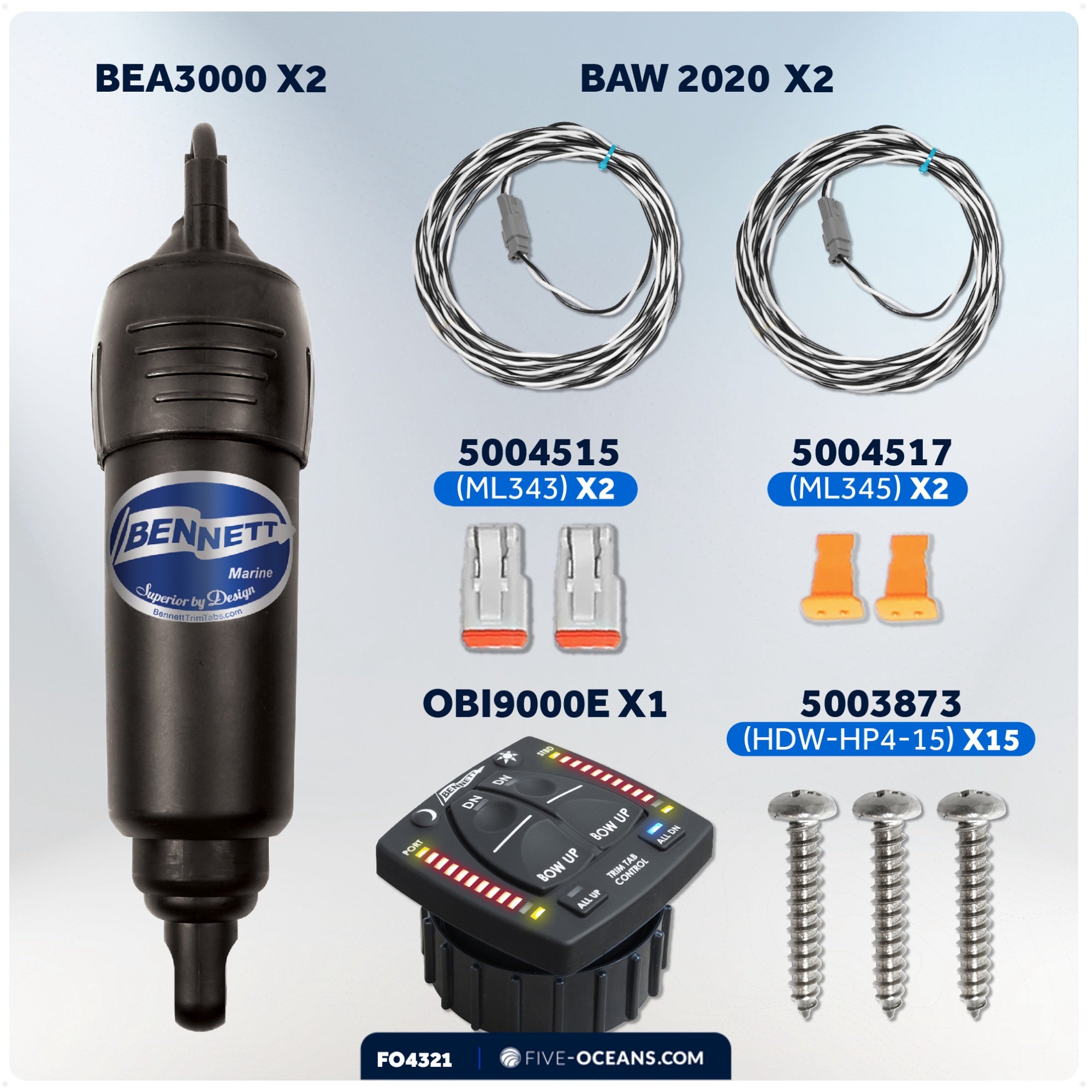

BOLT ELECTRIC TRIM TAB SYSTEM BOLT1212 - Trim tabs for boats include a Bolt rocker switch control, two actuators with 6 ft wire harnesses and waterproof connectors, and two stainless steel trim tabs with mounting plates 12" x 12".

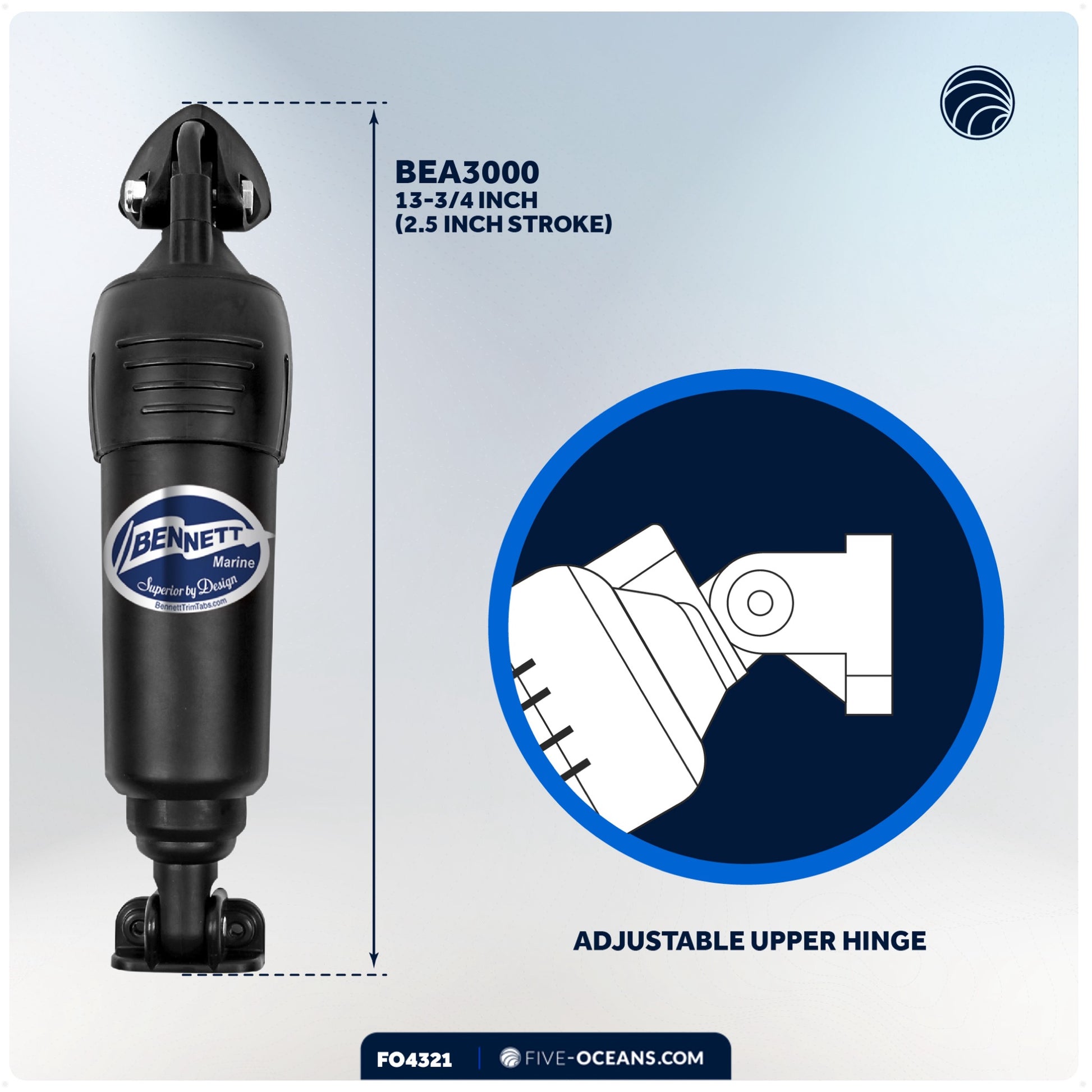

ELECTRIC ACTUATORS - Adjustable upper hinge. Completely waterproof, submersible, and maintenance-free. Each 12-volt actuator comes with 6 ft wire harnesses and waterproof connectors. Mfg. PN# BEA3000 - Actuator stroke: 2.5" | Tip-to-tip length: 13.75". The system is designed for typical transom angles between 10-15 degrees, with compatibility extending to outliers up to 17 degrees. At a 17-degree transom angle, the required vertical installation space needed is 13.7".

ELECTRIC INTEGRATED HELM CONTROL - An attractive and user-friendly, stand-alone helm control without the need for an external control unit. Convenient All Up and All Down buttons. Auto tab retraction - tabs retract up when the ignition is powered off. Trim tab position LEDs always show you where your tabs are. Mfg. PN# OBI9000E.

ACTUATOR WIRE HARNESSES - Two 20 ft wire harnesses with waterproof connectors included. Mfg. PN# BAW2020.

HIGH PERFORMANCE TRIM CONTROL - Eliminates boat porpoising, improves stability at high speed, and helps the boat plane faster with better control and a smoother ride in rough water conditions.

SPECIFICATIONS:

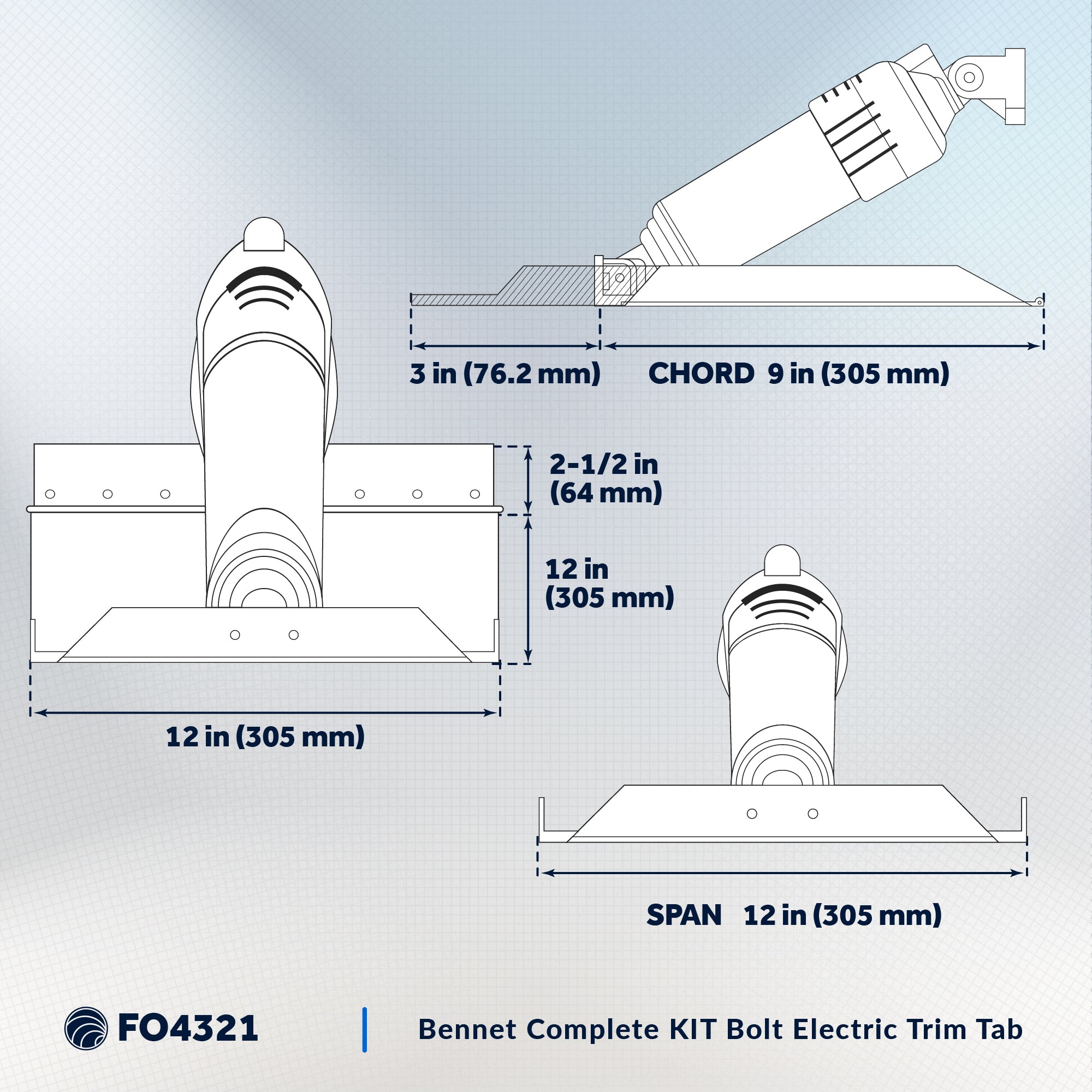

Trim Tab Size: 12" x 12"
Voltage: 12 Volts
Trim Tab Actuator: Electric System
Actuator Stroke: 2.5"
Actuator Tip-to-tip length: 13.75"
Vertical transom Space Required: Adjustable Upper Hinge (BEA3000): The system is designed for typical transom angles between 10-15 degrees, with compatibility extending to outliers up to 17 degrees. At a 17-degree transom angle, the required vertical installation space needed is 13.7"
Actuator Chord: 6 Ft
Voltage: 12 Volts
Working forces: Actuation force: 750 lb. | Return Force: 750 lb. (This is max capacity; typically operates at 250 lbs)
Current draw: 250 lb: 10 Amps | 750 lb: 30 Amps
Type: Trim Tab Kits

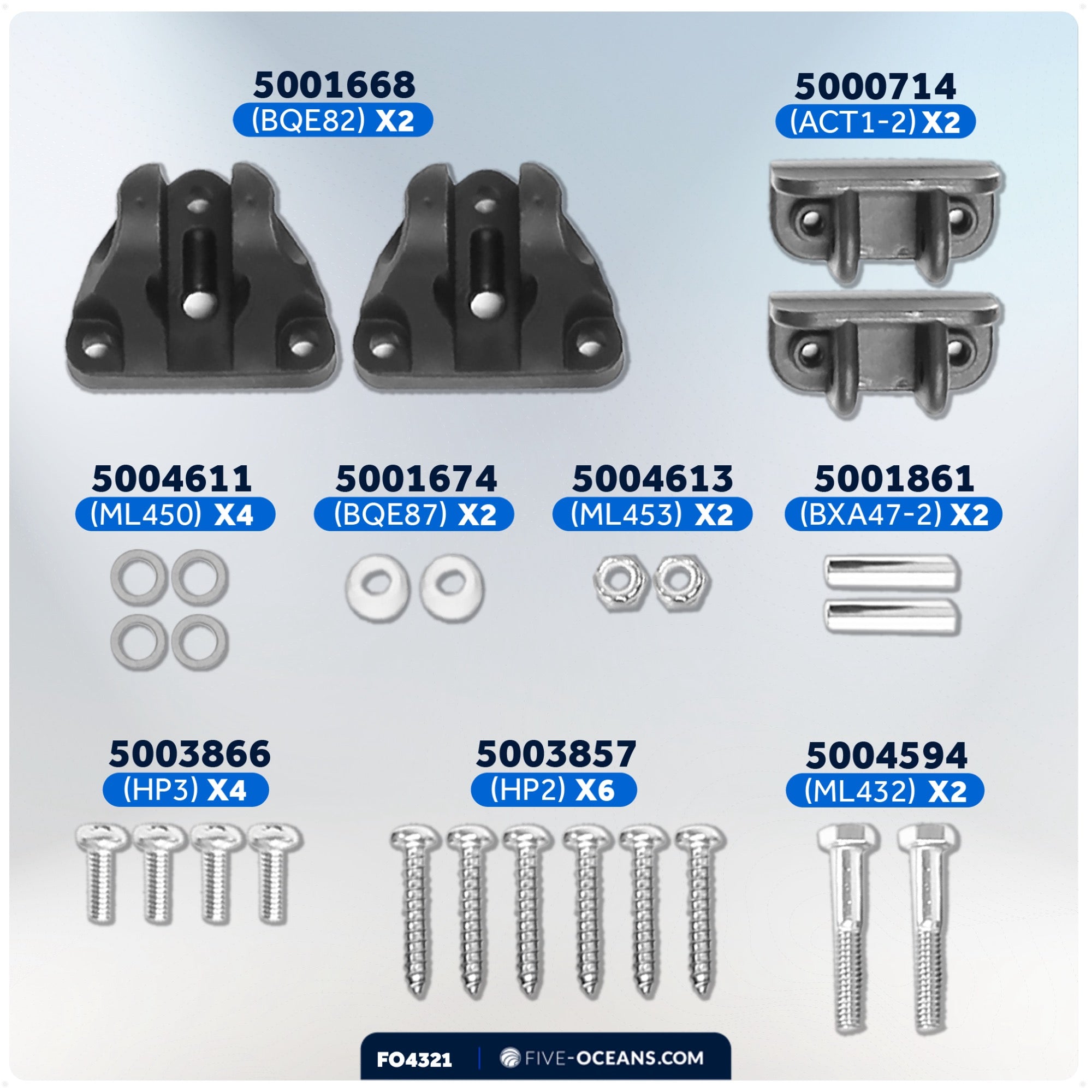

Mounting Hardware: Mounting Hardware (Included)
Warranty Details: Limited Lifetime Warranty provided by the manufacturer

PRODUCT NUMBER: FO4321
