Atlantic Windlass Kit, Horizontal 900 Watts, 12V DC, 9/16" x150' 3-Strand Rope, 5/16" x 20' Stainless Steel HT G4 Chain, Swivel and Shackle - FO3442-C2
Atlantic Windlass Kit, Horizontal 900 Watts, 12V DC, 9/16" x150' 3-Strand Rope, 5/16" x 20' Stainless Steel HT G4 Chain, Swivel and Shackle - FO3442-C2
Regular price
$1,500.60
Sale price
$1,500.60
Regular price

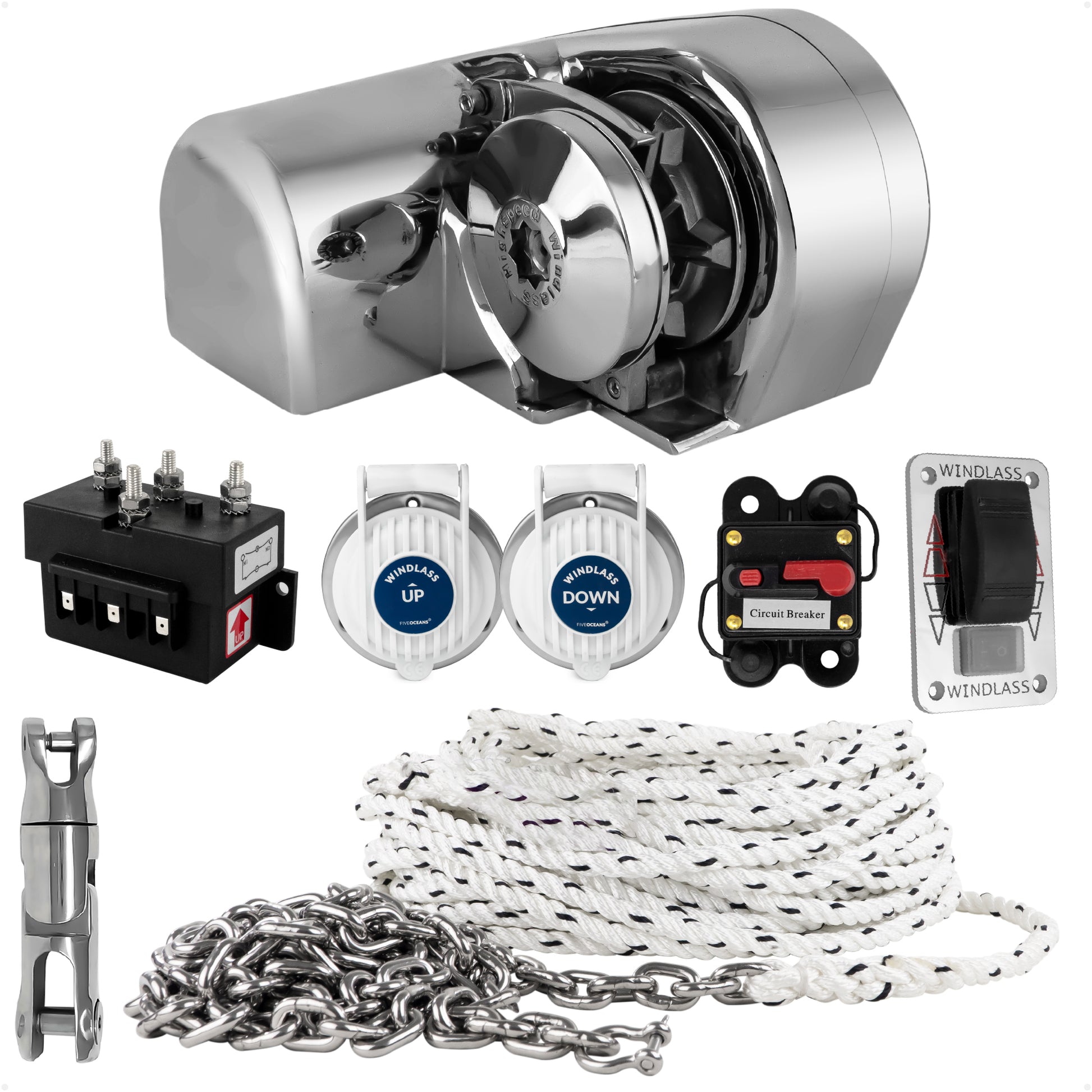

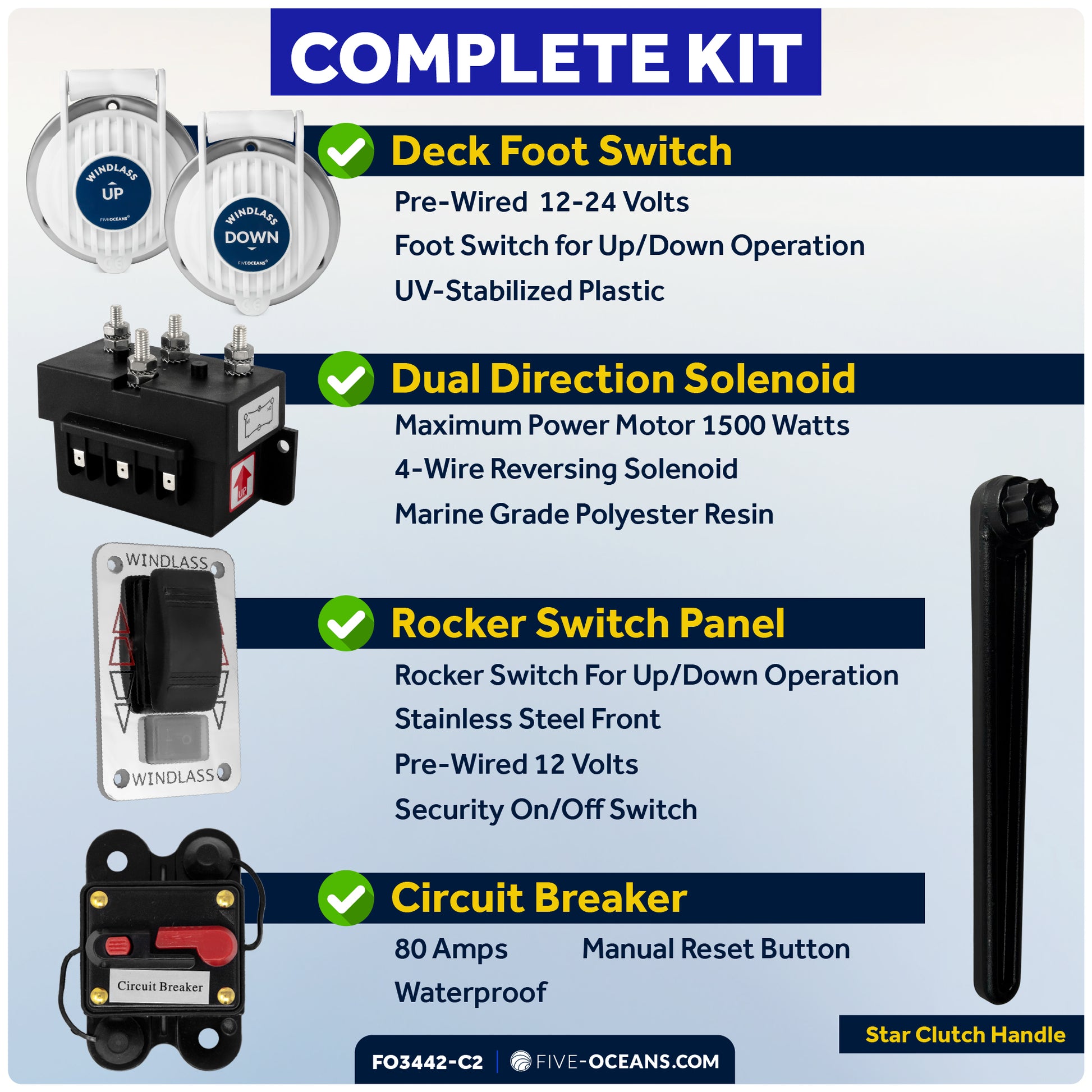

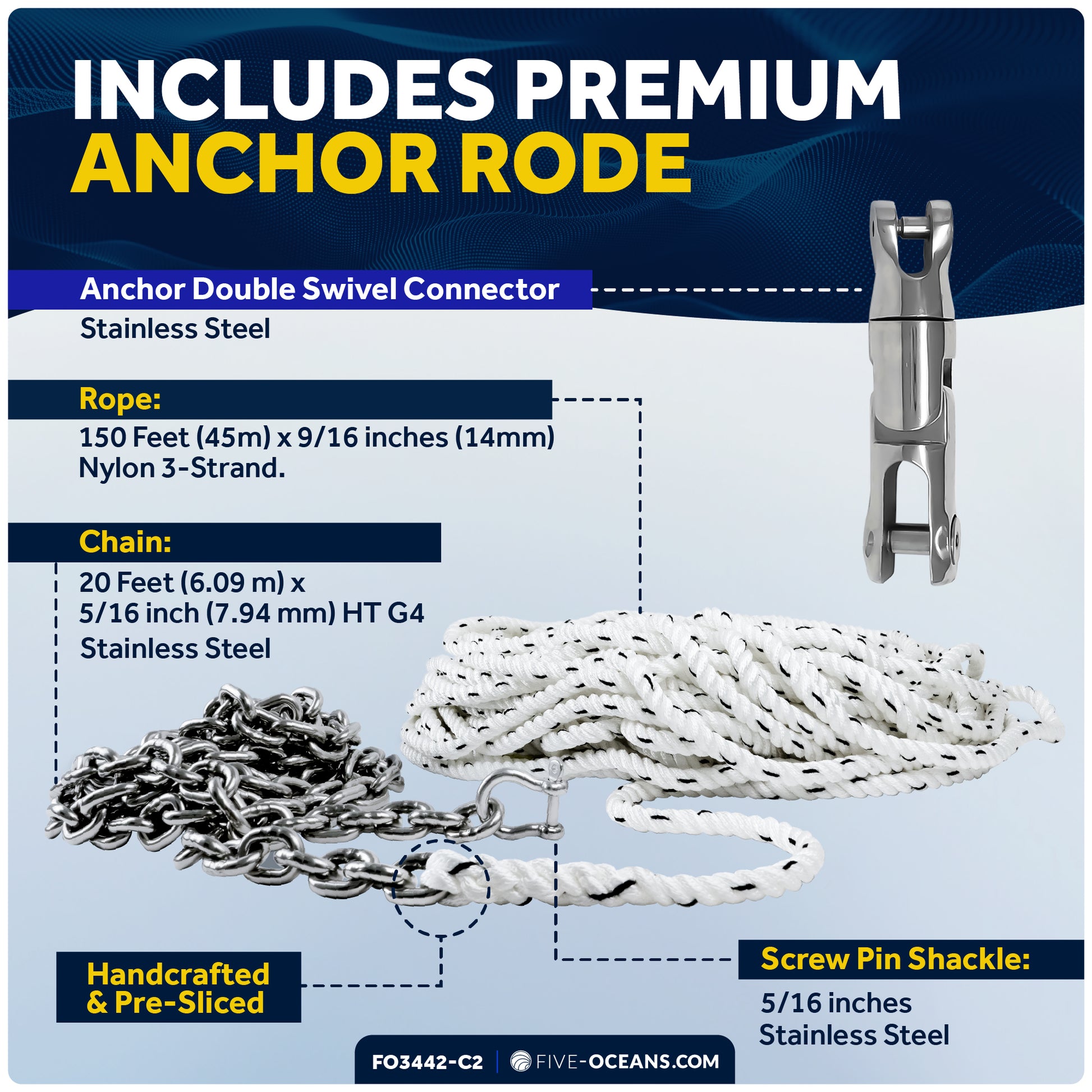

COMPLETE ATLANTIC 900 SERIES WINDLASS ANCHOR KIT: Includes a 900W horizontal windlass (12V), 80A circuit breaker, 4-wire solenoid, up/down foot switch, rocker switch, 150 ft x 9/16" 3-strand nylon and 20 ft x 5/16" stainless steel HT G4 chain anchor rode, 5/16" stainless steel screw pin bow shackle, multi-directional anchor double swivel connector, manual top-cap handle, mounting hardware, and template for easy installation.

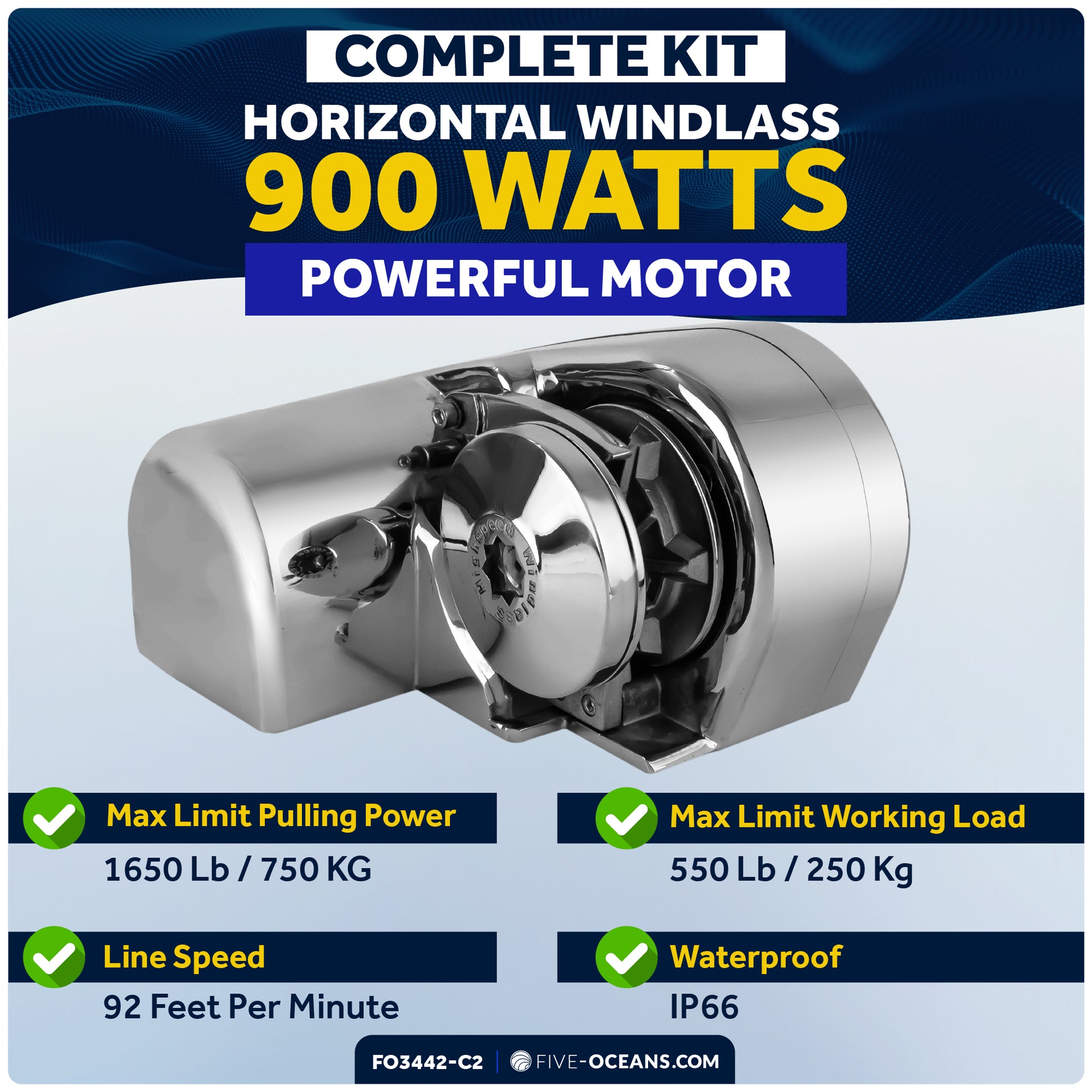

HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum limit pulling power of 1650 lb (750 kg) and a maximum limit working load of 550 lb (250 kg). Achieves a fast line speed of 92 ft/min. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.
SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 5/16" HT G4 chain and 9/16" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.

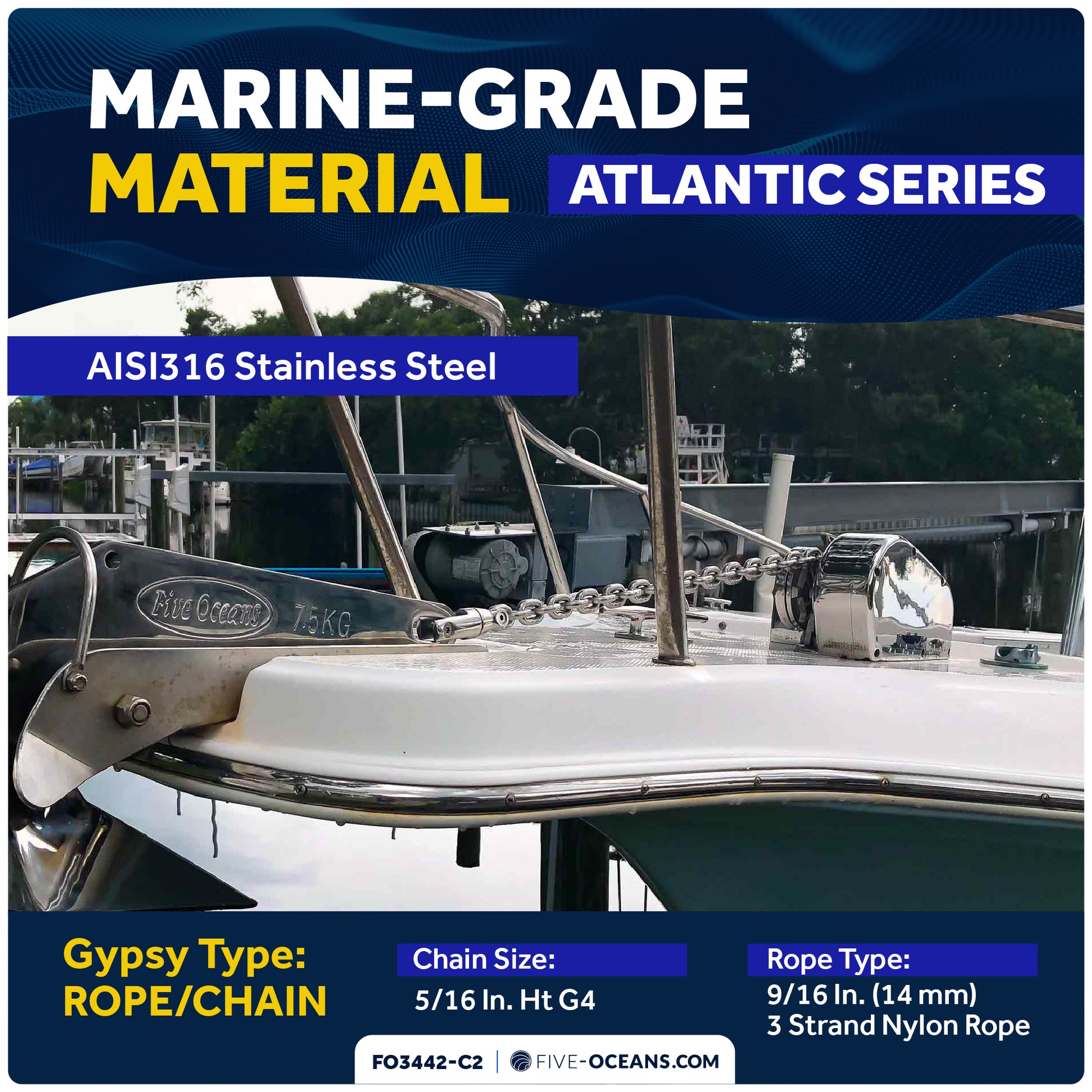

MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.
EASY ON-DECK HORIZONTAL INSTALLATION: Comes with 3 standard 5/16" (8mm) thread mounting studs, washers, and nuts for secure setup. Designed for boats up to 45 ft (14 m), offering optimal performance for various boat styles.
WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1650 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 176 Lb / 80 Kg
Line Speed: 92 Feet per Minute
Current Draw: 65 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand
PRODUCT NUMBER: FO3442-C2
HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum limit pulling power of 1650 lb (750 kg) and a maximum limit working load of 550 lb (250 kg). Achieves a fast line speed of 92 ft/min. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.
SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 5/16" HT G4 chain and 9/16" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.
MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.
EASY ON-DECK HORIZONTAL INSTALLATION: Comes with 3 standard 5/16" (8mm) thread mounting studs, washers, and nuts for secure setup. Designed for boats up to 45 ft (14 m), offering optimal performance for various boat styles.
WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1650 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 176 Lb / 80 Kg
Line Speed: 92 Feet per Minute
Current Draw: 65 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand
PRODUCT NUMBER: FO3442-C2
