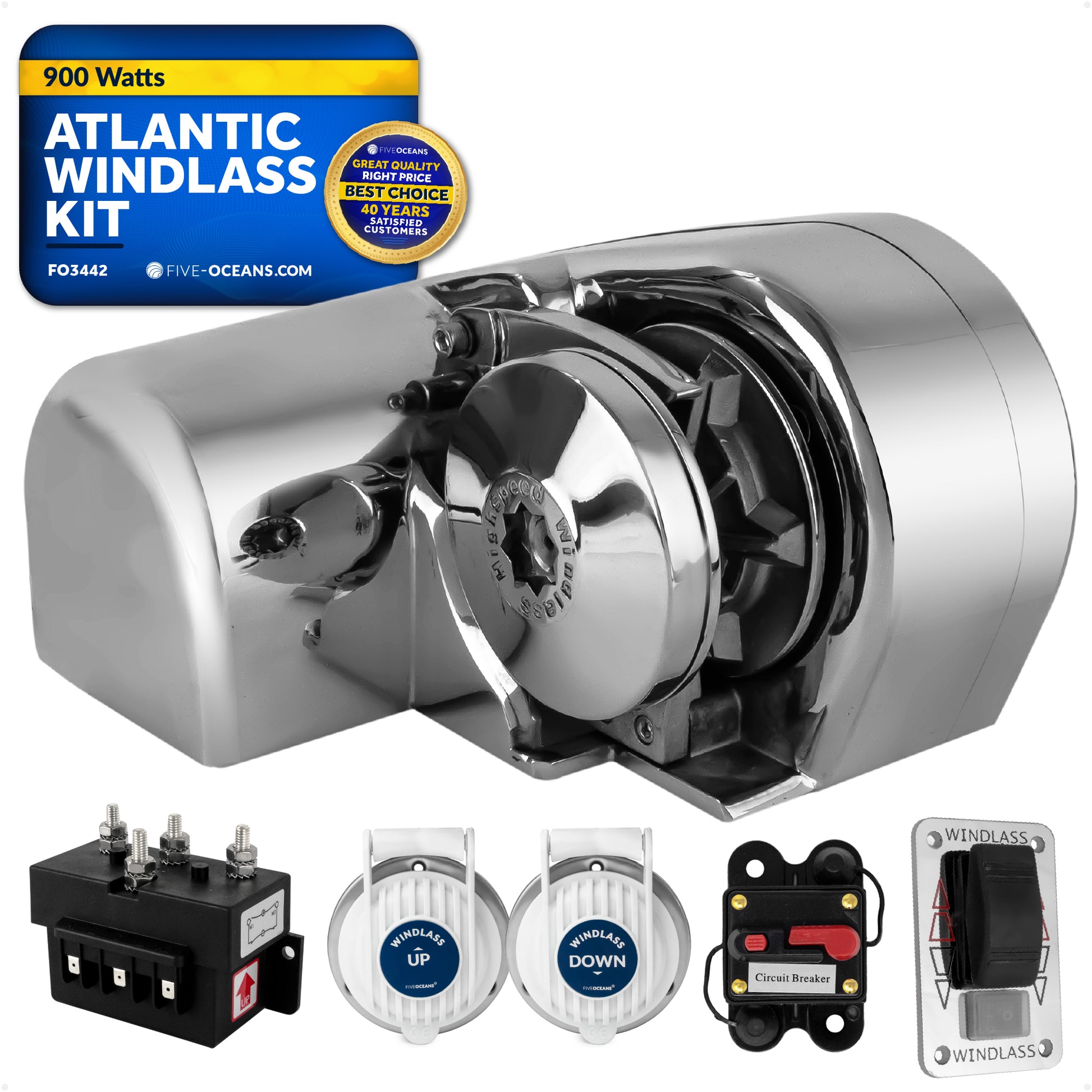

Atlantic Windlass Kit - 5/16" HTG4 Chain & 9/16" Rope, Horizontal 900W 12VDC - FO3442
Atlantic Windlass Kit - 5/16" HTG4 Chain & 9/16" Rope, Horizontal 900W 12VDC - FO3442

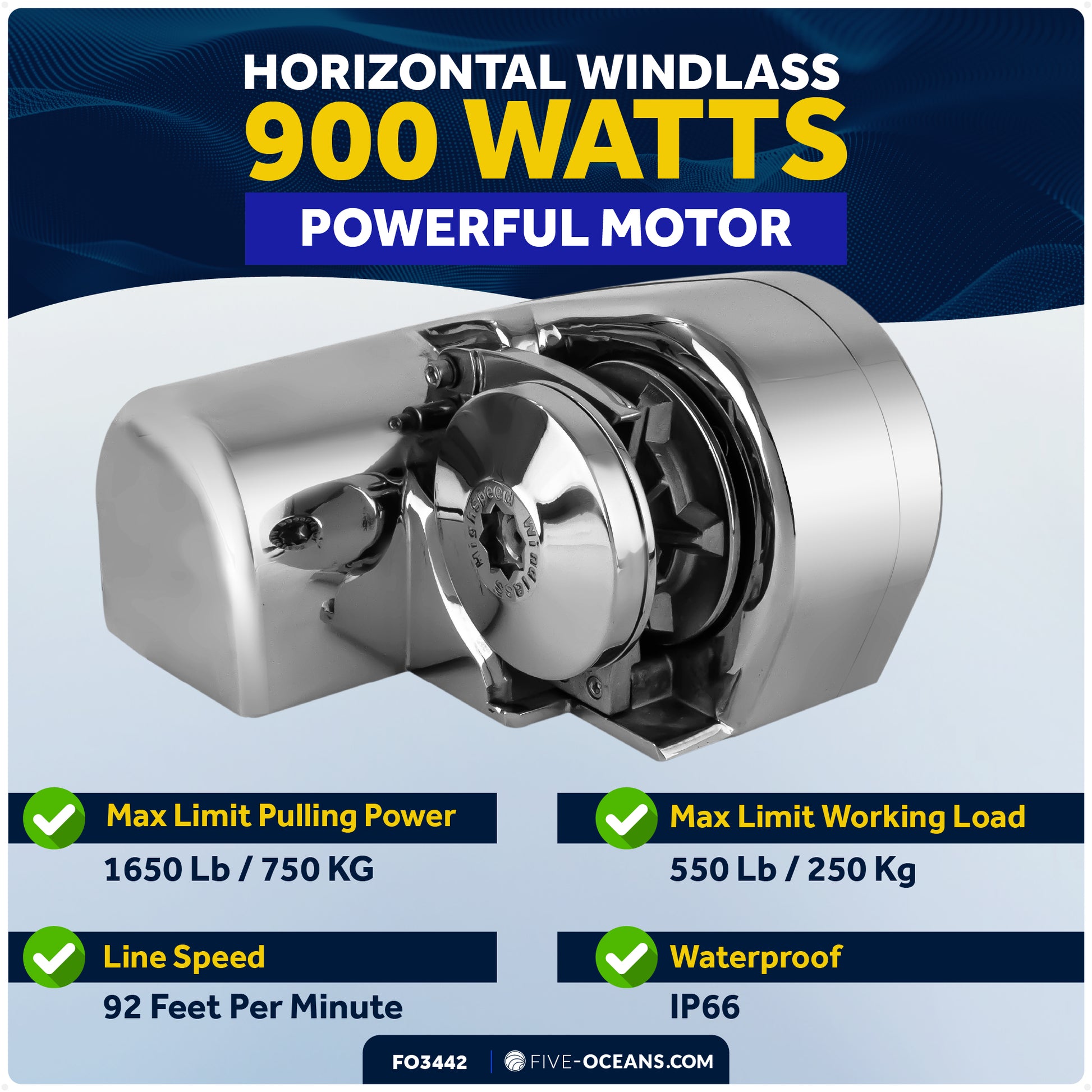

HIGH-PERFORMANCE WINDLASS MOTOR: The High-Power 900 Watts Motor provides a Maximum Limit Pulling Power of 1650 Lb / 750 Kg and a Maximum Limit Working Load of 550 Lb / 250 Kg. It allows a Line speed of 92 feet per minute. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.

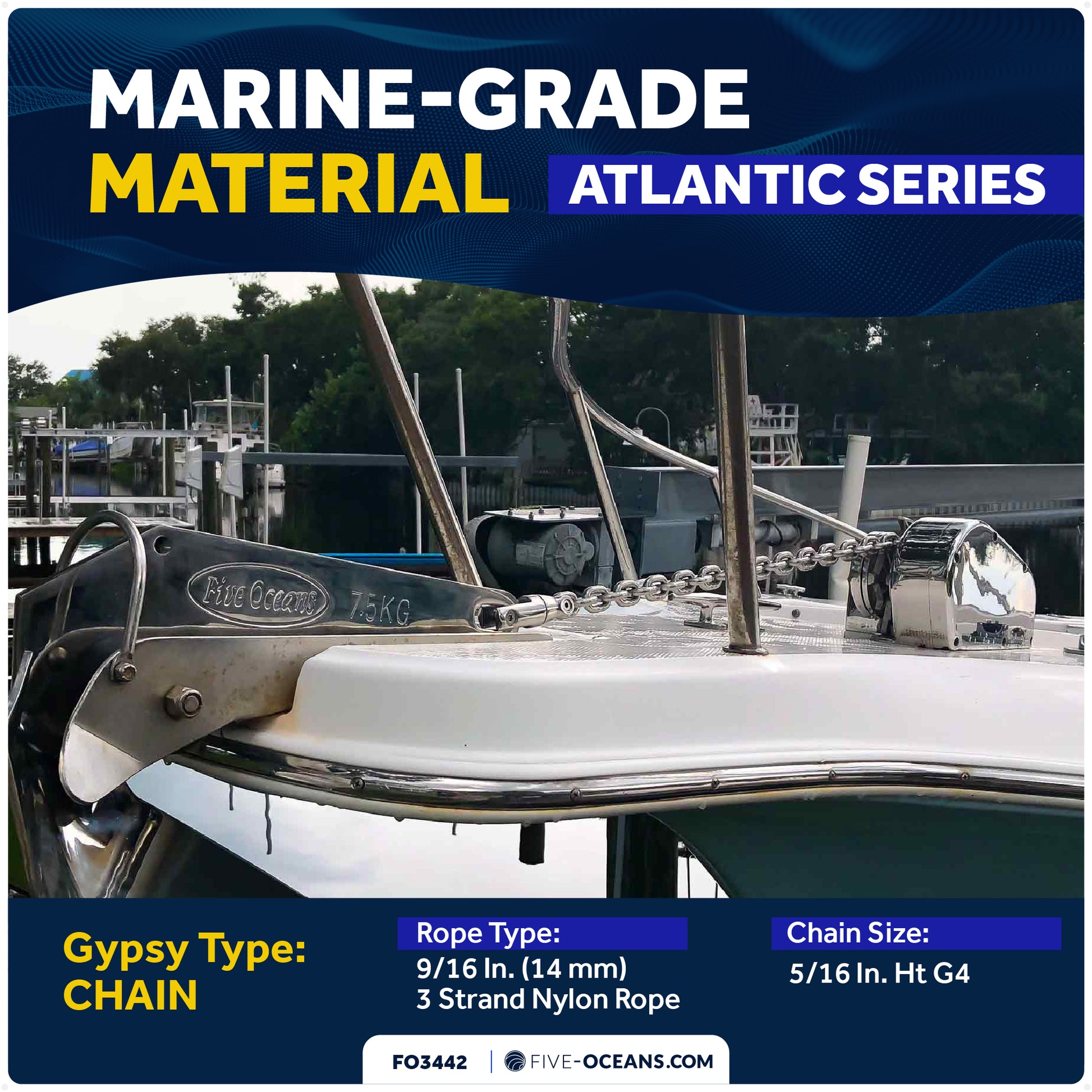

ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 5/16 Inch HT G4. Rope: 9/16 Inch (14mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.
MARINE-GRADE WINDLASS ANCHOR KIT: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they are able to withstand the high-load strain.

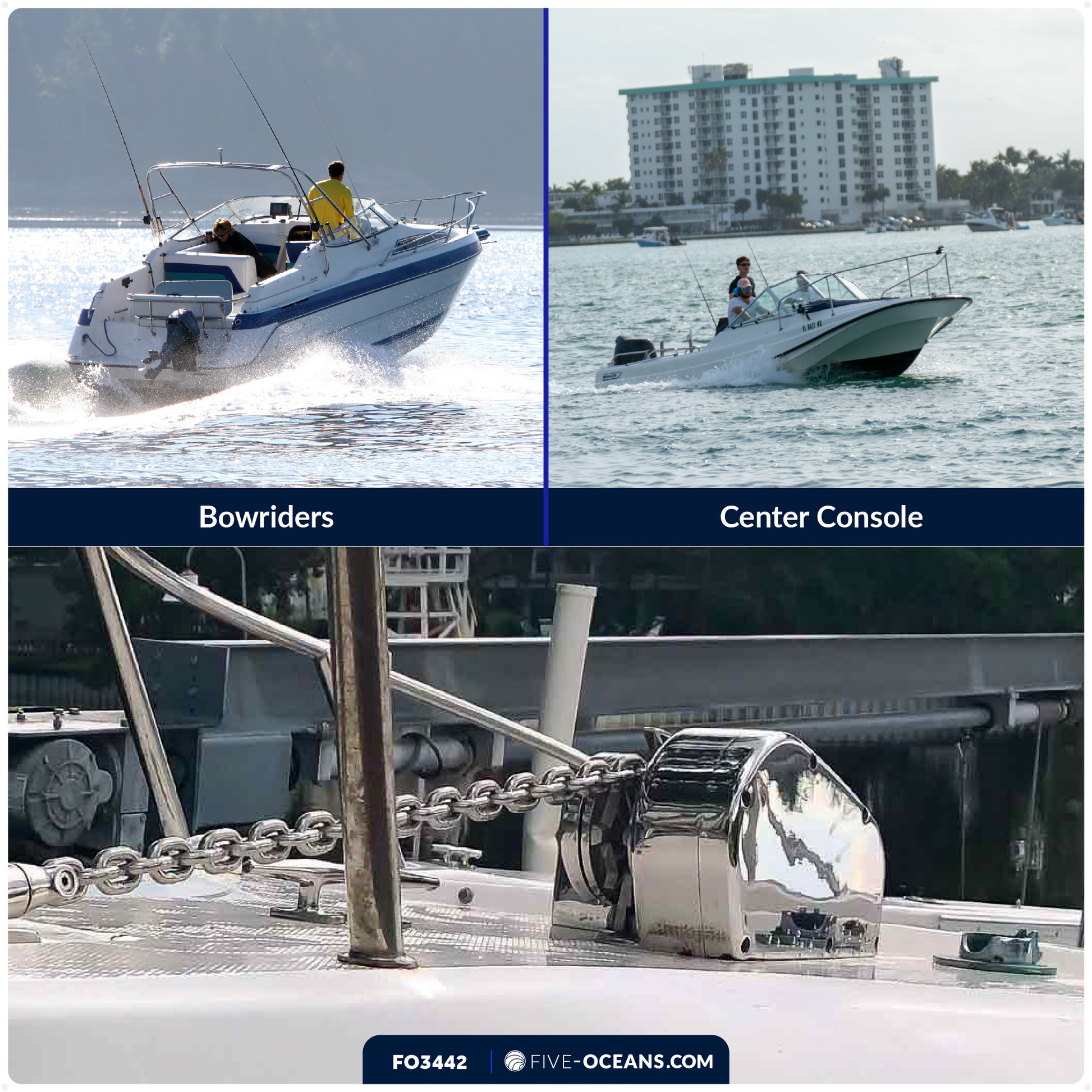

HORIZONTAL WINDLASS ANCHOR INSTALLATION: On-Deck installation. 3 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. To offer the best performance and functionality, we recommend this Horizontal Windlass 900W for boats up to 45 ft /14 m depending on the boat style.
TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1650 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 176 Lb / 80 Kg
Line Speed: 92 Feet per Minute
Current Draw: 65 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand
PRODUCT NUMBER: FO3442
30-Day Returns
30-Day Returns
All products include a 30-day return window.
1-Year Warranty
1-Year Warranty
All our products are covered by a 1-year warranty from the date of purchase.
Share this product
Customer Reviews
Item was never received
I have a small sailboat that does not need a very large windless. I wanted something that could handle both rope and chain. I liked that package came with everything I needed. I have only had it for a few weeks, but it works quite well.
Easy retro install / replacement of old windlass. Quick shipping. Gear speed is much faster than previous windlass
I wouldn't say it was hard to install, time-consuming to do it right the first time. This is my first windlass, very pleased with the sturdiness, construction, and smooth operation.
Very powerful windlass compared with other model I had in the past. Premium material.
