Atlantic Series Horizontal Windlass Kit, 12V DC

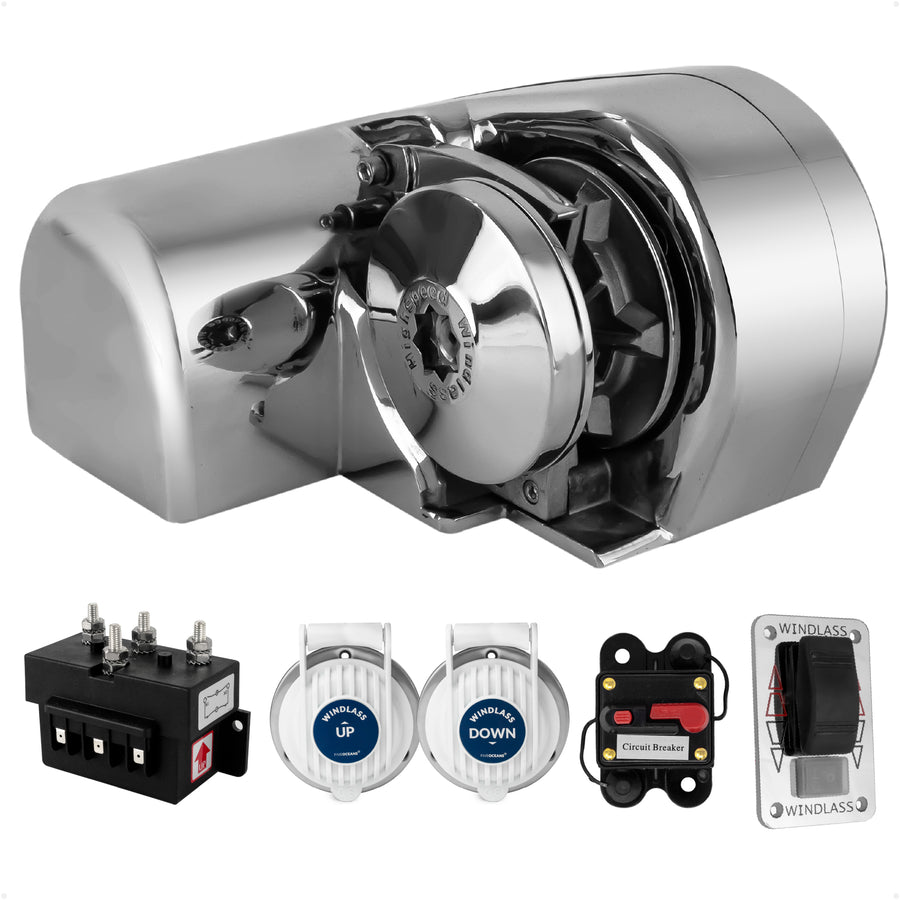

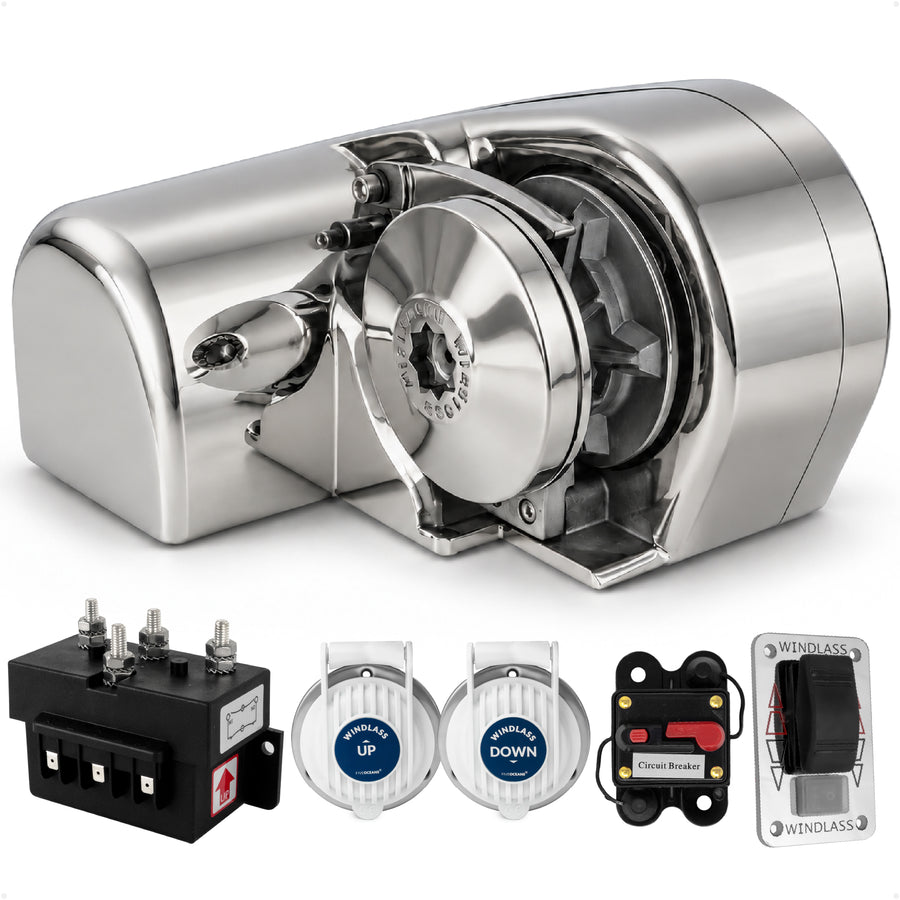

WINDLASS ANCHOR SYSTEM MODEL: Atlantic Series. Horizontal Windlass. Motor Supply Voltage: 12V. Gypsy: Chain and Rope. Includes 4-Wire Solenoid, Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.

HIGH-PERFORMANCE WINDLASS MOTOR: High-Power Motor. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.

MARINE-GRADE WINDLASS ANCHOR KIT: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they are able to withstand the high-load strain.

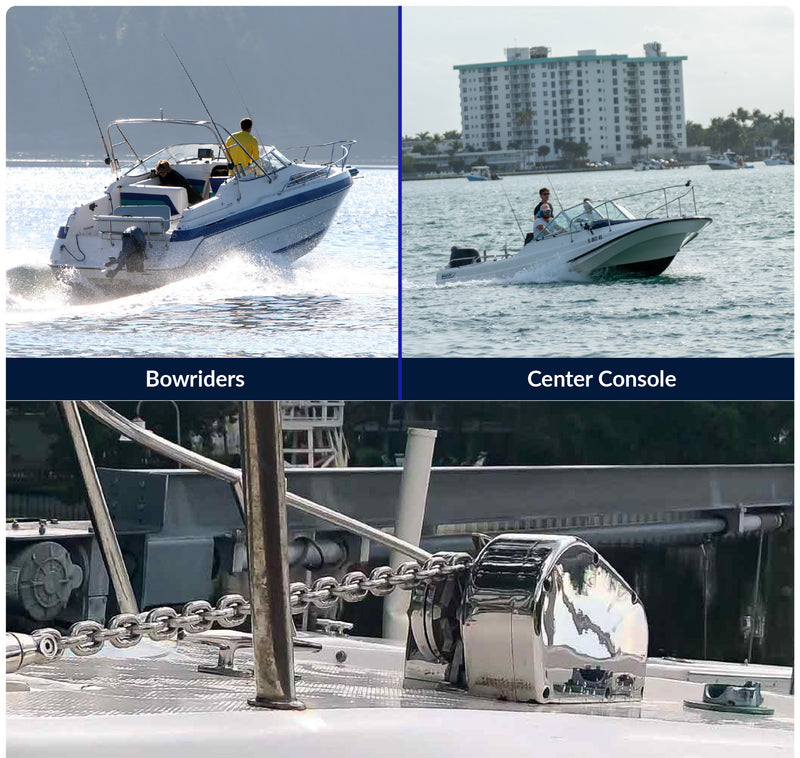

HORIZONTAL WINDLASS ANCHOR INSTALLATION: On-Deck installation. 3 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. Supports max deck thickness up to 2-1/4" (57mm). To offer the best performance and functionality, we recommend this Horizontal Windlass for boats from 20 Ft to 45 Ft, depending on the vessel's design and displacement.
