Windlass Kit - Atlantic 900 Series Horizontal, 900W, 12V, with Anchor Rode Stainless Steel Chain & Swivel

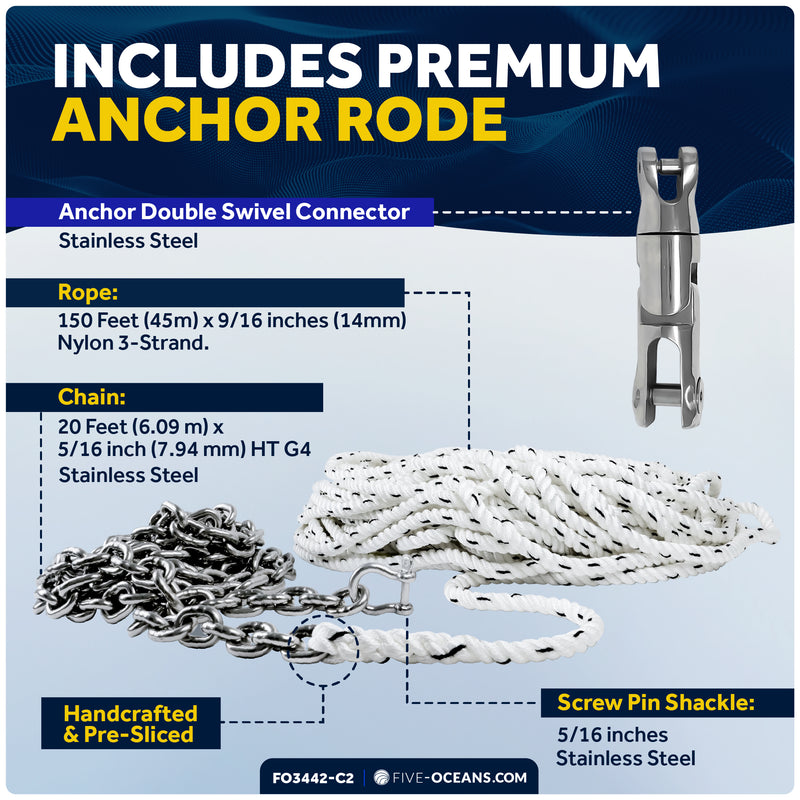

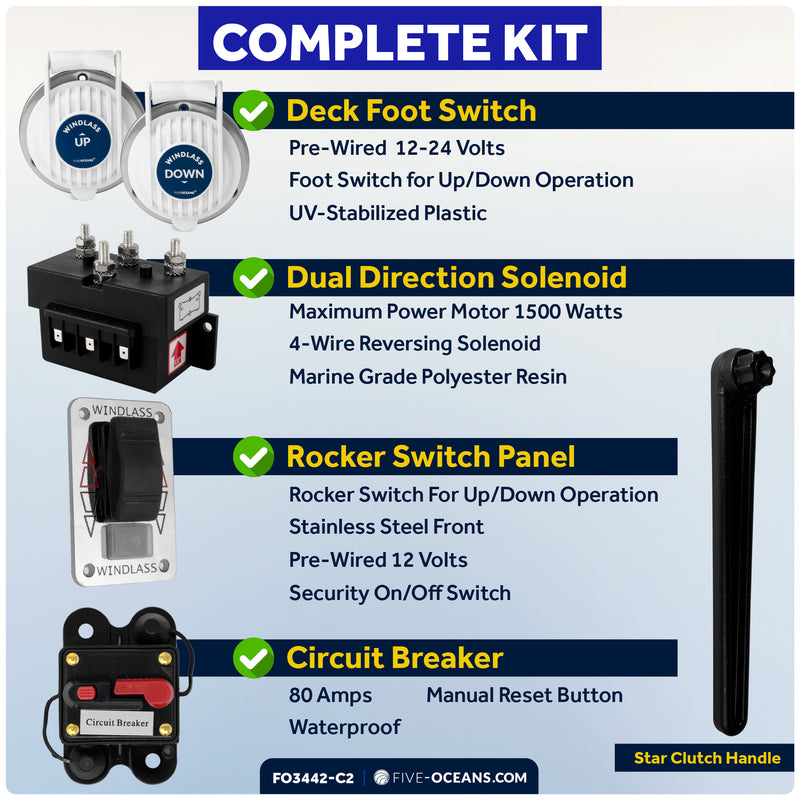

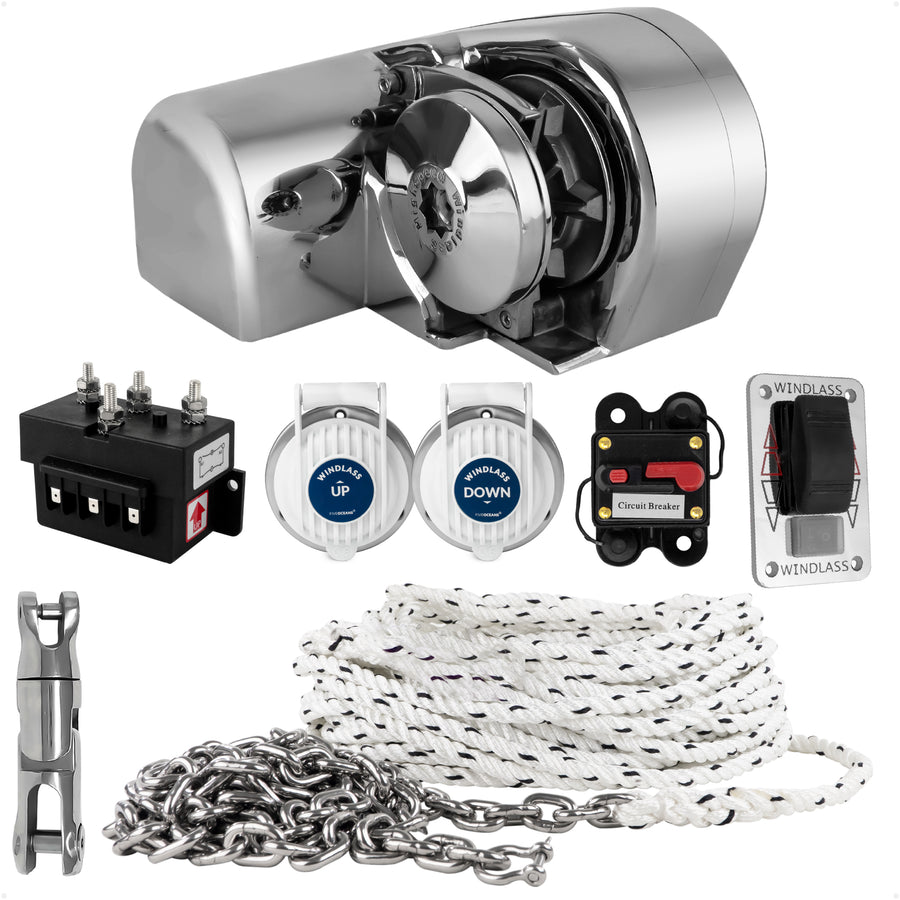

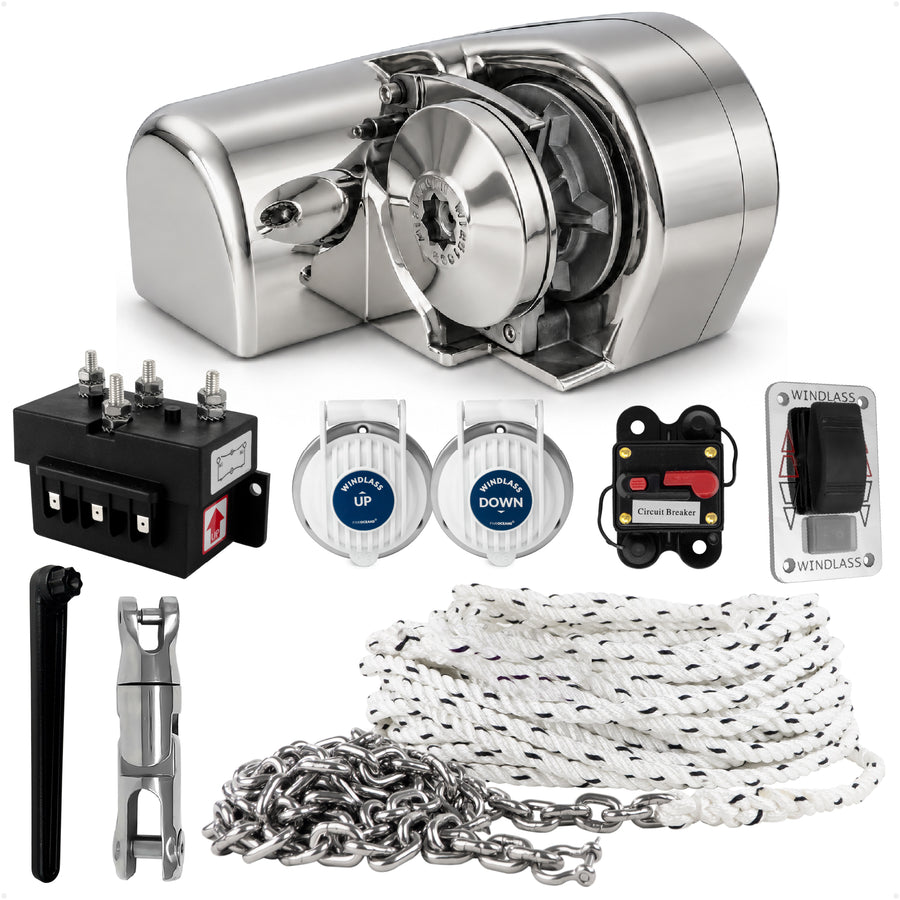

COMPLETE ATLANTIC 900 SERIES WINDLASS ANCHOR KIT: Includes a Atlantic 900W horizontal windlass (12V), 80A circuit breaker, 4-wire solenoid, up/down foot switch, rocker switch, 150 ft x 9/16" 3-strand nylon and 20 ft x 5/16" stainless steel HT G4 chain anchor rode, 5/16" stainless steel screw pin bow shackle, multi-directional anchor double swivel connector, manual top-cap handle, mounting hardware, and template for easy installation.

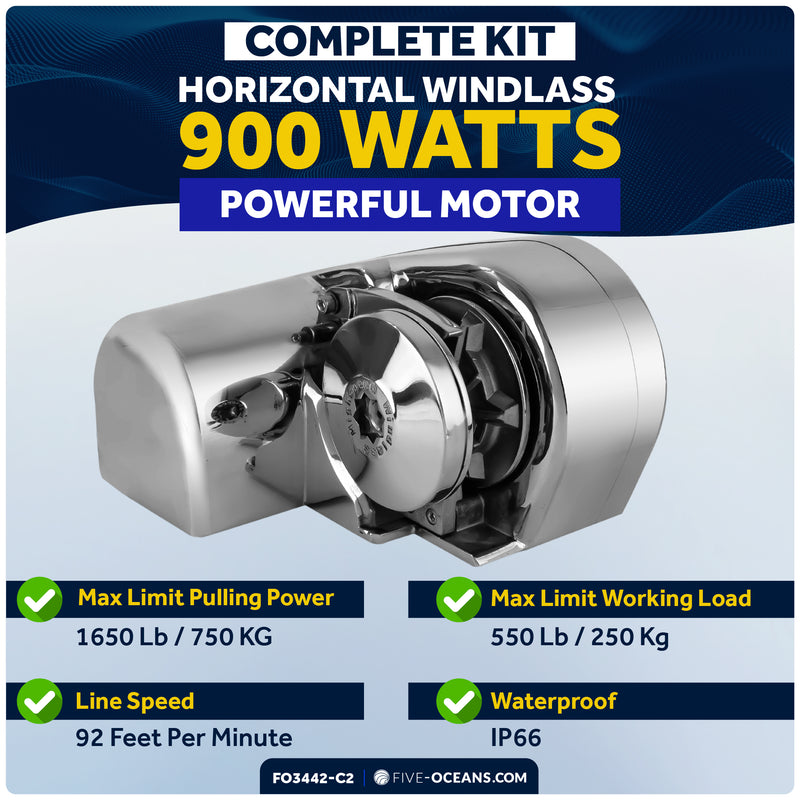

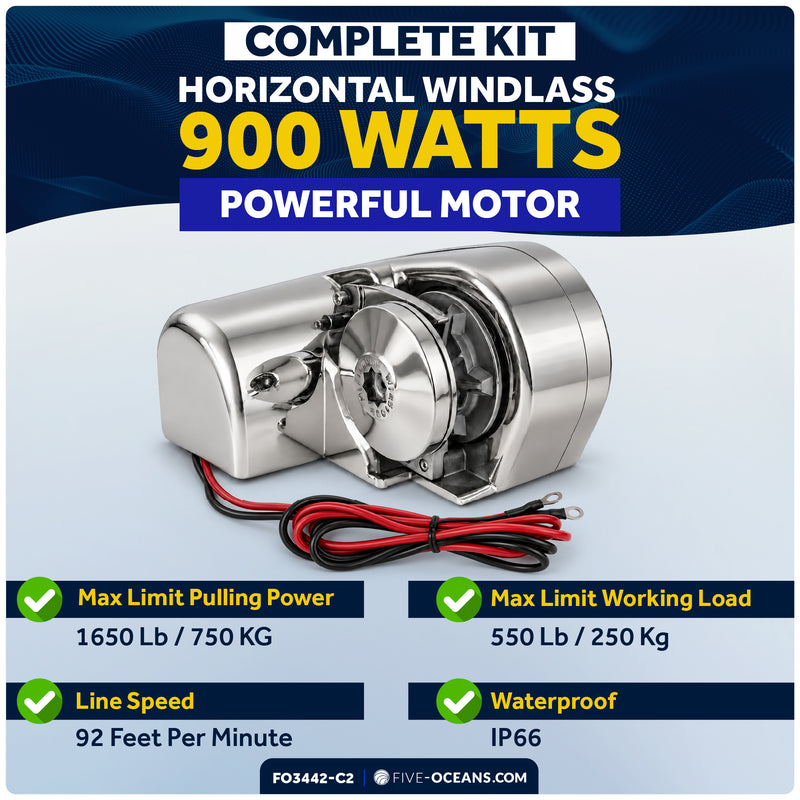

HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum limit pulling power of 1650 lb (750 kg) and a maximum limit working load of 550 lb (250 kg). IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.

SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 5/16" HT G4 chain and 9/16" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.

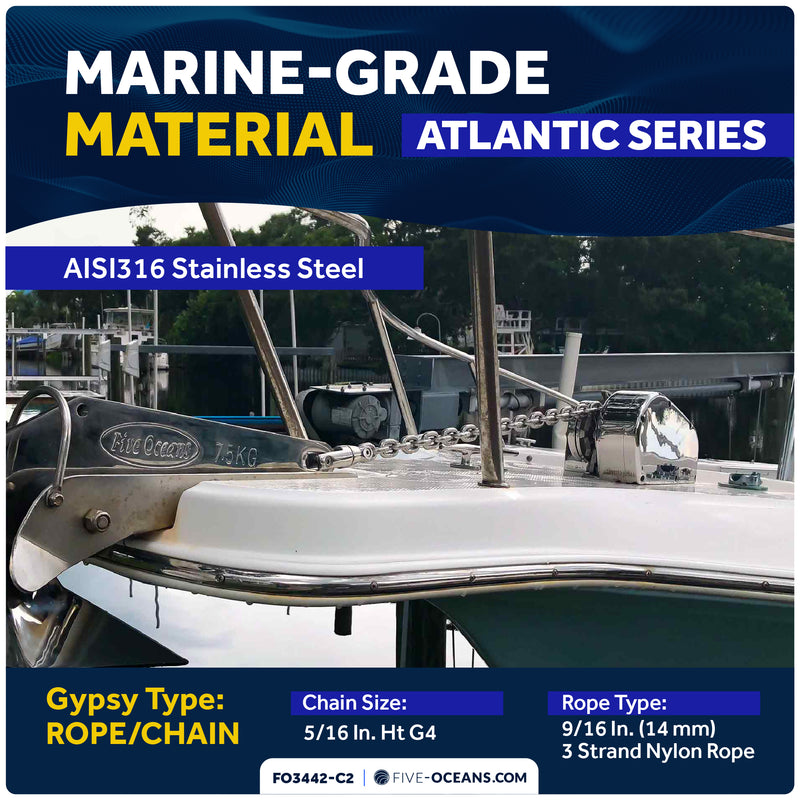

MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.

HORIZONTAL WINDLASS ANCHOR INSTALLATION: On-Deck installation. 3 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. To offer the best performance and functionality, we recommend this Horizontal Windlass 900W for boats from 20 Ft to 45 Ft, depending on the vessel's design and displacement.

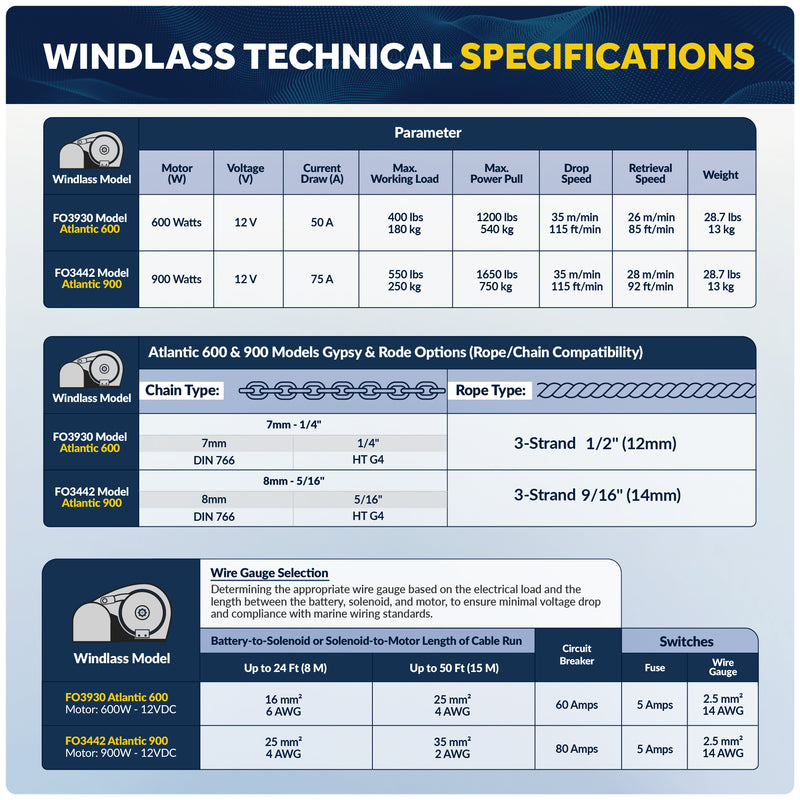

WINDLASS TECHNICAL SPECIFICATIONS:

Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1650 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 176 Lb / 80 Kg
Drop Speed: 35 m / min (115 Ft / min)
Retreival Speed: 26 m / min (92 Ft / min)
Current Draw: 75 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand

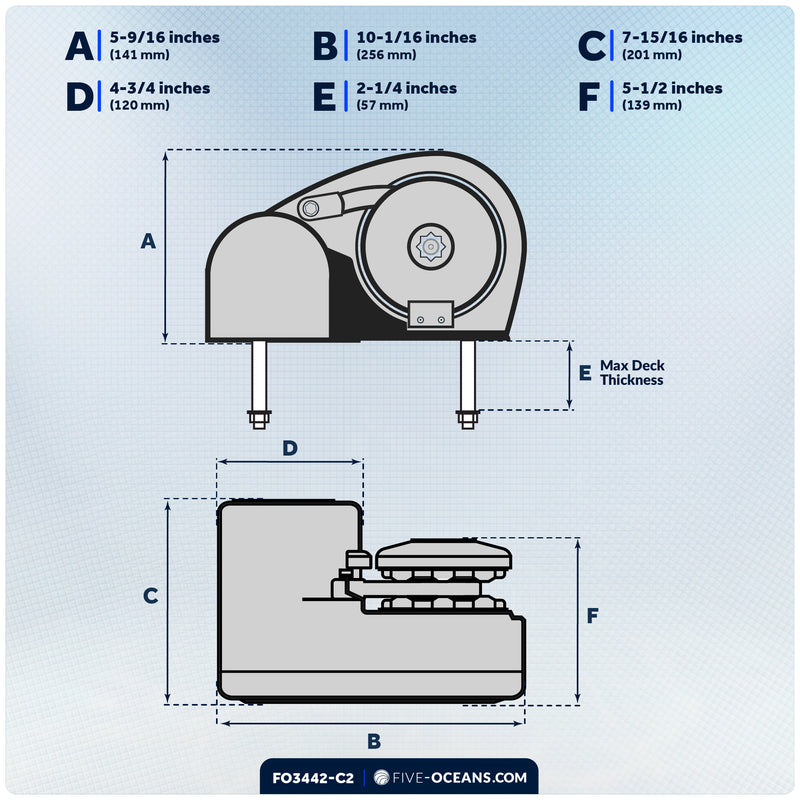

Max deck thickness up to 2-1/4" (57mm)

PRODUCT NUMBER: FO3442-C2
