Windlass Kit - Atlantic 600 Series Horizontal, 600W, 12V, with Anchor Rode Galvanized Chain & Swivel

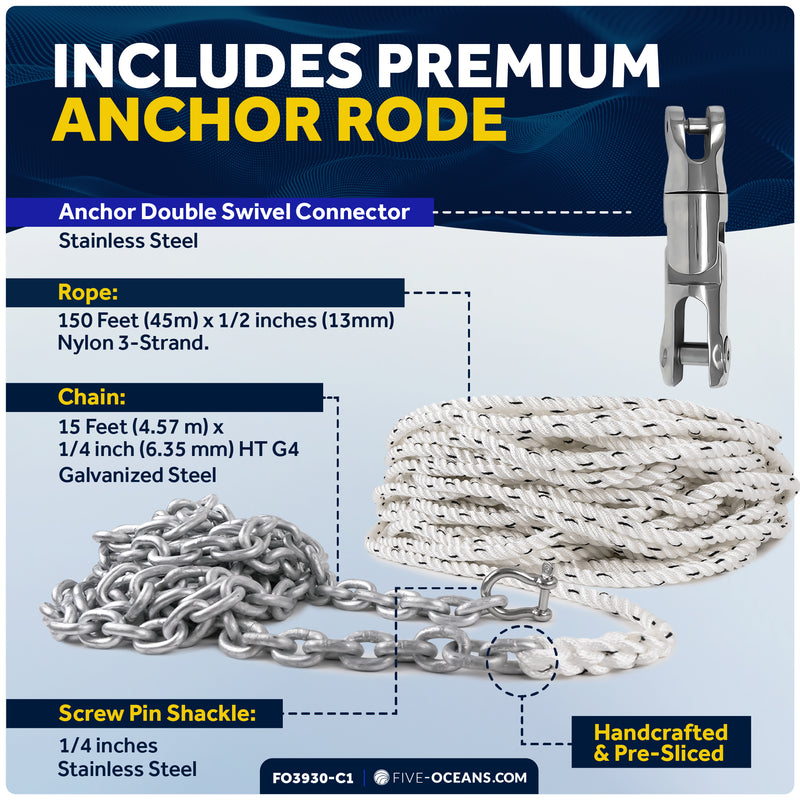

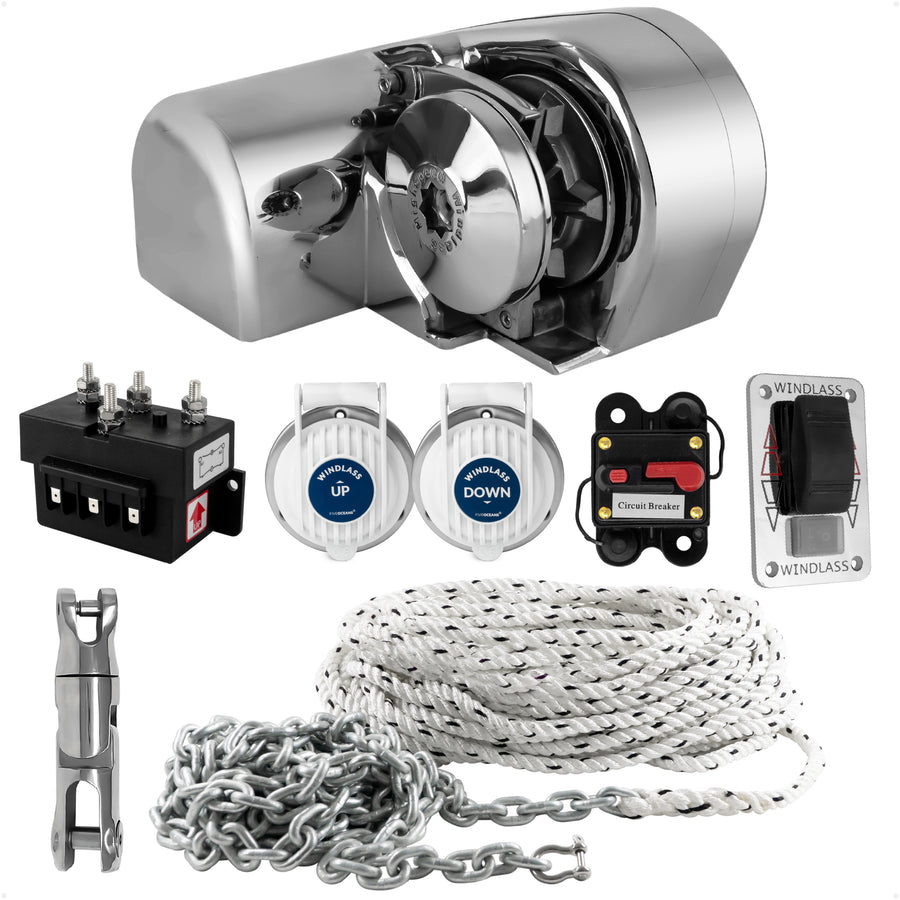

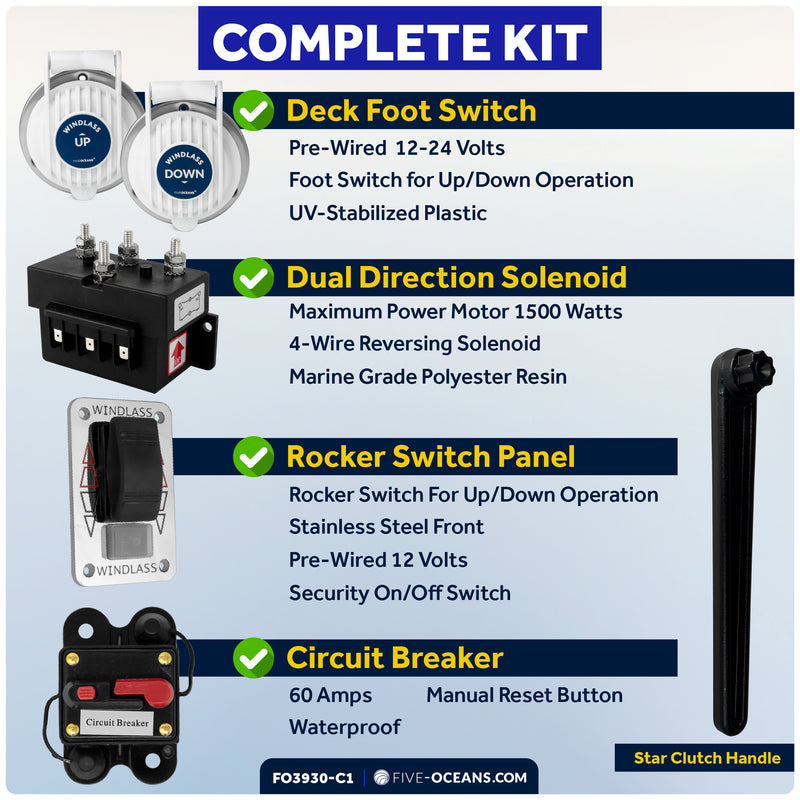

WINDLASS ANCHOR KIT INCLUDES: Atlantic 600 Series. Horizontal Windlass. Motor Supply Voltage: 12V. Motor Power: 600W. Gypsy: Chain and Rope, 4-Wire Solenoid, 60A Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Anchor Rode Nylon Three Strand 1/2 in x 150 ft, Galvanized HT G4 Chain 1/4 in x 15 ft, Screw Pin Bow Shackle Stainless Steel 1/4 inches, Multi-directional Anchor Double Swivel Connector, Up to 1/2 in. Chain, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.

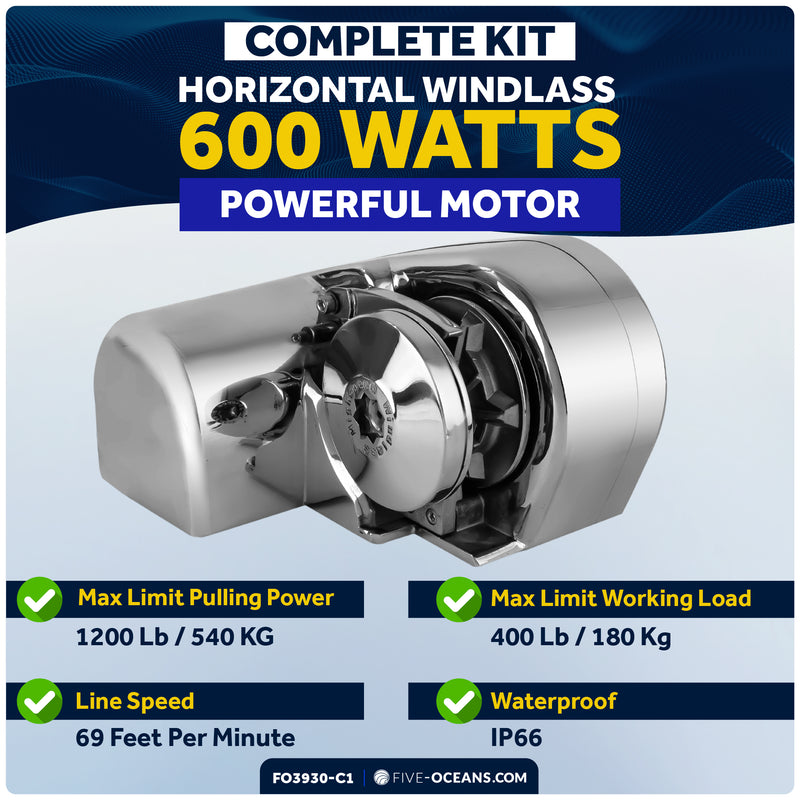

HIGH-PERFORMANCE WINDLASS MOTOR: The High-Power 600 Watts Motor provides a Maximum Limit Pulling Power of 1200 Lb / 540 Kg and a Max Limit Working Load of 400 Lb / 180 Kg. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.

ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 1/4 Inch (7 mm) HT G4. Rope: 1/2 Inch (12mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.

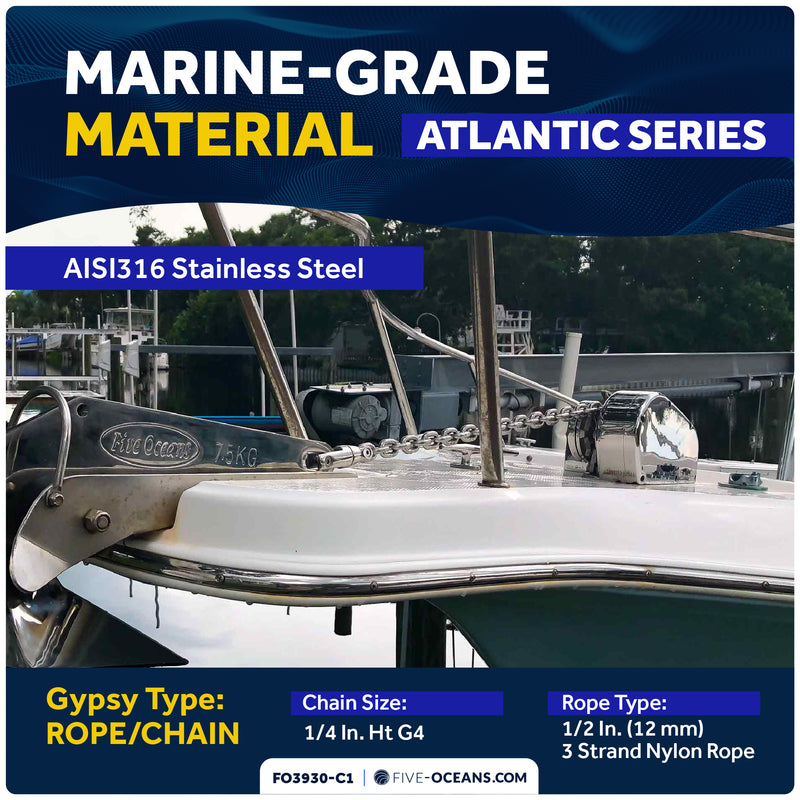

MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they are able to withstand the high-load strain.

HORIZONTAL WINDLASS ANCHOR INSTALLATION: On-Deck installation. 3 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. To offer the best performance and functionality, we recommend this 600-watts horizontal anchor windlass for boats from 20 Ft to 45 Ft, depending on the vessel's design and displacement.

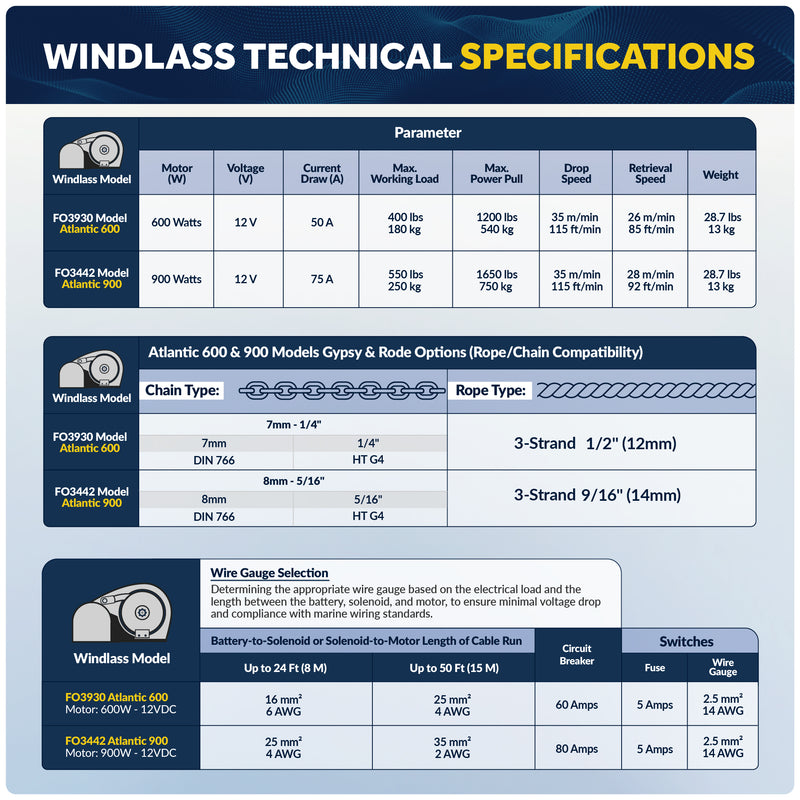

WINDLASS TECHNICAL SPECIFICATIONS:

Motor Power: 600 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1200 Lb / 540 Kg
Maximum Limit Working Load: 400 Lb / 180 Kg
Working Load: 132 Lb / 60 Kg
Drop Speed: 35 m / min (115 Ft / min)
Retreival Speed: 26 m / min (85 Ft / min)
Current Draw: 50 Amps
Circuit Breaker: 60 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch HT G4
Rope: 1/2 Inch (12mm) - 3 Strand

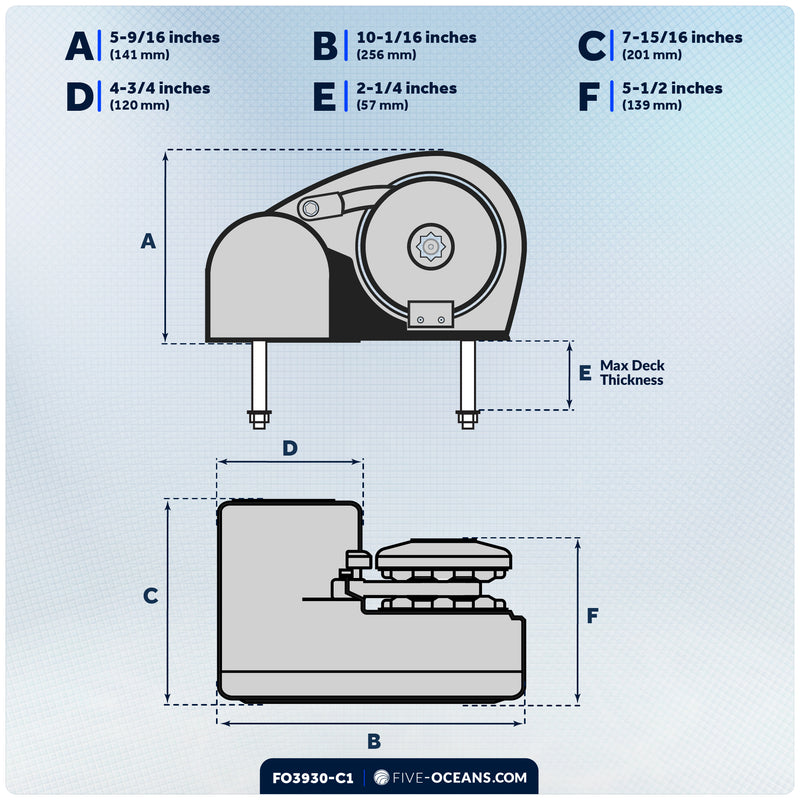

Max deck thickness up to 2-1/4" (57mm)

PRODUCT NUMBER: 3930-C1
