Arctic Capstan 900 Watts Vertical Mounted Winch, 12 V - FO3716
Five Oceans








Product Video:
This Five Oceans Arctic 900 Vertical Capstan is designed for simple, low-cost anchor recovery on smaller boats, and rope hauling on larger vessels. The vertical design of this series makes it suitable for smaller power or sailboats and can be utilized for anchor rodes, as a docking capstan on larger craft, or auxiliary line hauling. Offering above deck components with a high-quality marine-grade stainless steel finish.
Installation Details
Note for decks that are not flat, a suitable mounting pad may be required to take up camber or sheer. Decks made of a thin, foam or balsa laminate construction, will require reinforcement in order to spread the loads that will be applied to the deck while the windlass is in use.
FEATURES:
DIY - ready mounting template for convenient on-deck installation
Powerful motor for fast and secure anchor retrieval at the push of a button
Includes a foot switch
Suitable for boats of 16 to 36 feet in length
Backed by a 1-year warranty
INCLUDES:
- Capstan

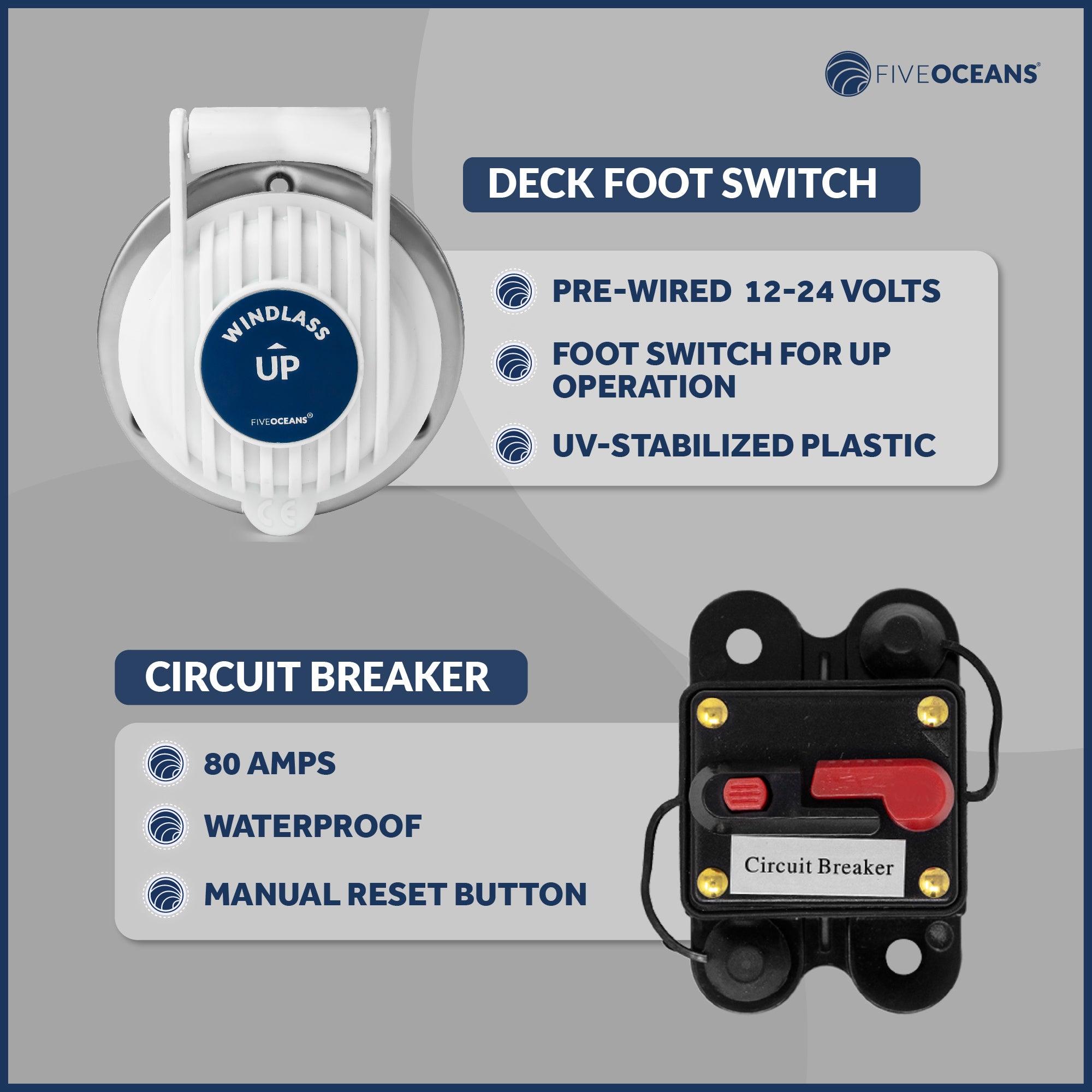

- 80 Amp Circuit Breaker
- Up Foot Switch
- Hardware Mounting included
- Manual w/Mounting Template

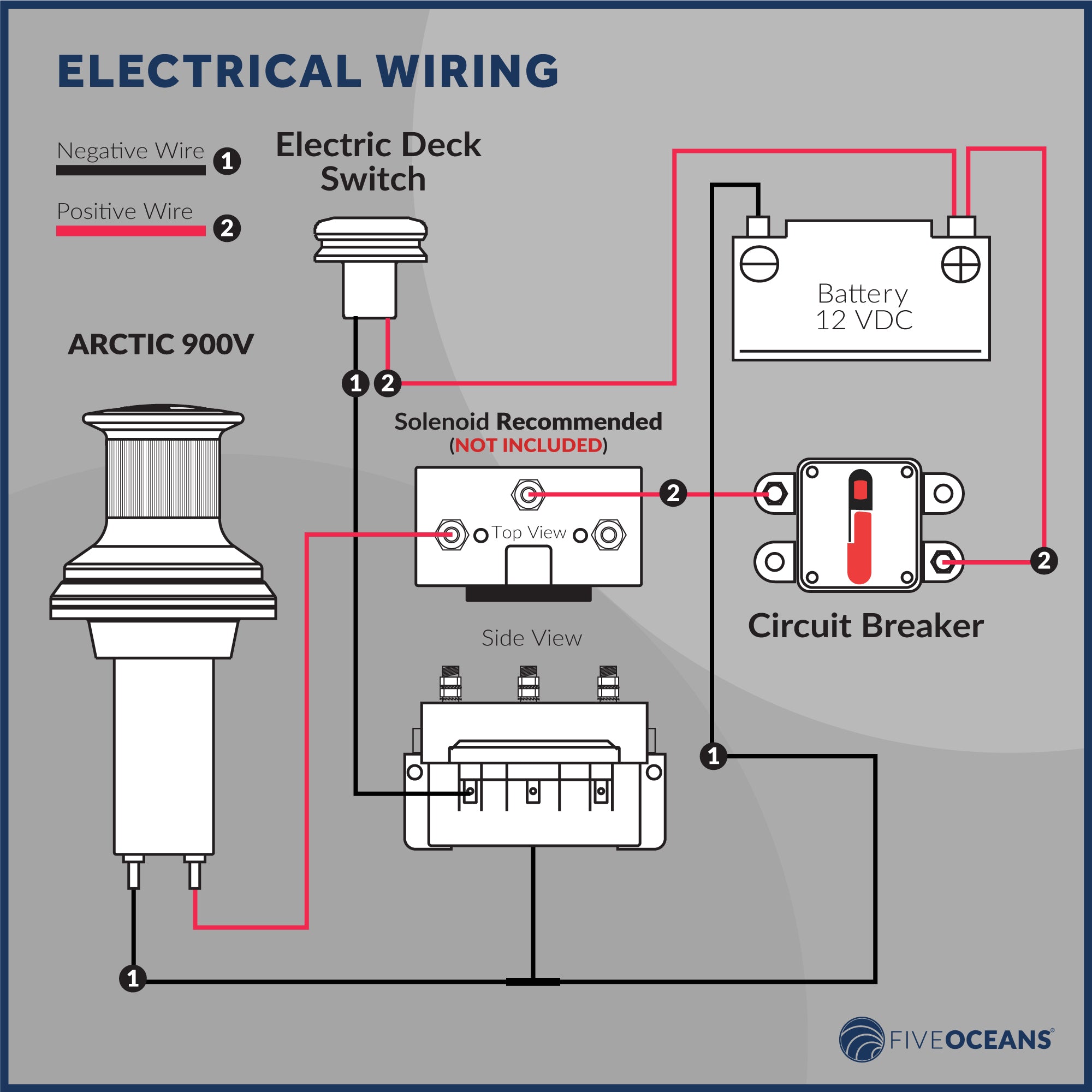

Note: A Solenoid is required to operate the captain, we do not include this solenoid. You can use any solenoid that supports a 900W motor. An alternative is to use a footswitch similar to our model FO-4430 which supports 150 amps of continuous draw.
SPECIFICATIONS:
Type: Vertical Capstan
Model: Arctic 900

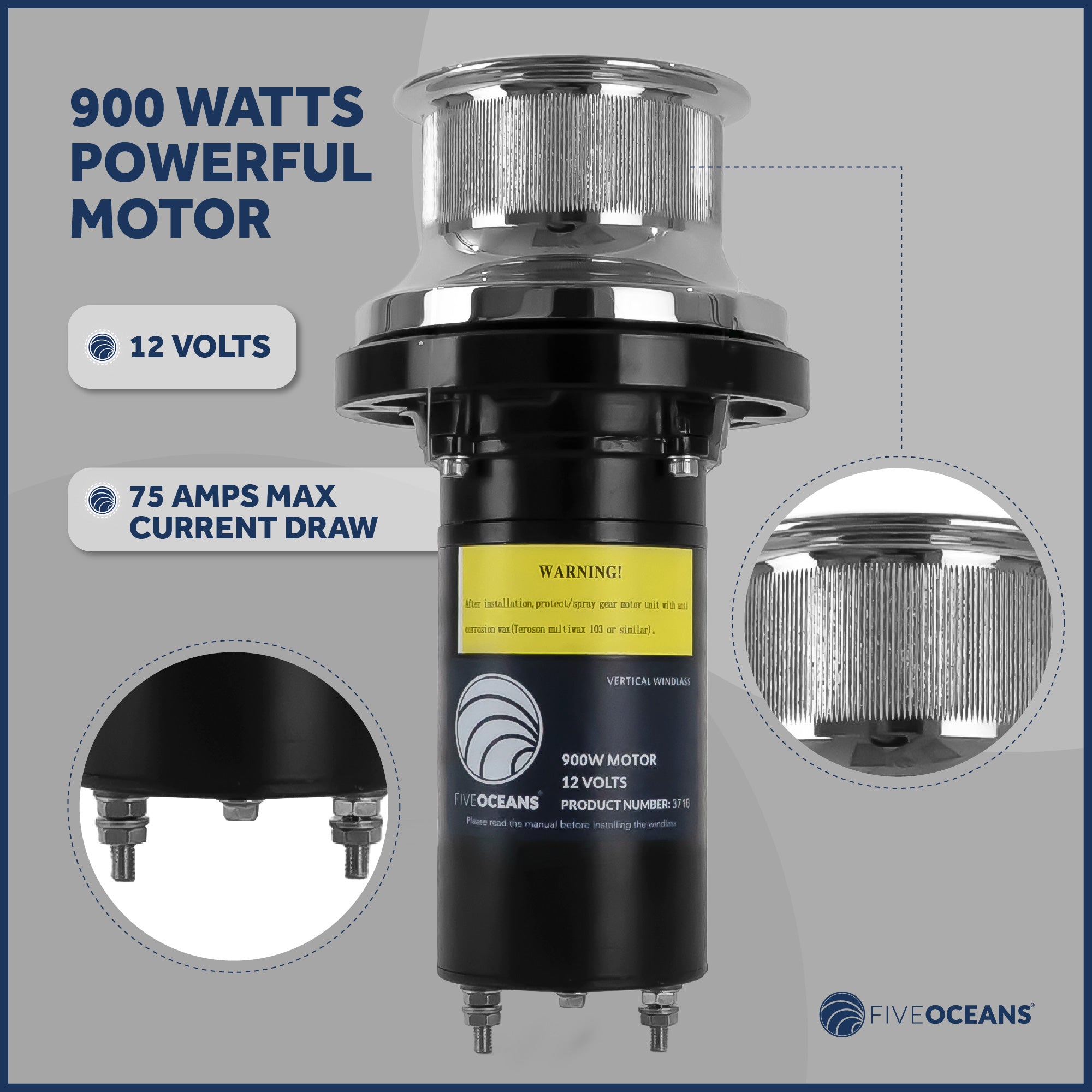

Motor: 900W
Material:
- AISI316 Stainless Steel Capstan
- Marine grade hard anodized and sealed aluminum base plate
Voltage: 12 Volts
Current draw(A): 50 Amps
Max current draw(A): 75Amps
Circuit Breaker: 80 Amps
Rode Type: Rope
Rope Size: 7/8" (22 mm)
Max. working load (kgs/Ib): 36/80

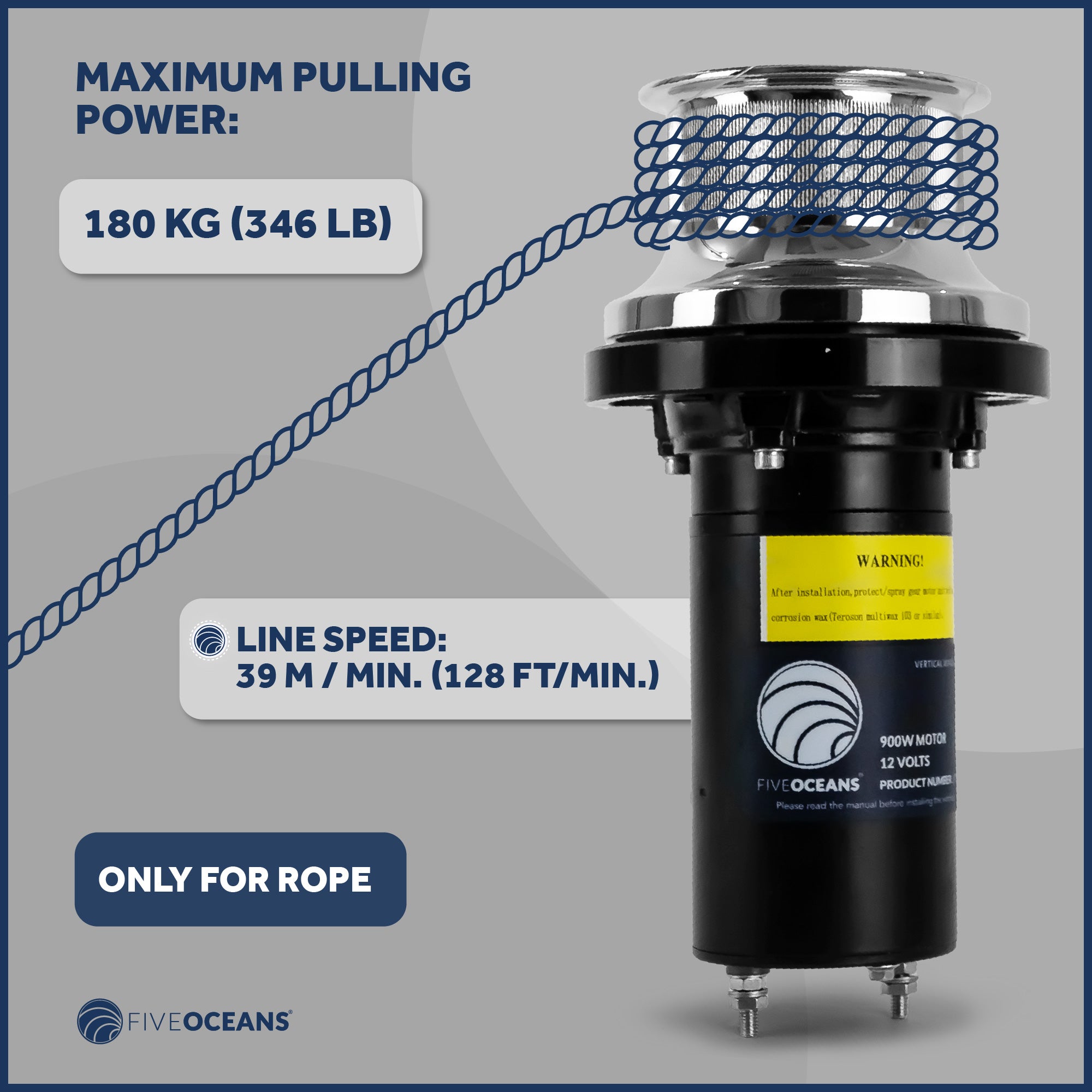

Max. power pull (kgs/Ib): 180/396
Max. line speed (m/min)/(ft/min): 39/128
PRODUCT NUMBER: FO-3716
DOWNLOAD PRODUCT MANUAL(S):

PRODUCT WARRANTY
One (1) Year Warranty
We take enjoyment in the products we make and guarantee the buyer that all Five Oceans products are ready to handle the extreme conditions of the open sea or terrain. However, we also know things can happen that's why we've got you covered for a year.
Click Here to read the warranty document
