TMC Electric Toilet with Threaded-On Hose Connection, Compact Bowl, Smart Flush Control 12V DC <BR><BR>- FO4705

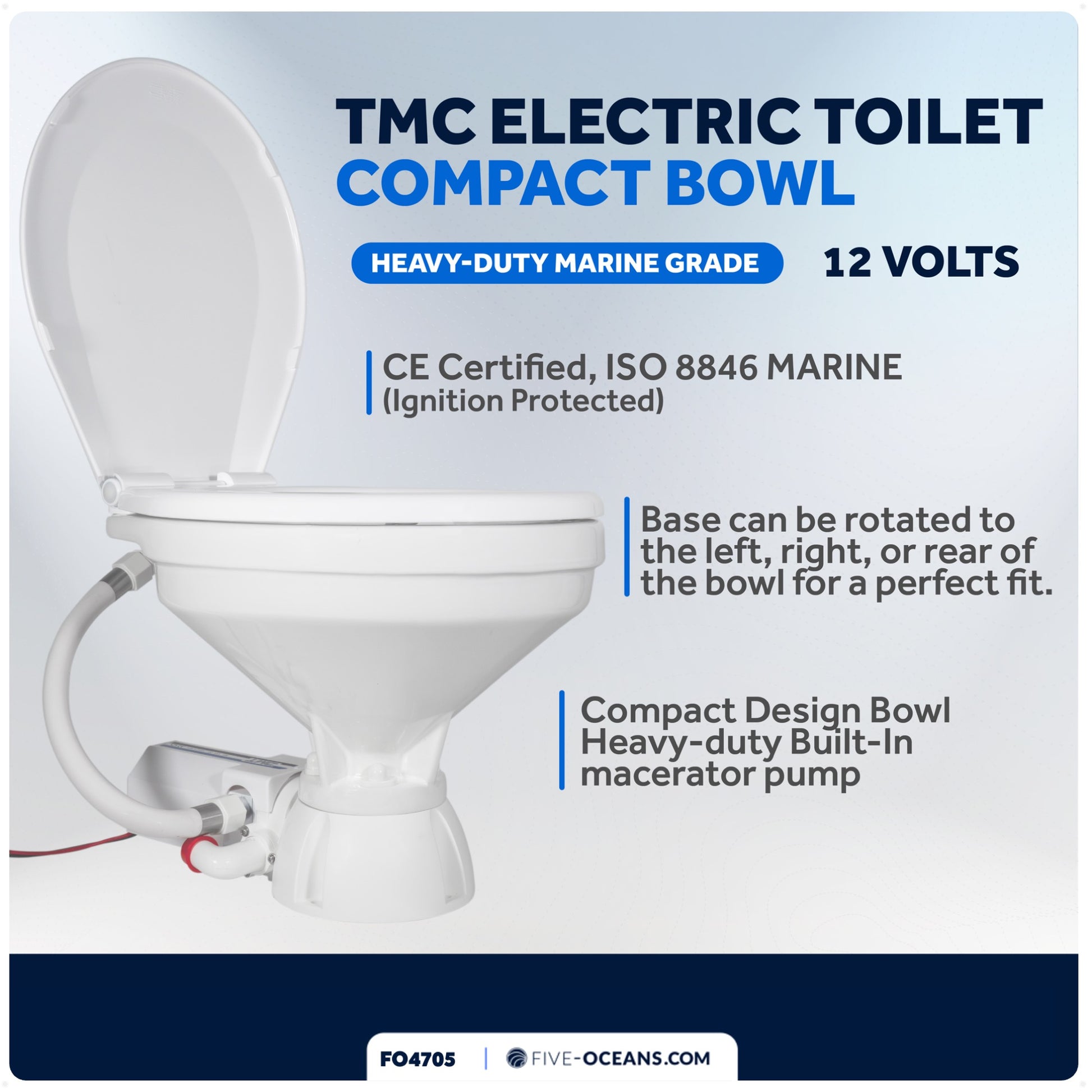

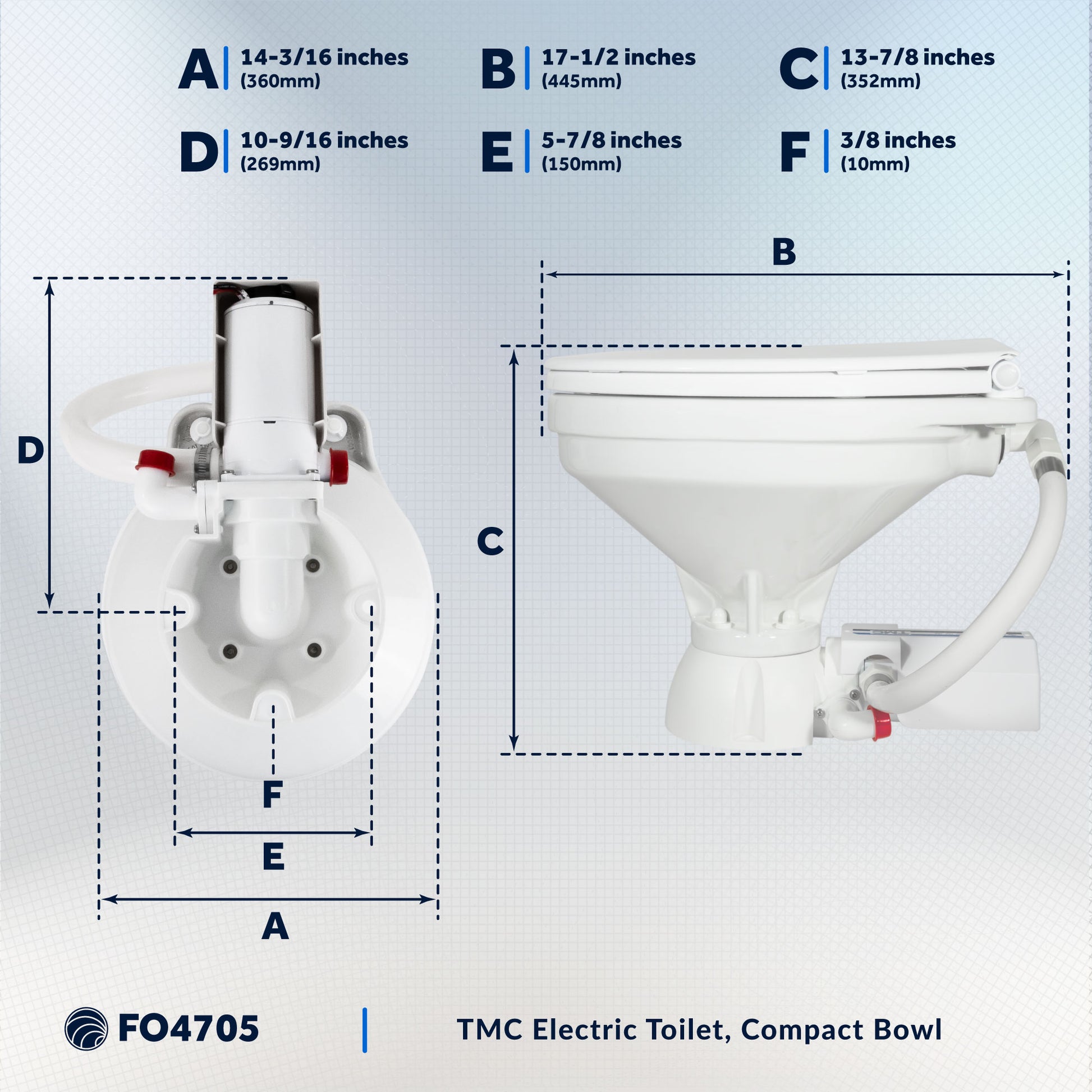

ELECTRIC TOILET COMPACT DESIGN BOWL - Heavy-duty Built-In macerator pump. CE Certified, ISO 8846 MARINE (Ignition Protected). Measurements - (A): 14 3/16" (360mm), (B): 17 1/2" (445mm), (C) 13 7/8" (352mm), (D): 10 9/16" (269mm), (E): 5 7/8" (150mm), (F): 3/8" (10mm).

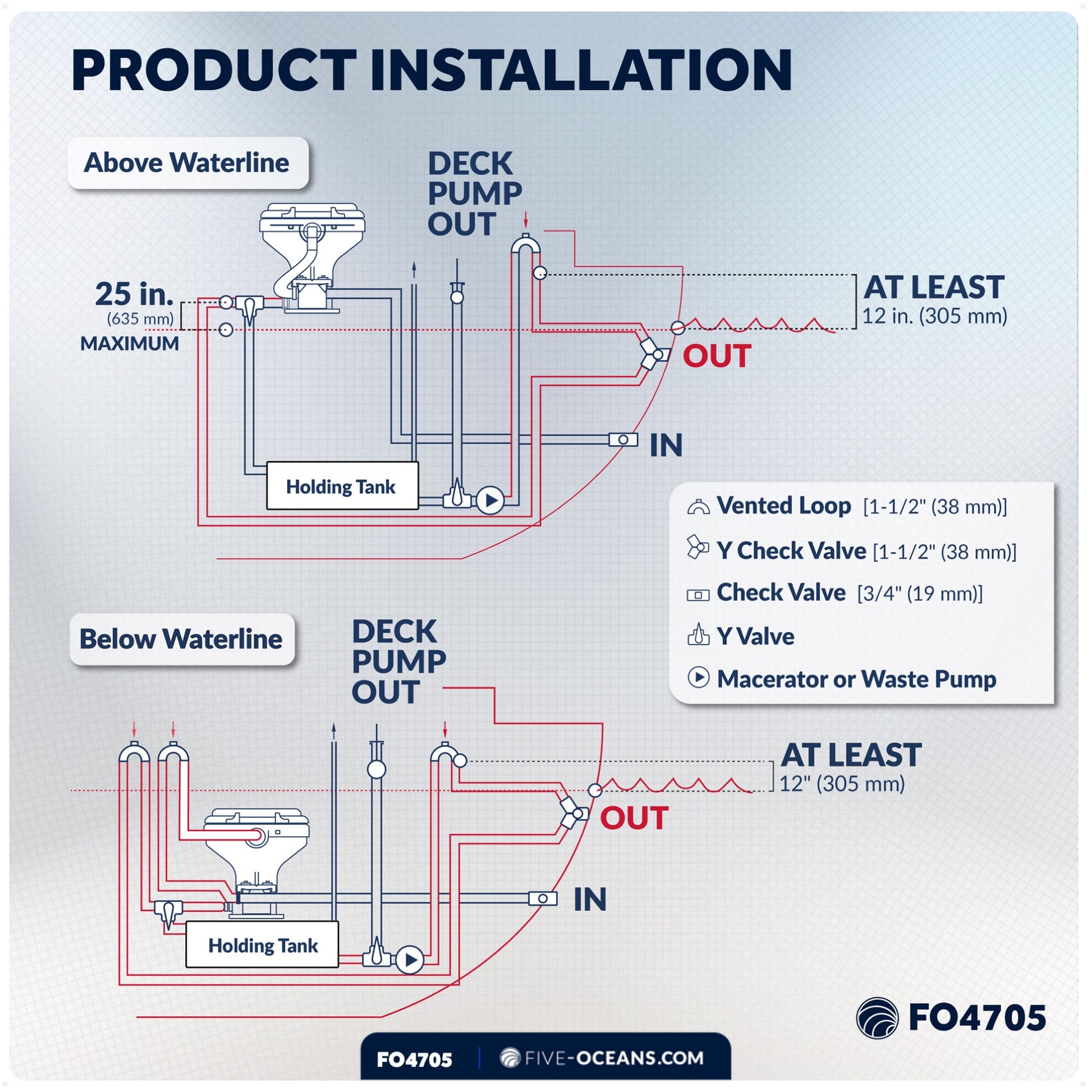

EASY TO INSTALL - TMC marine toilets can be installed above or below the waterline. The boat toilet base can be rotated to the left, right, or rear of the bowl to suit multiple installation options. Straight or 90-degree discharge ports are available for easy installation. Adaptors 3/4" (19mm) and 1 1/2" (38mm) are provided for connecting options.

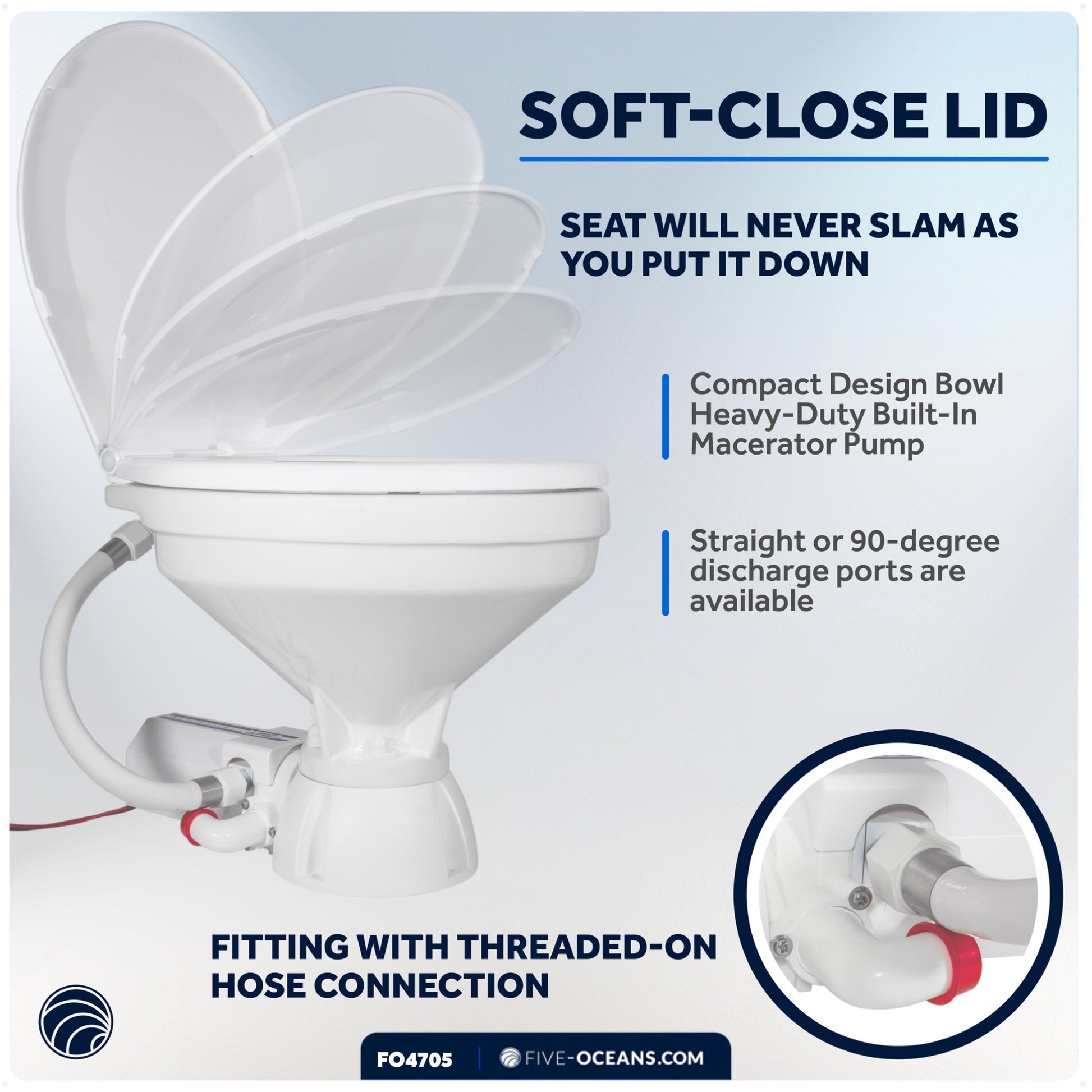

QUIET CLOSE AND EASY TO CLEAN - Round seat cover. Soft-close lid guarantees that your seat will never slam as you put it down. Slow Close Seat and Cover for a premium experience. The seat can be unlatched from the toilet for easy removal and convenient cleaning with no tools required.

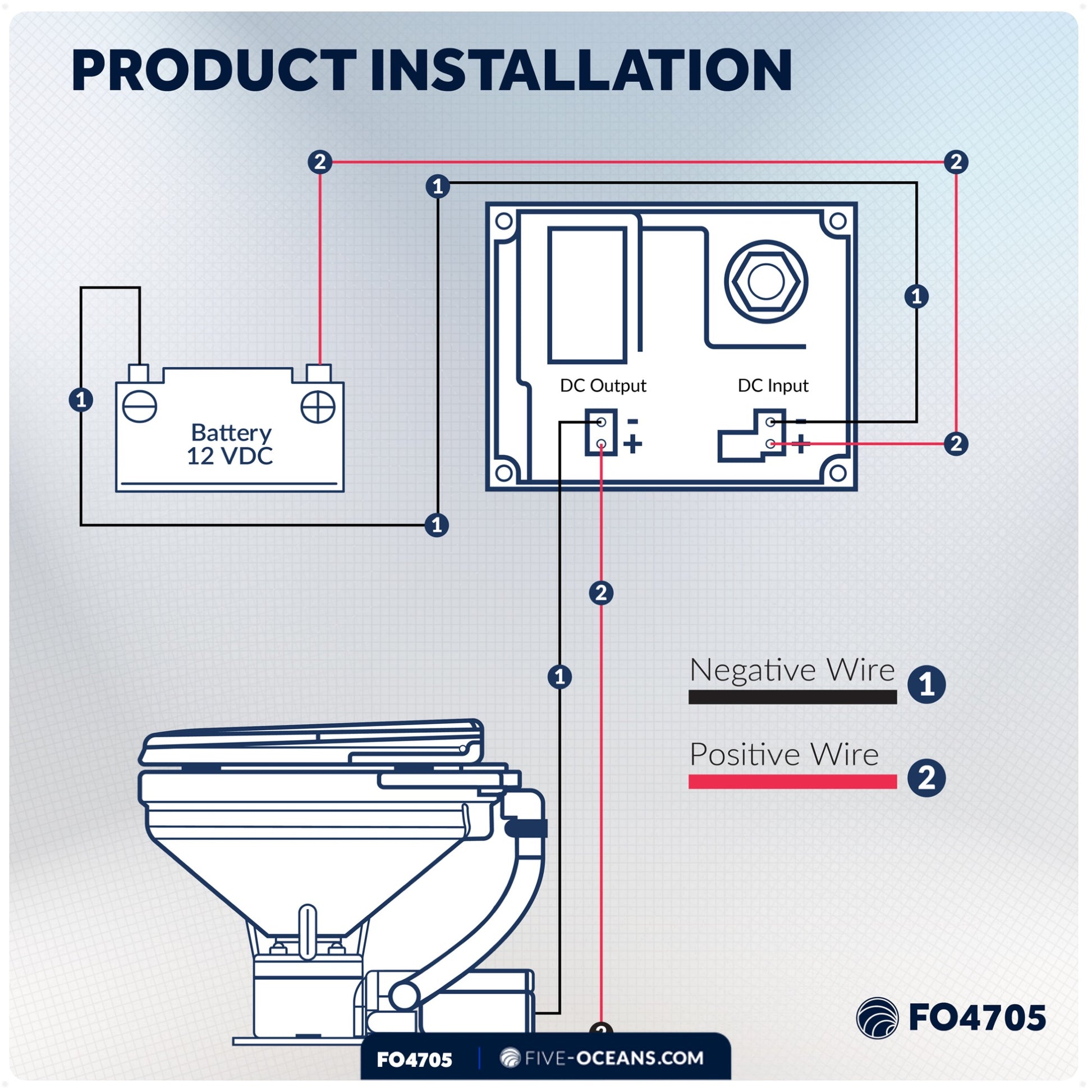

GENERAL SPECIFICATIONS - Fitting with threaded-on hose connection. Port Sizes: 1" Hose Barb Intake | 1" Hose Barb Discharge. Max Head: 13Ft / 4M. Material: Top Quality Vitreous White China Bowl. Voltage: 12 Volts DC. Amperage: 18 Amps. Fuse Size: 30 Amps.

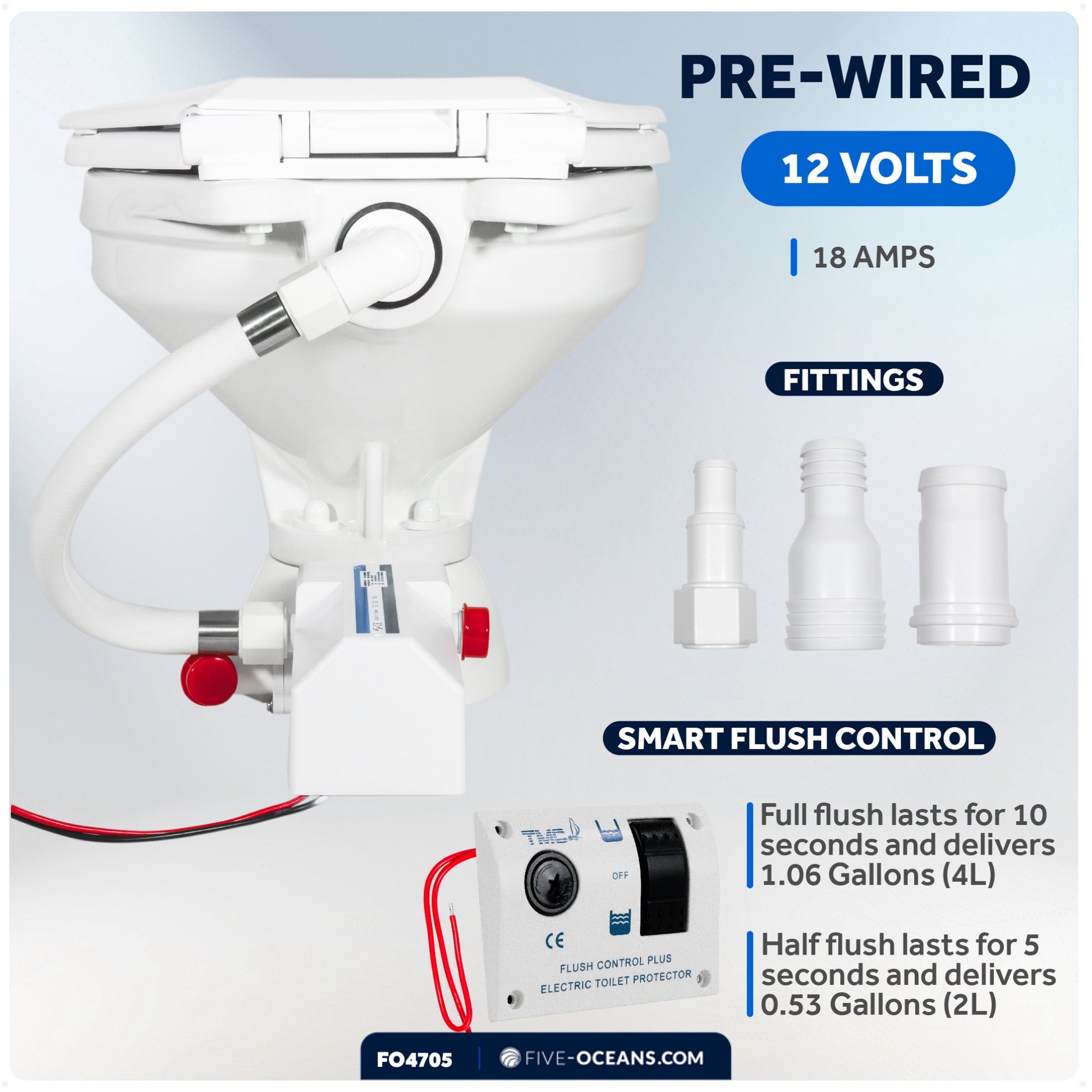

FLUSHING MECHANISM - The flushing mechanism is triggered with a Smart Flush Control Panel Switch. It offers two flush options, full-flush or half-flush. Full flush lasts for 10 seconds and delivers 1.06 Gallons (4L) of water into the bowl. Half flush lasts for 5 seconds and delivers 0.53 Gallons (2L) of water.

NOTE: This toilet can be installed above or below sea level in any boat. In addition, an external macerator pump is not needed.
Standard installation is not allowed with pressurized water installations.

PRODUCT NUMBER: FO4705
