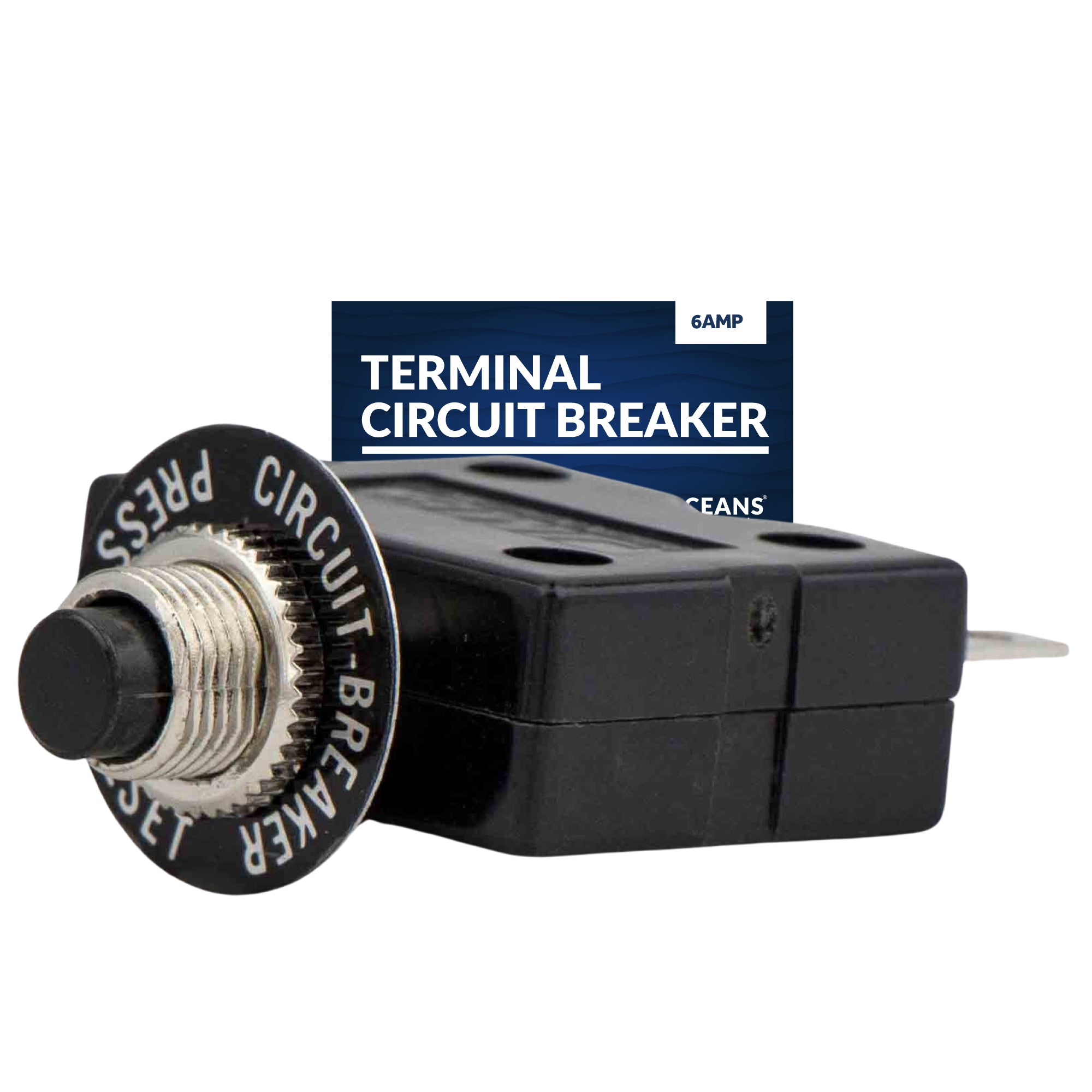

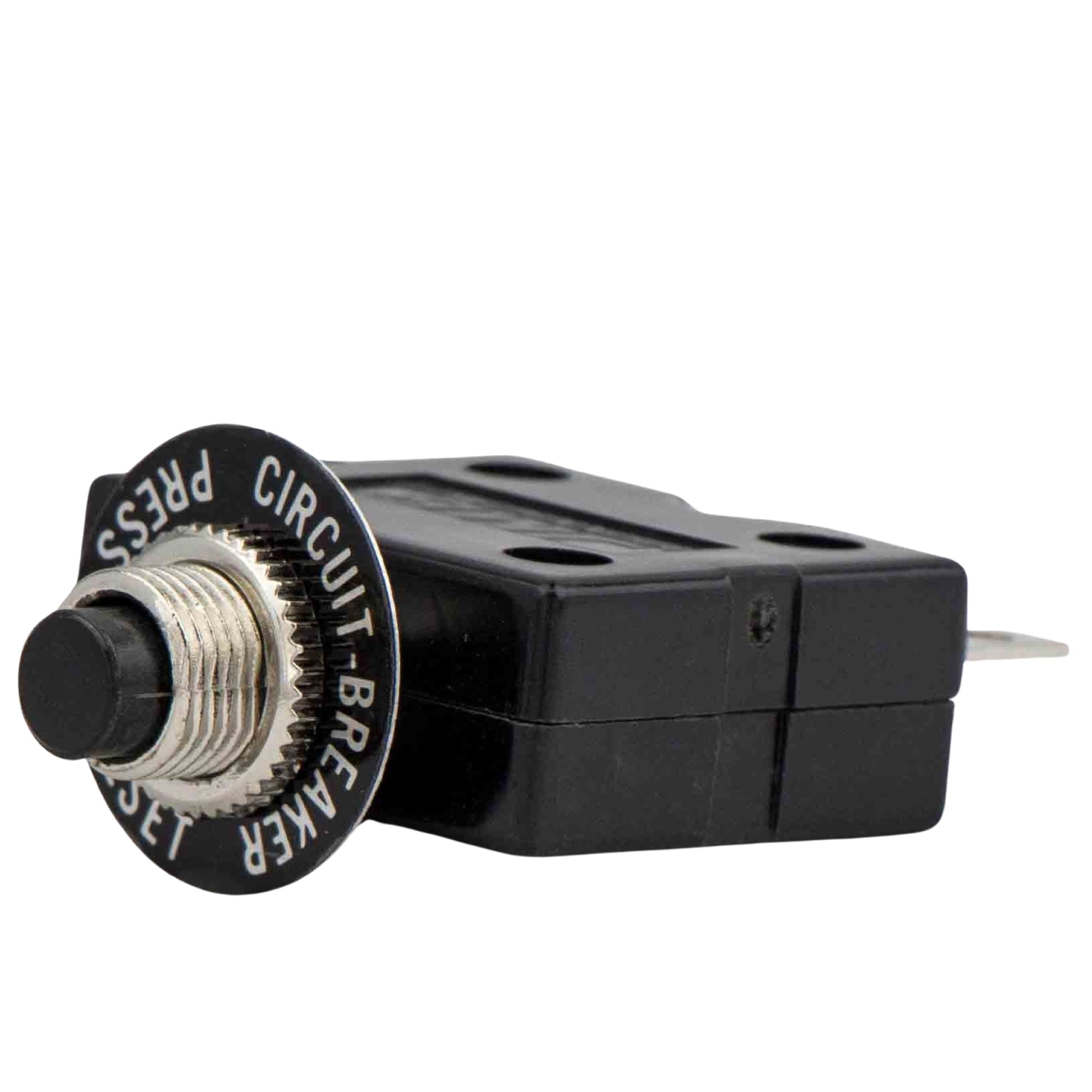

Terminal Circuit Breaker with Reset Button, 6 Amp - FO1679

These Five Oceans terminal circuit breaker w/reset button support up to 6 amps. Compact, ignition protected design allows high-density DC circuit protection in tight quarters. Push-to-reset, "trip free" design cannot be held "ON" during fault conditions.

Optional waterproof boot provides additional circuit breaker protection in wet environments.

SPECIFICATIONS:

Amperage: 6 Amps
Voltage Compatibility: DC
Maximum Voltage: 32V DC
Housing Material: Plastic

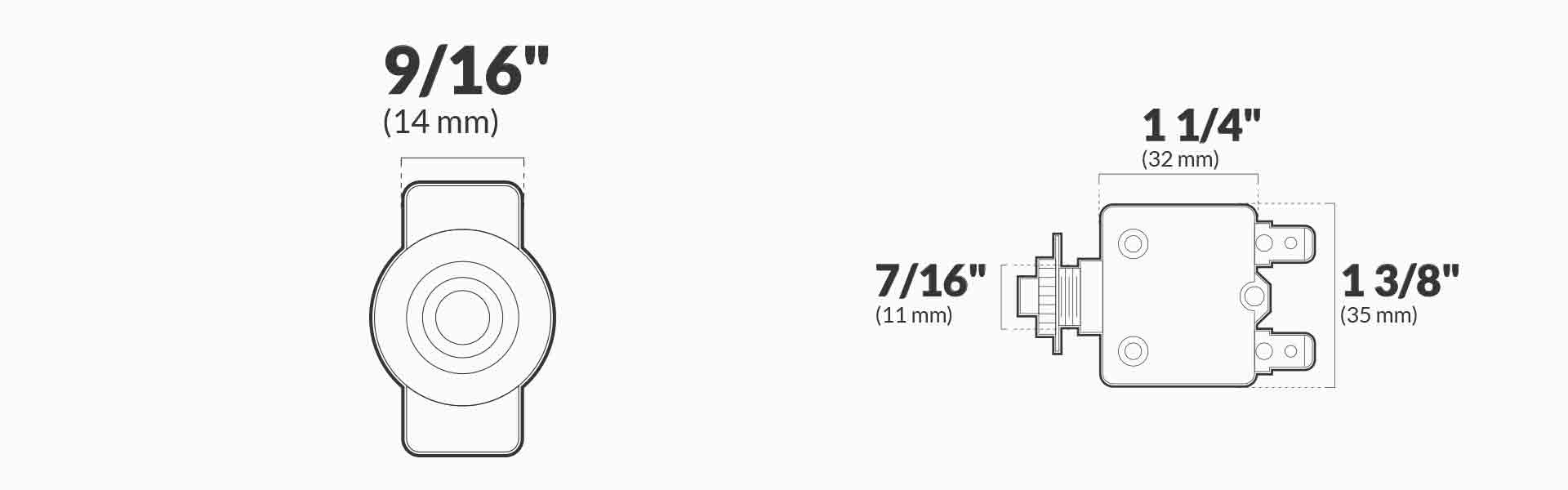

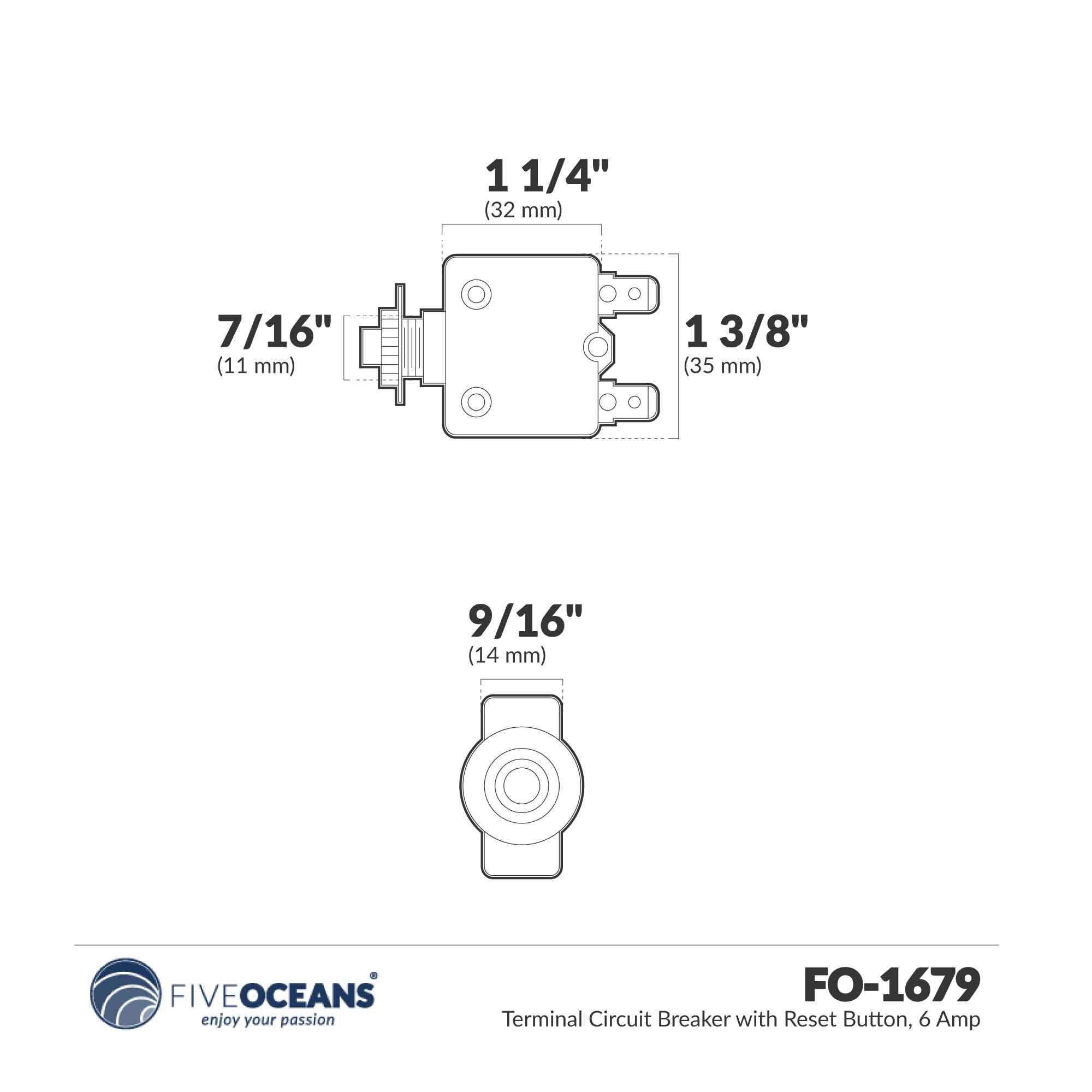

Housing Dimensions: 1 1/4 inches (32mm) x 1 3/8 inches (35mm) x 9/16 inches (14mm)

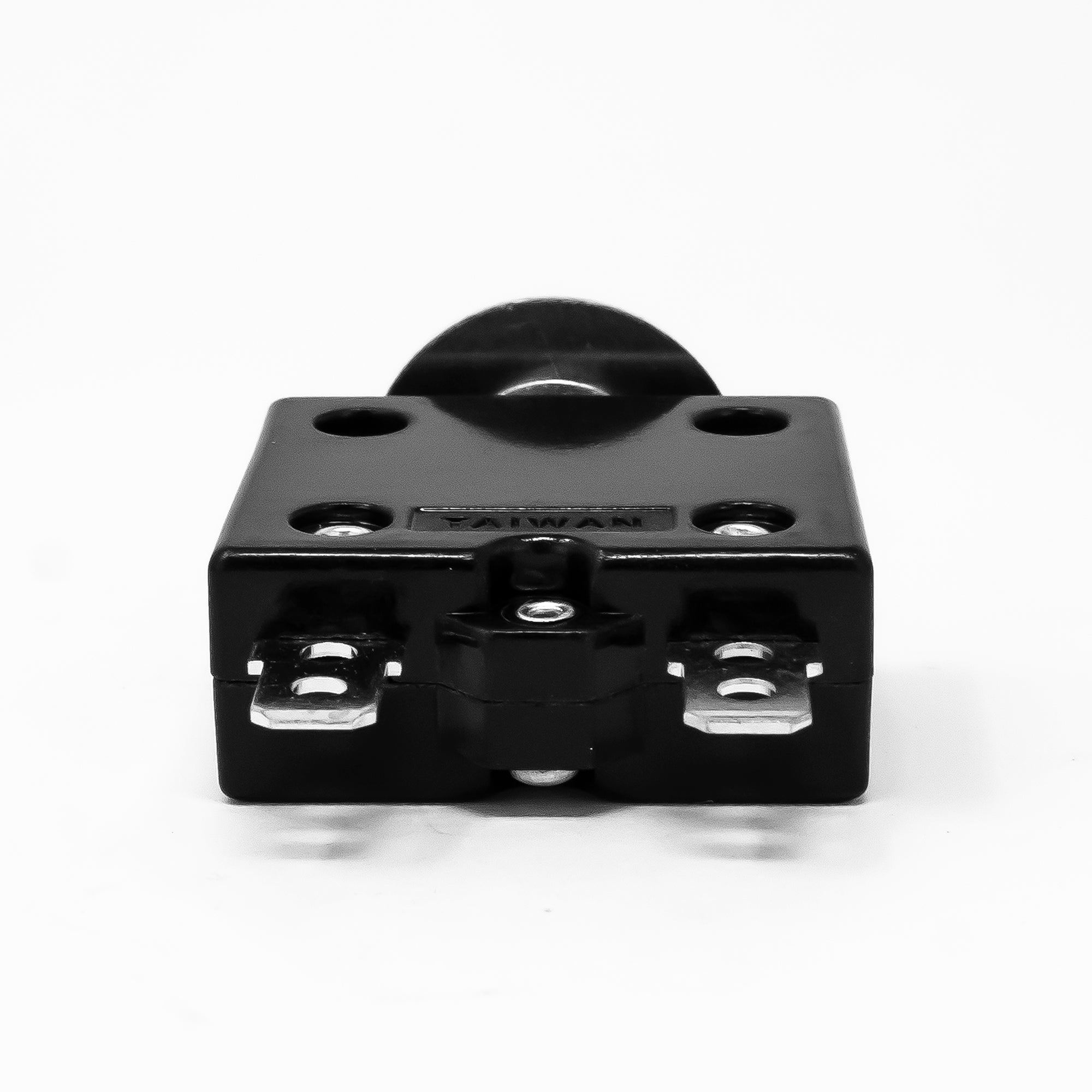

Terminal Type: Male Quick Connect Terminals

PRODUCT NUMBER: FO-1679
