Pacific Windlass Kit, Vertical 600 Watts, 12V DC, 3-Strand Rope, Galvanized Steel HT G4 Chain, Swivel and Shackle - FO3931-C3

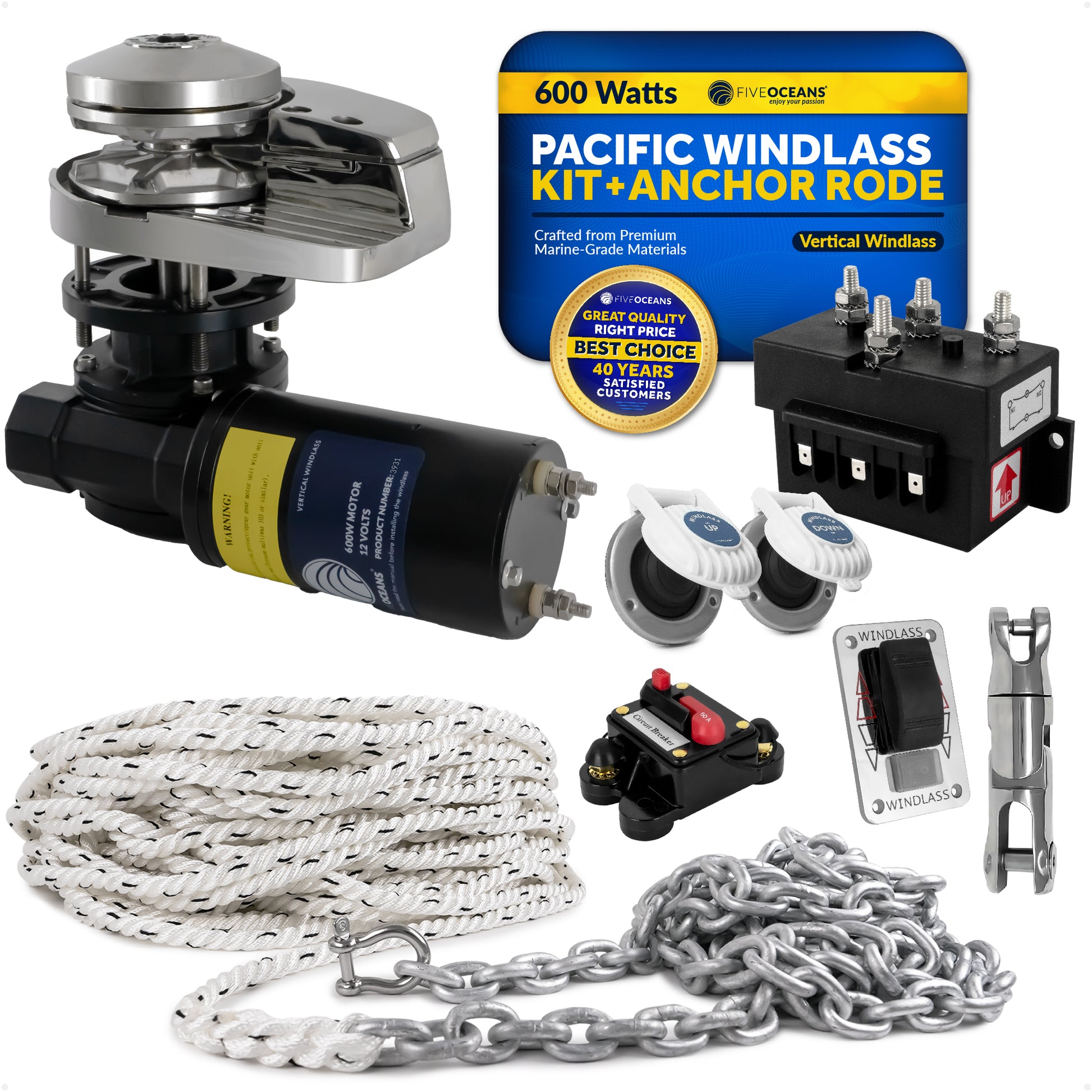

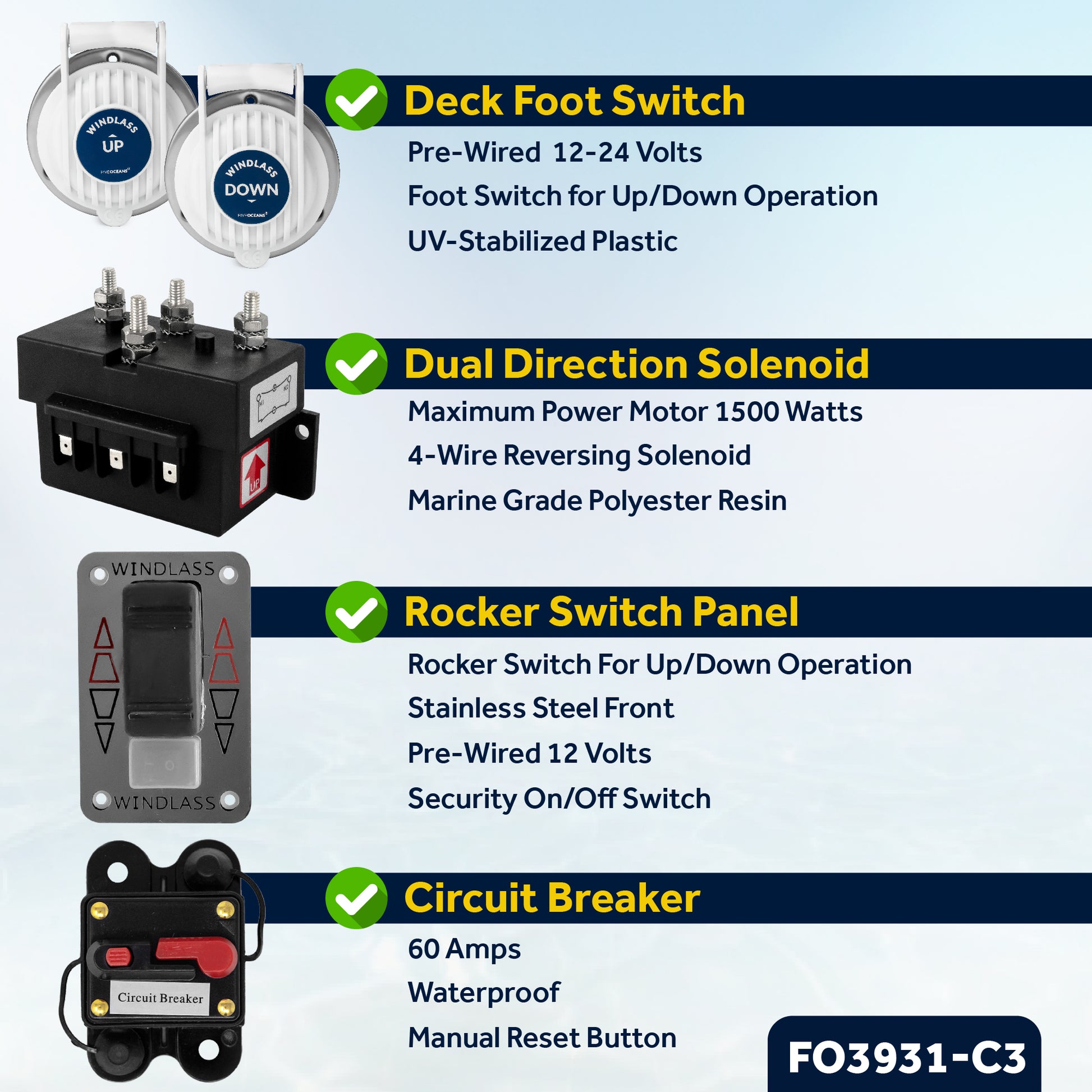

WINDLASS ANCHOR KIT INCLUDES: Pacific 600 Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 600W. Gypsy: Chain and Rope, 4-Wire Solenoid, 60A Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Anchor Rode Nylon Three Strand 1/2 in x 200 ft, Galvanized HT G4 Chain 1/4 in x 15 ft, Screw Pin Bow Shackle Stainless Steel 1/4 inches, Multi-directional Anchor Double Swivel Connector, Up to 1/2 in. Chain, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.

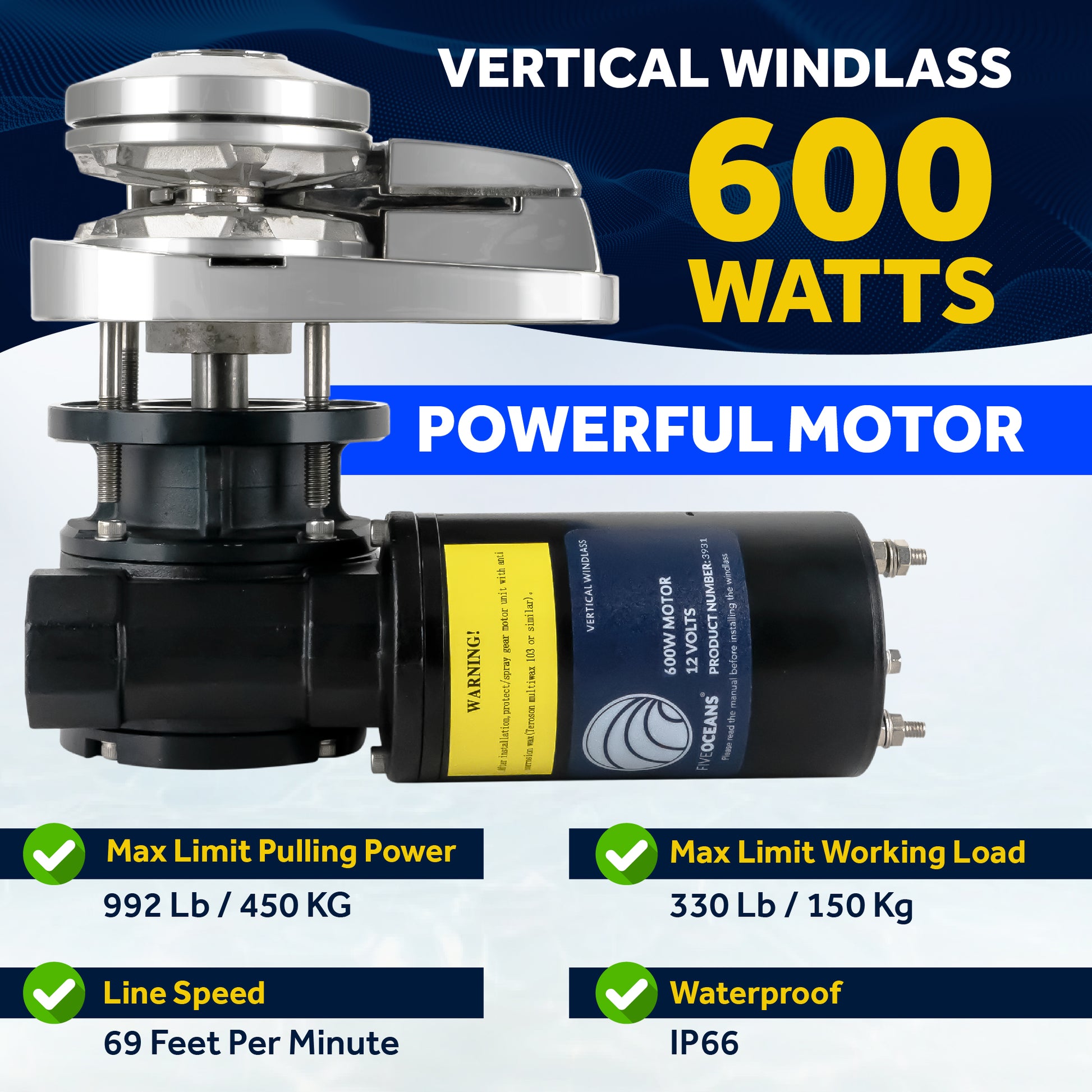

ANCHOR WINDLASS HIGH-PERFORMANCE MOTOR: The High-Power 600 Watts provides a maximum pulling power of 992 Lb / 450 Kg and a maximum working load of 330 Lb / 150 Kg. It allows a drop speed of 69 feet per minute. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.

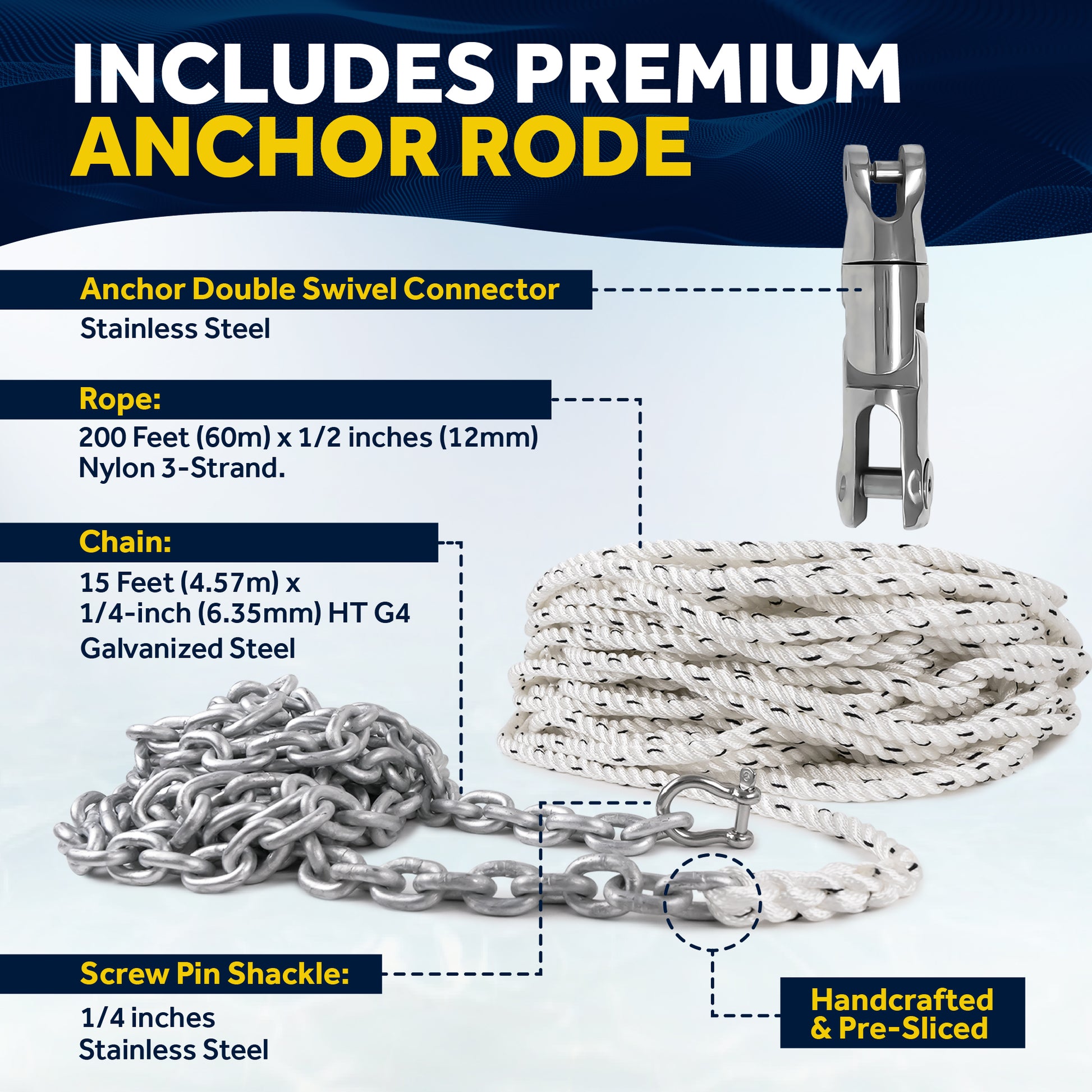

ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 1/4 Inch HT G4. Rope: 1/2 Inch (12mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.

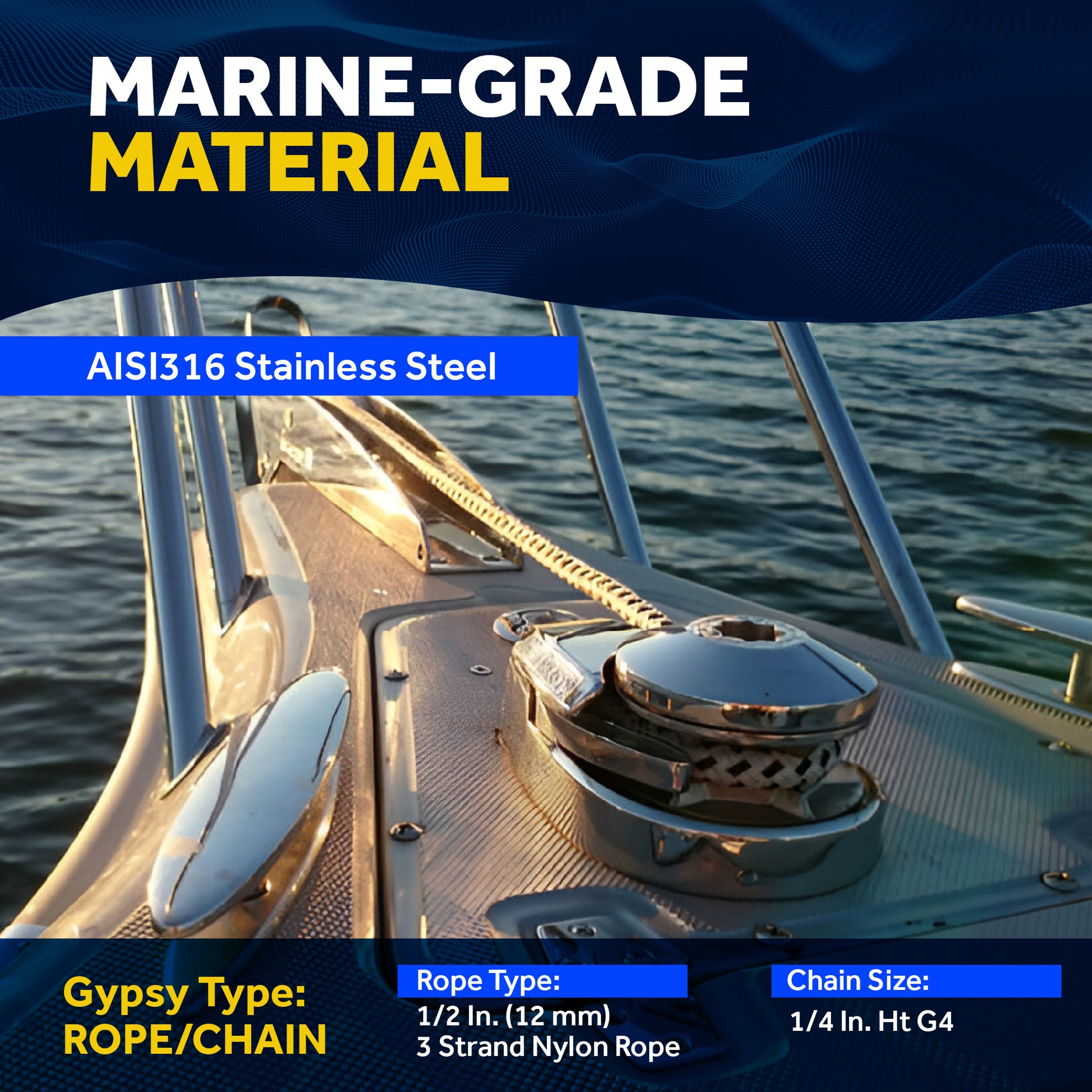

MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they can withstand the high-load strain.

VERTICAL WINDLASS INSTALLATION: Anchor windlass for boats Under-Deck installation. 4 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. Deck thickness up to 1 3/8 Inch (35 mm). Features a vertical rotation about the deck which allows a reduced volume above the deck as the electric motor and the gearbox are sitting in the chain locker. To offer the best performance and functionality, we recommend this Vertical Windlass 900W for boats up to 35 Ft / 10 m depending on the boat style.

TECHNICAL SPECIFICATIONS:

Motor Power: 600 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 992 Lb / 450 Kg
Pulling Power: 330 Lb / 150 Kg
Maximum Limit Working Load: 330 Lb / 150 Kg
Working Load: 110 Lb / 50 Kg
Line Speed: 69 Feet per Minute
Current Draw: 45 Amps
Circuit Breaker: 60 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand

[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.

Five Oceans/Baron USA will not be responsible if the products are used under unusual weather and sea conditions.

PRODUCT NUMBER: 3931-C3
