Folding Eye Pad, Medium - FO4190
Five Oceans

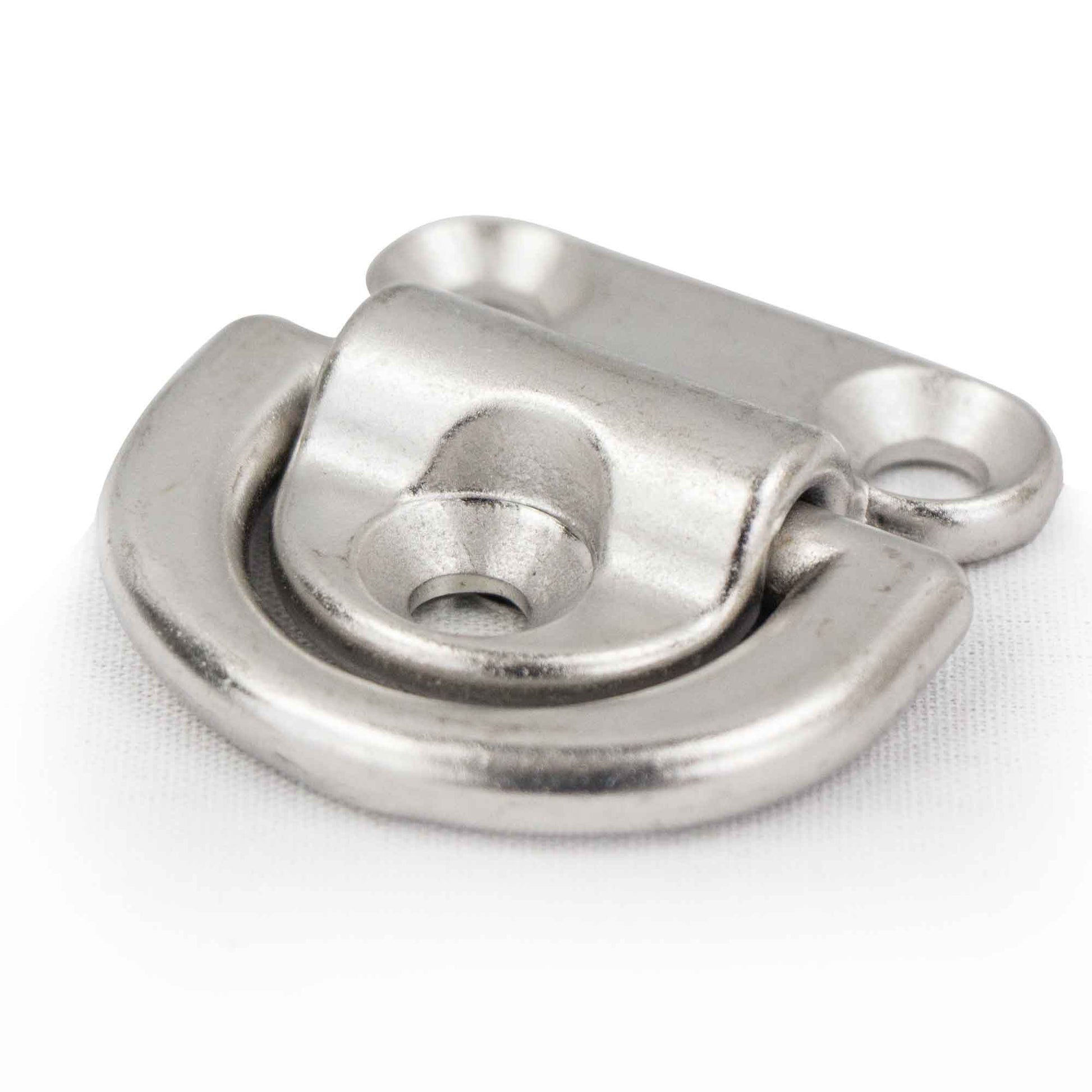

These Five Oceans stainless steel folding pad eyes have a fold down and
fold up function. Ideal for lifting eyes on trailerable boats, foredeck pad
eyes for staysail tacks, for guys and jack lines. Requires three flathead
bolts or machine screws.

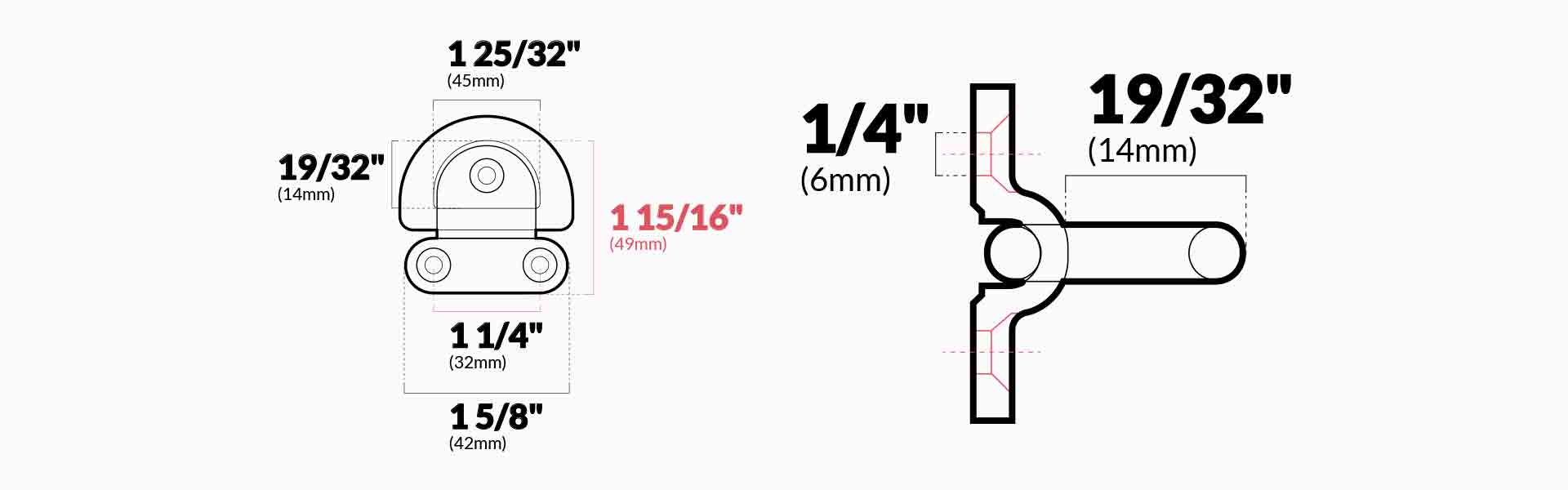

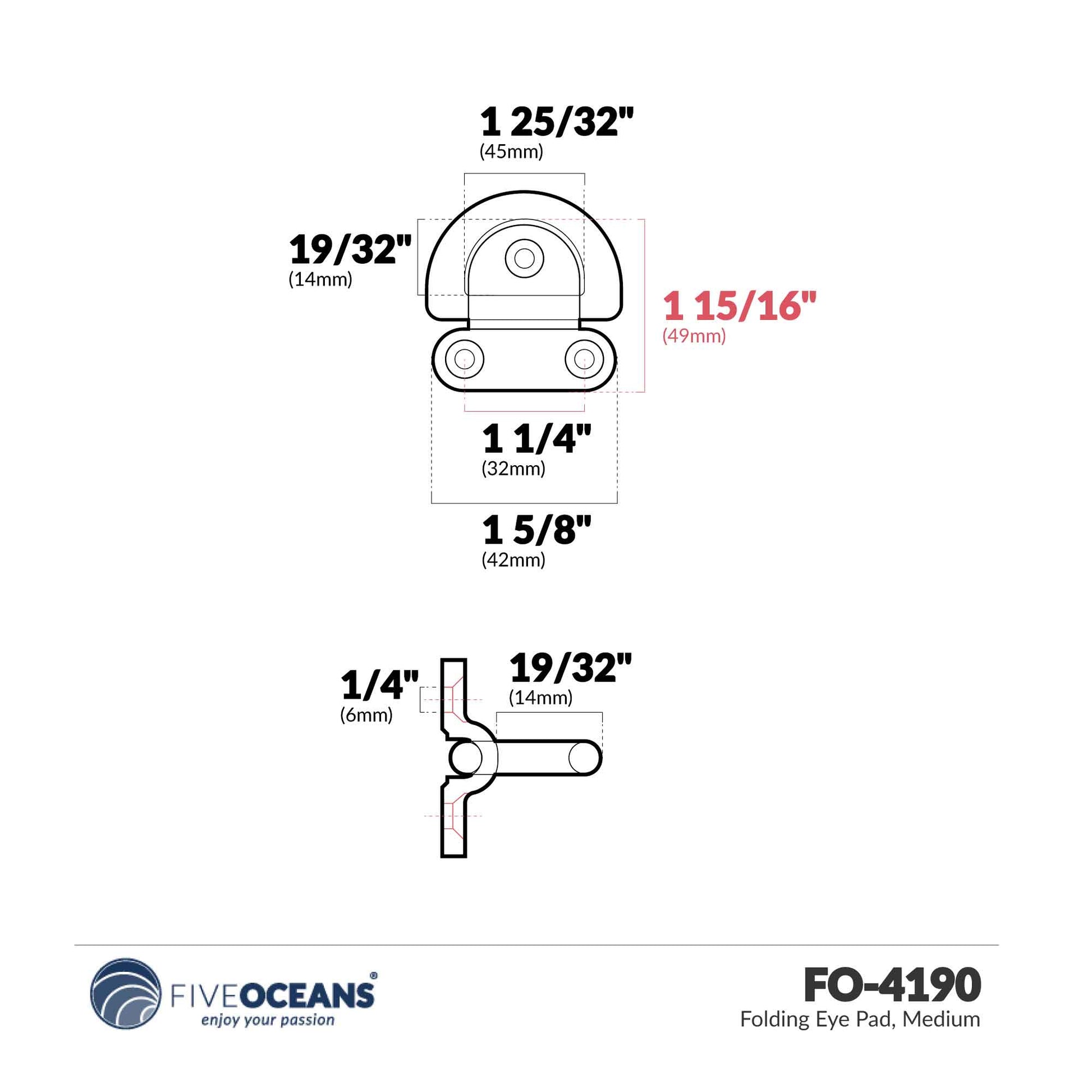

SPECIFICATIONS:
Width of Base (a): 1 5/8" (42mm)
Hole Center, Side (b): 1 1/4" (32mm)
Opening Height (c): 35/64" (14mm)
Overall Width of Ring (d): 1 25/32" (45mm)
Length (e): 1 13/16" (46mm)
Hole Center, Front/Back (f): 1 1/4" (32mm)
Fastener Hole Diameter (dd): 1/4" (6mm)
Ring Diameter (DD): 1/4" (6mm)
Weight (g): 2.1 oz (0.06kg)
Material: AISI 316 Stainless Steel
Type: Pad Eye
PRODUCT NUMBER: FO-4190
fold up function. Ideal for lifting eyes on trailerable boats, foredeck pad
eyes for staysail tacks, for guys and jack lines. Requires three flathead
bolts or machine screws.
SPECIFICATIONS:
Width of Base (a): 1 5/8" (42mm)
Hole Center, Side (b): 1 1/4" (32mm)
Opening Height (c): 35/64" (14mm)
Overall Width of Ring (d): 1 25/32" (45mm)
Length (e): 1 13/16" (46mm)
Hole Center, Front/Back (f): 1 1/4" (32mm)
Fastener Hole Diameter (dd): 1/4" (6mm)
Ring Diameter (DD): 1/4" (6mm)
Weight (g): 2.1 oz (0.06kg)
Material: AISI 316 Stainless Steel
Type: Pad Eye
PRODUCT NUMBER: FO-4190
