Five Oceans anchor connectors are manufactured with great quality, beautiful polish and smooth contours. Stainless steel ensures that the shape remains intact at loads that meet or exceed the deformation point (unlike cast stainless steel). These double swivels are forged from tough stainless steel for extremely high mechanical performance in premier ocean racing and commercial marine applications. With a Five Oceans swivel connector attached to your anchor the chain won't get twisted any more. They are designed with an oval shape for perfect sliding through the roller.

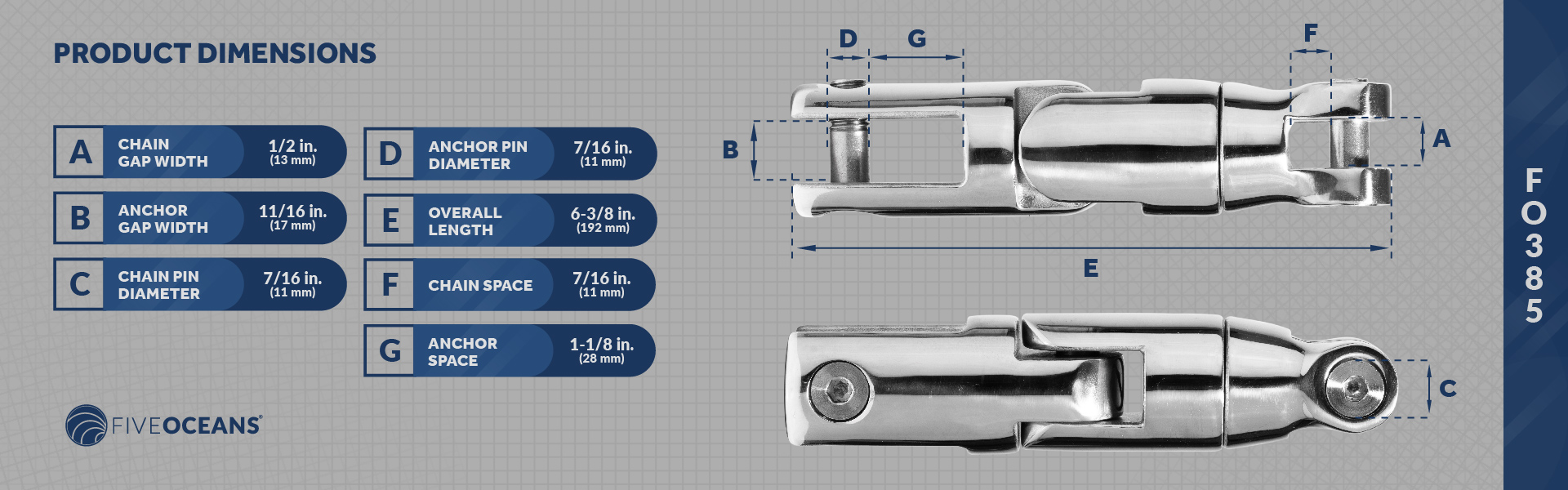

Chain Gap Width (A): 1/2 inch (12.7mm)
Anchor Gap Width (B): 11/16 inch (17.70mm)
Chain Pin Diameter (C): 7/16 inch (11mm)
Anchor Pin Diameter (D): 7/16 inch (11mm)
Overall Length (E): 6 3/8 inches (161.92mm)
Anchor Double Swivel Up to 1/2 inch Chain
Working Load 7930 Lbs (3600 Kgs)
Breaking Load 15870 Lbs (7200 Kgs)
Material: AISI316 Stainless Steel Highly polished corrosion resistant
IMPORTANT NOTICE: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.
Five Oceans/Baron USA will not be responsible if the products are used under unusual weather and sea conditions.
PRODUCT NUMBER: FO-385
One (1) Year Warranty
We take enjoyment in the products we make and guarantee the buyer that all Five Oceans products are ready to handle the extreme conditions of the open sea or terrain. However, we also know things can happen that's why we've got you covered for a year.
Click Here to read the warranty document
