Electric Hoist Trolley Up to 2200 lb (1 ton), I-Beam Links, 6 ft Remote Control wire, 5 ft power cord length, 120 Volts / 60 hz, 220 W power FO4412
Five Oceans

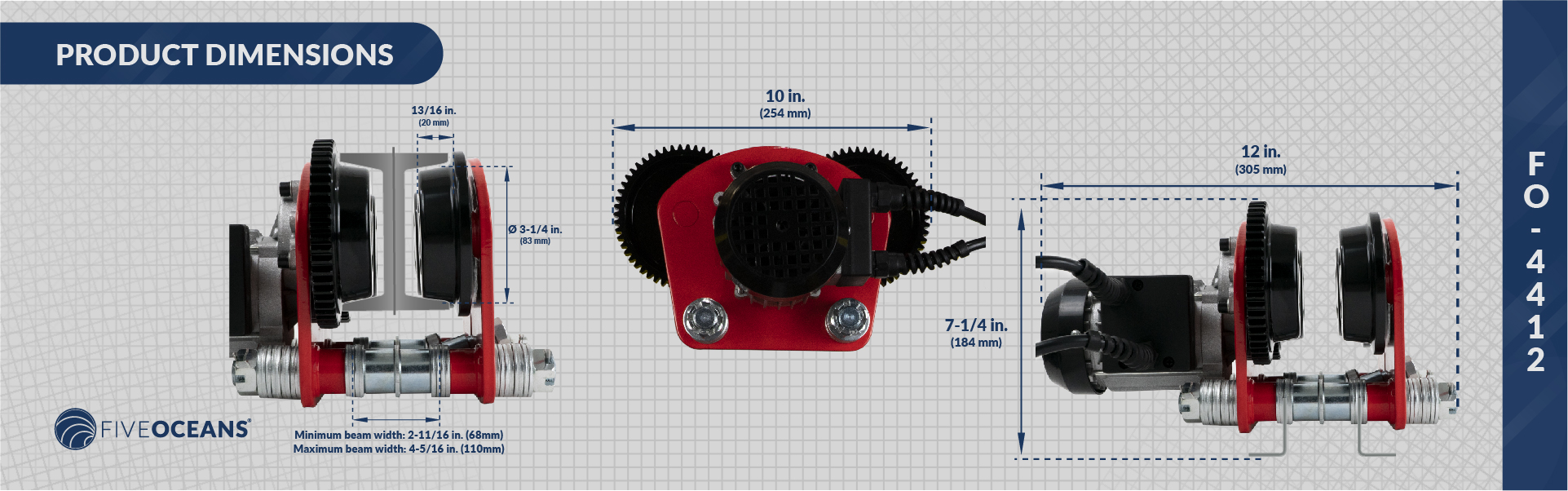

This Five Oceans Electric Trolley with I-steel beam links can be used with an electric hoist working on the straight track. Perfect for lifting small engines, transmissions, large shop tools, warehouses, and cargo berths. Rated loading weight is up to 2200 lb (1 tn) and tested loading weight is 2800 lb (1.250 tn). Flexible rotation, low resistance, high tensile strength. Recommended for Five Oceans Electric Hoists of 440, 880, 1100, 1320, or 2200 lb. Easy to install and easy to use. Voltage: 120V/60Hz. Input Power: 220 watts. Wheel Diameter: 3-1/4 inches (83mm). Steal Beam recommended dimensions: Width of track: 2-11/16 inches (68mm) to 4-5/16 inches (110mm). Model of steel beam: 10-22. It comes with Two (2) I-Beam Links, a 6 ft (1.8m) Remote Control wire, and a 5 ft (1.5m) power cord length.
SPECIFICATIONS:
Rated Volt: 120V / 60 Hz
Input Power: 220 Watts
Rated loading weight: Up to 2200 LB (1000 KG)
Mounting Height with a 6FT Remote Control: 9FT (3M)
Moving Speed:54 ft/min (16.4m/min)
The minimum radius of crooked track: 3.3 FT (1M)
Model of Steel Beam: 10-22 (10 Height -22 Est Weight)
Track width: 2-11/16 inch to 4-5/16 inch (68 to 110mm)
With balance wheels for smooth running
Patented design
Remote Control Lenght: 6 ft (1.8m)
Power Cord length: 5 ft (1.5m)
Two (2) I-Beam Links (Included)
PRODUCT NUMBER: 4412
SPECIFICATIONS:
Rated Volt: 120V / 60 Hz
Input Power: 220 Watts
Rated loading weight: Up to 2200 LB (1000 KG)
Mounting Height with a 6FT Remote Control: 9FT (3M)
Moving Speed:54 ft/min (16.4m/min)
The minimum radius of crooked track: 3.3 FT (1M)
Model of Steel Beam: 10-22 (10 Height -22 Est Weight)
Track width: 2-11/16 inch to 4-5/16 inch (68 to 110mm)
With balance wheels for smooth running
Patented design
Remote Control Lenght: 6 ft (1.8m)
Power Cord length: 5 ft (1.5m)
Two (2) I-Beam Links (Included)
PRODUCT NUMBER: 4412
PRODUCT WARRANTY
One (1) Year Warranty
We take enjoyment in the products we make and guarantee the buyer that all Five Oceans products are ready to handle the extreme conditions of the open sea or terrain. However, we also know things can happen that's why we've got you covered for a year.
