Note: Any low-permeation tank may become pressurized when exposed to direct sunlight or any other source of heat. Under these conditions, you may see the tank expand or bulge. Do not place the tank in a confined area that prevents this normal expansion. Pressurized low-permeation fuel system components require a thread sealant specifically designed for the unique conditions they create to maintain a leak-proof seal at their threaded connections. Tape-type thread sealants will not withstand the pressurized conditions potentially created within low-permeation systems.
12 Gallon Fuel Tank/Portable with Gauge - Product Number: FO-4269
(1)Brass Fuel Hose Barb 1/4" NPT x 5/16" - Product Number: FO-4278
(1) Hose Clamps - Product Number: FO-2324
This Five Oceans’ tank will virtually eliminate fuel evaporation and loss, saving you money while saving the environment. With a design that virtually eliminates fuel evaporation and loss by containing fuel vapor within the tank instead of venting it wastefully to the atmosphere.In addition, similar to automotive industry systems, this tank features a tethered, ratcheted fuel cap with a high-flow automatic vacuum valve that ensures optimal flow under all conditions. Not to mention, a 90° 1/4" NPT fuel fitting and an easy-to-read, slosh-resistant, high-contrast fuel gauge that accurately monitors the level of remaining fuel without requiring the removal of the fuel cap. The seamless, injection molded, multi-layer construction provides a 5% vapor space beyond the stated fuel capacity to safely allow for fuel thermal expansion and an additional 2-Cycle oil capacity to achieve a 1:16 ratio mix.
Capacity: 12 Gallon
Above/Below Deck: Above Deck
Features: Mechanically-Vented Cap

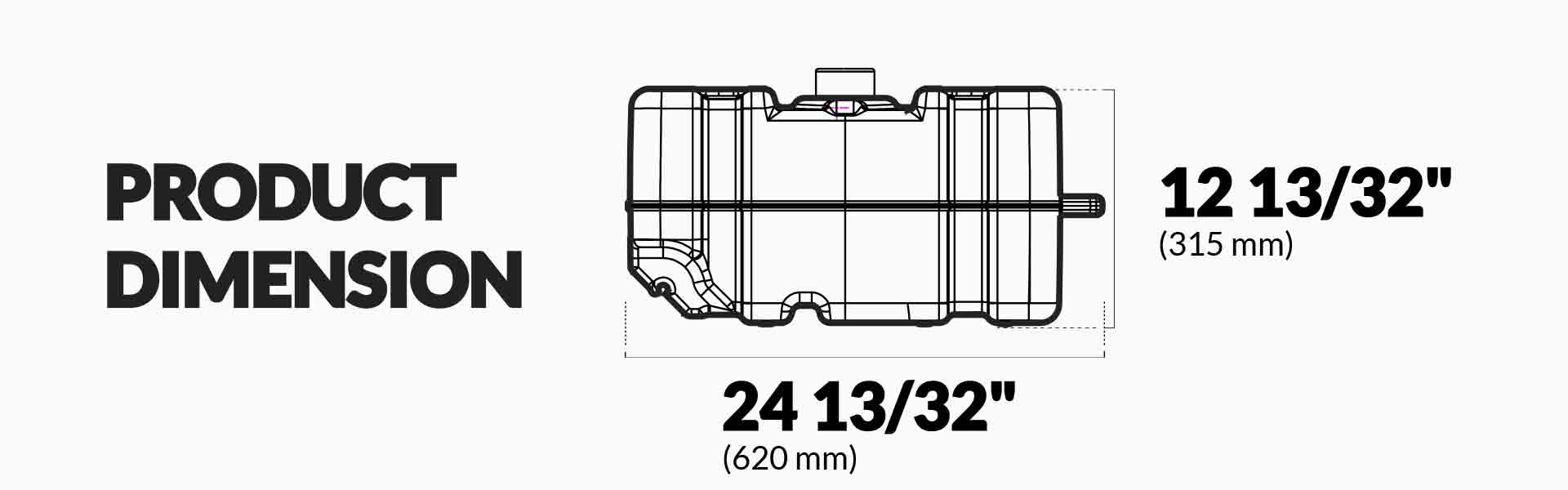

Dimensions: 24 13/32" (620mm) x 14 11/64" (360mm) x 12 13/64" (310mm)
Fittings: 1/4" Inch NPT
Securing System: Portable
This Five Oceans' fuel line connector can be installed with confidence using our pipe to hose fittings. Perfectly crafted for fuel systems, these pipe hose fitting are the ideal use toward Five Oceans' fuel tank family or any aluminum/plastic tank. This machined brass fitting features 1/4" NPT thread and sharp-edged barbs for 5/16" hose to provide excellent grip. Brass construction resists corrosion. We recommend the use of fuel compatible thread sealant to prevent galling and provide the best possible connection.
Size: 1/4" NPT male to 5/16" hose
Type: Fuel Hose Barbs
PRODUCT NUMBER: FO-4269-C2
