1100 lbs Overhead Electric Hoist Crane FO-4016

Five Oceans

Product image 11100 lbs Overhead Electric Hoist Crane FO-4016
Product image 21100 lbs Overhead Electric Hoist Crane FO-4016
Product image 31100 lbs Overhead Electric Hoist Crane FO-4016
Product image 41100 lbs Overhead Electric Hoist Crane FO-4016
Product image 51100 lbs Overhead Electric Hoist Crane FO-4016
Product image 61100 lbs Overhead Electric Hoist Crane FO-4016
Product image 71100 lbs Overhead Electric Hoist Crane FO-4016
Product image 81100 lbs Overhead Electric Hoist Crane FO-4016

Regular price $125.88

PRODUCT # 4016

GOOD TO KNOW
Safe & Secure Checkout
24/7 Customer Support
Same Day Dispatch (Order by 2pm)
Product Video:


The Five Oceans 4016 550/1000-lb. Electric Hoist is designed for a powerful and reliable lifting of small engines, transmissions, large shop tools and more - perfect for the garage, shop, farm or job site. The 1000-watt electric motor is powerful enough to make this hoist the perfect solution for lifting heavy engines, bulky loads, heavy building materials, tools or machinery. Not to mention, a stop bracket and line blocker, the durable 39.4-foot wire cable and the heavy-duty, handheld tethered remote control for easy and safe operation. Choose single-line capacity, and lift up to 550 pounds at a rate of 33 feet per minute. With double-line capacity, this hoist can lift up to 1000 pounds at a rate of 16 feet per minute with the included pulley hook. Your days of hand cranking and manual operation are over once you own this powerful electric hoist.

CERTIFIED - for operations in USA and CANADA: Intertek ETL & Underwriters Laboratories (and UL Canada) certifications meeting UL1340:2016 Ed.3 and Standard(s) for Electric Cranes & Hoists (CAN/CSA-C22.2 No. 33). IP rating of 40

SPECIFICATIONS

Single Line Lift Weight: 550 lb.
Double Line Lift Weight: 1100 lb.
Single Line Lift Speed: 33.0 ft/min
Double Line Lift Speed: 16.5 ft/min
Single Line Lift Height: 38.0 ft.
Double Line Lift Height: 19.0 ft.
Cable Material: Galvanized Steel
Cable Length: 39.4 ft.
Cable Diameter: 11/64 in. (4.2mm)
Cable construction type: 18x7+1x7, commonly known as 19x7
Cord Length: 5 ft Power; 6 ft Remote / (Optional 20 FT Remote Control (Code FO-4319) is available for Electric Hoist Codes FO-3781, FO-3782, FO-3820 and FO-4016)
Stop Bracket: Yes
Line Blocker: Yes
Double Line Pulley Included: Yes
Tethered Control Length: 5.5 ft.
Voltage: 120V AC
Horsepower: 1.3 hp
Max Current at Full Load: 8.5A
Duty Cycle Intermittent: (S3-25%)

INCLUDES:

(1x) 1100 lb Electric Hoist
1(x) Double Line Pulley
2(x) Mounting Bracket
1(x) Instruction

PRODUCT NUMBER: FO-4016

DOWNLOAD PRODUCT MANUAL(S): product manual for five oceans sku product.sku

PRODUCT WARRANTY

Open tab

One (1) Year Warranty

We take enjoyment in the products we make and guarantee the buyer that all Five Oceans products are ready to handle the extreme conditions of the open sea or terrain. However, we also know things can happen that's why we've got you covered for a year.

Click Here to read the warranty document



Reviews

Open tab

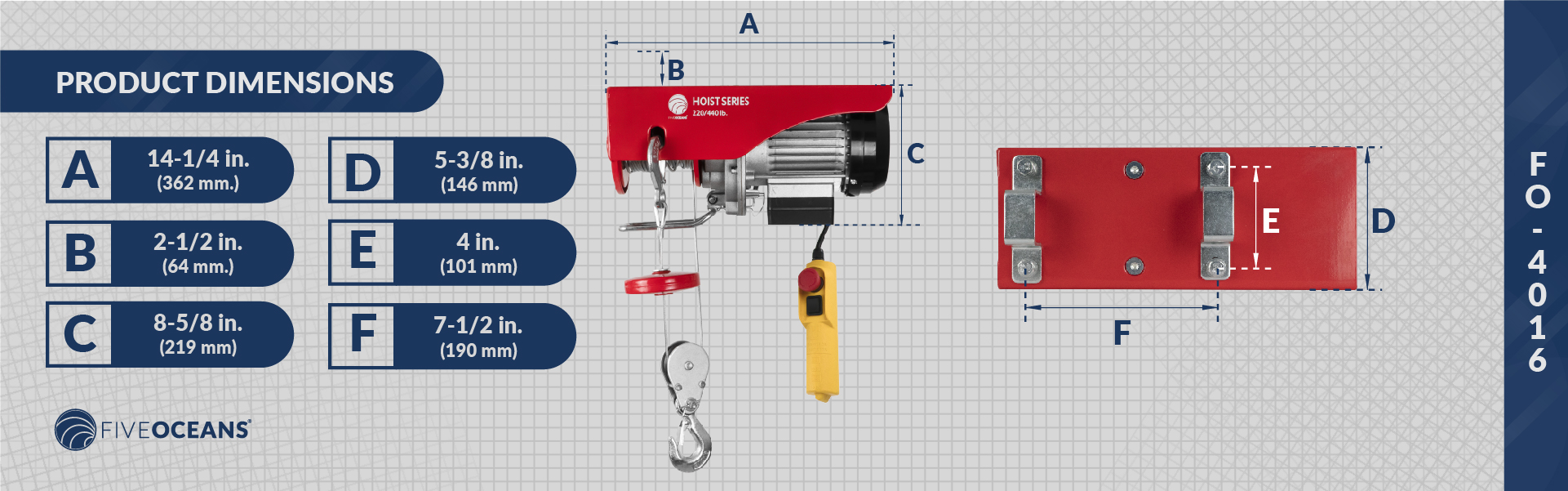

product_dimensions
